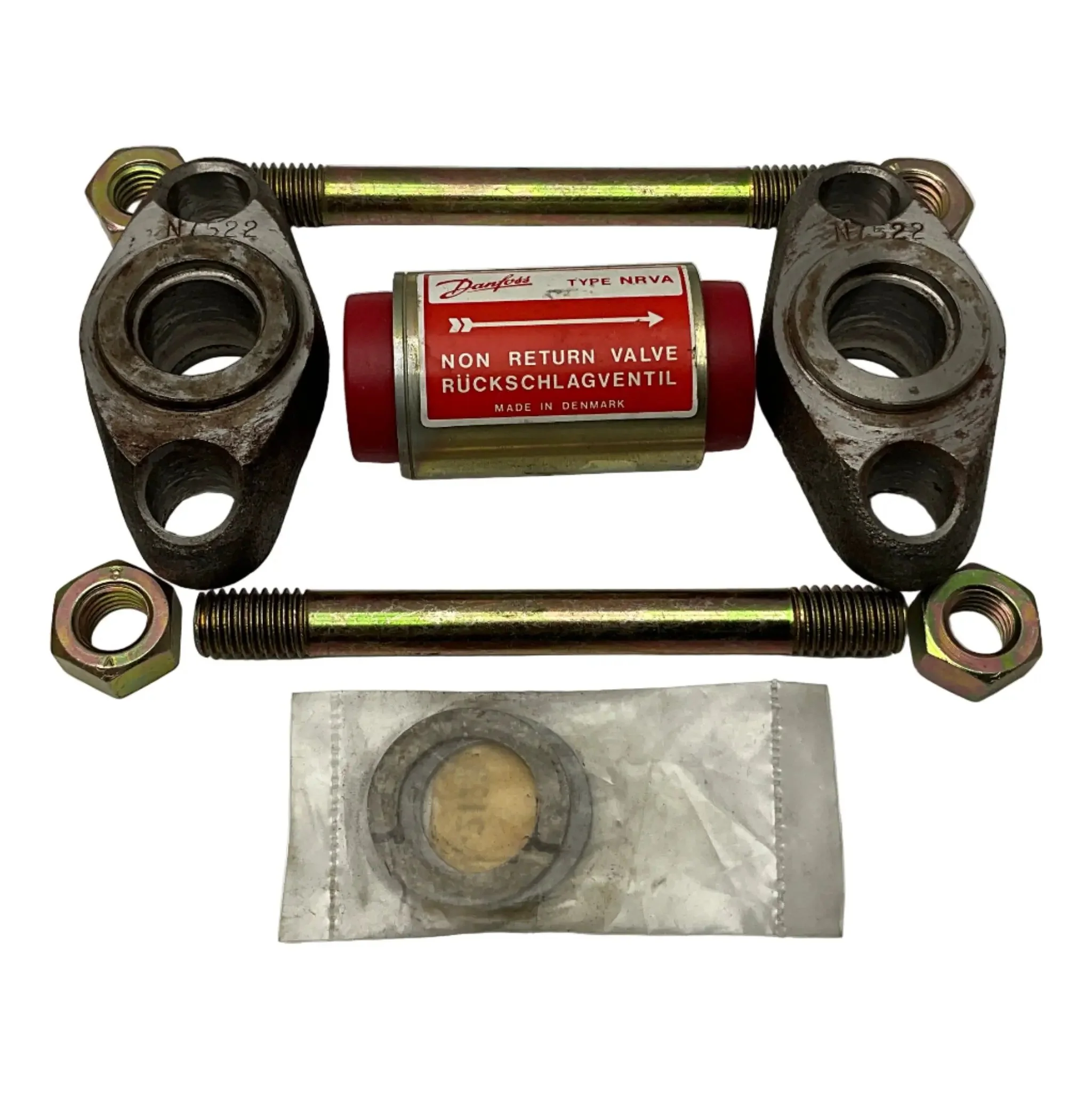

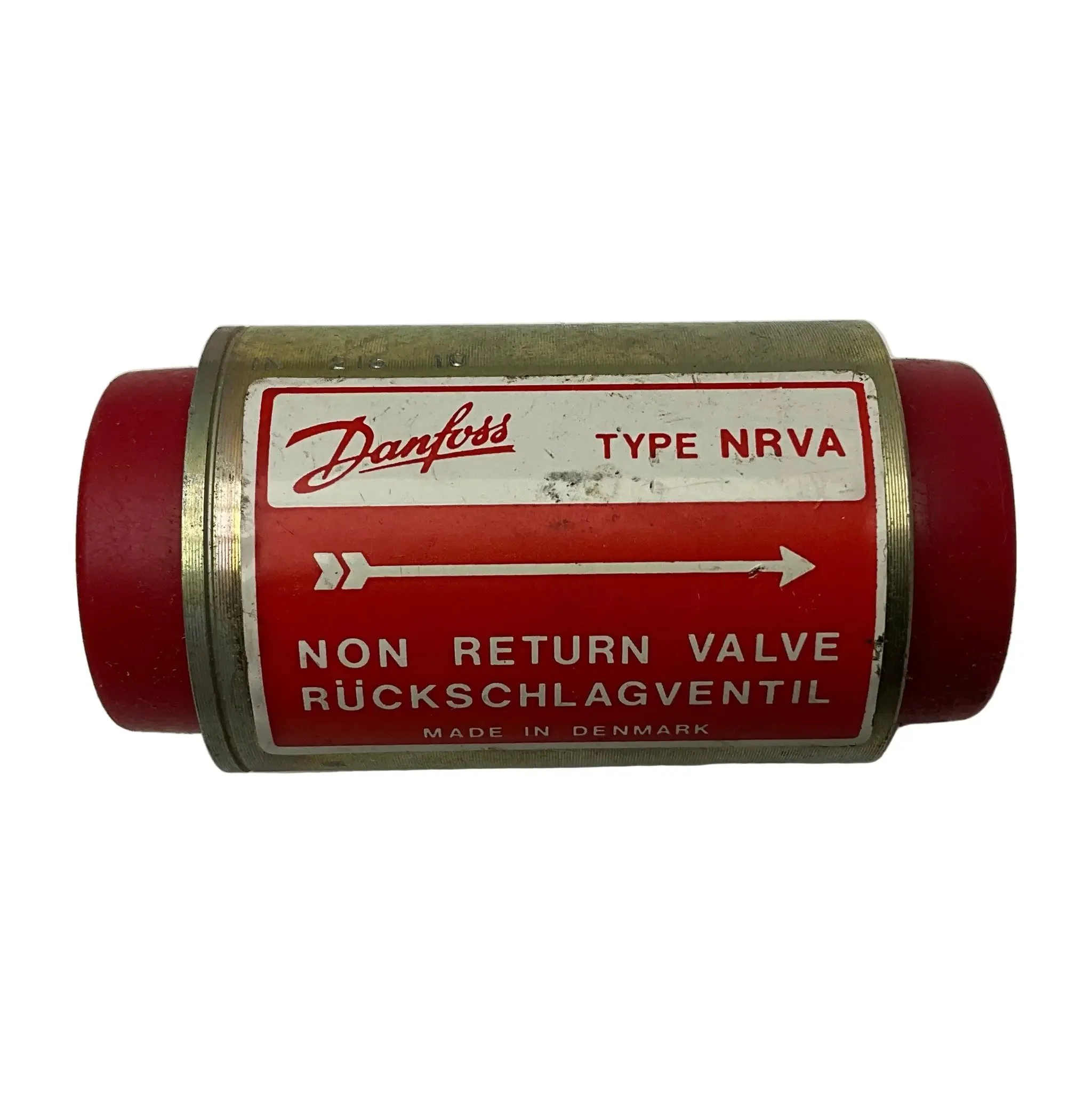

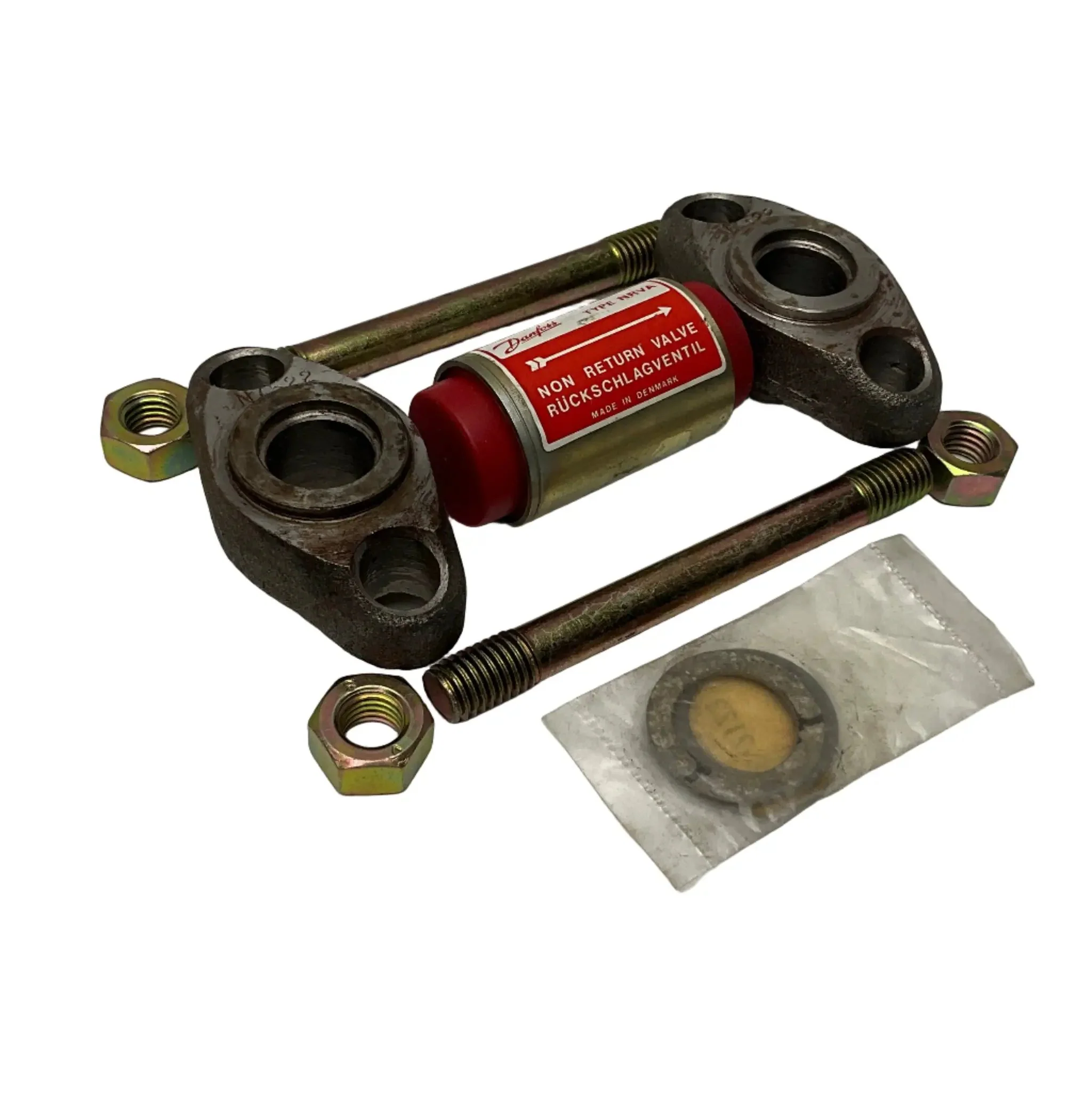

Danfoss NRVA 20 020-2001 Check Valve

Brand: Danfoss
Model: NRVA 20
Type: Check Valve
Part Number: 020-2001

Technical Specs:
- Valve Type: Piston-type check valve, non-return
- Connection Size: 20 mm (3/4 in)
- Connection Type: Butt weld
- Connection Standard: EN 10220
- Body Material: Steel (suitable for low temperatures)
- Piston Material: Not specified
- Maximum Working Pressure: 40 bar
- Temperature Range: -50°C to +140°C
- Refrigerants: HCFC, HFC, R717 (ammonia); flammable hydrocarbons not recommended
- Flow Direction: Unidirectional
- Additional Features:
  - Damping piston to handle pulsations (e.g., in compressor discharge lines)
  - Classified for Fluid Group 1, Category II
  - Recommended for closed circuits only
- Certifications: DNV, CRN, BV, EAC, CE

Dimension:
- Connection Size: 20 mm

- Overall Dimensions: 120 x 80 x 40mm

Weight: 1 kg

Country of Origin: Denmark

HS Code: 8481.30
