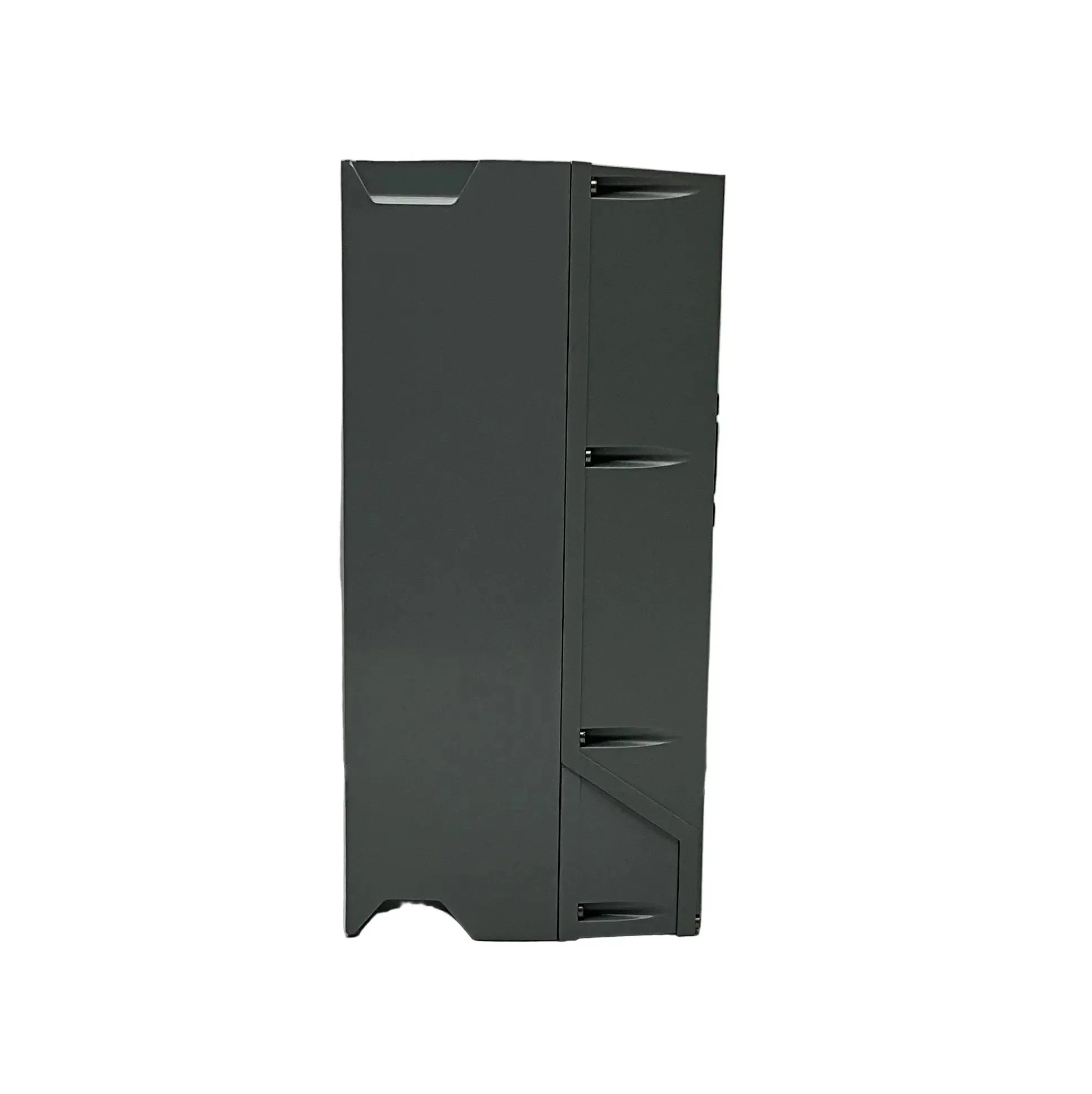

Danfoss VLT Aqua Drive Variable Frequency Drive - 131F0849

Brand: Danfoss
Model: 131F0849
Type: Variable Frequency Drive (VFD)
Part Number: FC-202P7K5T4E66H1XGXXXXSXXXXAXBXCXXXXDX

Technical Specs:
Rated Power: 7.5 kW (10 HP)
Rated Voltage: 380-480 V AC, 3-phase
Rated Current: 16 A
Frequency: 50/60 Hz
Stopping Method: No brake chopper
Mains: No mains option
Enclosure Rating: IP66 / NEMA 4X
Operating Temperature: -10°C to +45°C
Storage Temperature: -40°C to +70°C
Humidity: 0 to 95% RH
Additional Features: Cascade controller for multiple pumps, built-in pump protection, automatic energy optimization, graphical LCP (Local Control Panel) with Safe Stop option, not coated PCB, mains disconnect + fuse, latest release software

Dimensions: 420 x 240 x 200 mm

Weight: 14 kg

Country of Origin: Denmark

HS Code: 8504.40
