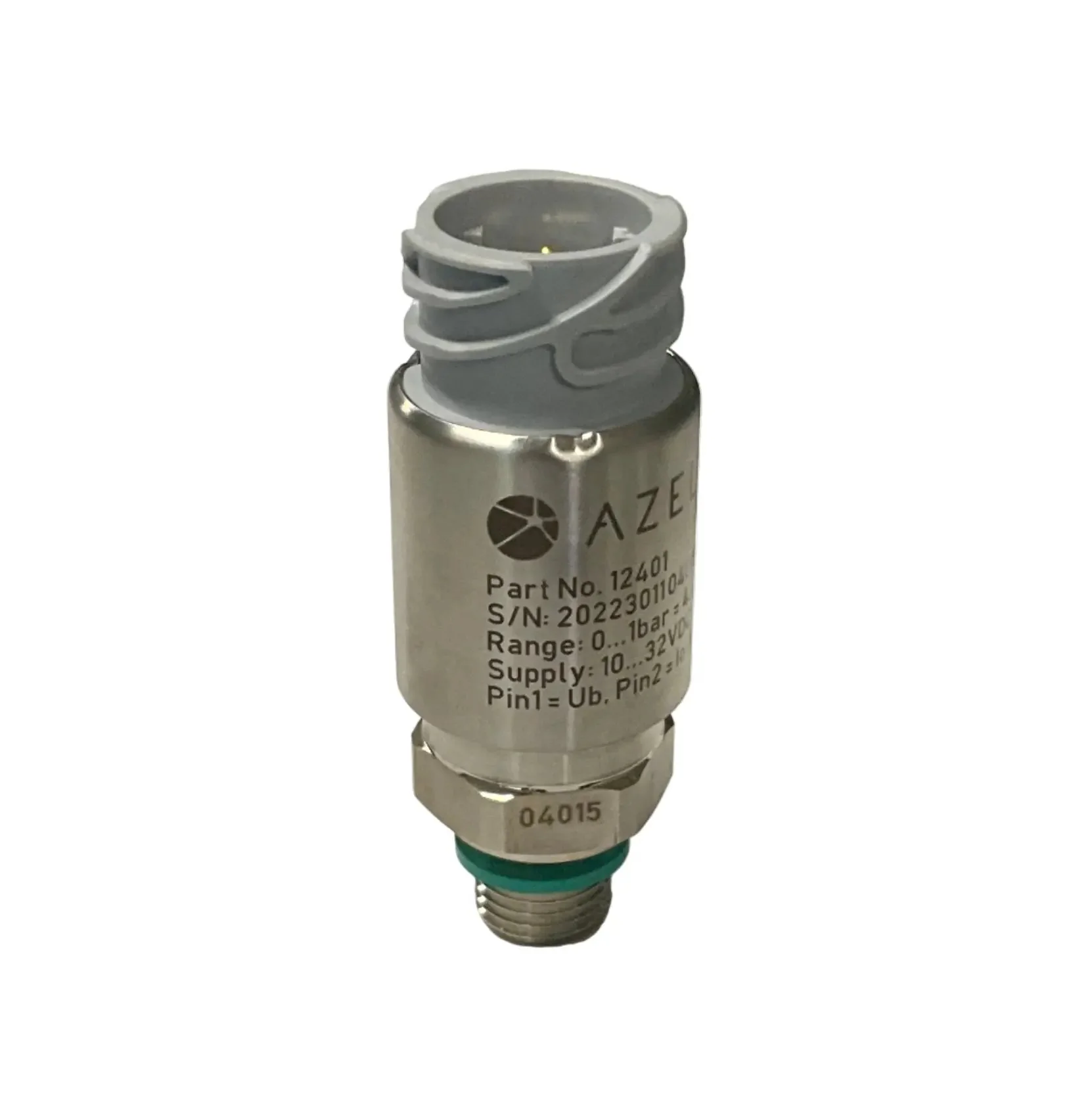

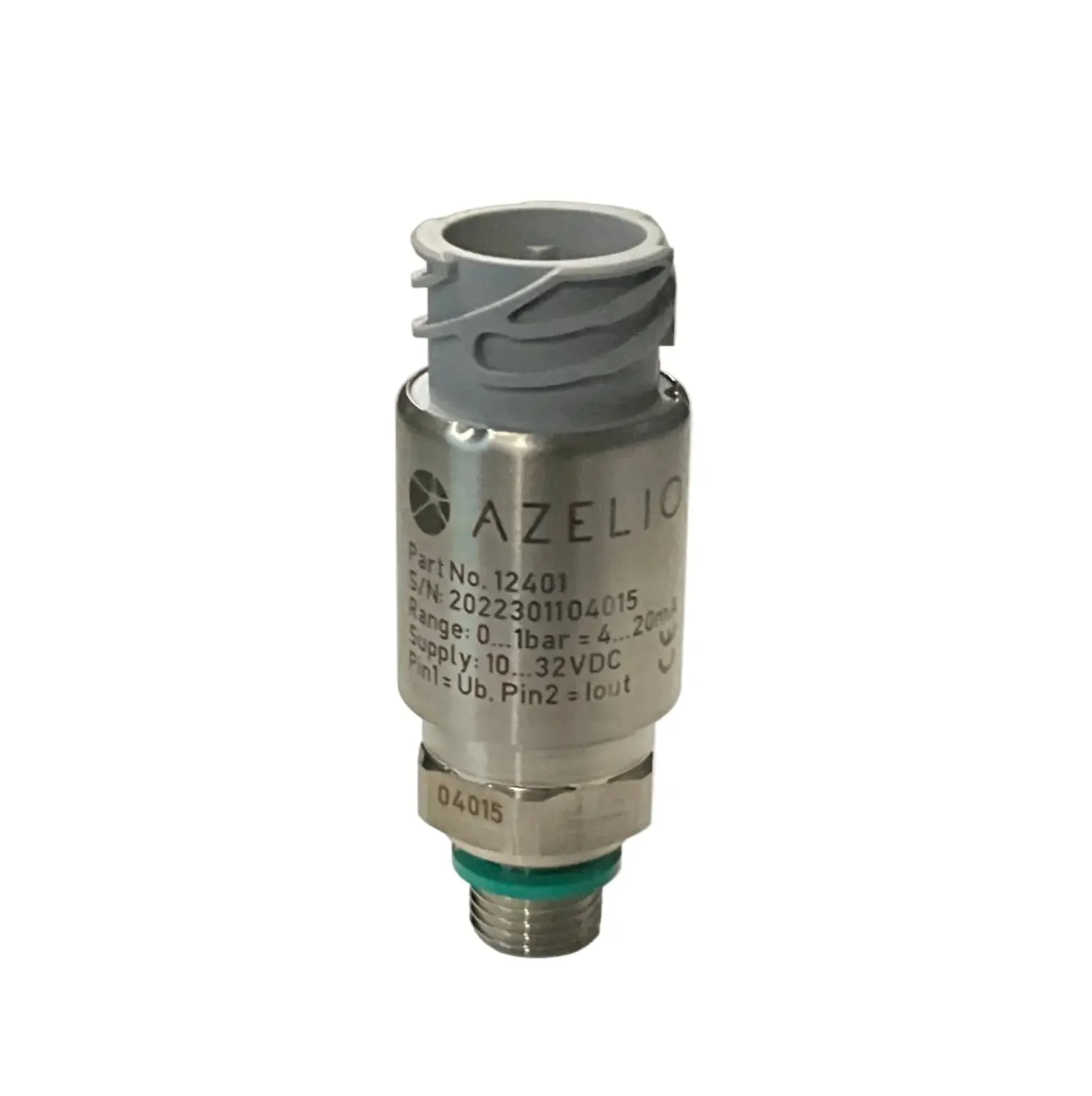

Danfoss Azelio Bayonet 4 Pin Pressure Transmitter

Brand: Danfoss Azelio
Model: Bayonet 4 pin
Type: Pressure Transmitter
Part Number: 12401

Technical Specs:
- Pressure Range: 0 to 1.0 bar
- Output Signal: 4-20 mA
- Accuracy: ≤ ±0.5% FS
- Supply Voltage: 9 to 32 V DC

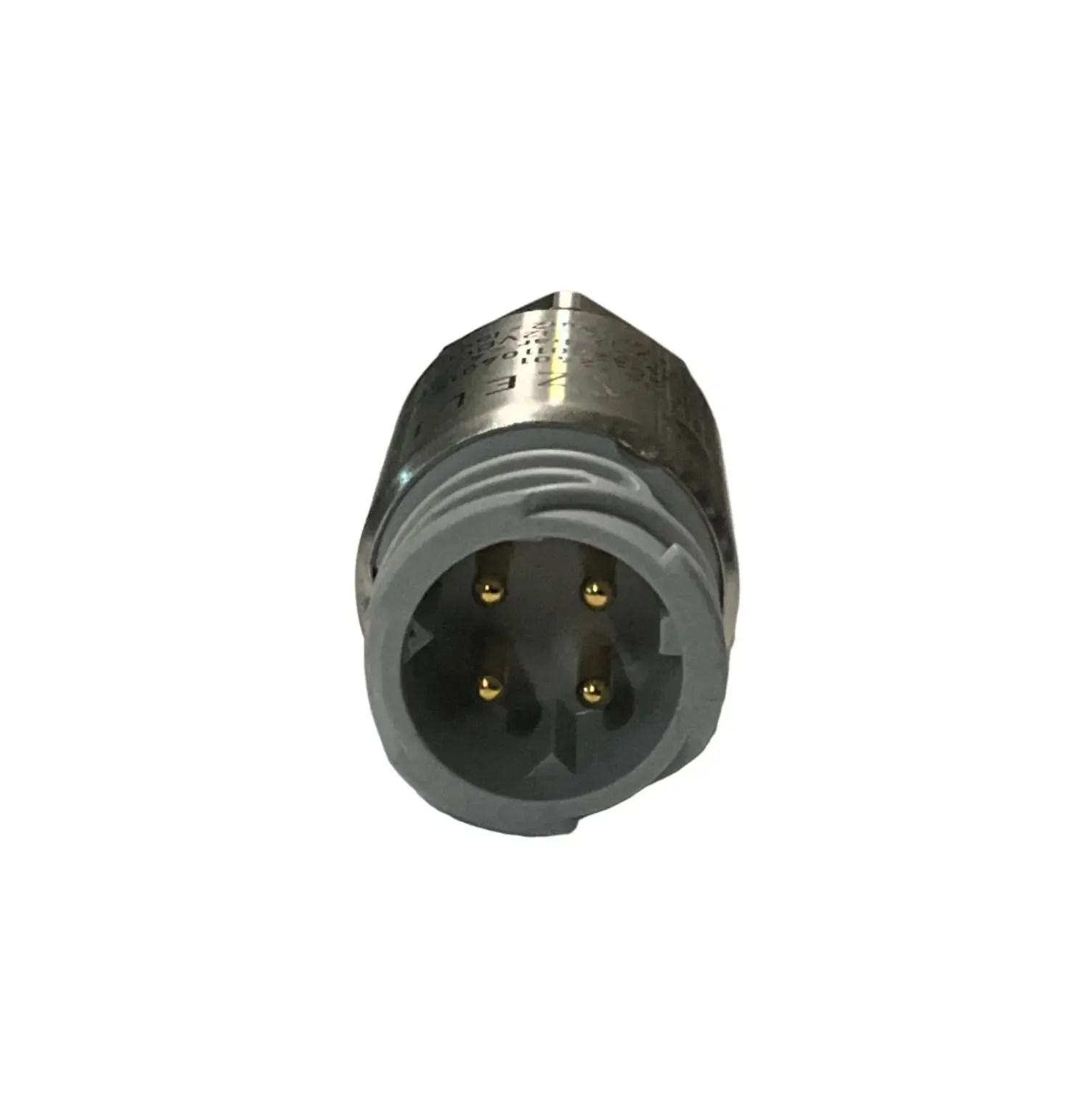

- Electrical Connection: Bayonet 4 pin

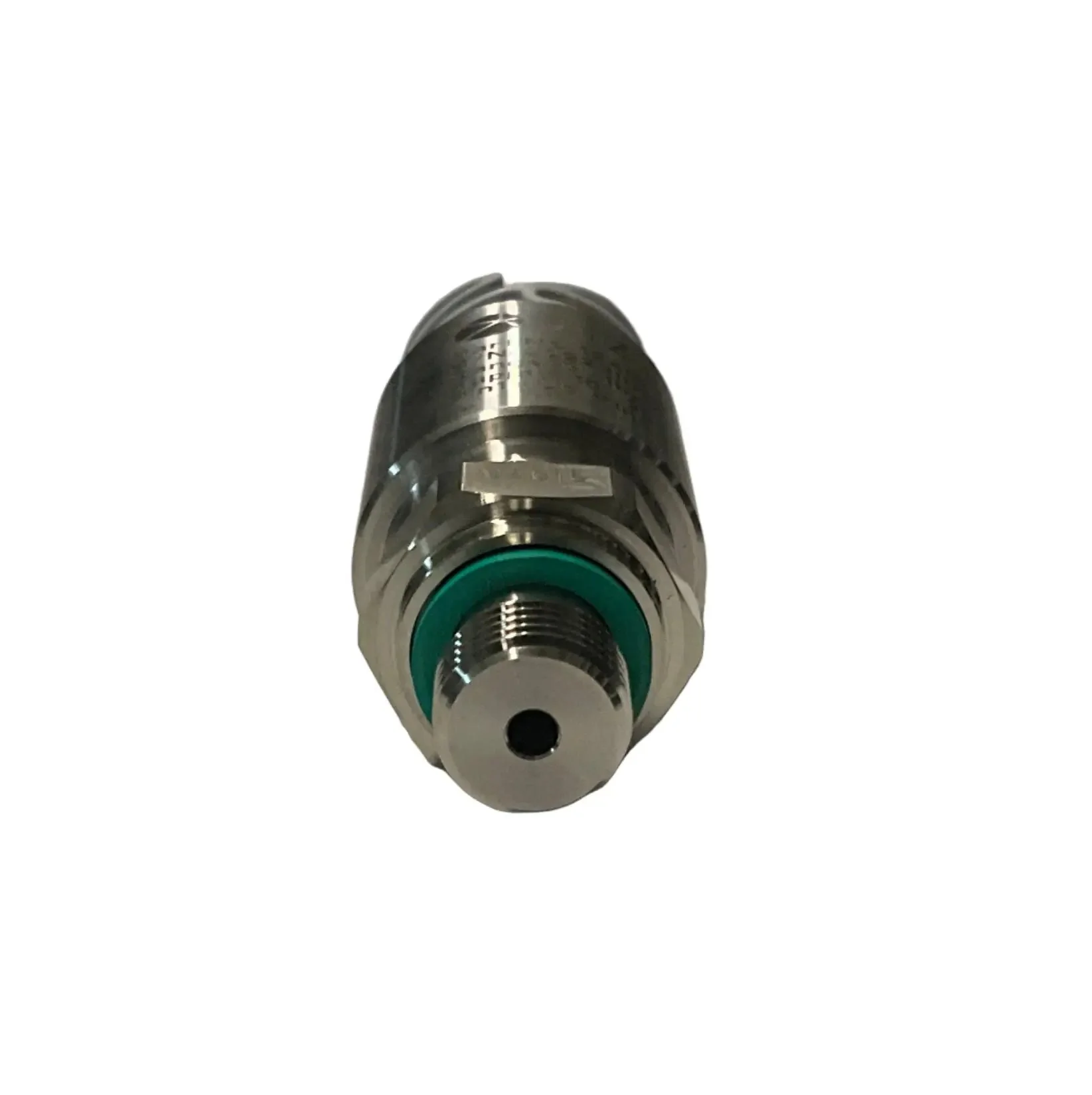

- Pressure Connection: G 1/4 (EN 837)
- Response Time: < 4 ms
- Overpressure Limit: 3 bar
- Burst Pressure: 6 bar
- Operating Temperature Range: -40°C to 85°C
- Media Temperature Range: -40°C to 100°C
- Enclosure Rating: IP65
- Wetted Parts Material: Stainless steel (AISI 316L)
- Housing Material: Stainless steel (AISI 316L)
- Vibration Stability: 20 g (10-2000 Hz, per IEC 60068-2-6)
- Shock Resistance: 500 g (1 ms, per IEC 60068-2-27)
- Additional Features:
  - Resistant to cavitation, liquid hammer, and pressure peaks
  - High electromagnetic compatibility (EMC/EMI) protection
- Certifications: CE, RoHS

Dimension: 75 x 30 x 30 mm

Weight: 110 g

Country of Origin: Denmark

HS Code: 9026.20
