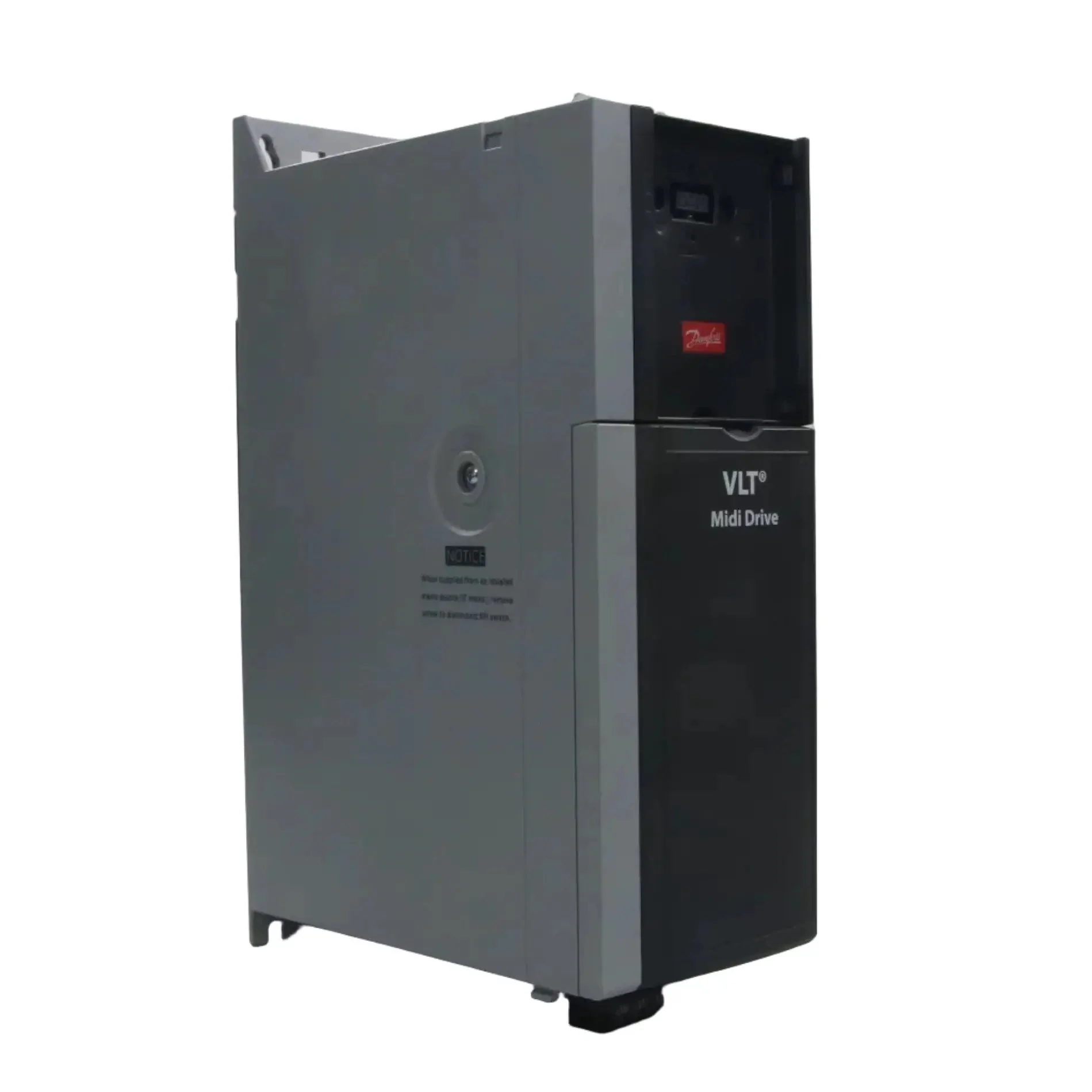

Danfoss VLT Midi Drive FC 280 Frequency Converter - 134U2983
- Brand: Danfoss
- Model: VLT Midi Drive FC 280
- Type: Frequency Converter
- Part number: 134U2983 (Danfoss catalog number for FC-280P3K0T4E20H1BXCXXXSXXXXAX)
- Technical specifications:
- Power rating: 3 kW (4 HP)
- Input voltage: 3 x 380–480 V AC 50/60 Hz
- Output voltage: 0–480 V AC
- Rated output current: 7.2 A
- Overload capability: 150% for 60 s
- Control mode: V/f control; sensorless vector control
- Enclosure: IP20
- RFI filter: Built-in
- Brake chopper: Integrated
- Cooling: Fan-cooled
- Display: None
- Interfaces:
- Analog/digital inputs/outputs
- USB port
- Additional features: Automatic motor adaptation (AMA); flying start; kinetic backup; PID controller; energy optimisation; compact book-style design; suitable for constant/variable torque applications
- Standards: IEC/EN 61800-3 (EMC); IEC/EN 61800-5-1 (safety); CE, UL, cULus, RCM approvals
Weight: 3.7 kg
Dimensions: 90 x 170 x 280 mm
Country of origin: Denmark
HS code: 8504.40
Original: $512.59
-70%$512.59
$153.78
Description
- Brand: Danfoss
- Model: VLT Midi Drive FC 280
- Type: Frequency Converter
- Part number: 134U2983 (Danfoss catalog number for FC-280P3K0T4E20H1BXCXXXSXXXXAX)
- Technical specifications:
- Power rating: 3 kW (4 HP)
- Input voltage: 3 x 380–480 V AC 50/60 Hz
- Output voltage: 0–480 V AC
- Rated output current: 7.2 A
- Overload capability: 150% for 60 s
- Control mode: V/f control; sensorless vector control
- Enclosure: IP20
- RFI filter: Built-in
- Brake chopper: Integrated
- Cooling: Fan-cooled
- Display: None
- Interfaces:
- Analog/digital inputs/outputs
- USB port
- Additional features: Automatic motor adaptation (AMA); flying start; kinetic backup; PID controller; energy optimisation; compact book-style design; suitable for constant/variable torque applications
- Standards: IEC/EN 61800-3 (EMC); IEC/EN 61800-5-1 (safety); CE, UL, cULus, RCM approvals
Weight: 3.7 kg
Dimensions: 90 x 170 x 280 mm
Country of origin: Denmark
HS code: 8504.40
