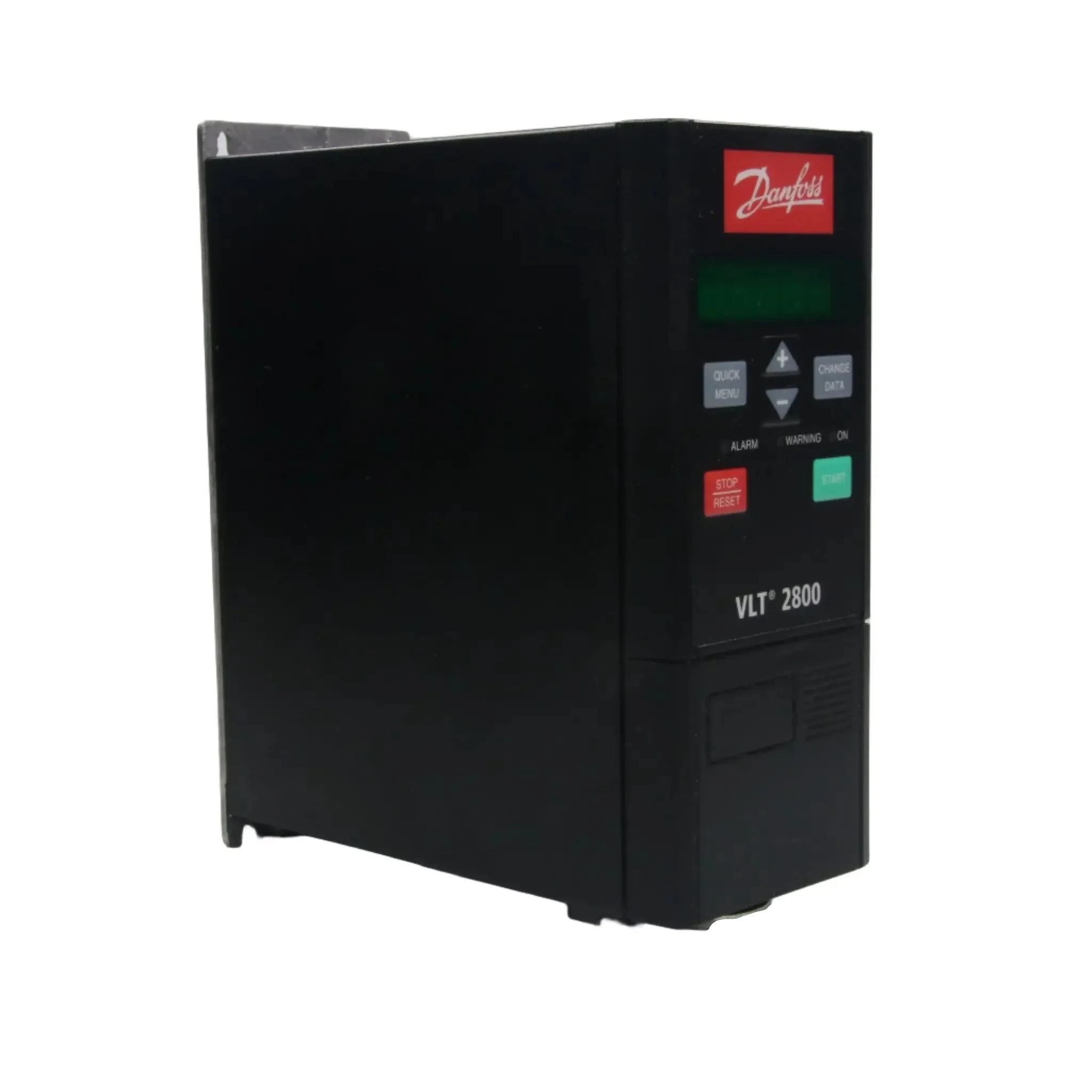

Danfoss Frequency Converter VLT 2800 - 195N1039

- Brand: Danfoss
- Model: VLT 2800
- Type: Frequency Converter (Variable Frequency Drive)
- Technical Specifications:

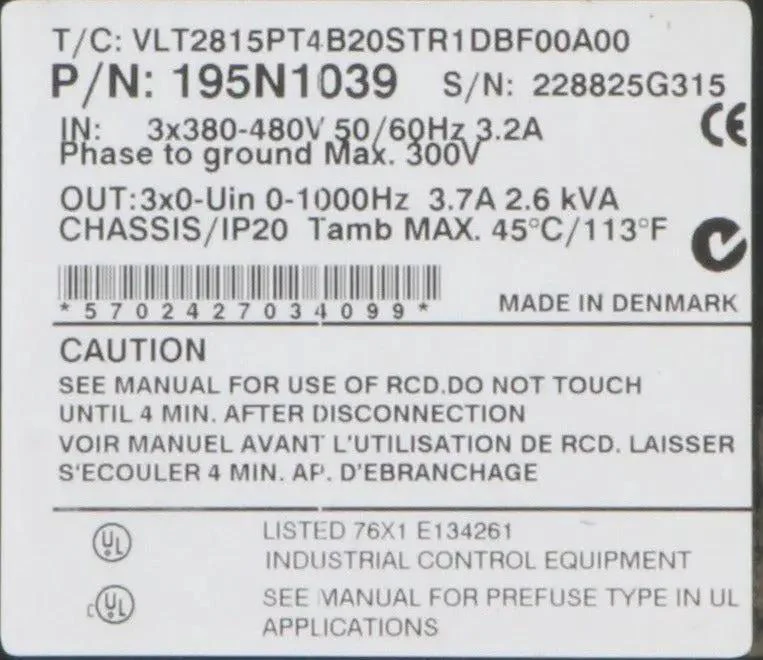

  - Part Number: 195N1039
  - Power Rating: 1.5 kW / 2.0 HP
  - Input Voltage: 3 x 380-480 V AC, 50/60 Hz
  - Input Current: 3.2 A
  - Output Voltage: 3 x 0 - Uin V (up to 480 V)
  - Output Frequency: 0-1000 Hz
  - Output Current: 3.7 A
  - Apparent Power: 2.6 kVA
  - Enclosure Rating: IP20
  - EMC Filter: Built-in (Class A1 per EN 55011)
  - Control: Modular design with power and control modules, side-by-side mounting
  - Safety Features: 100% earth fault protection, mains transient protection, galvanic isolation, switching on input and output
  - Communication: Supports DeviceNet, Profibus DP, Modbus RTU, Metasys bus
  - Functions: Precise stop, pump and wobble functions, PI controller, interrupt-based stop command for reduced deviation
  - Standards: CE compliant, suitable for industrial environments
- Dimensions: 220 x 170 x 80 mm
- Weight: 2.3 kg
- Country of Origin: Denmark
- HS Code: 85044082
