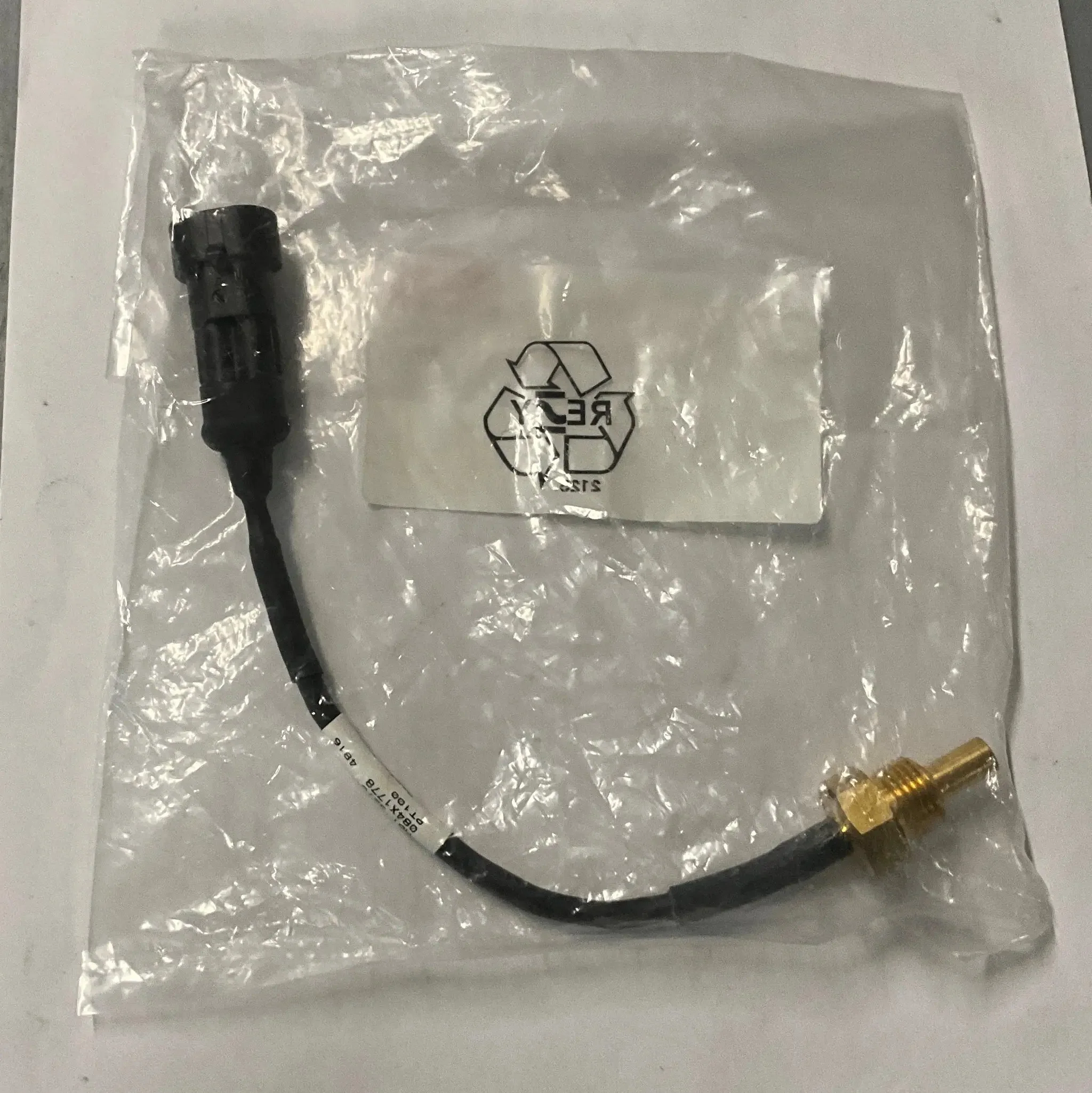

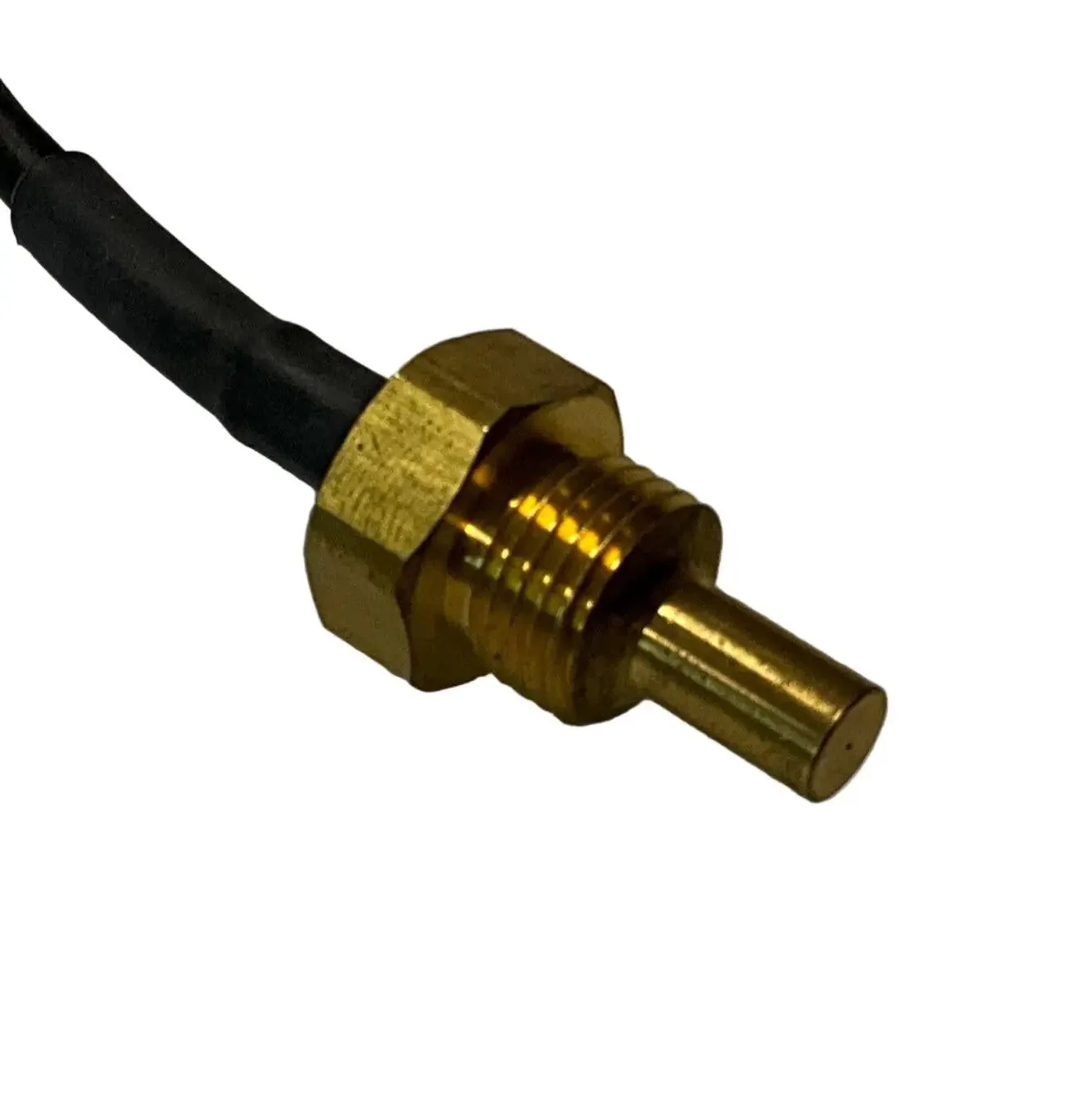

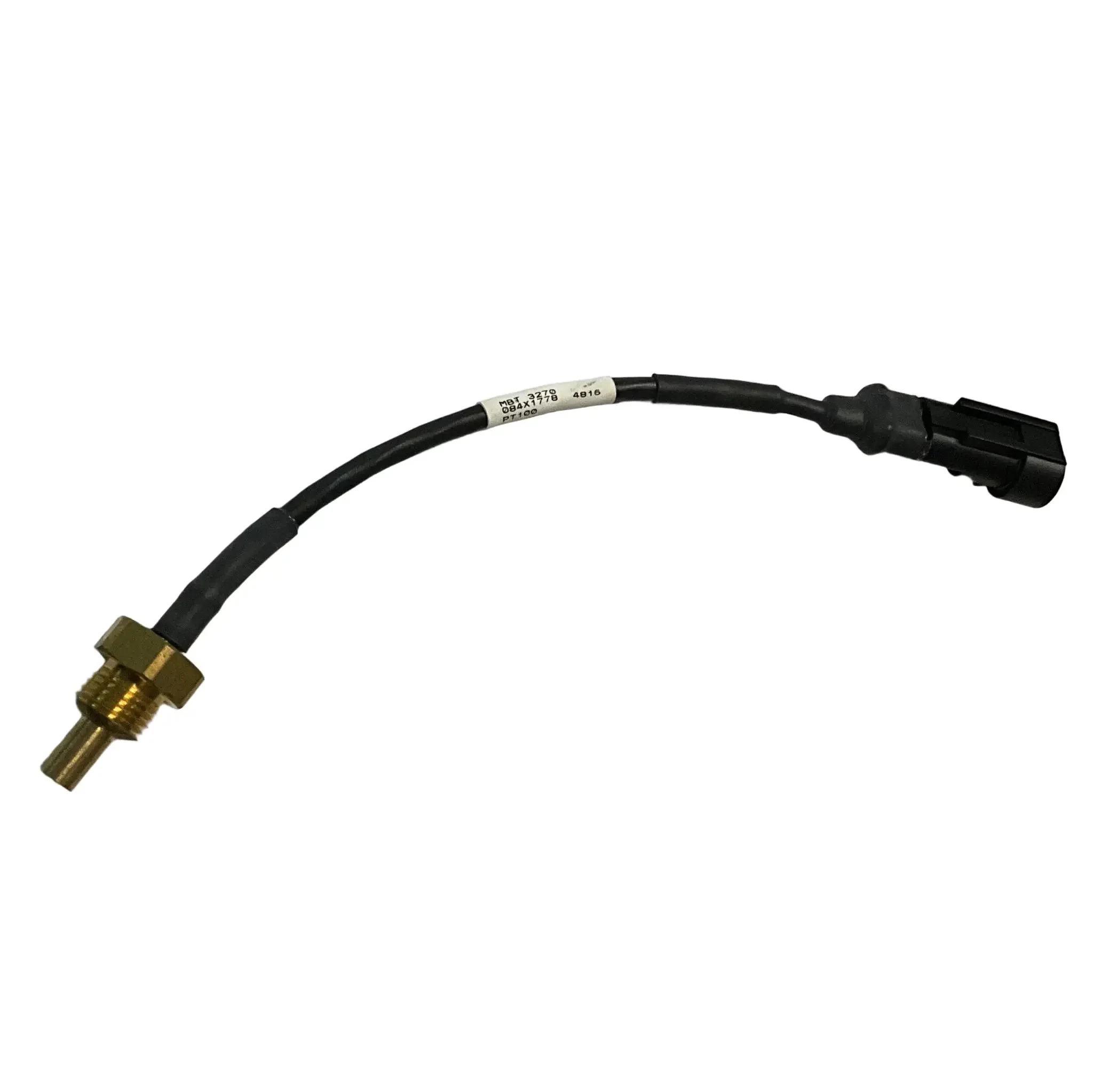

Danfoss MBT 3270 PT100 Flexible Temperature Sensor

Brand: Danfoss
Model: MBT 3270
Type: Flexible Temperature Sensor
Part Number: 4816

Technical Specs:
- Sensor Element: Pt100
- Temperature Range: -50°C to +200°C
- Sensor Element Quantity: 1
- Output Signal: Resistance (Ohm)
- Process Connection: M10
- Protection Tube Material: Brass
- Protection Tube Diameter: 6 mm
- Insertion Length: 10 mm

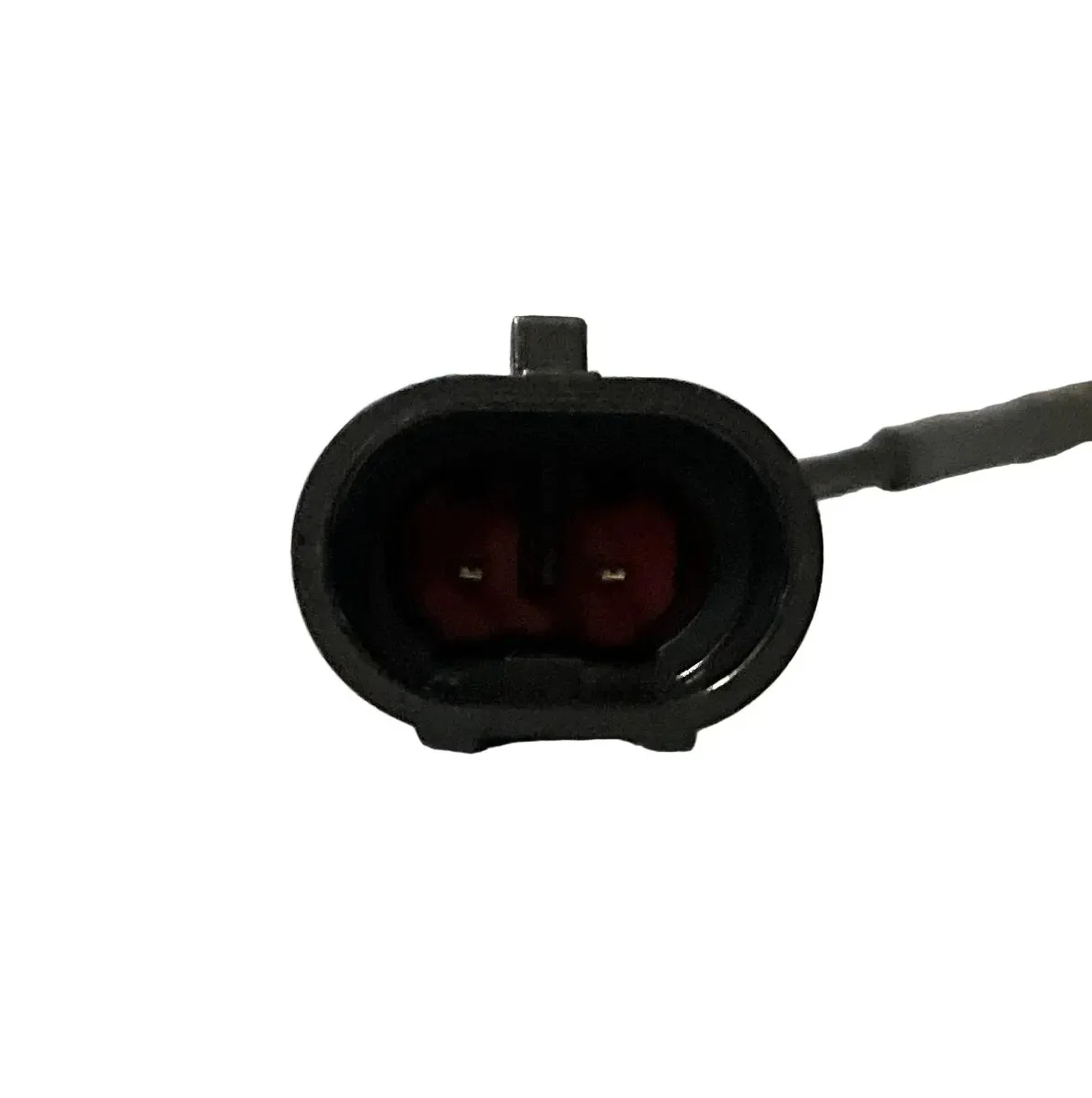

- Electrical Connection: Cable / TE Amp Superseal 2 pin connector
- Cable Length: 140 mm
- Enclosure Rating: IP65
- Operating Medium: Air, liquids (e.g., hydraulic oil, engine cooling water)
- Ambient Temperature Range: -40°C to +85°C
- Vibration Resistance: High
- Additional Features:
  - Flexible design for easy installation in tight spaces
  - Resistant to moisture and high vibrations
- Certifications: CE, RoHS compliant

Dimension:
- Sensor Diameter: 6 mm
- Cable Length: 140 mm

Weight: 40 g

Country of Origin: China

HS Code: 9025.19
