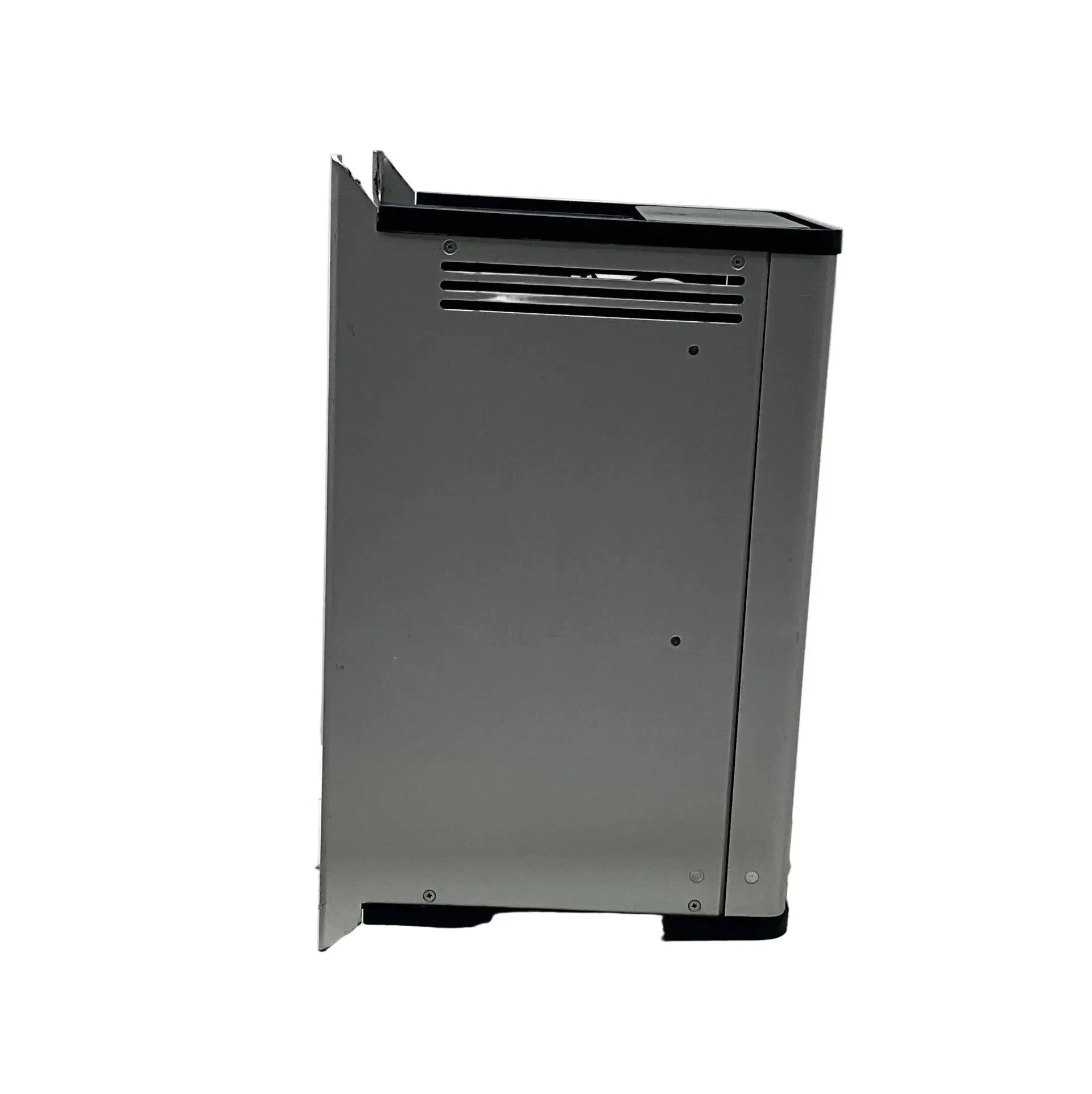

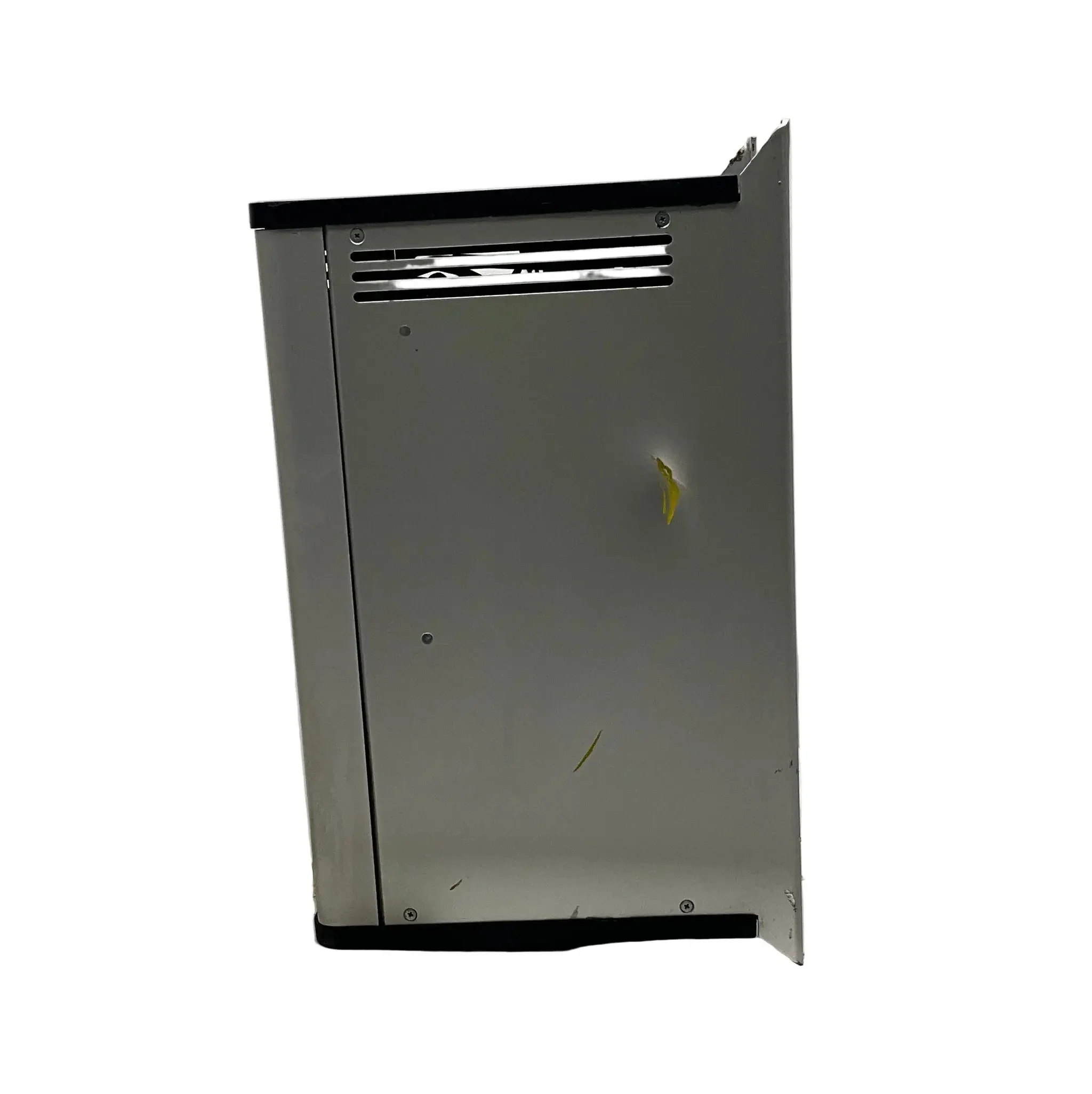

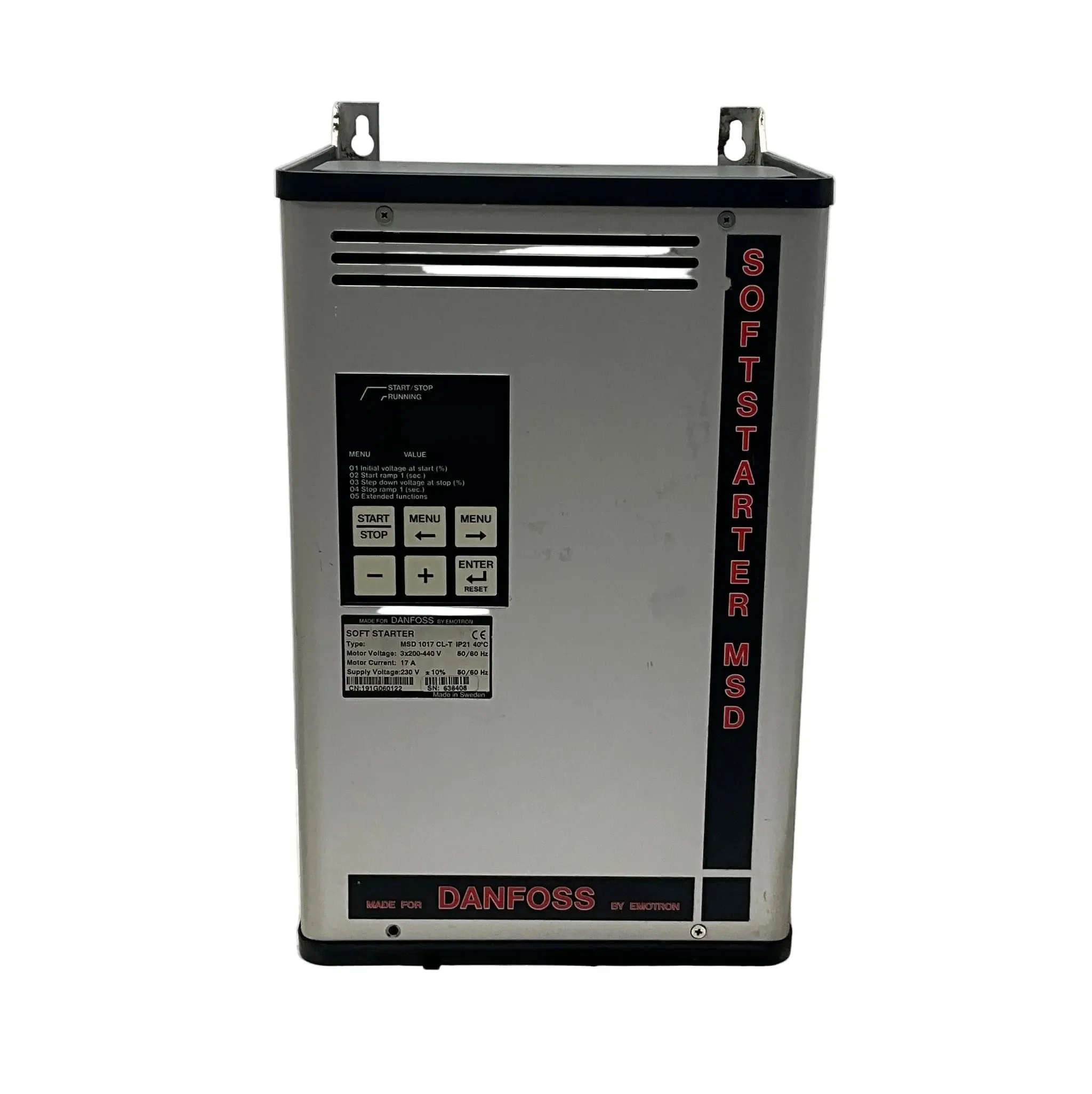

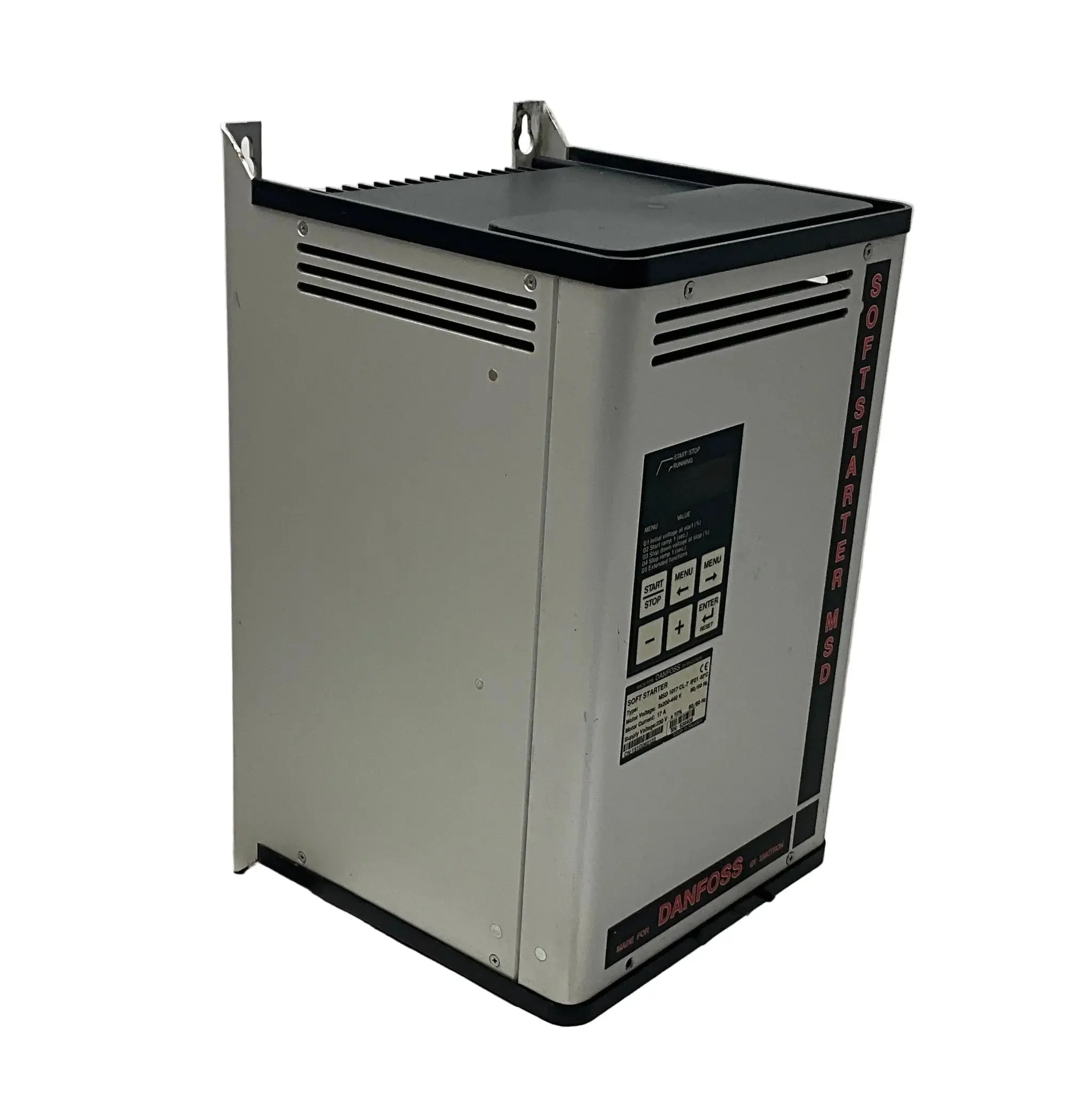

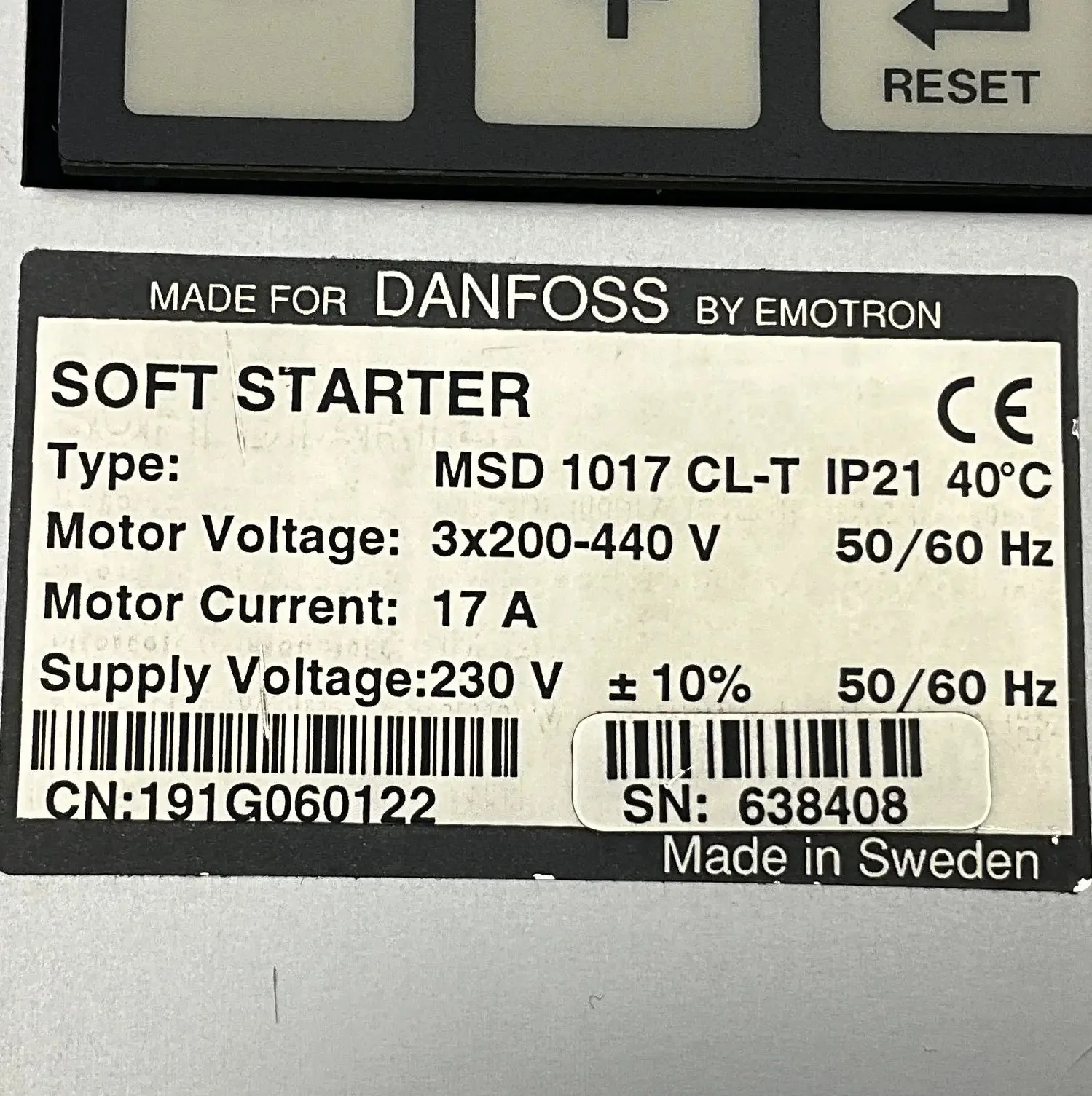

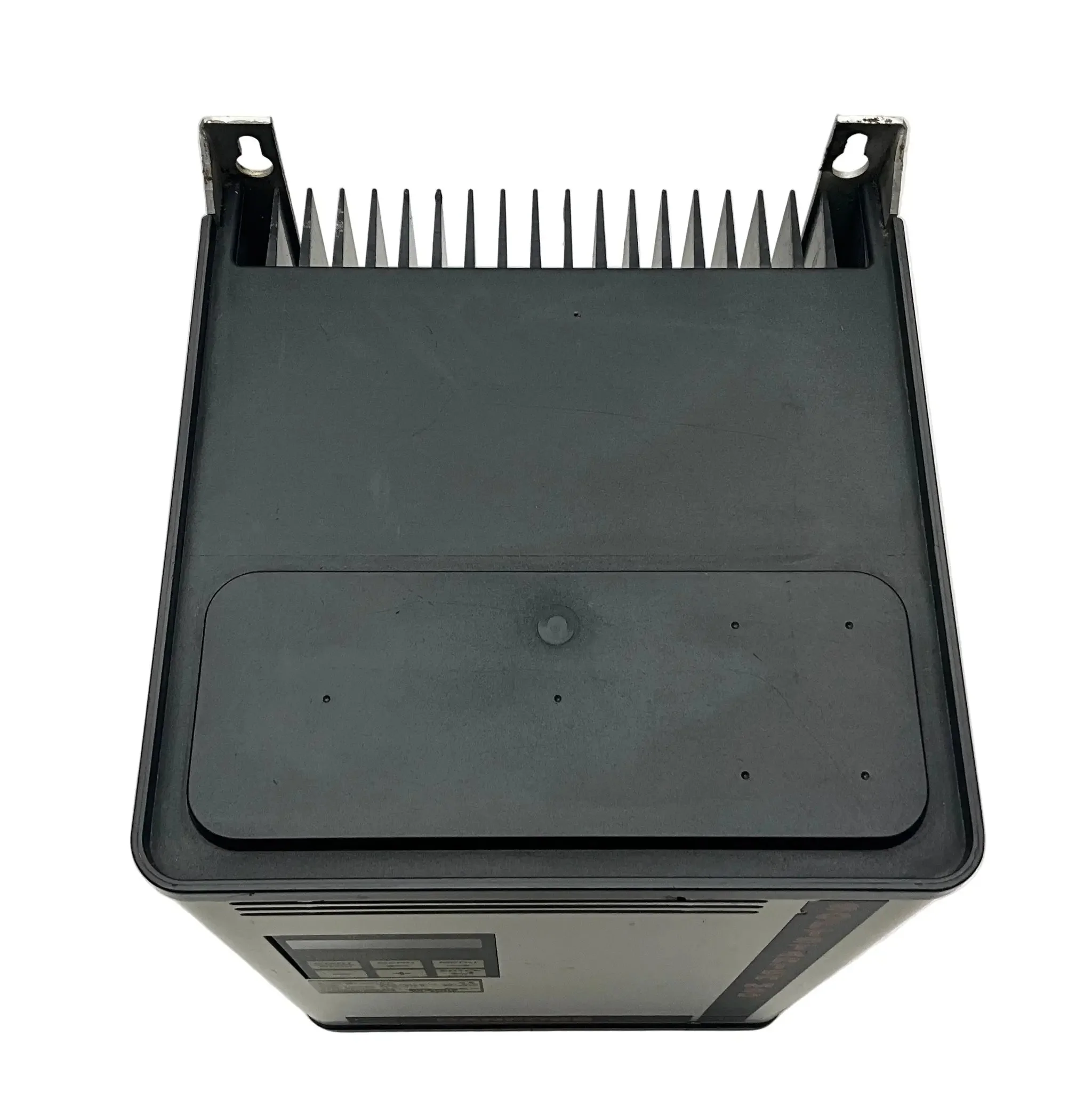

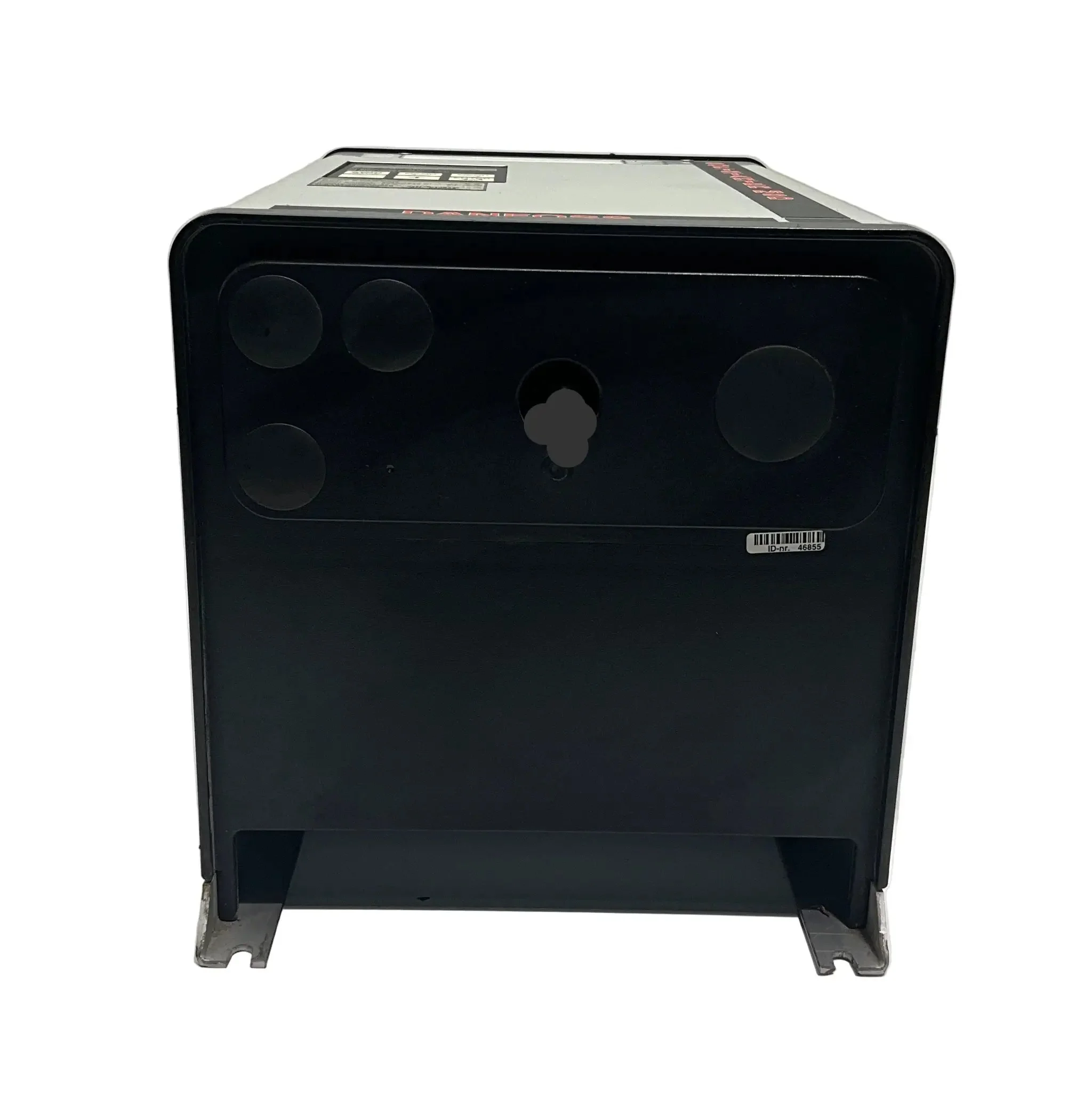

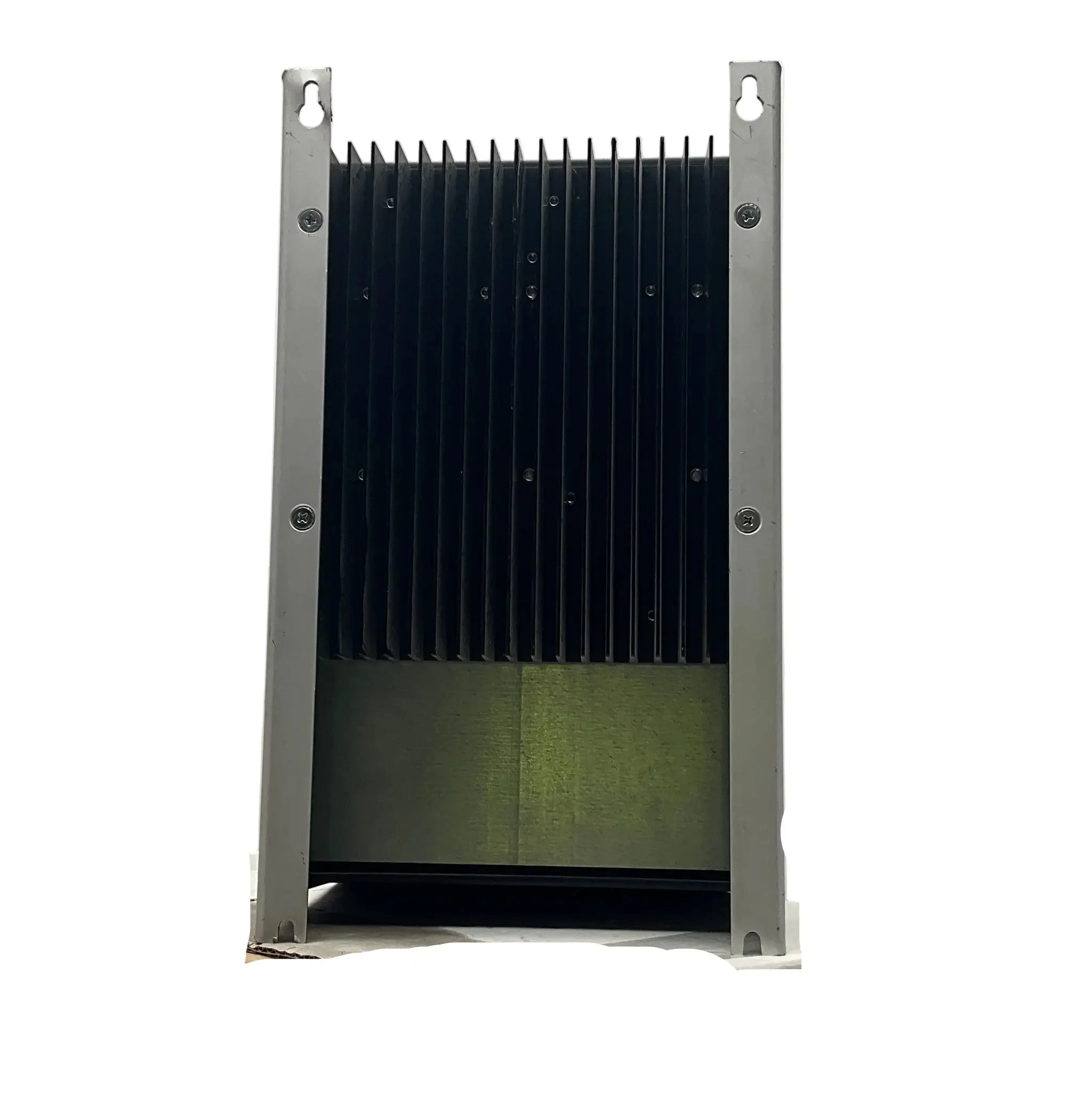

Danfoss MSD 1017 CL-T Soft Starter

Brand: Danfoss (by Emotron)
Model: MSD 1017 CL-T
Type: Soft Starter
Part Number: 191G060122

Technical Specs:
- Power Rating: 7.5 kW (10 HP) at 400 V AC
- Rated Operational Current: 17 A
- Rated Voltage: 220 to 440 V AC (3-phase)
- Frequency: 50/60 Hz
- Starting Method: Voltage ramp, current limit, torque control
- Starting Torque: Up to 150% of rated torque
- Stopping Method: Soft stop, freewheel stop, braking ramp
- Auxiliary Relays: 1 programmable relay output
- Enclosure Rating: IP21
- Operating Temperature: -10°C to +40°C
- Storage Temperature: -40°C to +65°C

- Dimensions: 360 x 220 x 210 mm
- Weight: 6.2 kg
- Country of Origin: Denmark

HS Code: 8504.40
