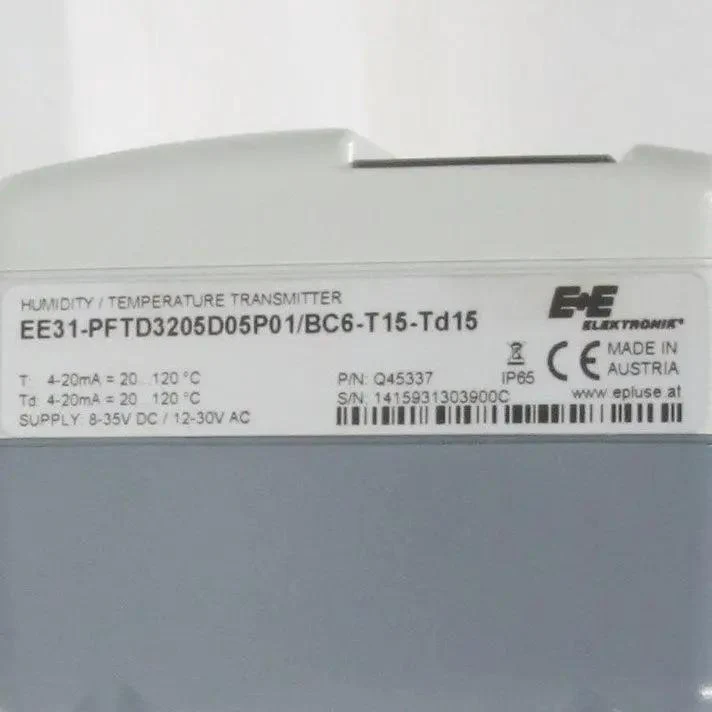

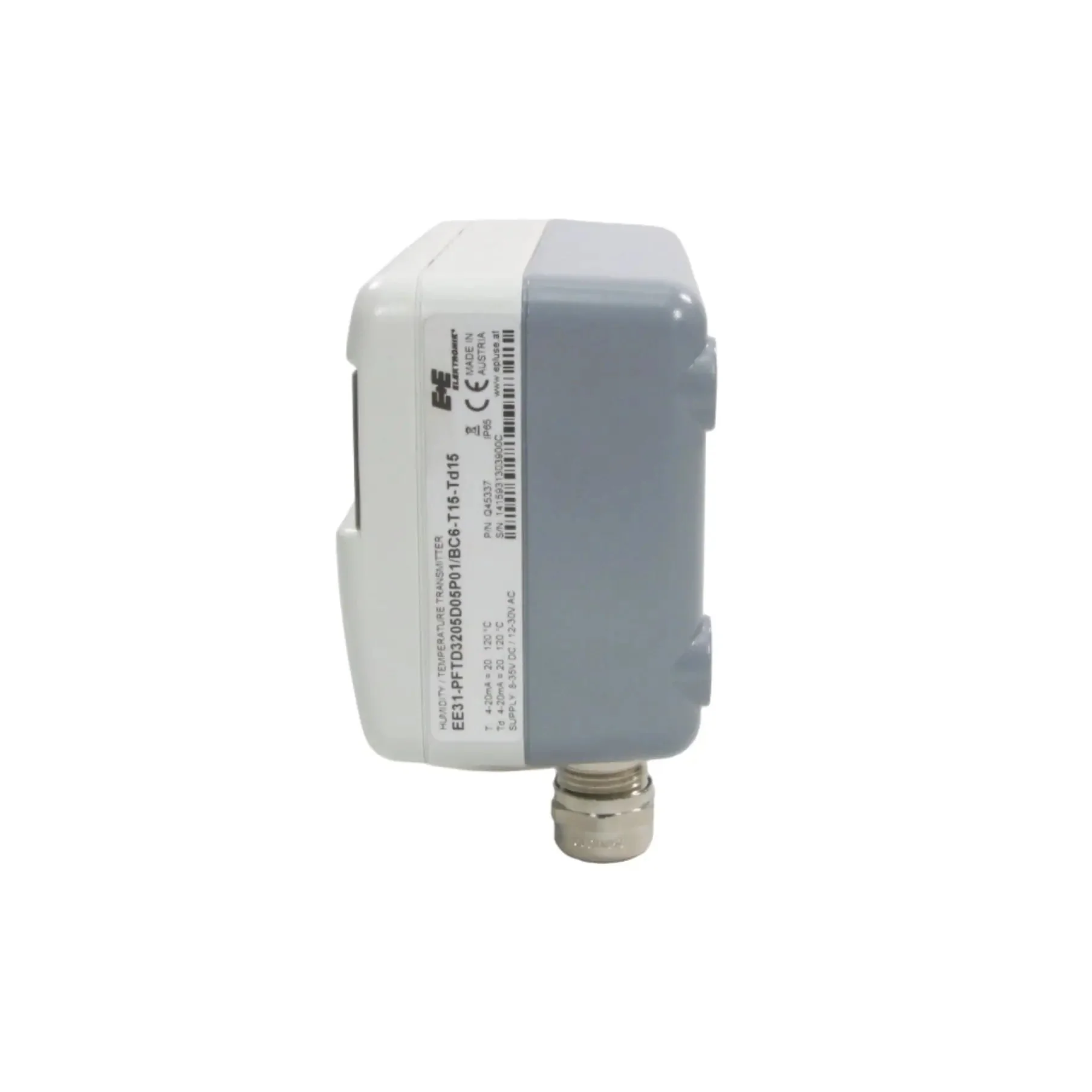

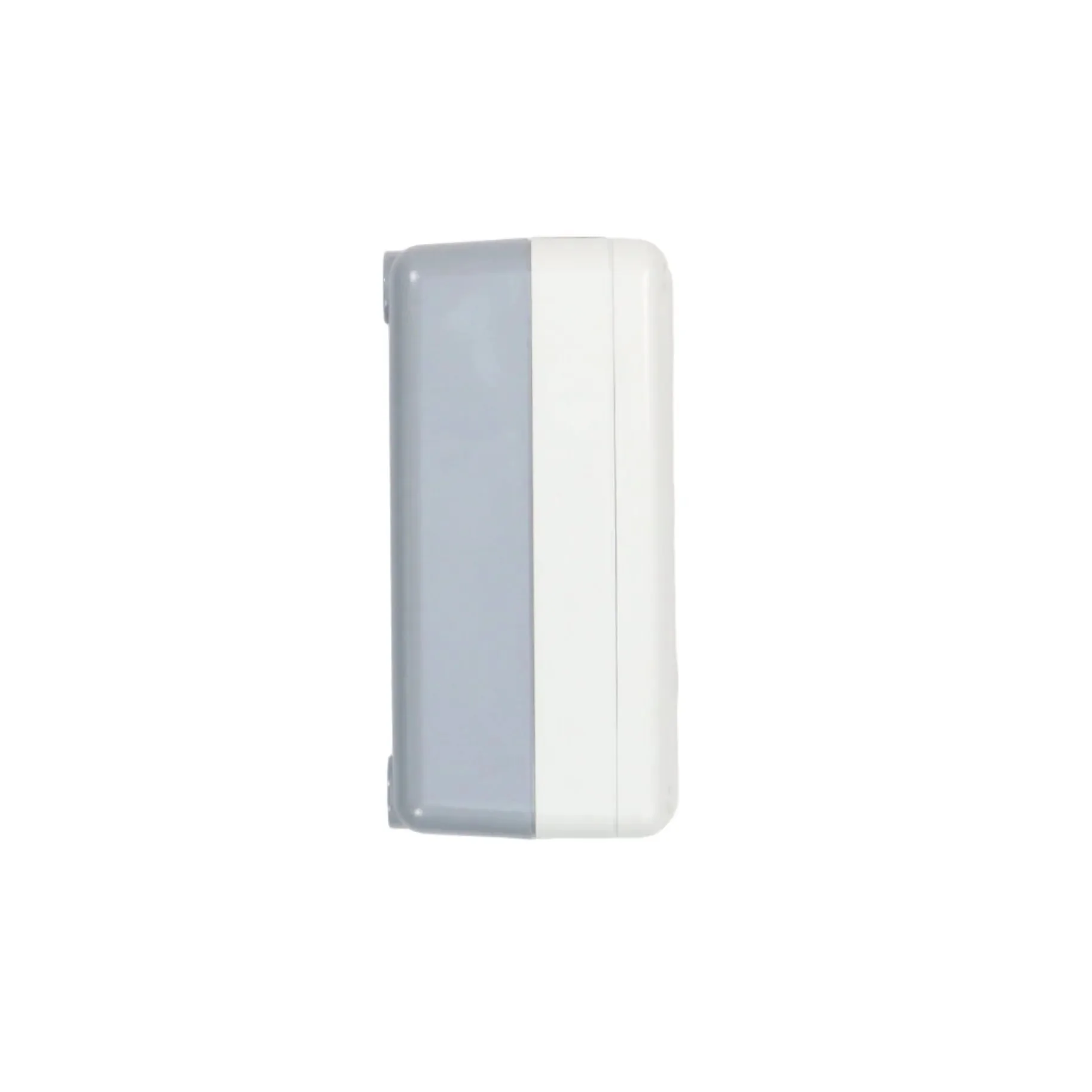

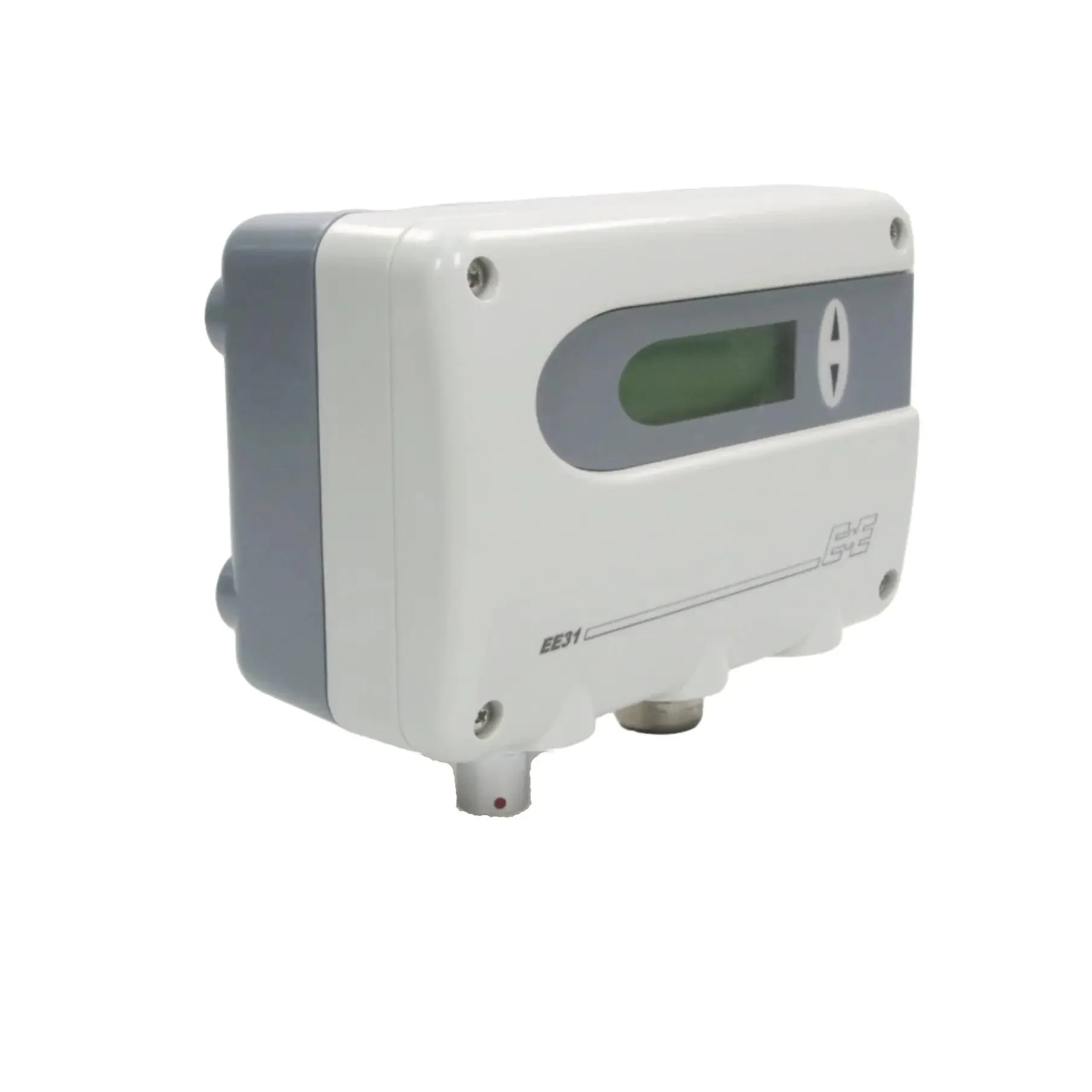

E+E Eletronik EE31 Humidity Temperature Transmitter
- Brand: E+E Elektronik
- Model: EE31
- Type: Humidity Temperature Transmitter
- Part Number: EE31-PFTD3205P01/BC6-T15-Td15 (Q45337)
- Function: Measures relative humidity and temperature in industrial environments, calculates dew point, absolute humidity, and mixing ratio
- Humidity Range: 0 - 100% RH
- Humidity Accuracy: ±1.5% RH (0-80% RH), ±2.5% RH (beyond 80% RH)
- Temperature Range: -40°C to +60°C (housing), up to +180°C with remote probe
- Temperature Accuracy: ±0.3°C (0-60°C)
- Outputs: 2 x 4-20 mA
- Supply Voltage: 8 - 35V DC / 12 - 30V AC
- Power Consumption: 0.3 W
- Pressure Range: Up to 20 bar with remote probe
- Protection Rating: IP65 (housing), IP67 (probe)
- Features: Modular housing for easy sensor exchange, optional LCD display, pluggable probe, sensor coating for polluted environments, PC interface for calibration

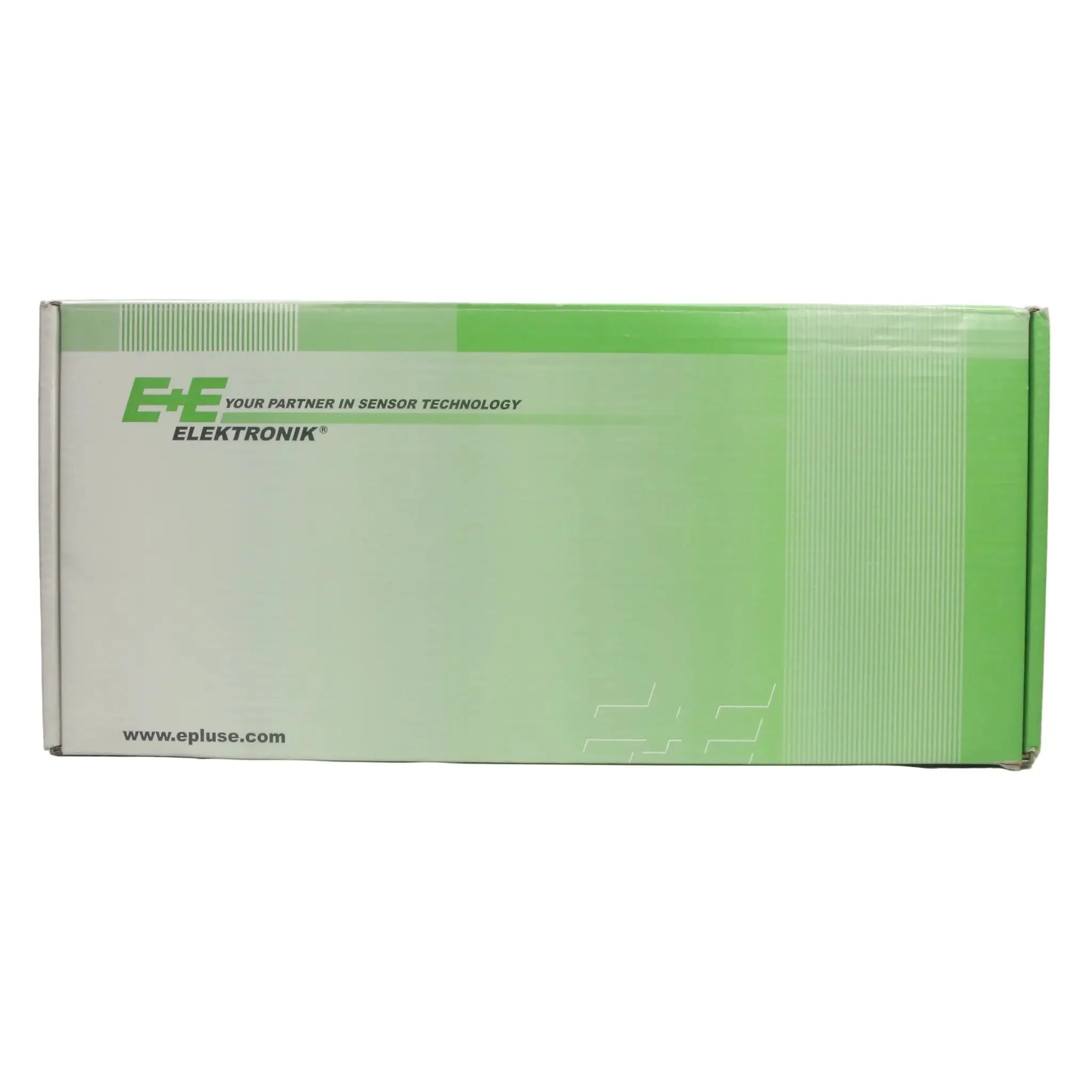

- Dimensions: 560 x 250 x 70 mm (box)
- Weight: 1.8 kg
- Country of Origin: Austria
- HS Code: 902580
Original: $881.19
-70%$881.19
$264.36
Description
- Brand: E+E Elektronik
- Model: EE31
- Type: Humidity Temperature Transmitter
- Part Number: EE31-PFTD3205P01/BC6-T15-Td15 (Q45337)
- Function: Measures relative humidity and temperature in industrial environments, calculates dew point, absolute humidity, and mixing ratio
- Humidity Range: 0 - 100% RH
- Humidity Accuracy: ±1.5% RH (0-80% RH), ±2.5% RH (beyond 80% RH)
- Temperature Range: -40°C to +60°C (housing), up to +180°C with remote probe
- Temperature Accuracy: ±0.3°C (0-60°C)
- Outputs: 2 x 4-20 mA
- Supply Voltage: 8 - 35V DC / 12 - 30V AC
- Power Consumption: 0.3 W
- Pressure Range: Up to 20 bar with remote probe
- Protection Rating: IP65 (housing), IP67 (probe)
- Features: Modular housing for easy sensor exchange, optional LCD display, pluggable probe, sensor coating for polluted environments, PC interface for calibration
- Dimensions: 560 x 250 x 70 mm (box)
- Weight: 1.8 kg
- Country of Origin: Austria
- HS Code: 902580
