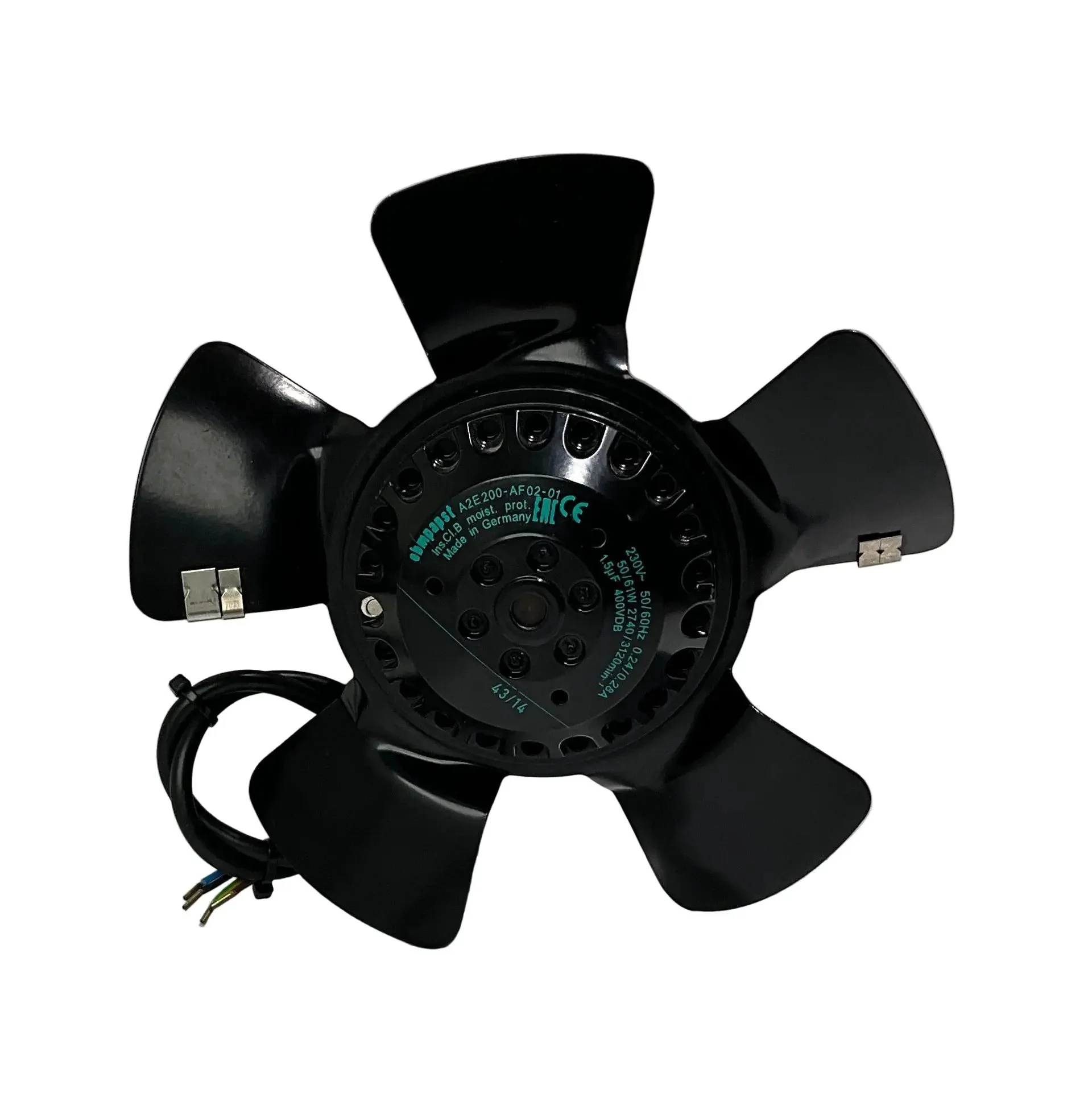

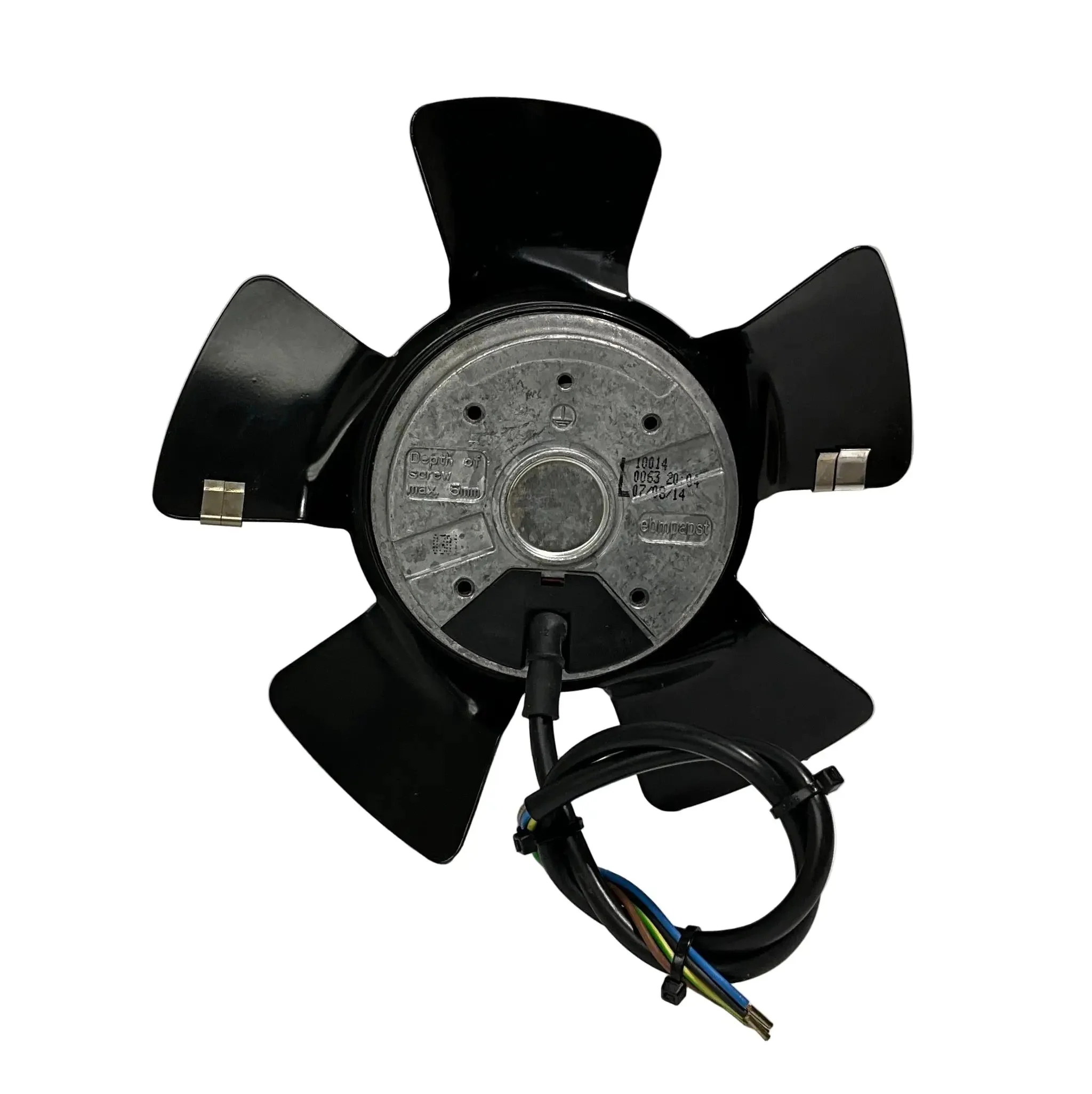

EBM Papst A2E200-AF02-01 Axial Fan
Brand: EBM Papst
Model: A2E200-AF02-01
Type: AC Axial Fan
Part Number: A2E200-AF02-01
Technical Specs:
- Fan Type: AC axial fan, tubeaxial
- Nominal Voltage: 230 V AC
- Frequency: 50/60 Hz
- Rated Power: 50 W (at 50 Hz) / 61 W (at 60 Hz)
- Rated Current: 0.24 A
- Speed: 2740 rpm (at 50 Hz)
- Air Flow: 741 m³/h
- Static Pressure: 65 Pa
- Sound Pressure Level: 65 dB(A)
- Bearing Type: Ball bearing
- Motor Type: External rotor motor
- Protection Rating: IP44
- Insulation Class: B
- Operating Temperature Range: -20°C to 70°C
- Cable: 4-wire leads with splice terminals
- Direction of Rotation: Clockwise
- Additional Features:
- Compact round design (195 mm diameter)
- Low vibration and noise operation
- Thermal overload protection
Dimensions: Diameter: 195 x Depth: 68.5 mm
Weight: 1.5 kg
Country of Origin: Germany
HS Code: 8414.59
