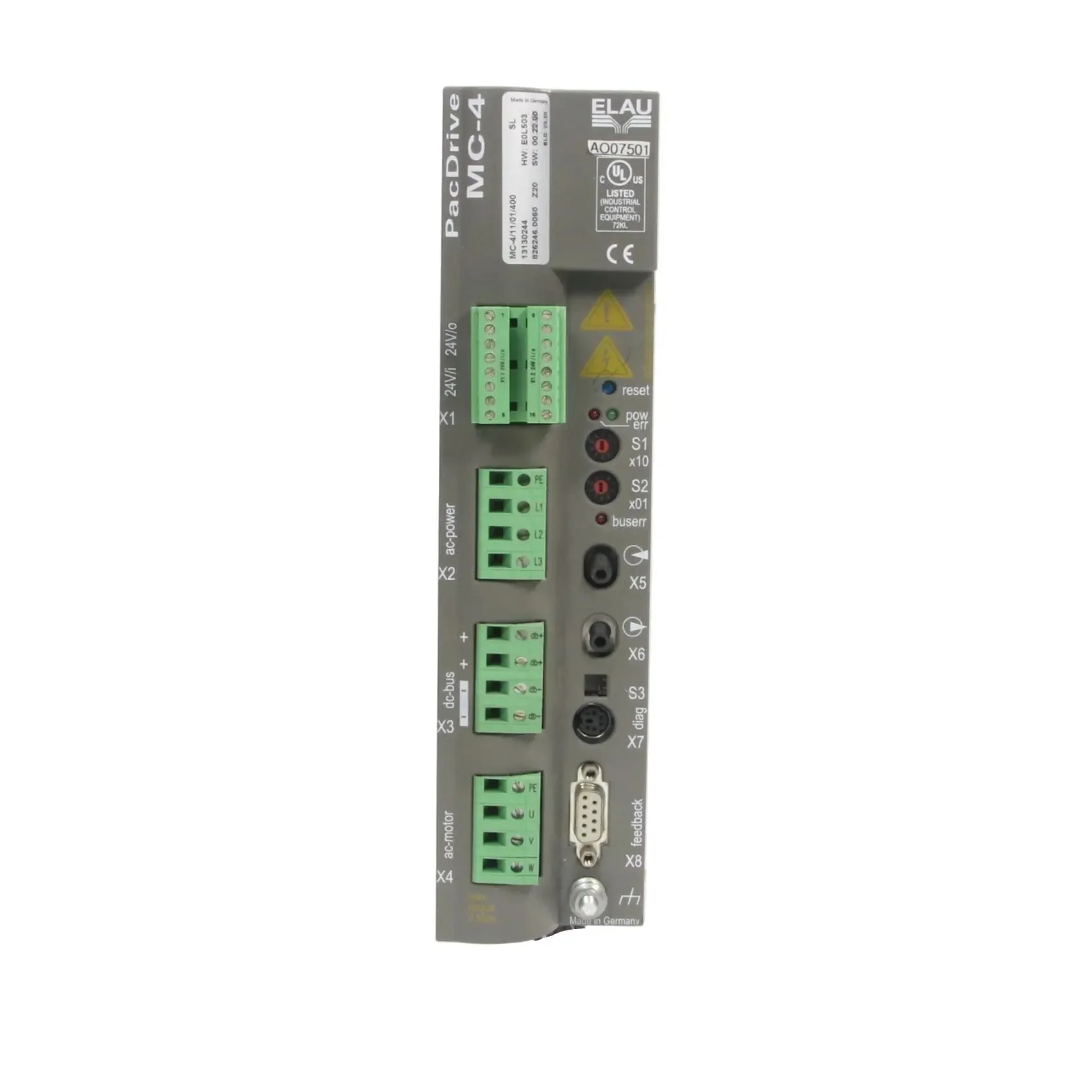

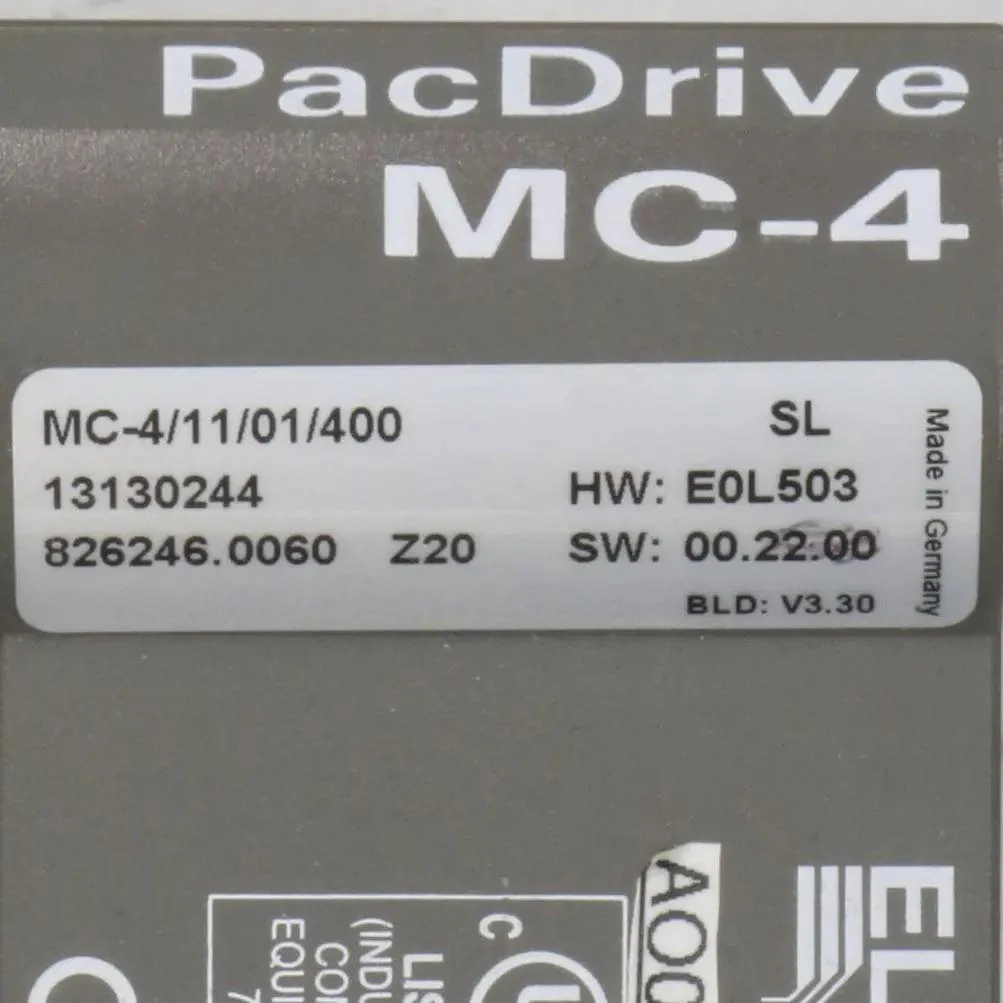

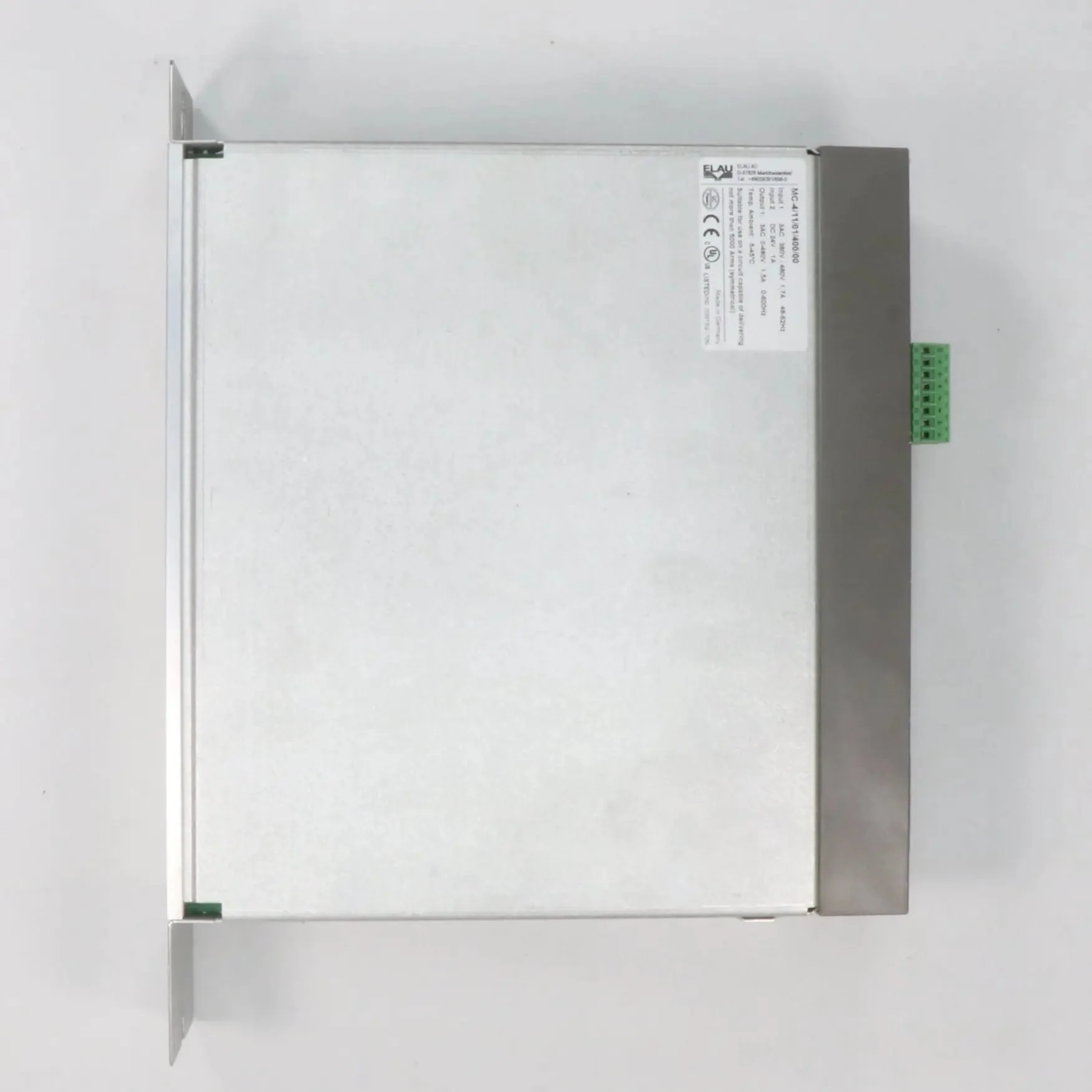

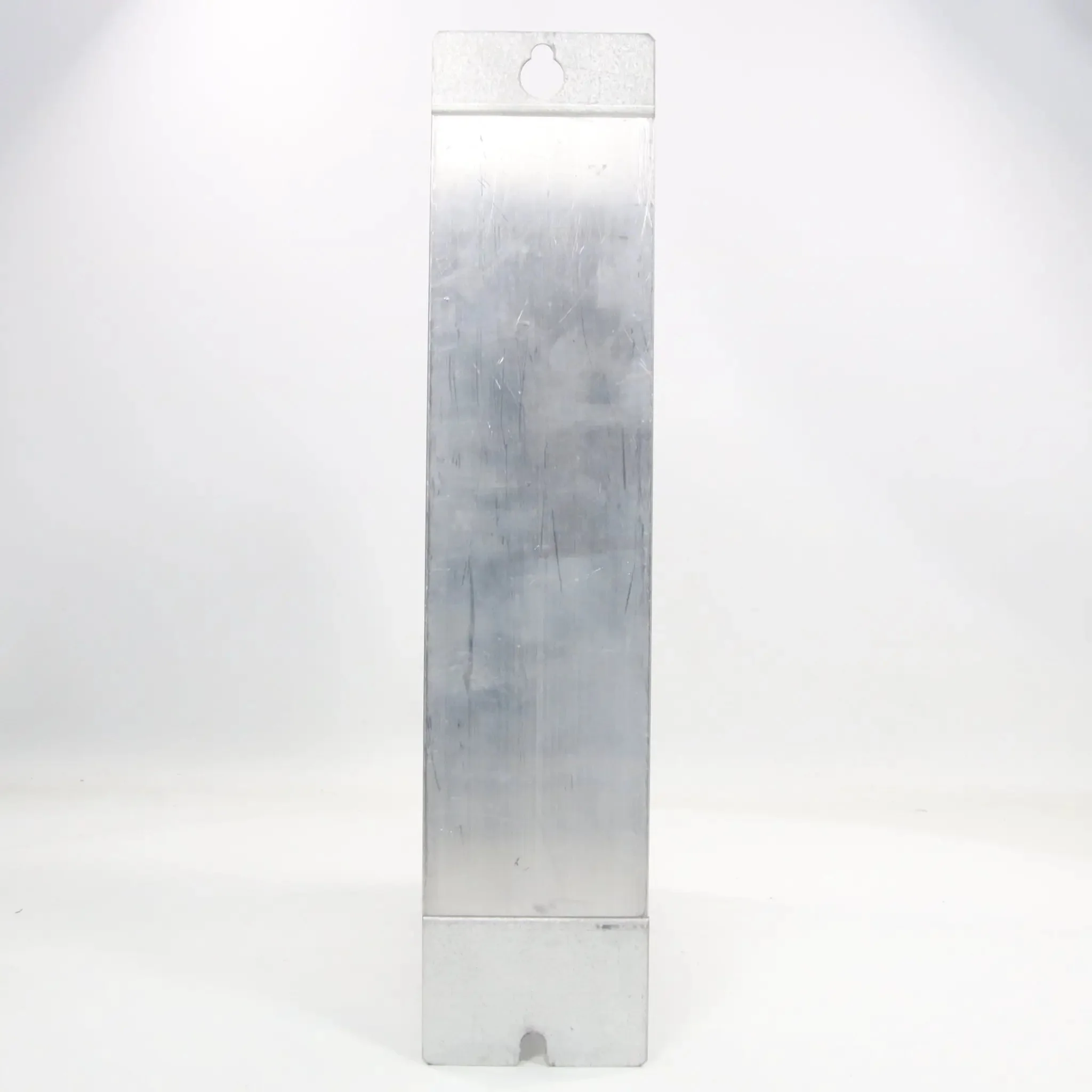

Elau PacDrive MC-4/11/01/400 Servo Drive - HW: E0L503

Elau PacDrive MC-4/11/01/400 Servo Drive - HW: E0L503

- Brand: Elau (Schneider Electric)
- Model: MC-4/11/01/400
- Type: Servo Drive - BLD: V3.30
- Article Number: 13130244
  - Nr.: 826246.0060
  - Power Rating: ~1 kW
  - Input Voltage: 3 x 380-480 V AC, 48/62 Hz
  - Input Current: 1.7 A
  - Control Voltage: 24 V DC, 1 A
  - Output Voltage: 3 x 0-480 V AC
  - Output Current: 1.6 A
  - Output Frequency: 0-600 Hz
  - Communication: SERCOS interface
  - Operating Temperature: 5°C to 45°C
  - Protection Rating: IP20
  - HW: E0L503
  - SW: 00.22.00
- Dimensions: 310 x 240 x 75 mm
- Weight: 3.1 kg
- Country of Origin: Germany
- HS Code: 85044082

$517.72

Original: $1,725.72

-70%
Elau PacDrive MC-4/11/01/400 Servo Drive - HW: E0L503—

$1,725.72

$517.72
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

- Brand: Elau (Schneider Electric)
- Model: MC-4/11/01/400
- Type: Servo Drive - BLD: V3.30
- Article Number: 13130244
  - Nr.: 826246.0060
  - Power Rating: ~1 kW
  - Input Voltage: 3 x 380-480 V AC, 48/62 Hz
  - Input Current: 1.7 A
  - Control Voltage: 24 V DC, 1 A
  - Output Voltage: 3 x 0-480 V AC
  - Output Current: 1.6 A
  - Output Frequency: 0-600 Hz
  - Communication: SERCOS interface
  - Operating Temperature: 5°C to 45°C
  - Protection Rating: IP20
  - HW: E0L503
  - SW: 00.22.00
- Dimensions: 310 x 240 x 75 mm
- Weight: 3.1 kg
- Country of Origin: Germany
- HS Code: 85044082
