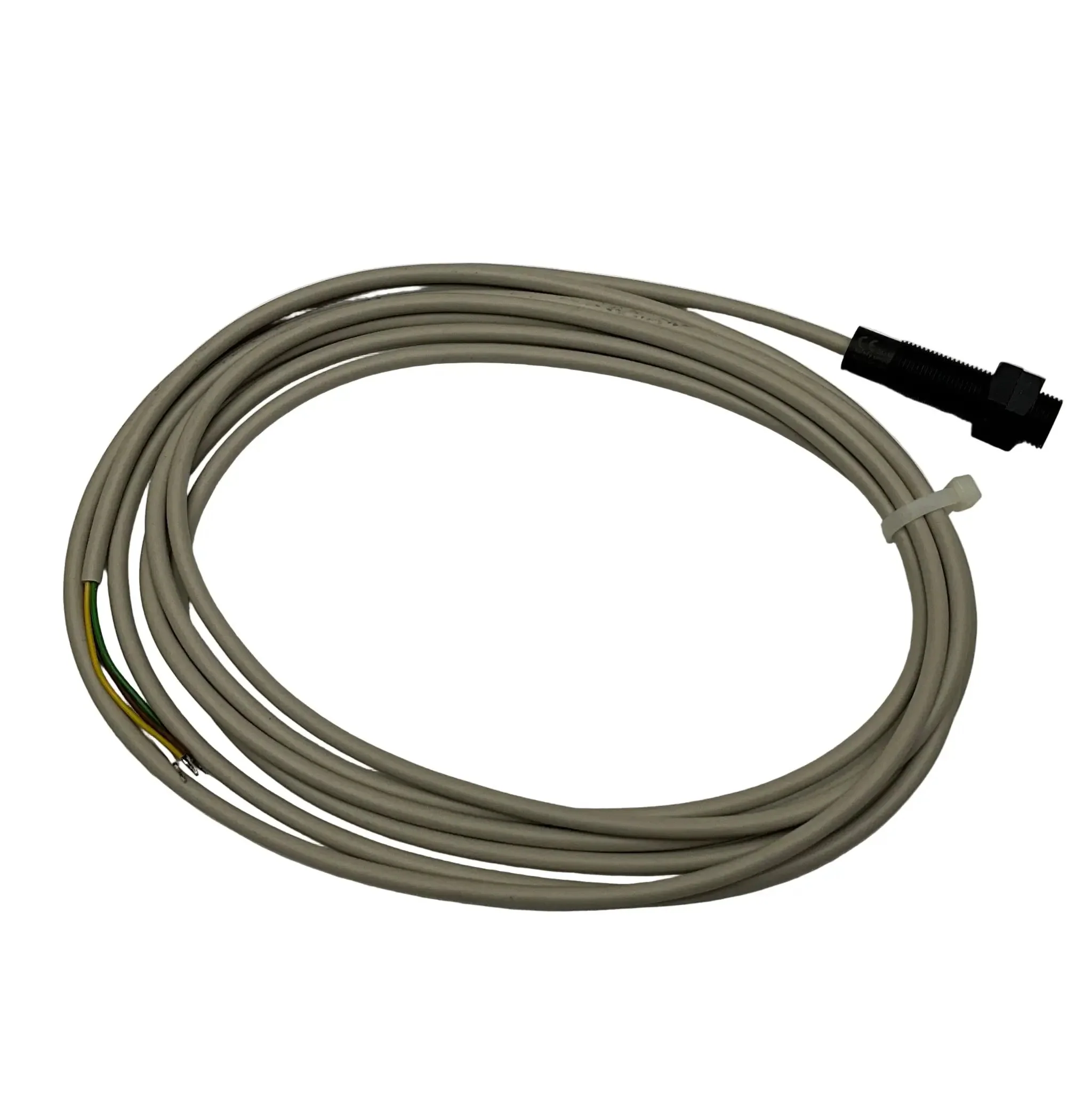

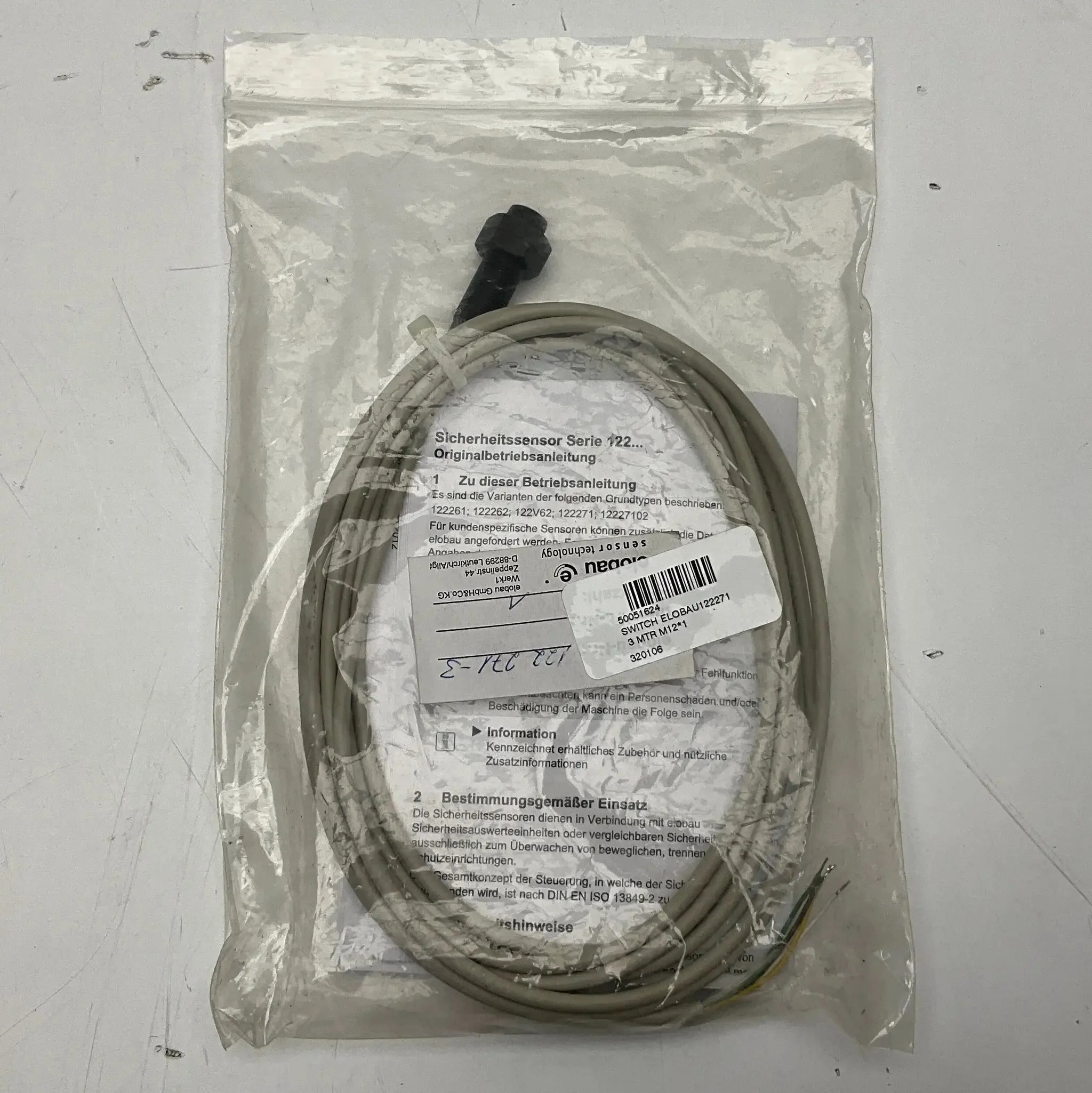

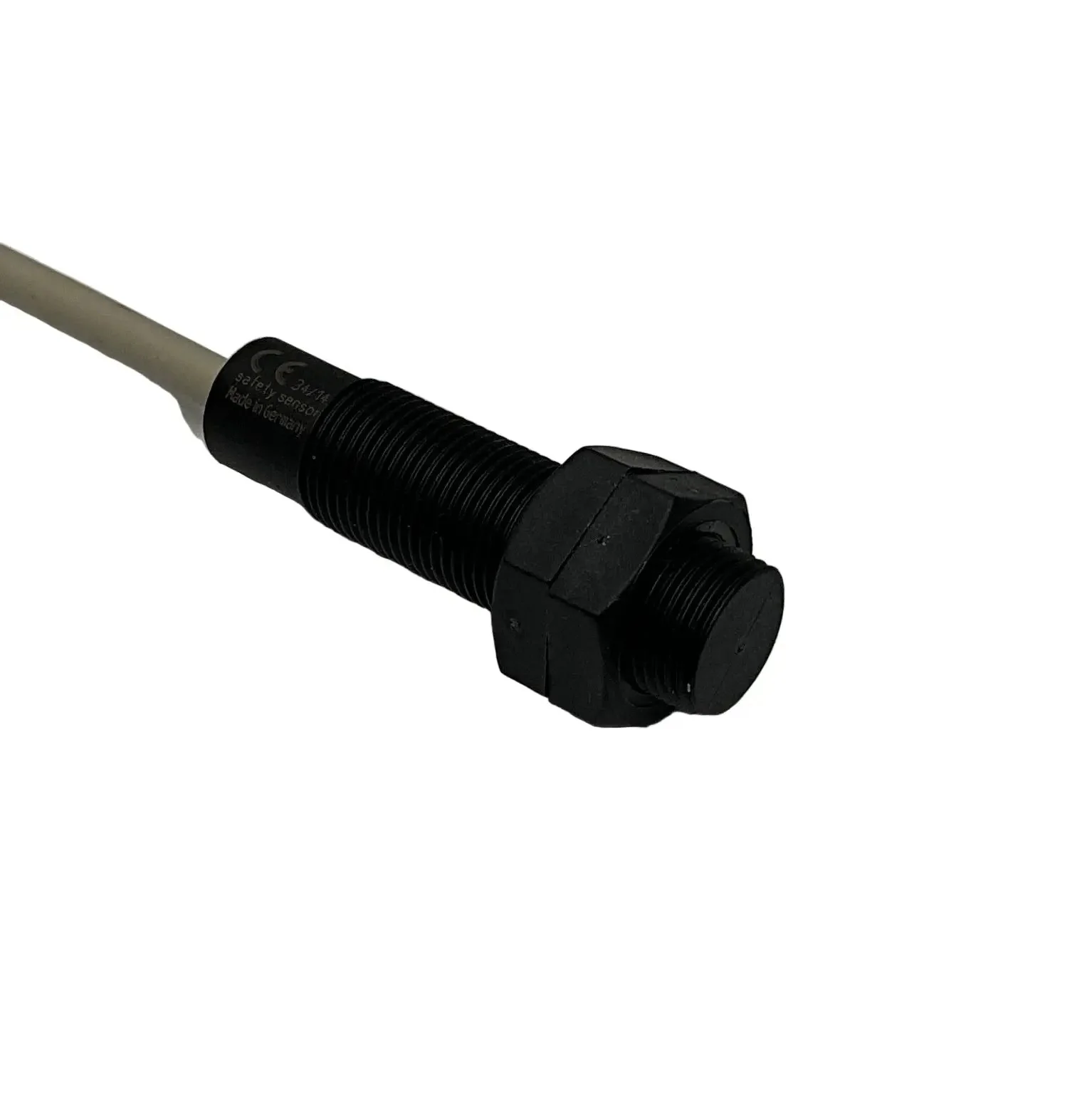

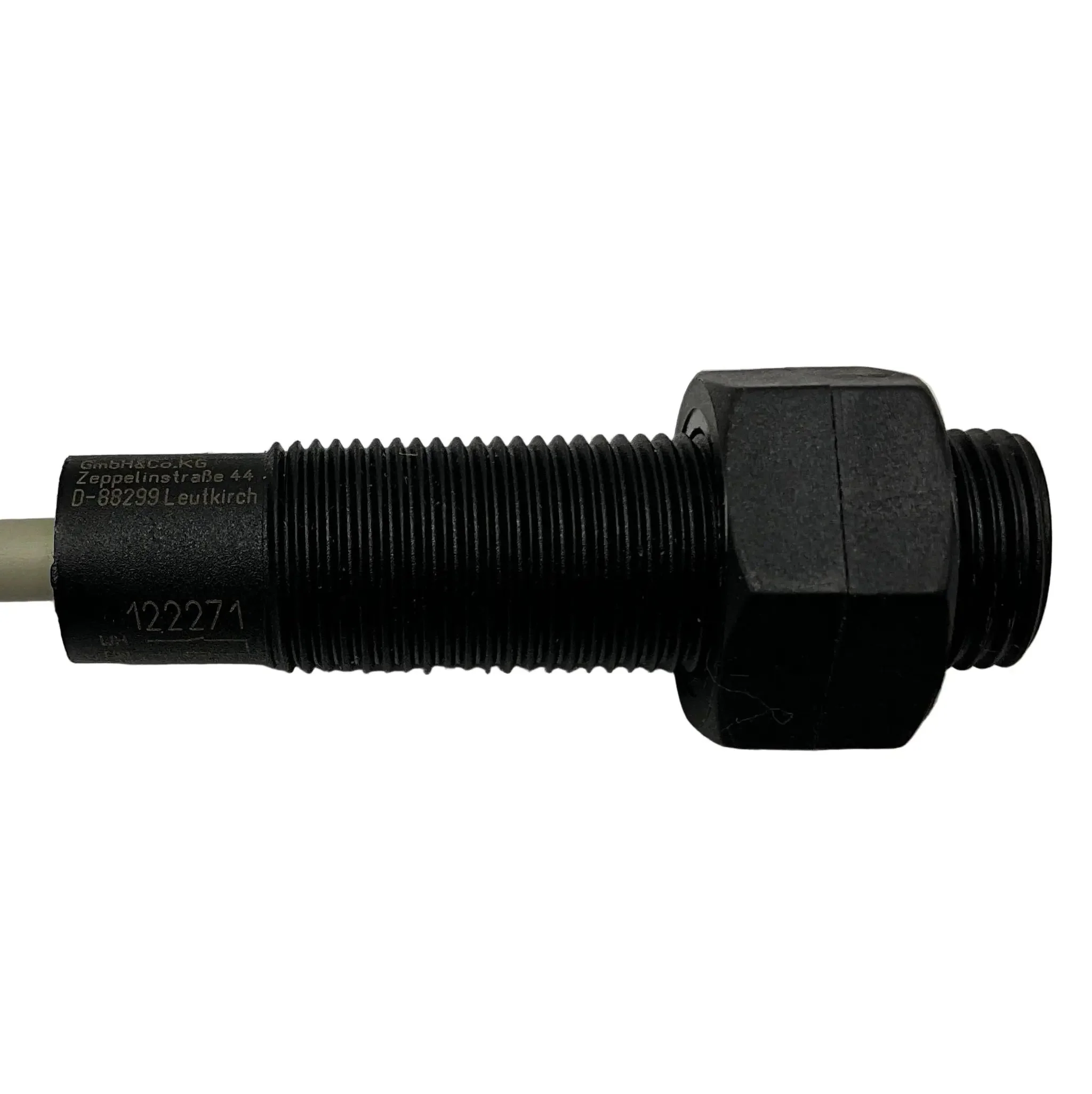

Elobau 122271 Safety Sensor

Brand: Elobau
Model: 122271
Type: Safety Sensor (Magnetically Actuated)
Part Number: 122271

Technical Specs:
- Function: Magnetically actuated safety sensor for monitoring movable guards with N.O./N.C. contacts
- Switching Distance (Sao): 3 mm
- Switch-Off Distance (Sar): 15 mm
- Minimum Switching Distance (S0 min): 3 mm
- Contact Configuration: 1 N.O. + 1 N.C.
- Switching Voltage: Min 19.2 V DC, Max 28.8V DC
- Switching Current: Max 100 mA
- Switching Power: Max 3 W
- Switching Frequency: 5 Hz
- Cable Length: 3 m
- Cable Type: 4-wire (PVC, 0.25 mm²)
- Enclosure Rating: IP67
- Operating Temperature Range: -25°C to 70°C
- Housing Material: Thermoplastic
- Compatibility: Used with coded magnets for tamper-resistant operation
- Additional Features:
  - Contactless, wear-free operation for long service life
  - Multi-coding prevents bypassing with simple magnets
  - Meets EN ISO 14119 and EN 60947-5-3 standards for safety
- Certifications: EN 954-1 Category 4 (performance level e per EN ISO 13849-1)

Dimensions: M12 x 3 m

Weight:  150 g

Country of Origin: Germany

HS Code: 8536.50
