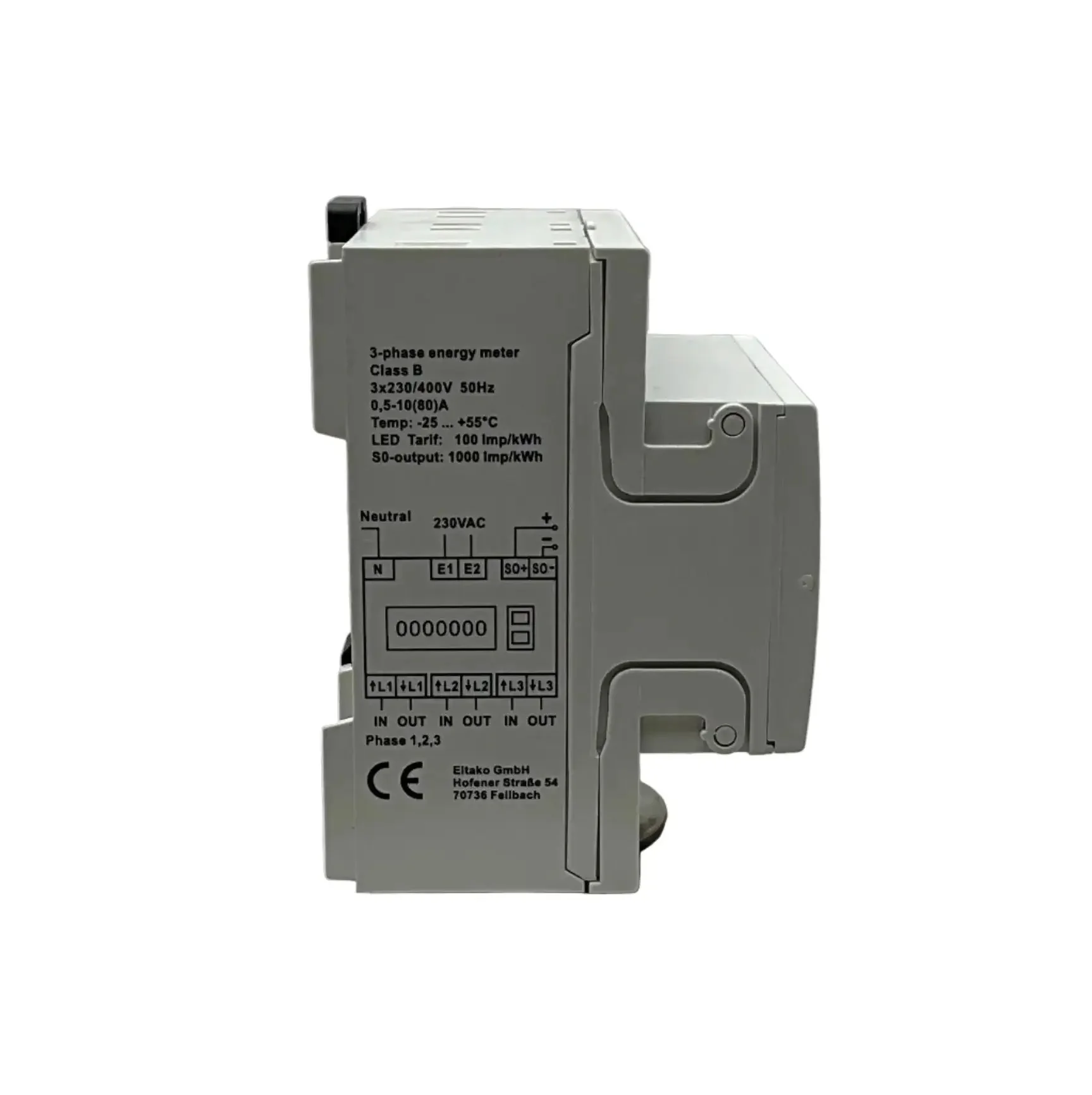

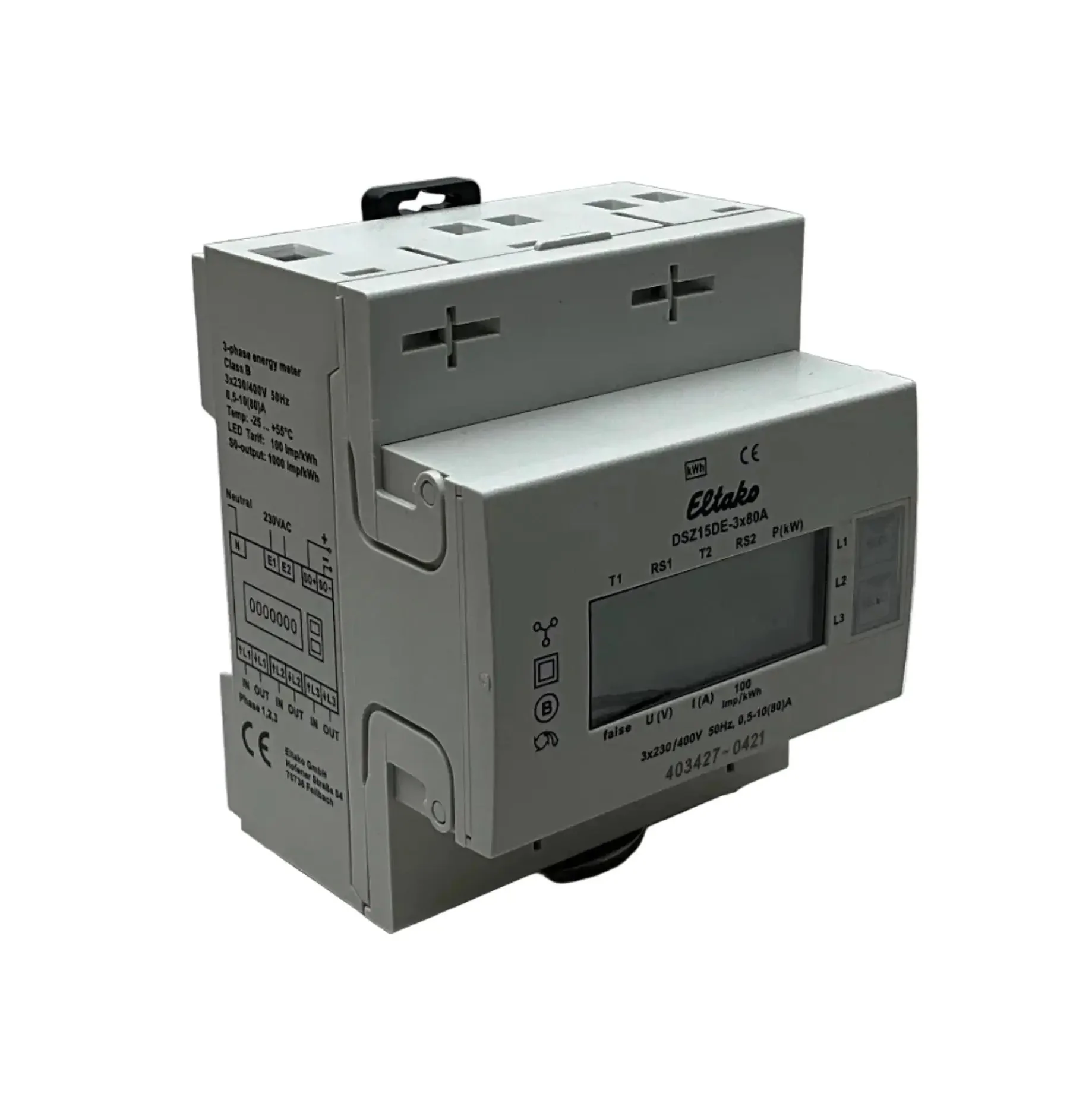

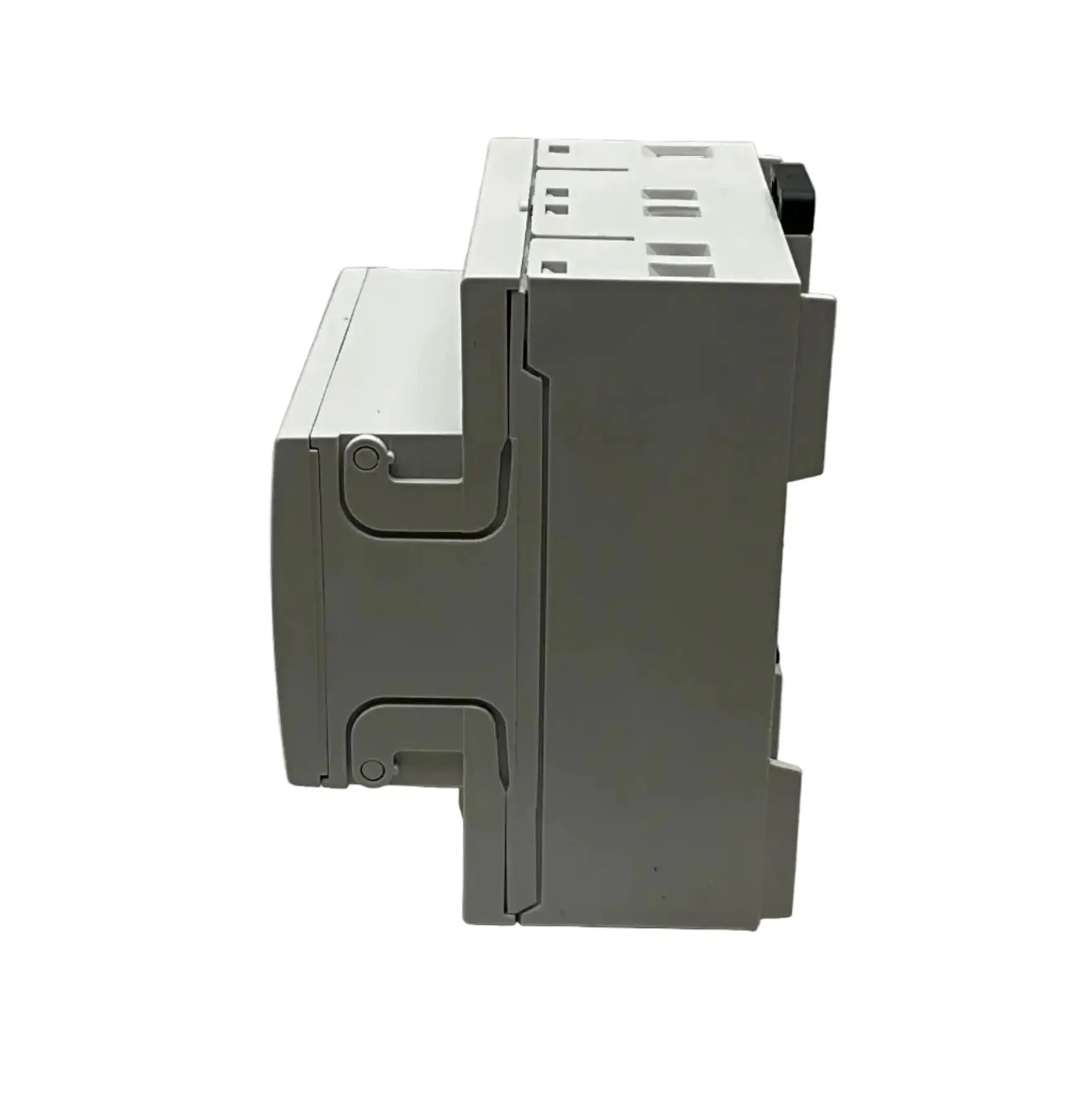

Eltako DSZ15DE 3~Phase Energy Meter
- Brand: Eltako
- Model: DSZ15DE
- Type: 3-Phase Energy Meter
- Part Number: DSZ15DE -3x80A
- Technical Specs:

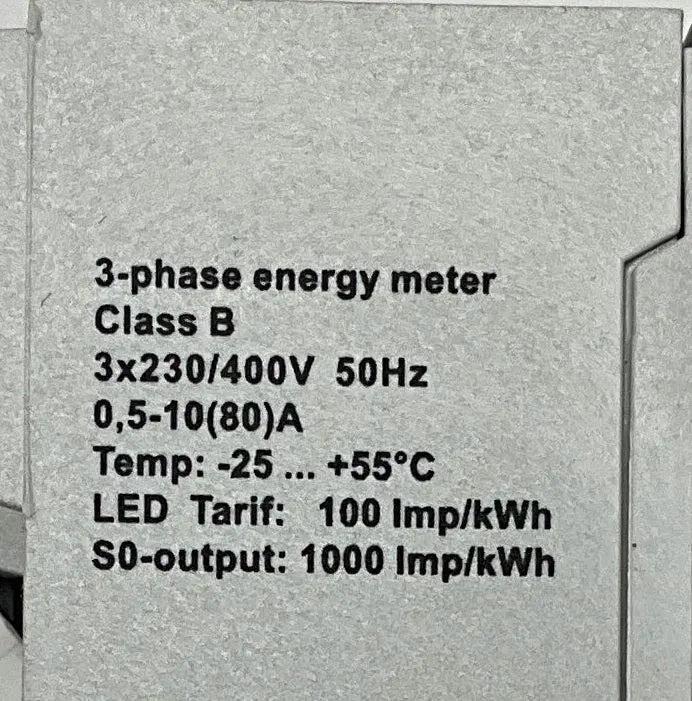

- Measurement: Active energy (kWh) in 3-phase 4-wire systems (3 × L + N)
- Direct Connection: Up to 3 × 80 A
- Voltage Range: 3 × 230/400 V AC ±10 % (L-N / L-L)
- Frequency: 50 Hz
- Accuracy Class: Class B (MID) for active energy (EN 50470-3)
- Starting Current: 20 mA
- Minimum Current: 0.25 A
- Pulse Output: S0 interface (optocoupler), 1000 imp/kWh (standard), pulse length 30 ms
- Pulse Voltage: Max 30 V DC / 30 mA

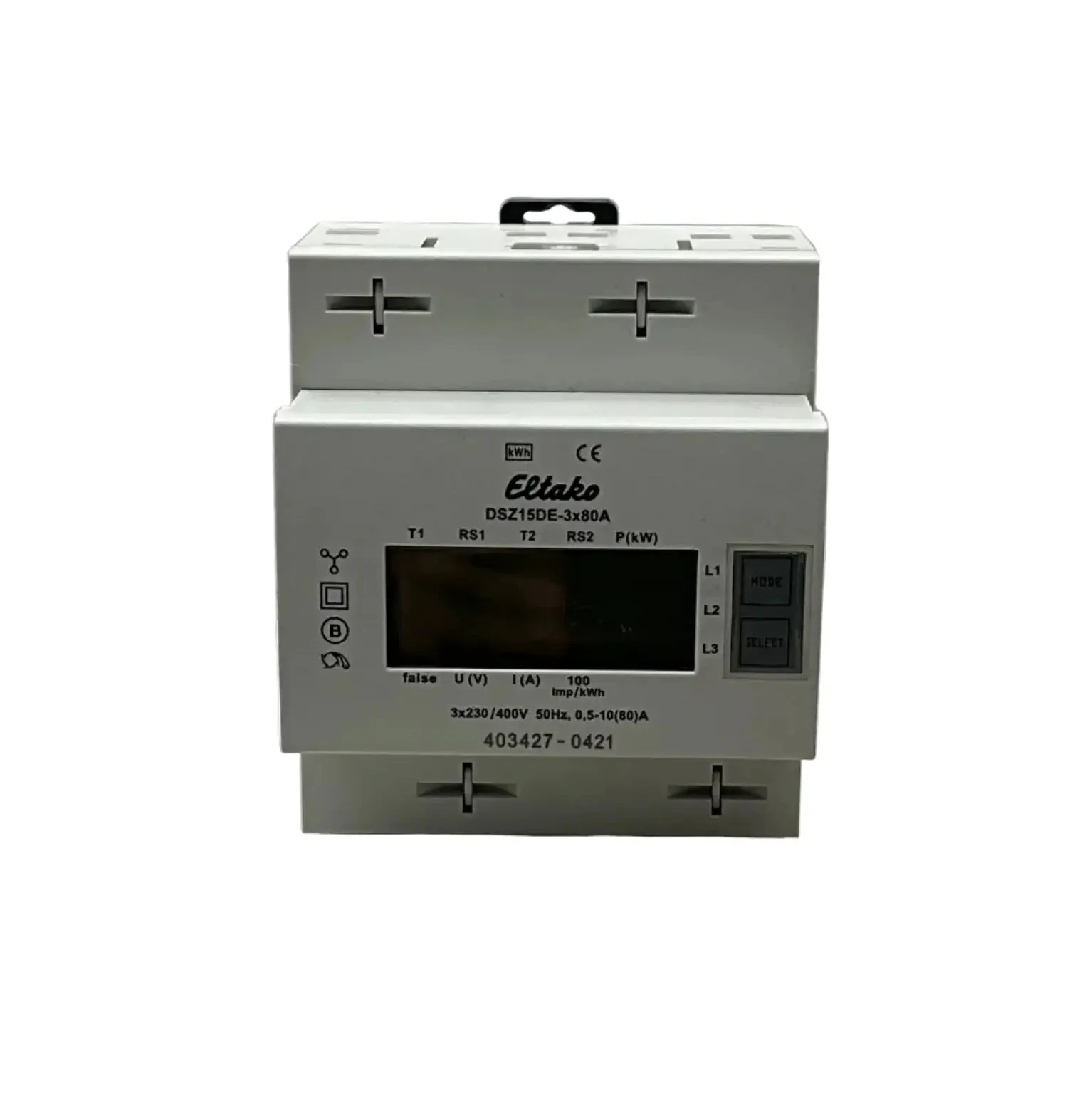

- Display: LCD, 8-digit + unit (kWh), backlit
- Reset: Non-resettable total energy counter + resettable partial counter
- Self-Consumption: < 2 W / < 10 VA
- Operating Temperature: -25 °C to +55 °C
- Storage Temperature: -40 °C to +70 °C
- Humidity: < 95 % RH (non-condensing)

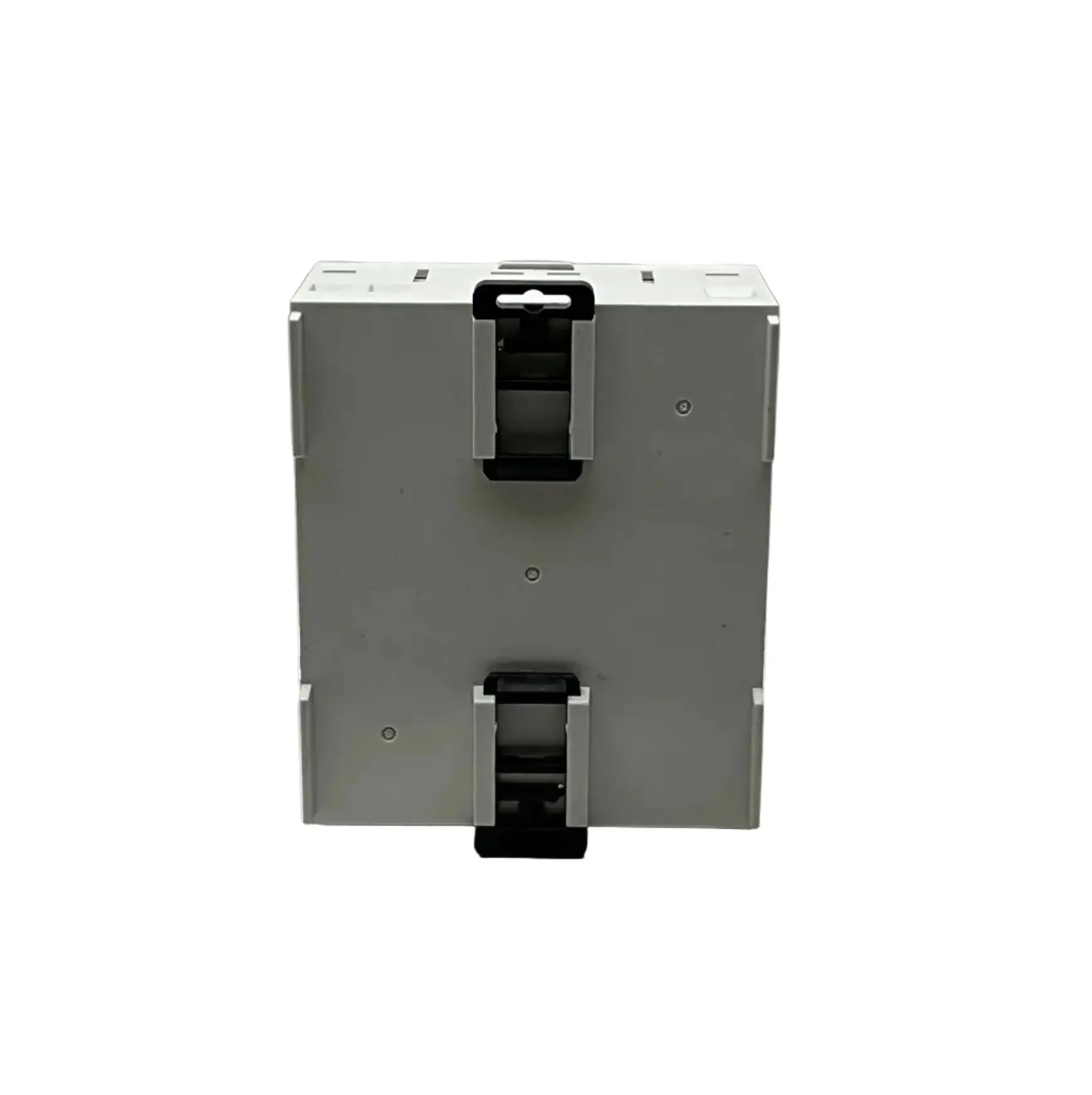

- Enclosure: 1 TE (18 mm width) modular housing for 35 mm DIN rail
- Protection Class: IP51 (front), IP20 (terminals)
- Insulation: 4 kV / 1 min
- Additional Features:
- Bi-directional measurement
- MID certification
- Instantaneous power display (kW)
- Voltage, current, power factor, and frequency display
- No external power supply required
Dimensions: 75 x 70 x 90 mm
Weight: 250 g
Country of Origin: Germany
HS Code: 9028.30
