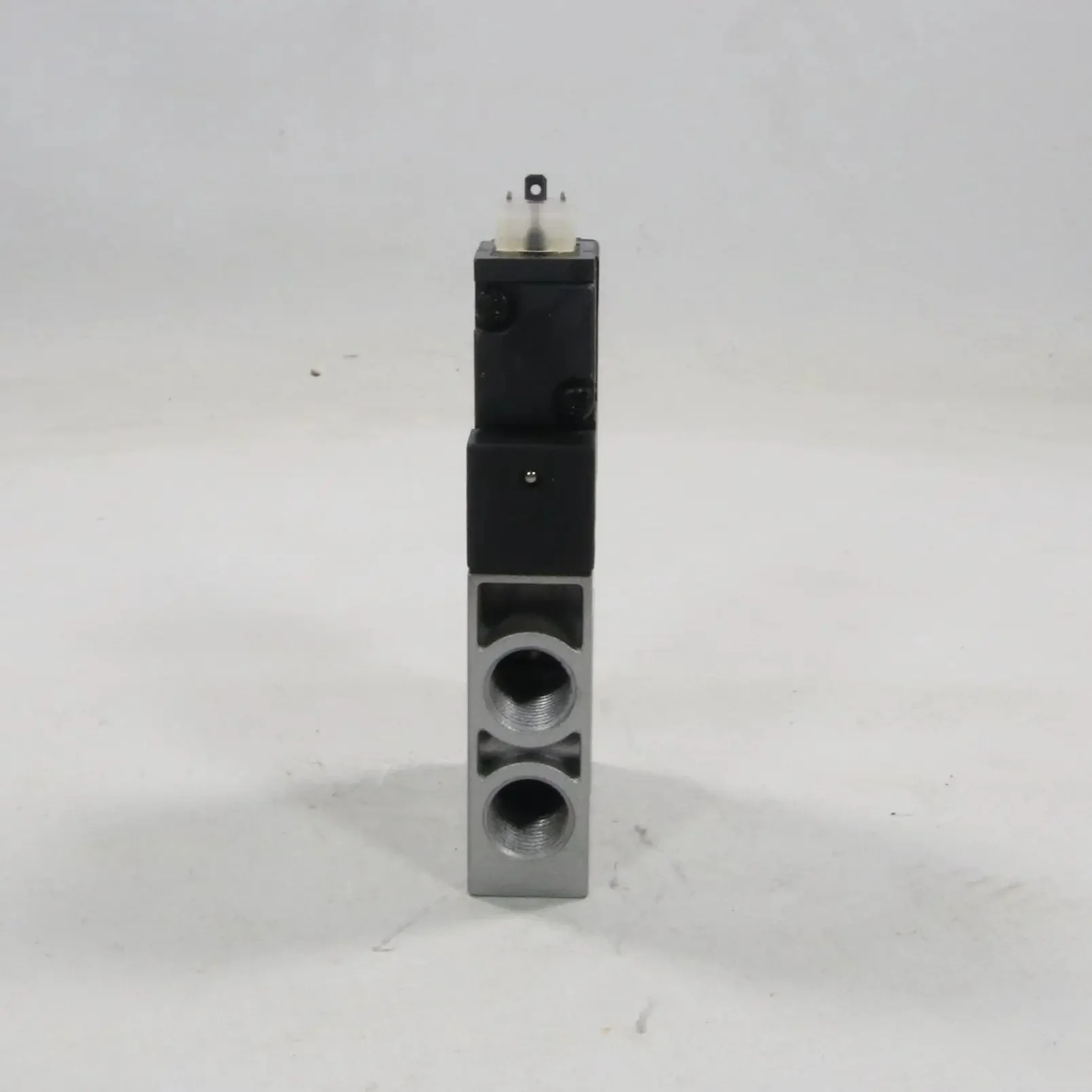

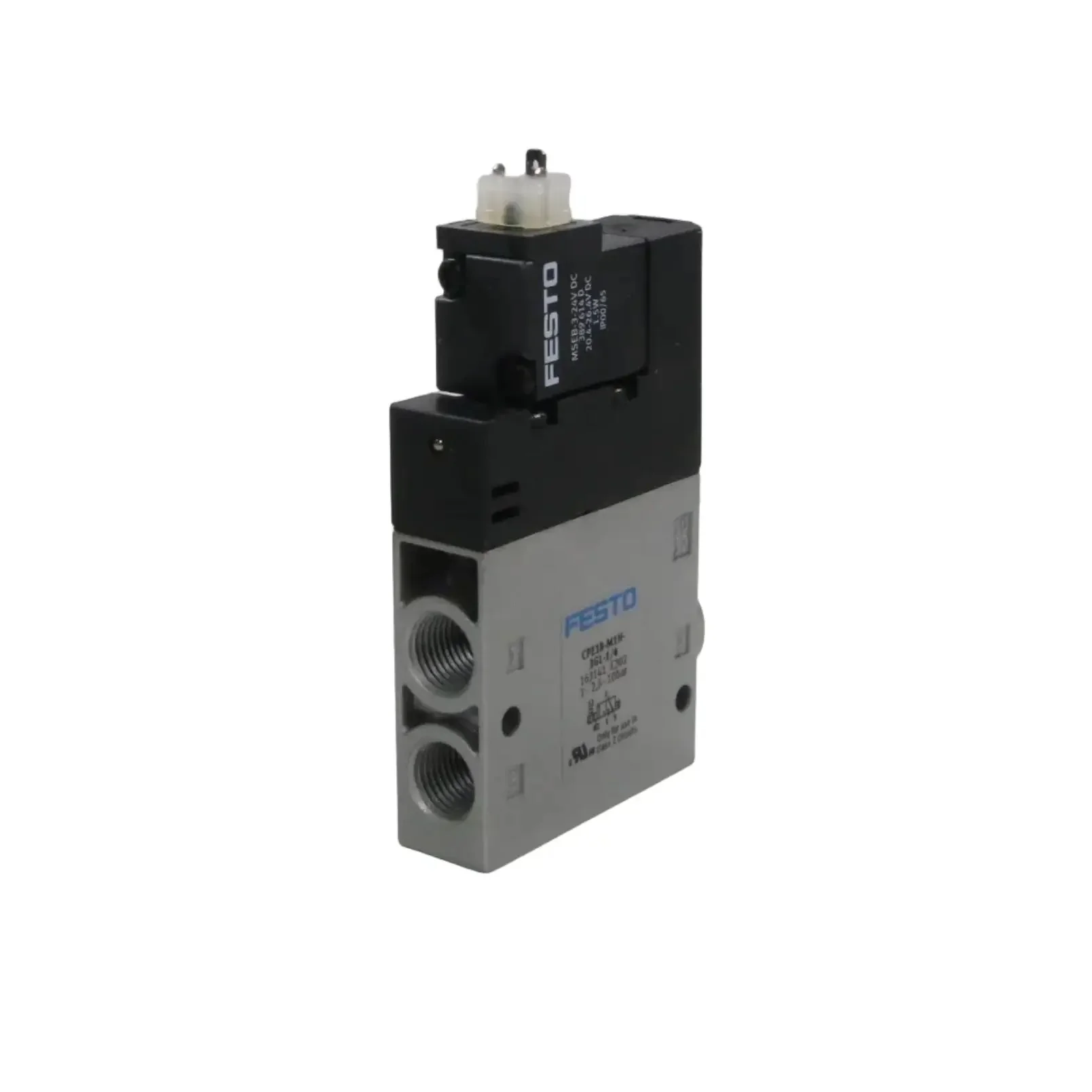

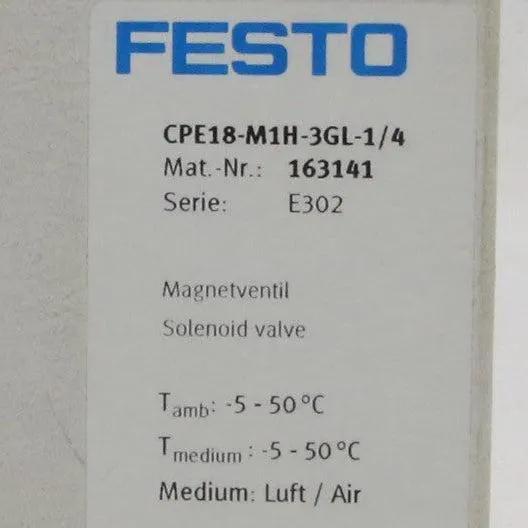

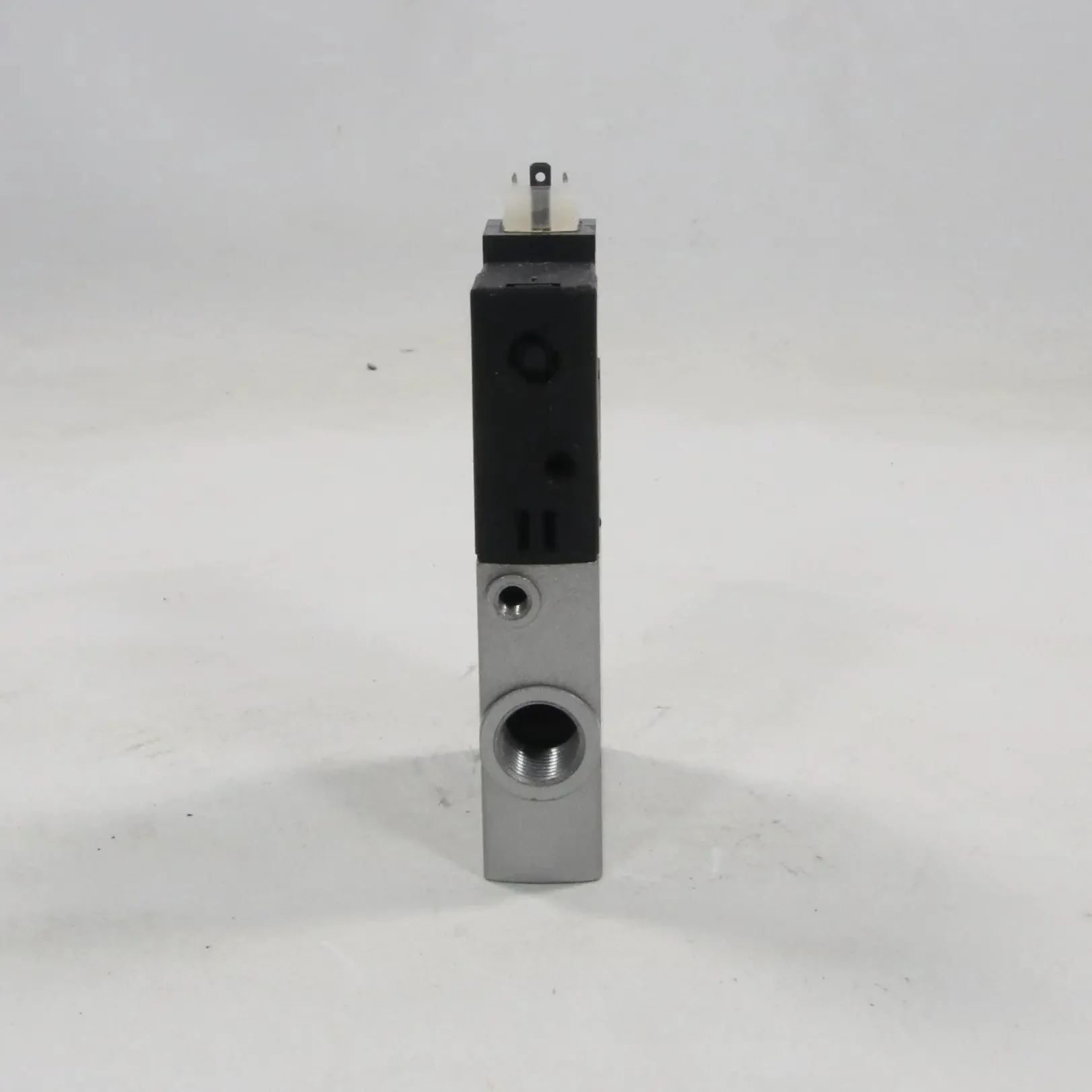

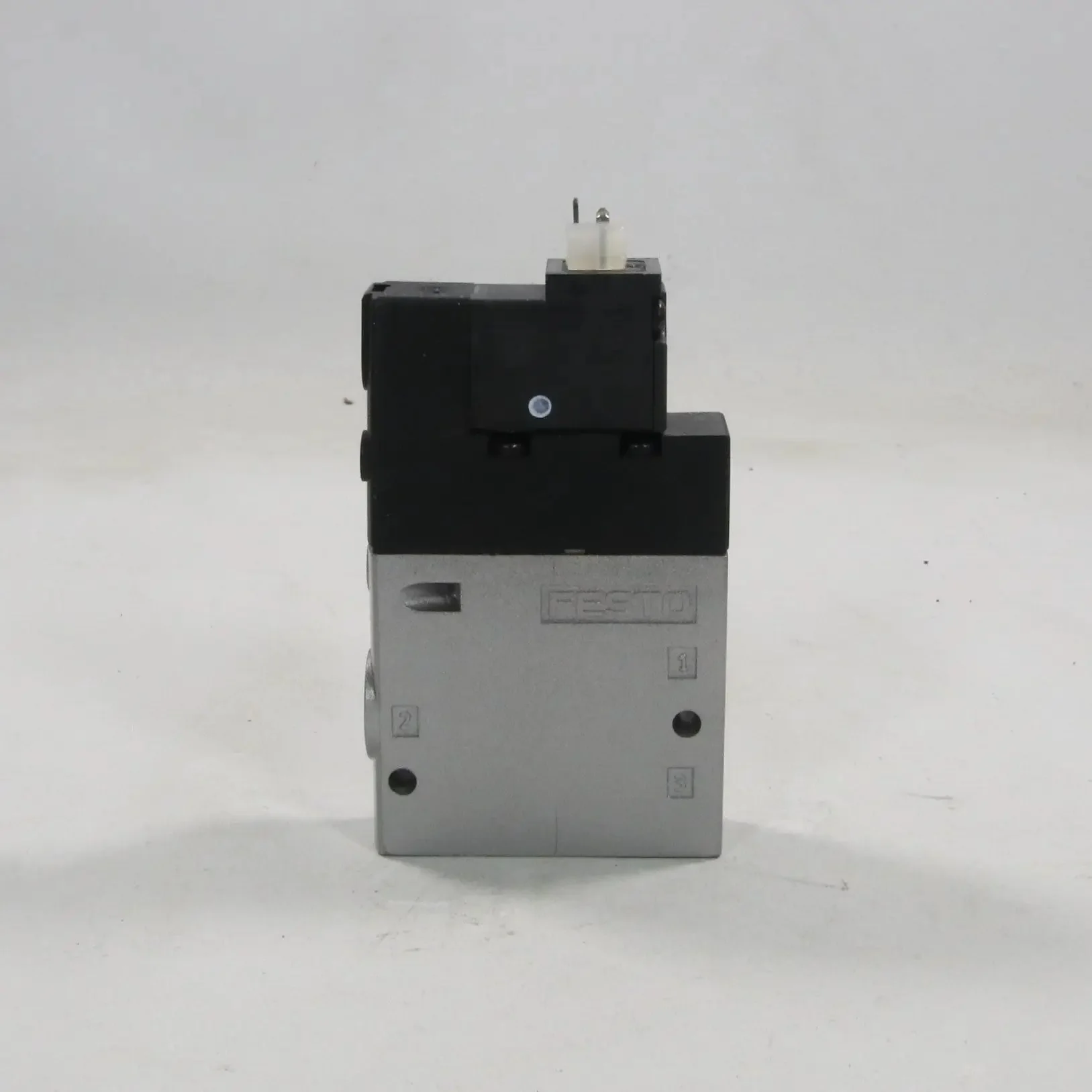

Festo CPE18-M1H-3GL-1/4 Solenoid Valve - 163141

- Brand: Festo

- Model: CPE18-M1H-3GL-1/4

- Type: Solenoid Valve / Directional Control Valve

- Art. number: 163141

- Technical specifications:
- Function: 3/2-way, closed, monostable
- Port size: G1/4
- Operating pressure: 2.5–10 bar
- Flow rate: 1300 l/min
- Nominal size: 8 mm
- Actuation: Solenoid
- Coil voltage: 24 V DC
- Power consumption: 1.5 W
- Pilot air: Internal pilot
- Switching time: On: 14 ms, Off: 25 ms
- Mounting: Inline or manifold
- Protection class: IP65
- Operating temperature: -5°C to +50°C
- Materials: Die-cast aluminum body; seals NBR; plastic cover
- Additional features: High flow in compact size; manual override; LED indicator on coil; suitable for valve terminals; robust for industrial automation, packaging, or assembly lines
- Standards: Compliant with ISO 5599-1 / VDMA 24563; CE marked; RoHS compliant

Weight: 200 g

Dimensions: 115 x 90 x 30 mm

Country of origin: Germany

HS code: 8481.80
