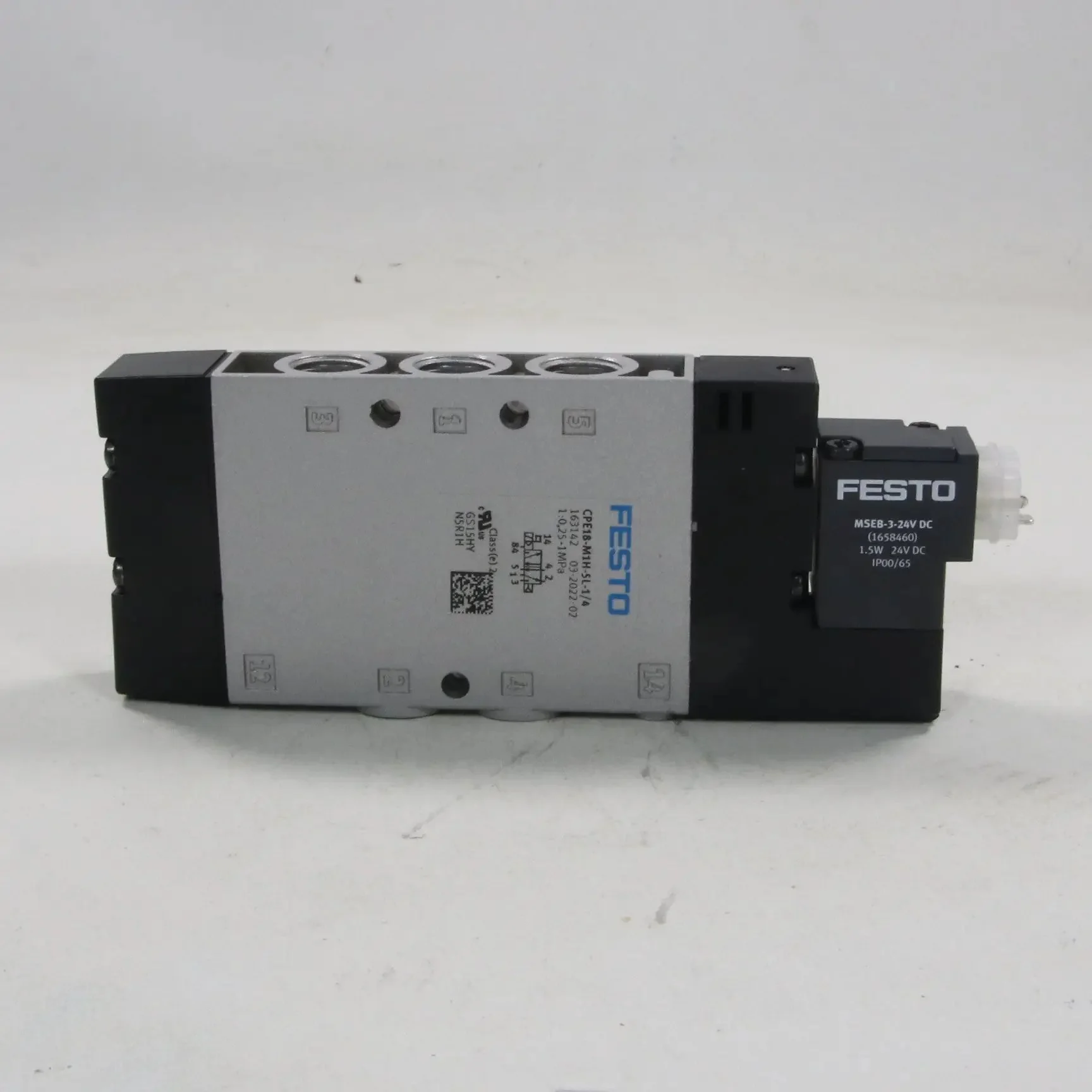

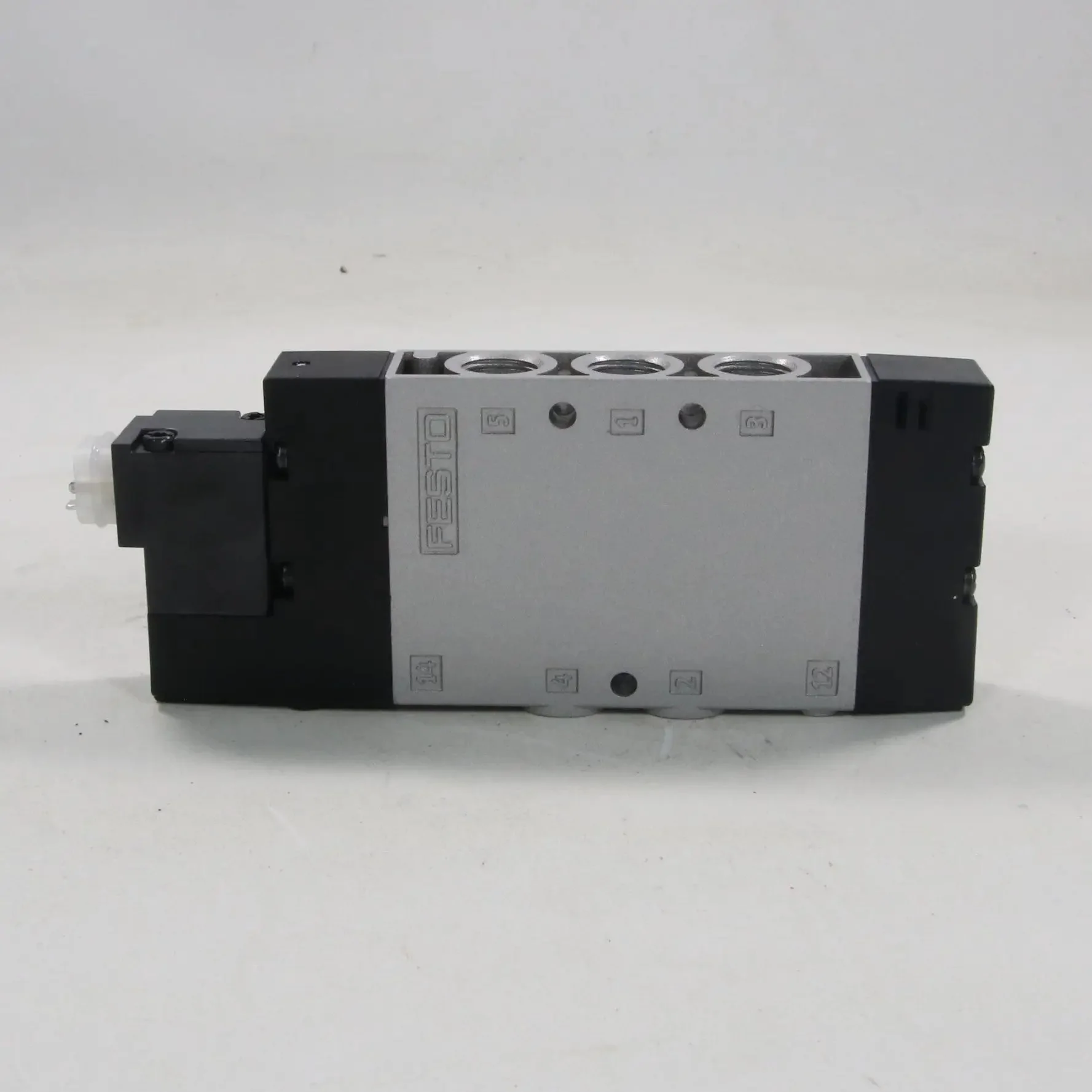

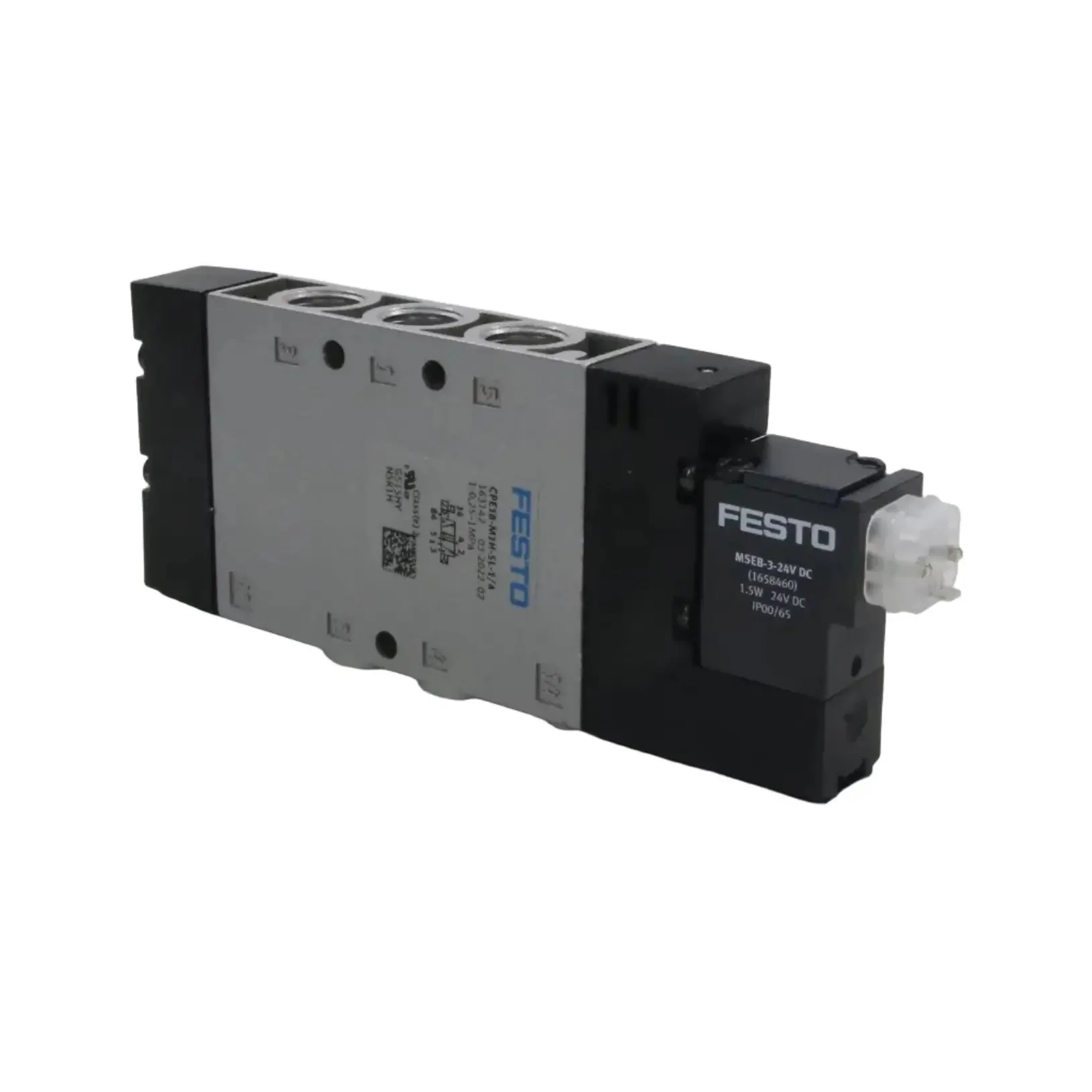

Festo CPE18-M1H-5L-1/4 Directional Control Valve - 163142

- Brand: Festo

- Model: CPE18-M1H-5L-1/4

- Type: Directional Control Valve / Solenoid Valve

- Part number: 163142

- Technical specifications:

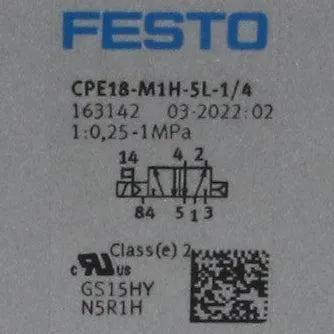

- Function: 5/2-way (5 ports, 2 positions; single solenoid)
- Port size: G1/4
- Operating pressure: 2.5–10 bar
- Flow rate: 1500 l/min
- Nominal size: 8 mm
- Actuation: Single solenoid (monostable; spring return)
- Coil voltage: 24 V DC
- Power consumption: 1.5 W
- Pilot air: Internal pilot
- Switching time: On: 14 ms, Off: 25 ms
- Mounting: Inline or manifold
- Protection class: IP65
- Operating temperature: -5°C to +50°C
- Materials: Die-cast aluminium body; seals NBR; plastic cover
- Additional features: High flow in compact size; manual override; suitable for valve terminals; robust for industrial automation, packaging, or assembly lines
- Standards: Compliant with ISO 5599-1 / VDMA 24563; CE marked; RoHS compliant

Weight: 250 g

Dimensions: 60 x 20 x 150 mm

Country of origin: Germany

HS code: 8481.80
