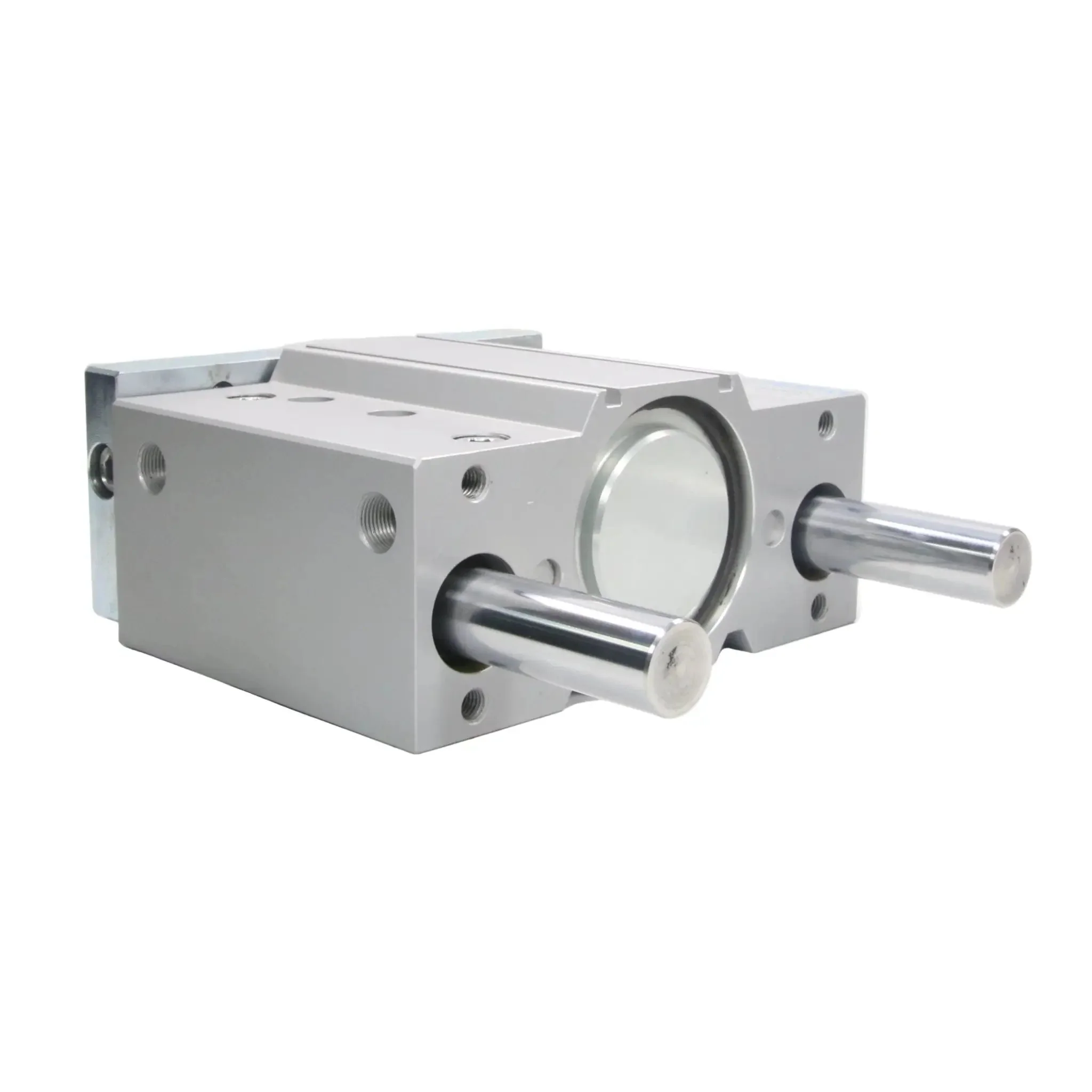

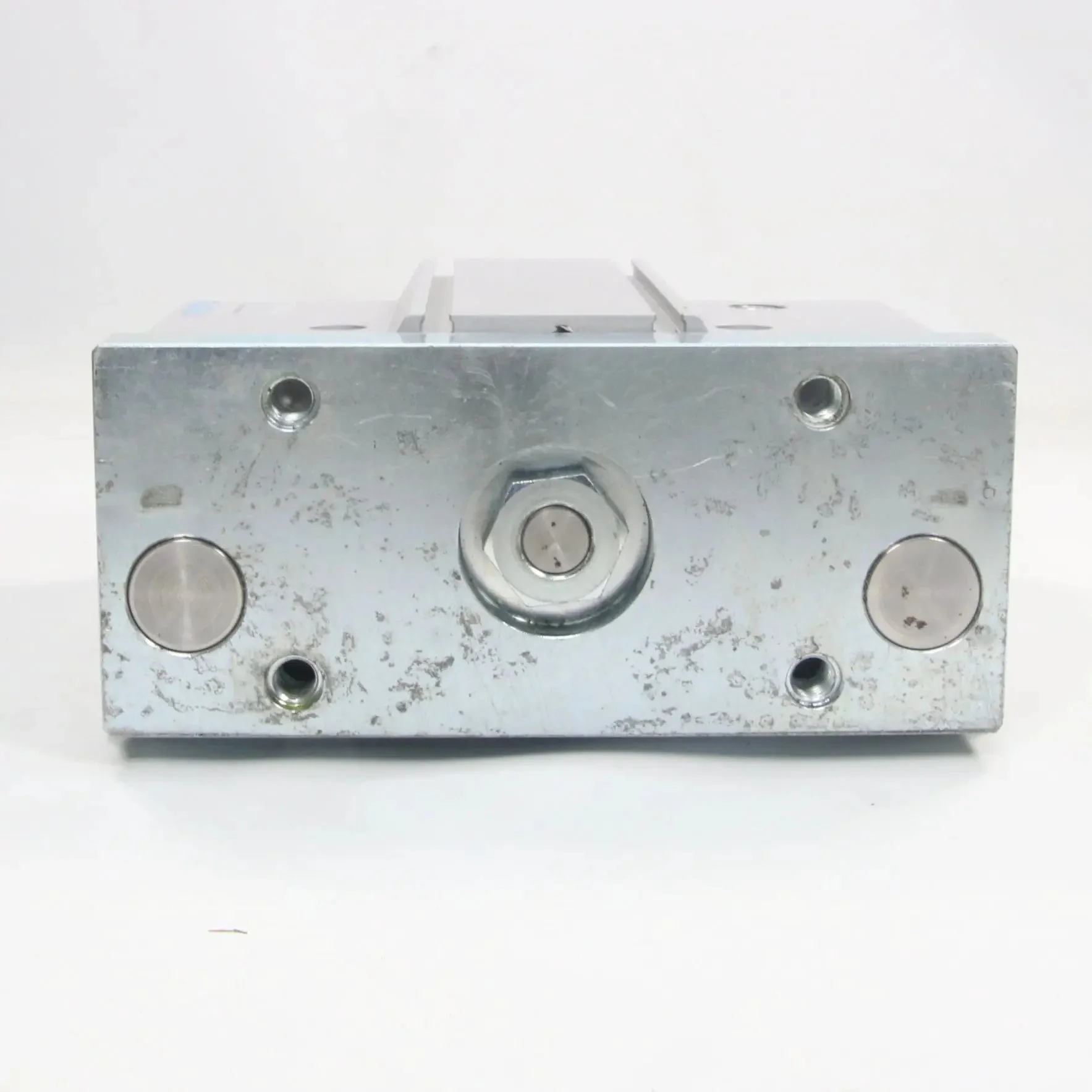

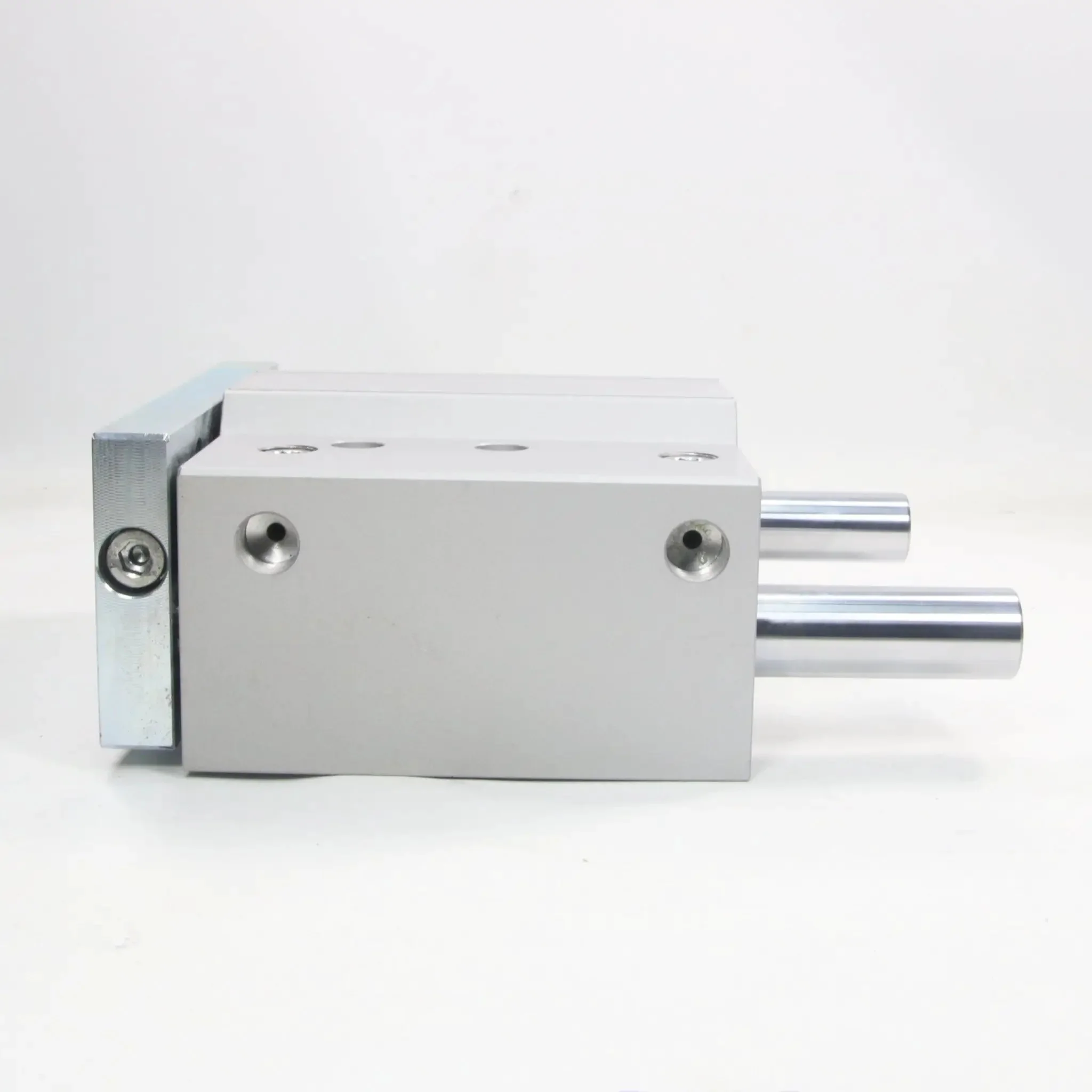

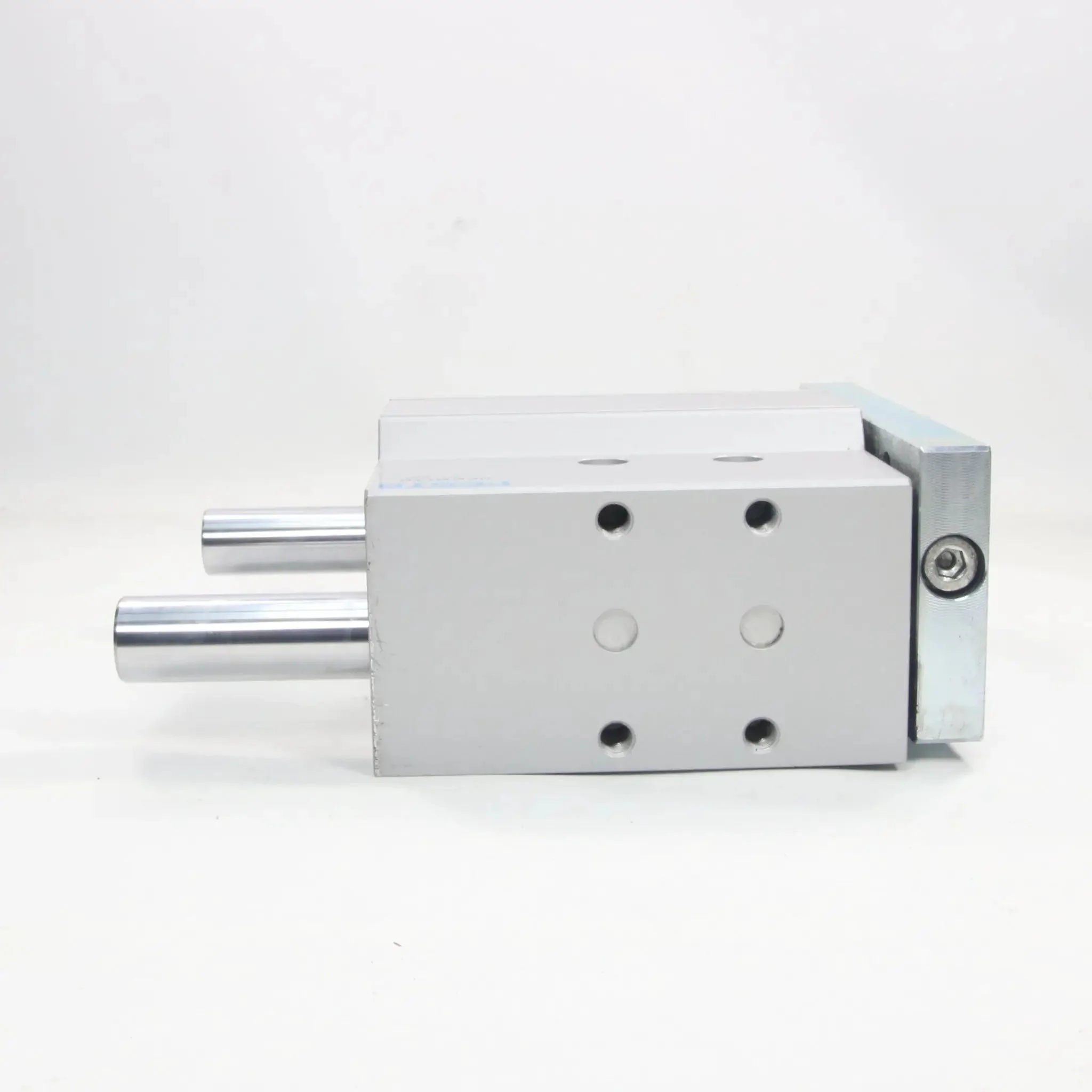

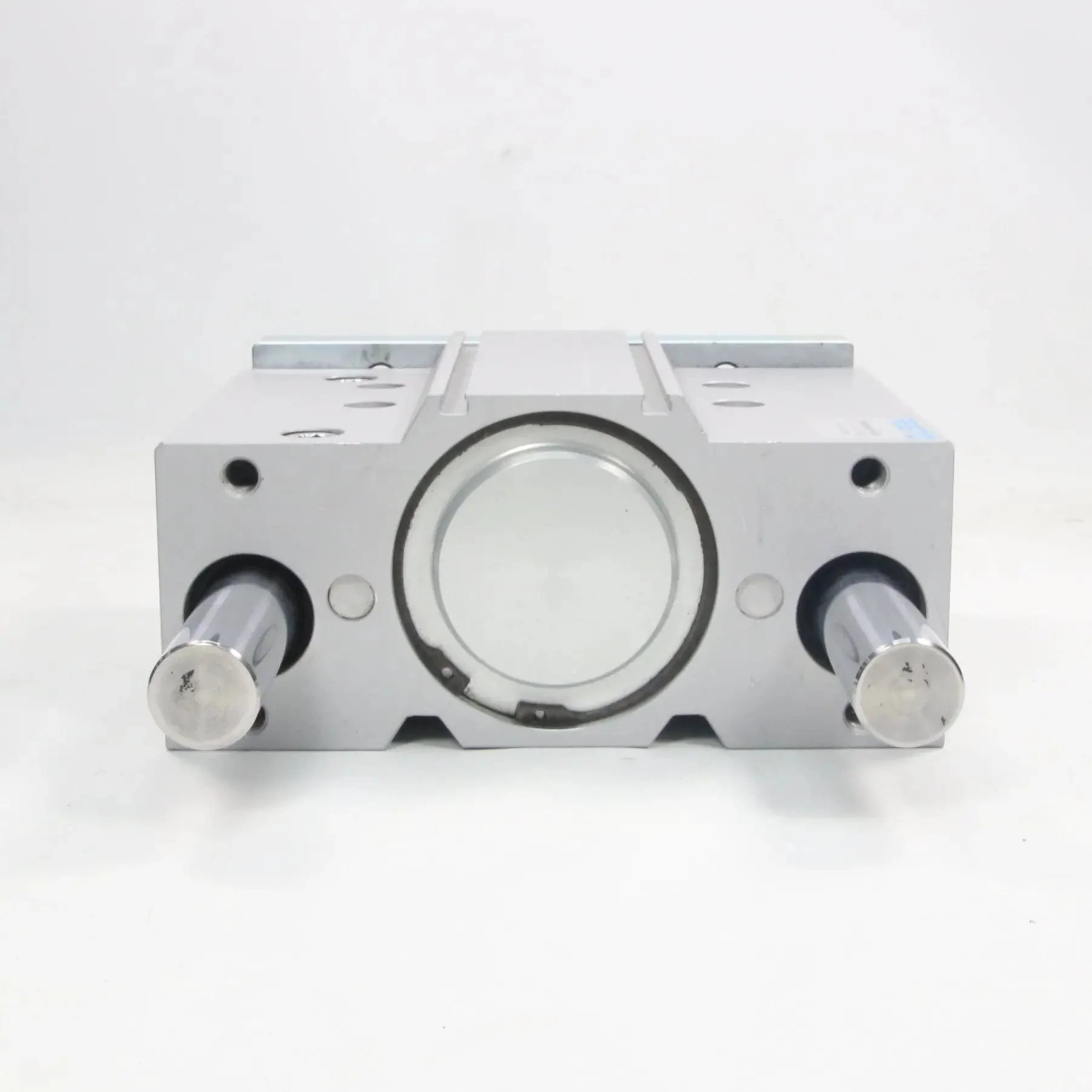

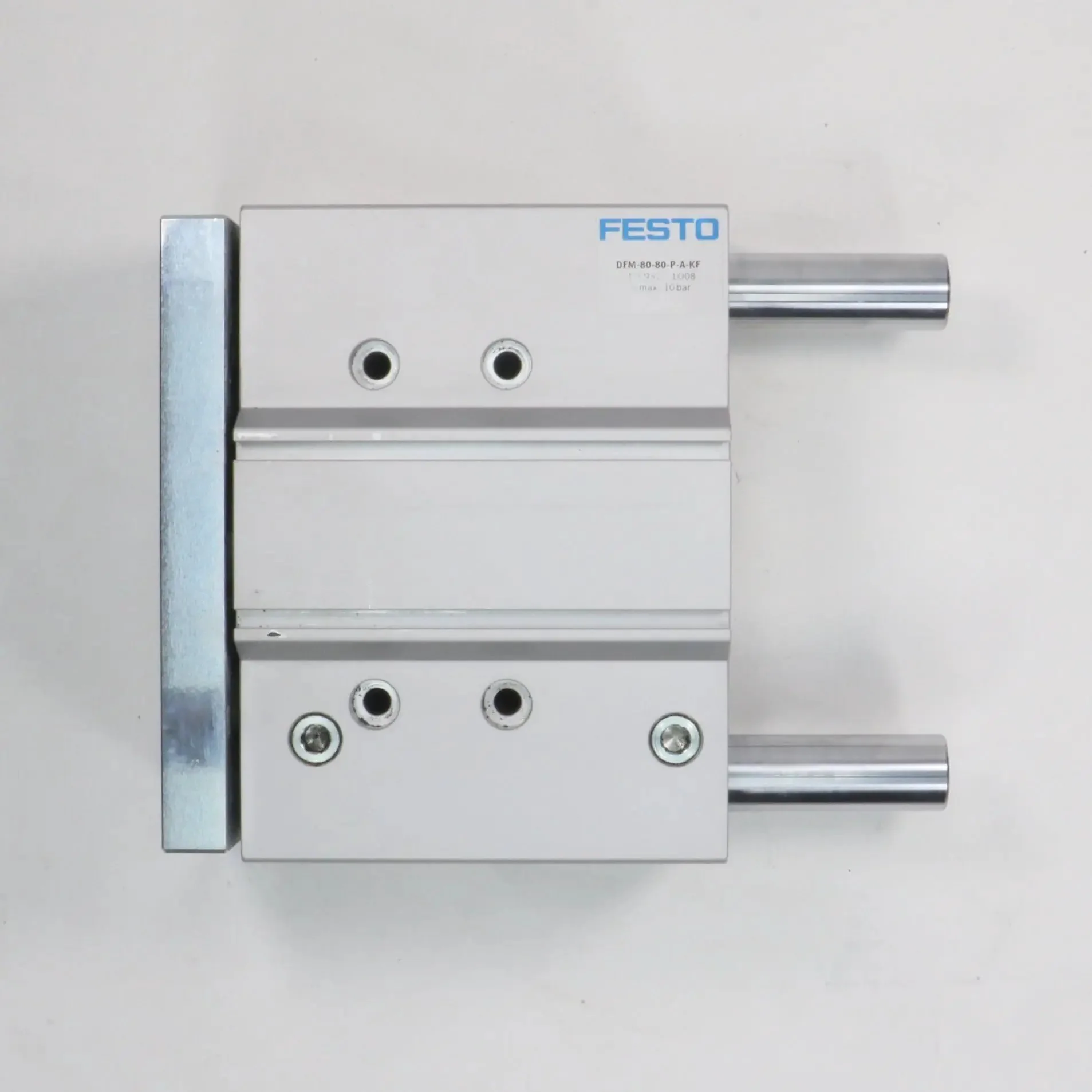

Festo DFM-80-80-PA-KF Guided Drive Cylinder - 170962
- Brand: Festo
- Model: DFM-80-80-PA-KF
- Type: Guided Drive Cylinder
- Technical Specifications:
- Function: Double-acting guided drive with integrated guide
- Part Number: 170962
- Piston Diameter: 80 mm
- Stroke Length: 80 mm
- Operating Mode: Yoke
- Cushioning: Flexible cushioning rings/plates at both ends
- Bearing Type: Ball bearing
- Operating Pressure: 1.5 - 10 bar
- Max. Service Pressure: 10 bar
- Ambient Temperature: -5°C to +60°C
- Centre of Gravity Distance: 125 mm
- Design Size: 80
- Material: Anodized aluminum housing, steel guide rods
- Connection: Integrated slots for proximity sensors
- Features: High resistance to torques and lateral forces, protection against torsion, maintenance-free, suitable for applications involving torque loads
- Dimensions: 250 x 200 x 80 mm
- Weight: 8.9 kg
- Country of Origin: Germany
- HS Code: 84123100
Original: $685.08
-70%$685.08
$205.52
Description
- Brand: Festo
- Model: DFM-80-80-PA-KF
- Type: Guided Drive Cylinder
- Technical Specifications:
- Function: Double-acting guided drive with integrated guide
- Part Number: 170962
- Piston Diameter: 80 mm
- Stroke Length: 80 mm
- Operating Mode: Yoke
- Cushioning: Flexible cushioning rings/plates at both ends
- Bearing Type: Ball bearing
- Operating Pressure: 1.5 - 10 bar
- Max. Service Pressure: 10 bar
- Ambient Temperature: -5°C to +60°C
- Centre of Gravity Distance: 125 mm
- Design Size: 80
- Material: Anodized aluminum housing, steel guide rods
- Connection: Integrated slots for proximity sensors
- Features: High resistance to torques and lateral forces, protection against torsion, maintenance-free, suitable for applications involving torque loads
- Dimensions: 250 x 200 x 80 mm
- Weight: 8.9 kg
- Country of Origin: Germany
- HS Code: 84123100
