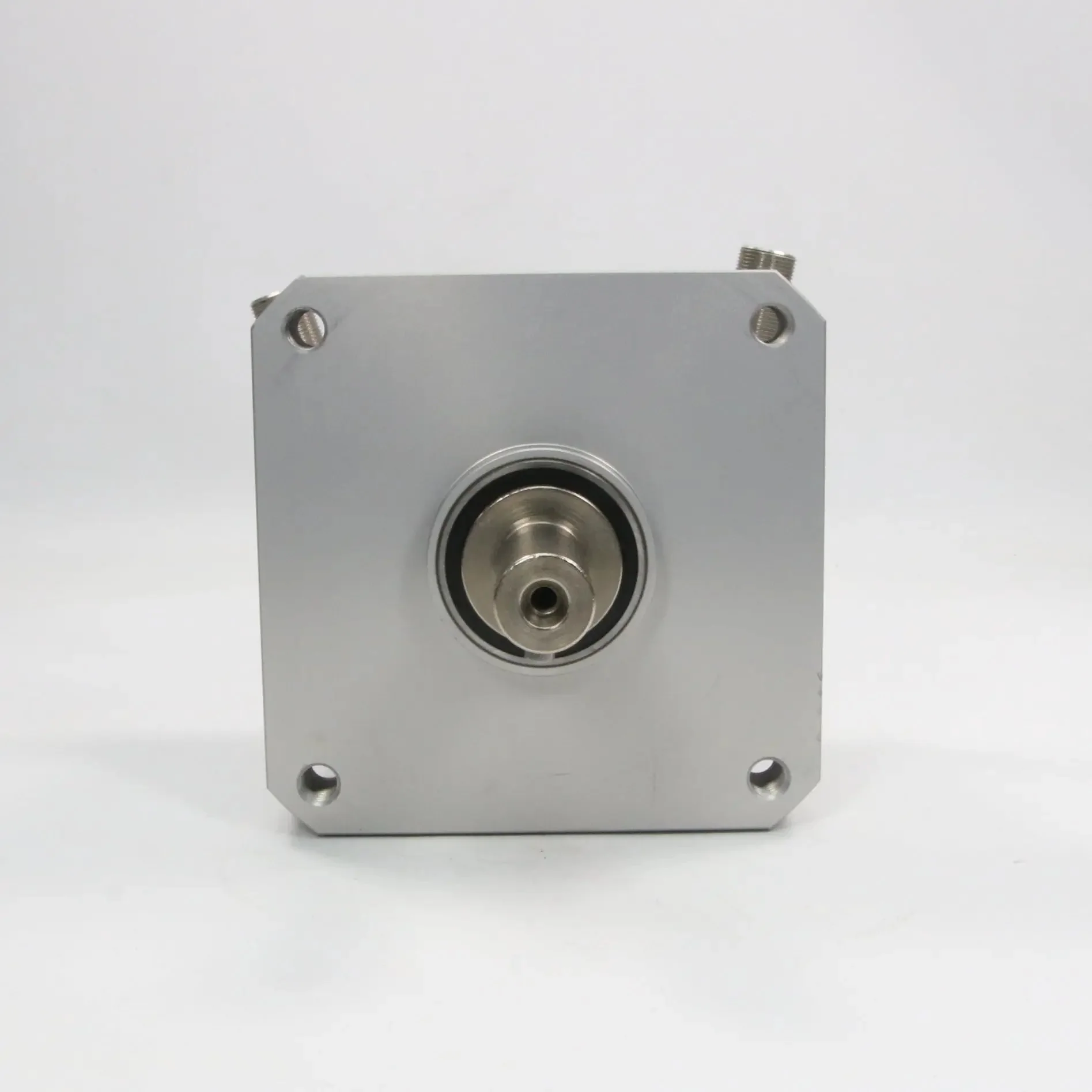

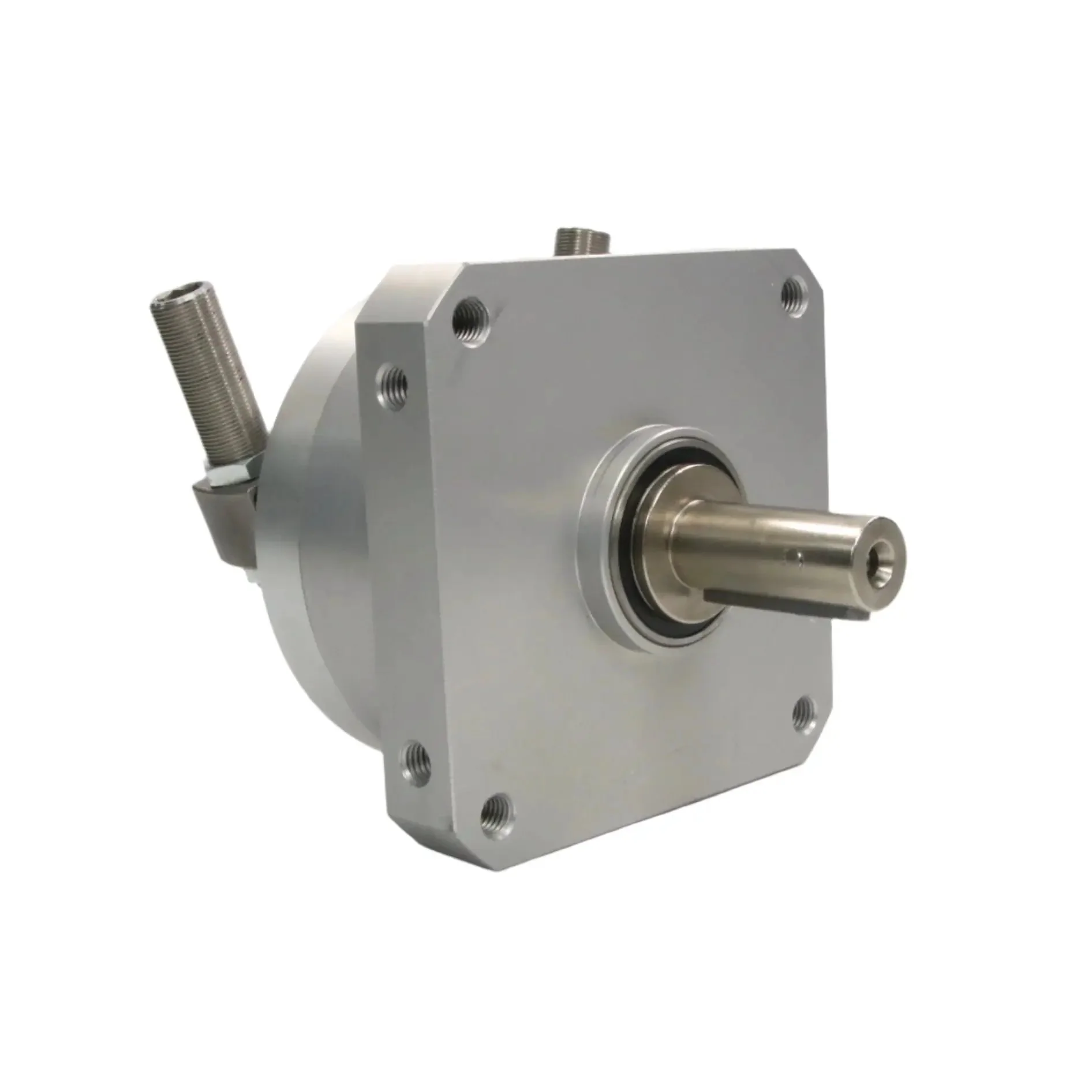

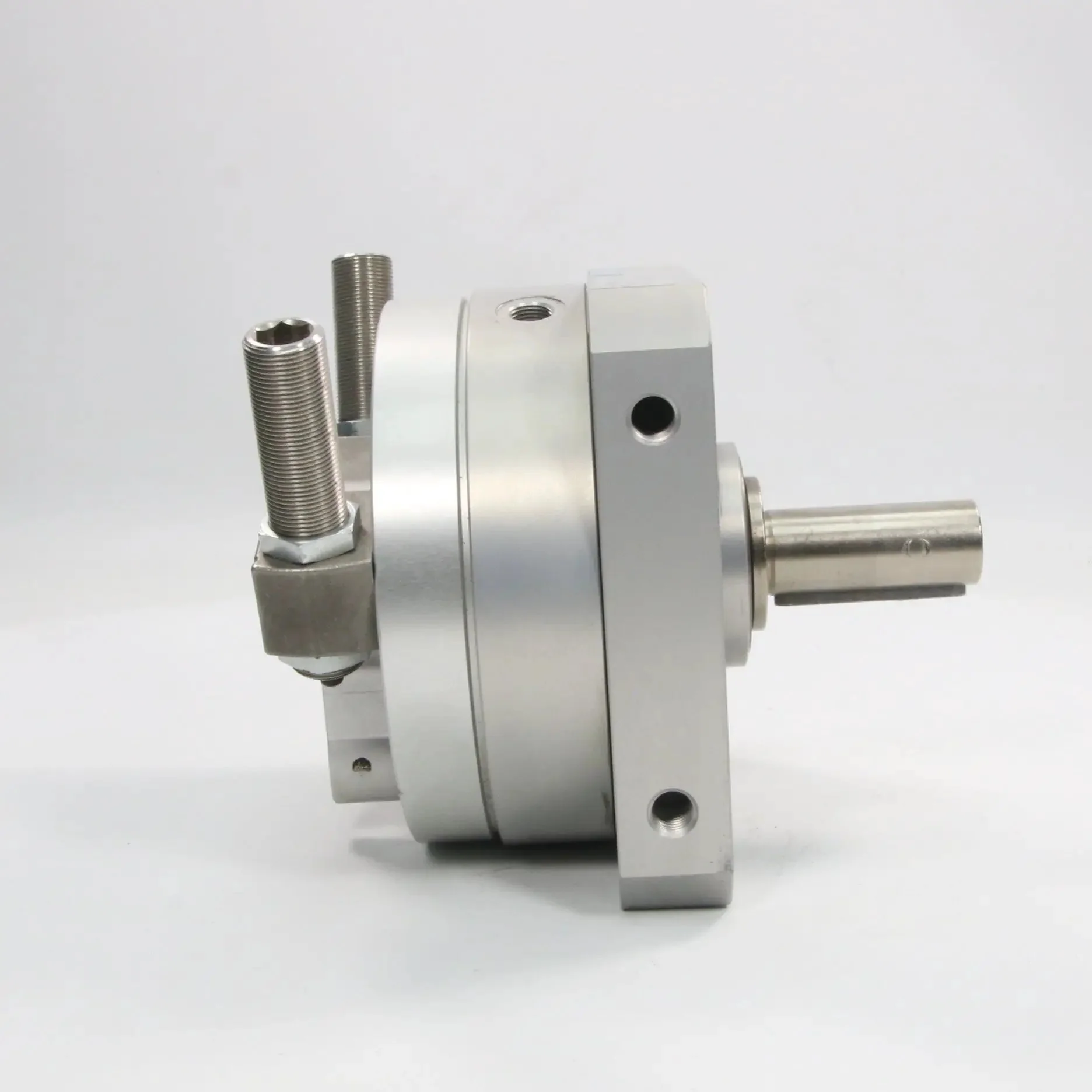

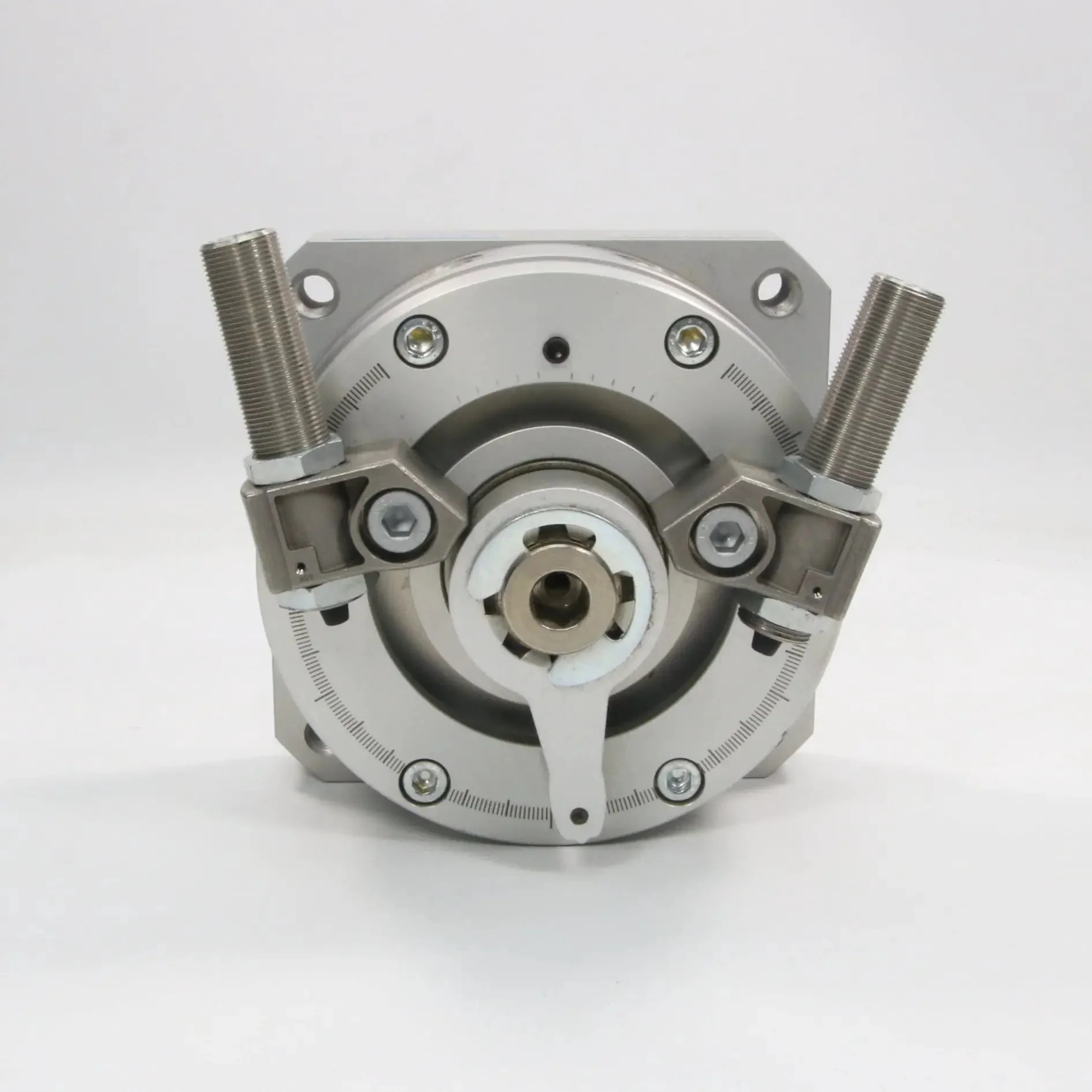

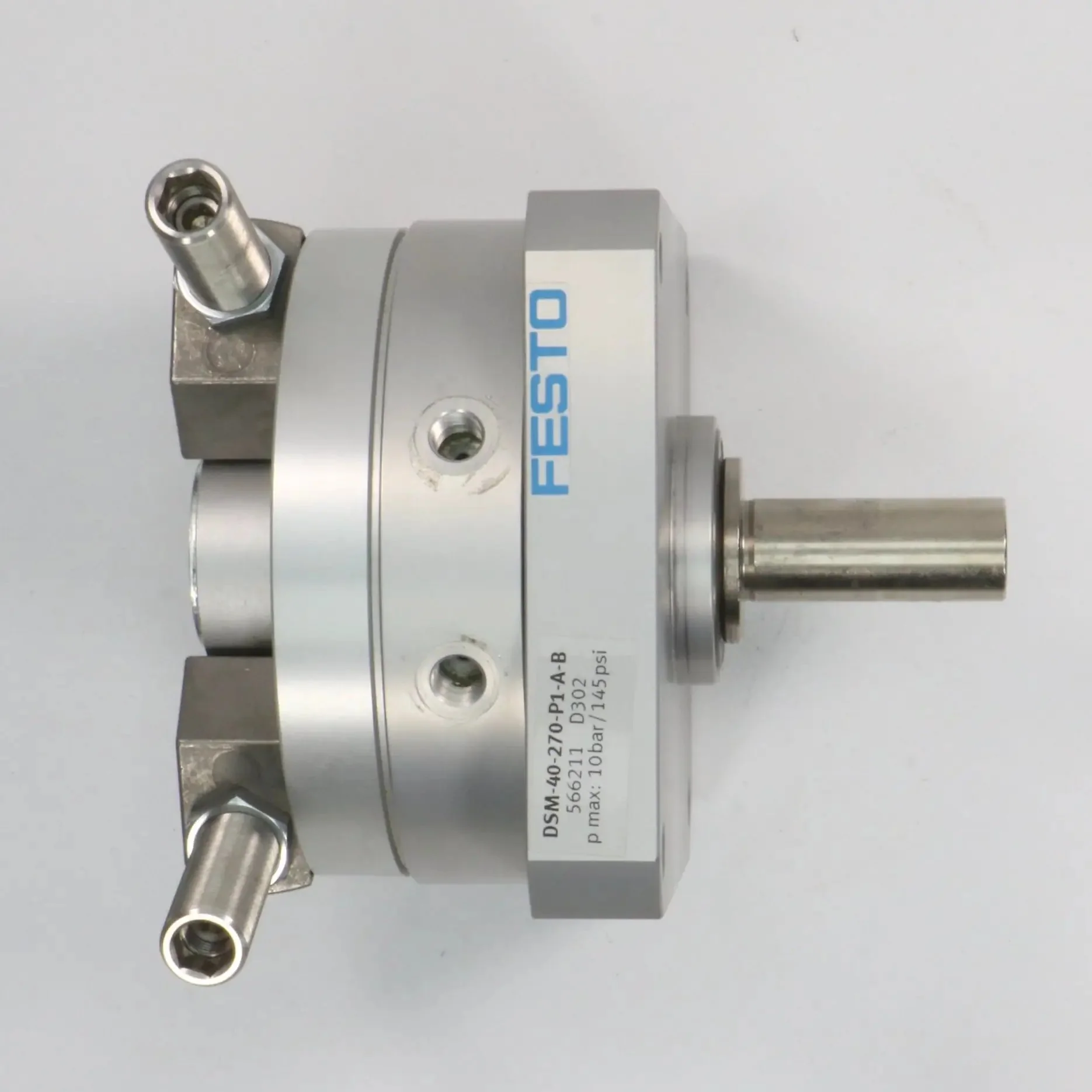

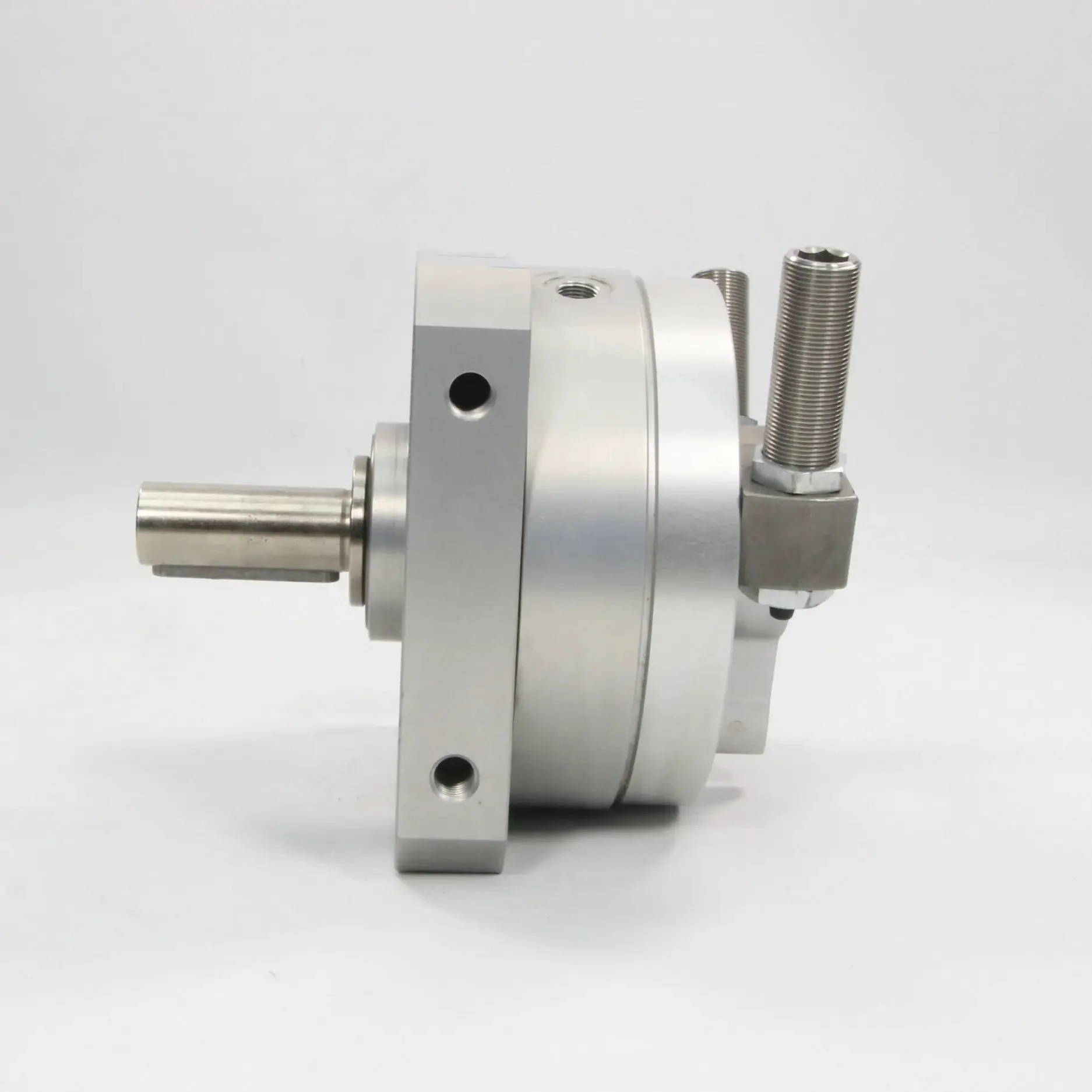

Festo DSM 40 270 P1 A B Semi Rotary Drive
- Festo
- DSM-40-270-P1-A-B
- Semi Rotary Drive
- P/N: 566211
- Size: 40
- Cushioning angle: 6.5 deg
- Rotation angle adjustment range: 0 deg ... 240 deg
- Swivel angle: 0 deg ... 240 deg
- Mounting position: optional
- Fine adjustment: -6 deg
- Mode of operation: Double-acting
- Design: Vane
- Position detection: Via proximity switch
- Operating pressure: 1.5 bar ... 10 bar
- Max. swivel frequency at 0.6 MPa (6 bar, 87 psi): 2 Hz
- Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]
- Max. axial force: 120 N
- Max. radial force: 350 N
- Type of mounting: Via female thread
- Pneumatic connection: G 1/8
- Material drive shaft: Steel Nickel-plated
- Material housing: Wrought aluminium alloy
$483.79
Festo DSM 40 270 P1 A B Semi Rotary Drive—
$483.79
Description
- Festo
- DSM-40-270-P1-A-B
- Semi Rotary Drive
- P/N: 566211
- Size: 40
- Cushioning angle: 6.5 deg
- Rotation angle adjustment range: 0 deg ... 240 deg
- Swivel angle: 0 deg ... 240 deg
- Mounting position: optional
- Fine adjustment: -6 deg
- Mode of operation: Double-acting
- Design: Vane
- Position detection: Via proximity switch
- Operating pressure: 1.5 bar ... 10 bar
- Max. swivel frequency at 0.6 MPa (6 bar, 87 psi): 2 Hz
- Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]
- Max. axial force: 120 N
- Max. radial force: 350 N
- Type of mounting: Via female thread
- Pneumatic connection: G 1/8
- Material drive shaft: Steel Nickel-plated
- Material housing: Wrought aluminium alloy
