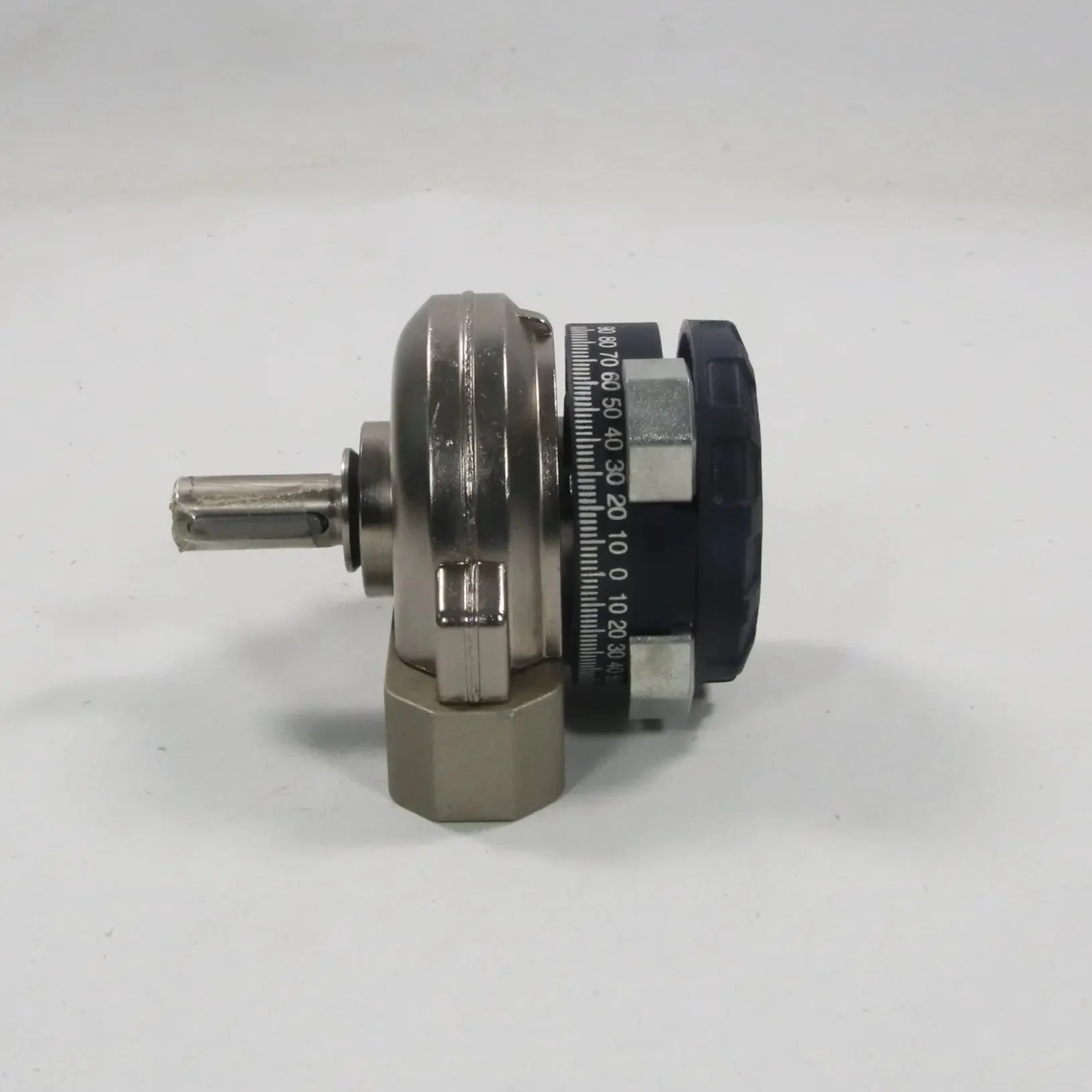

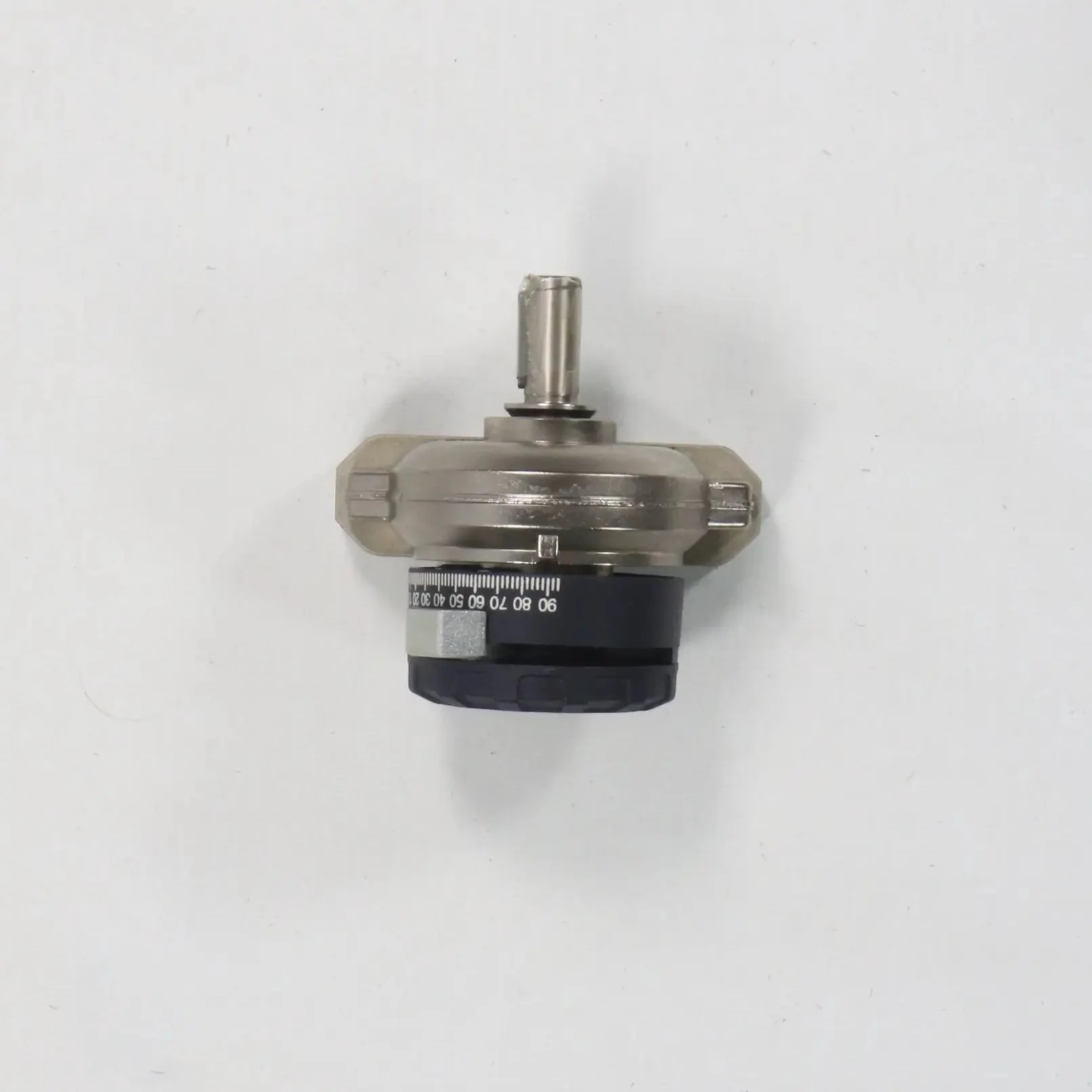

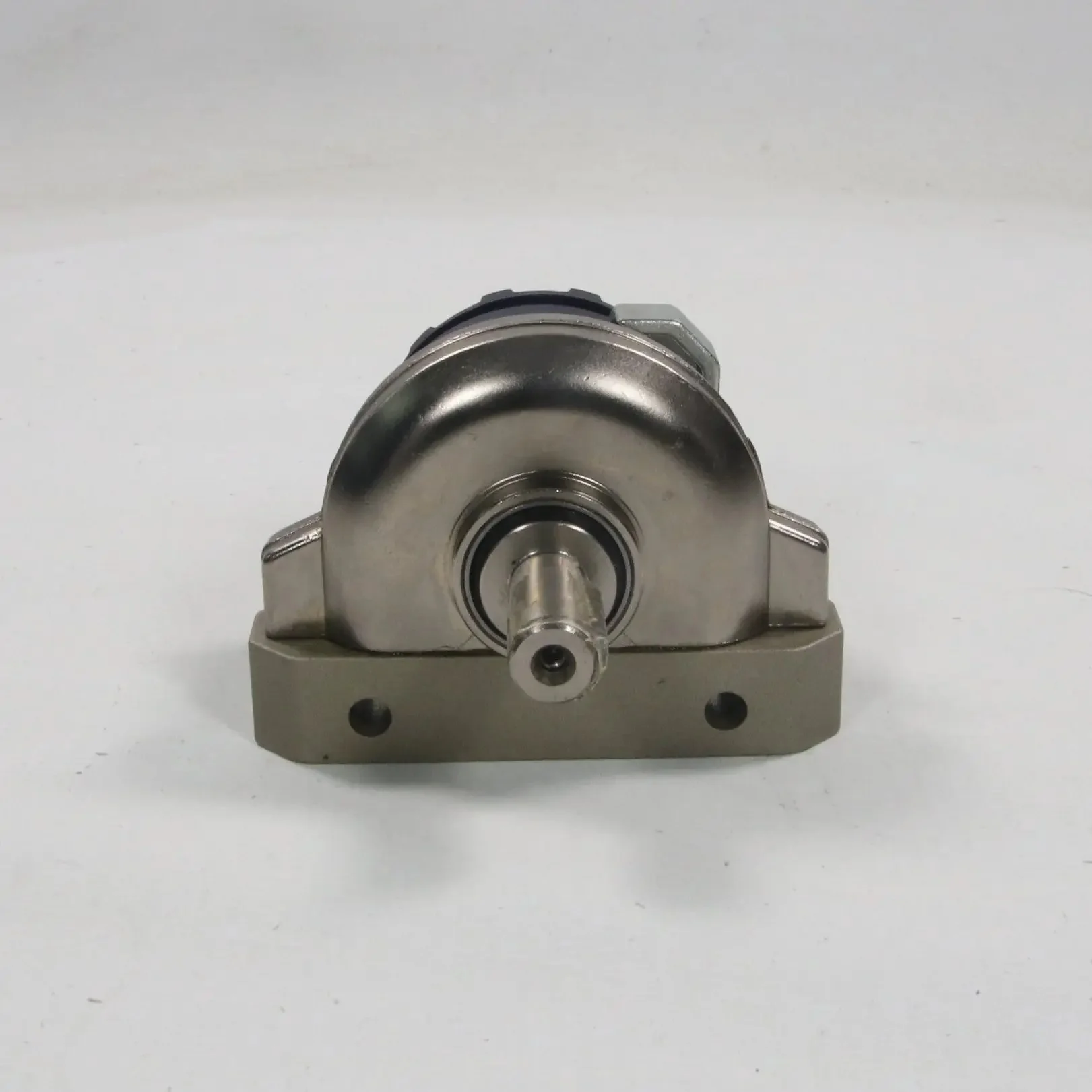

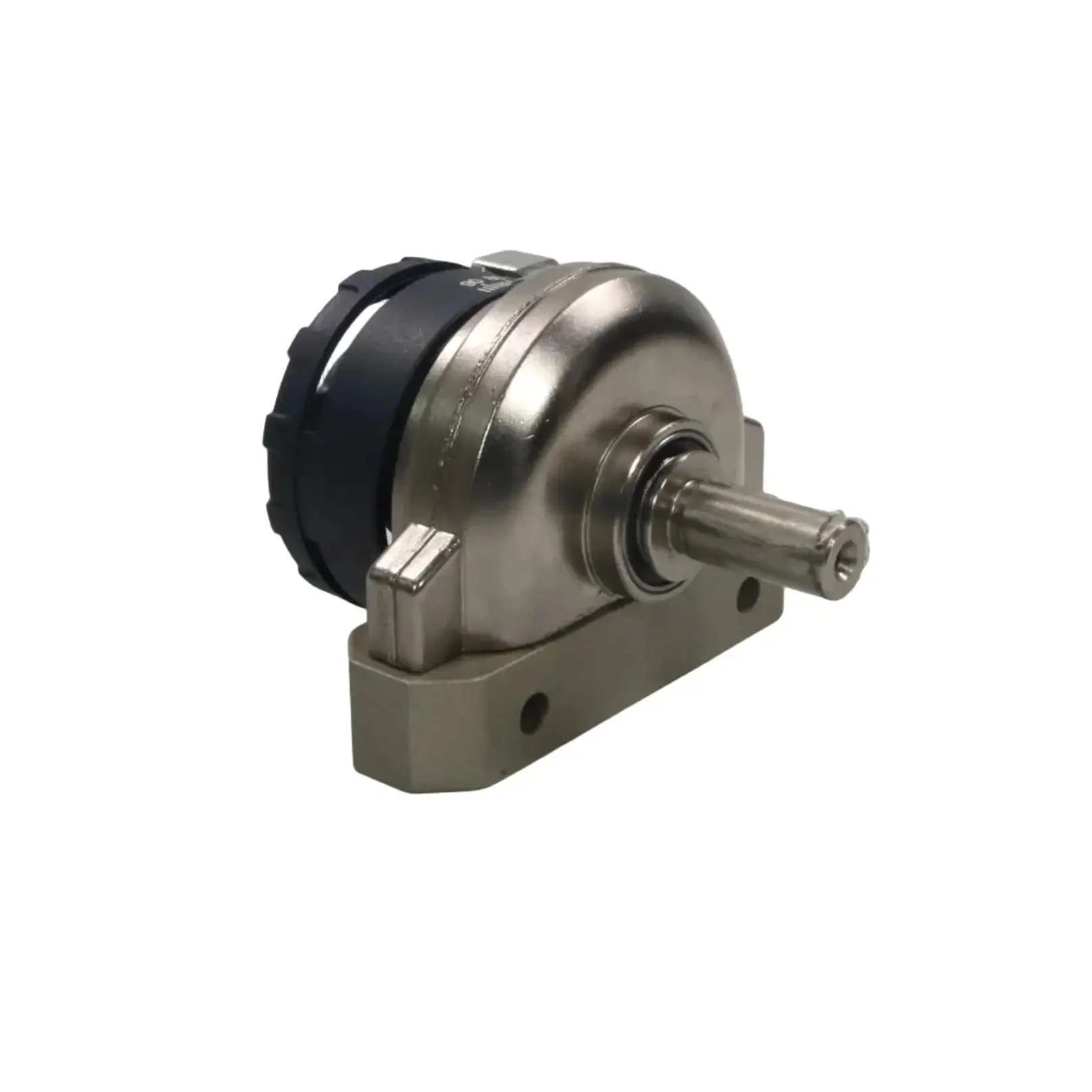

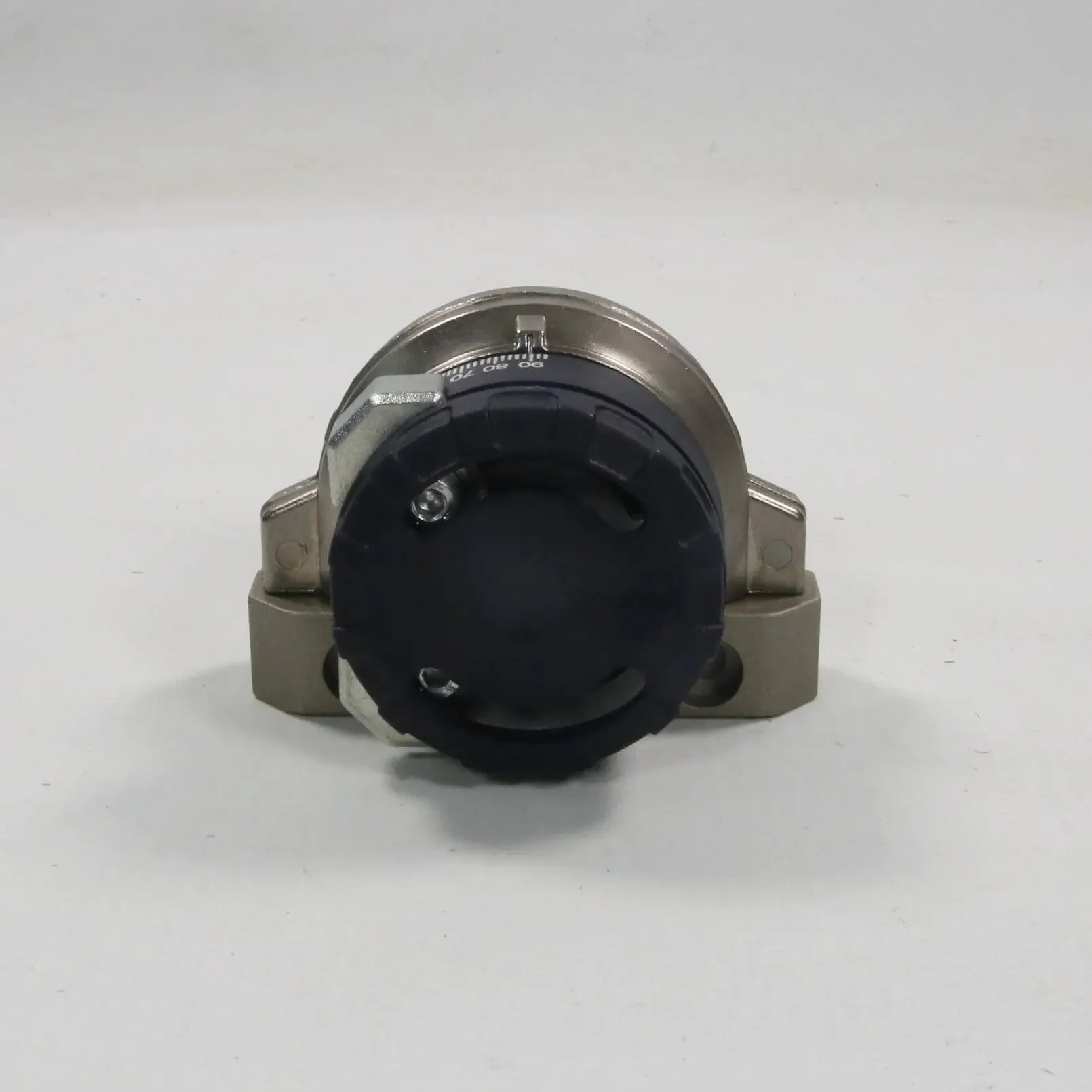

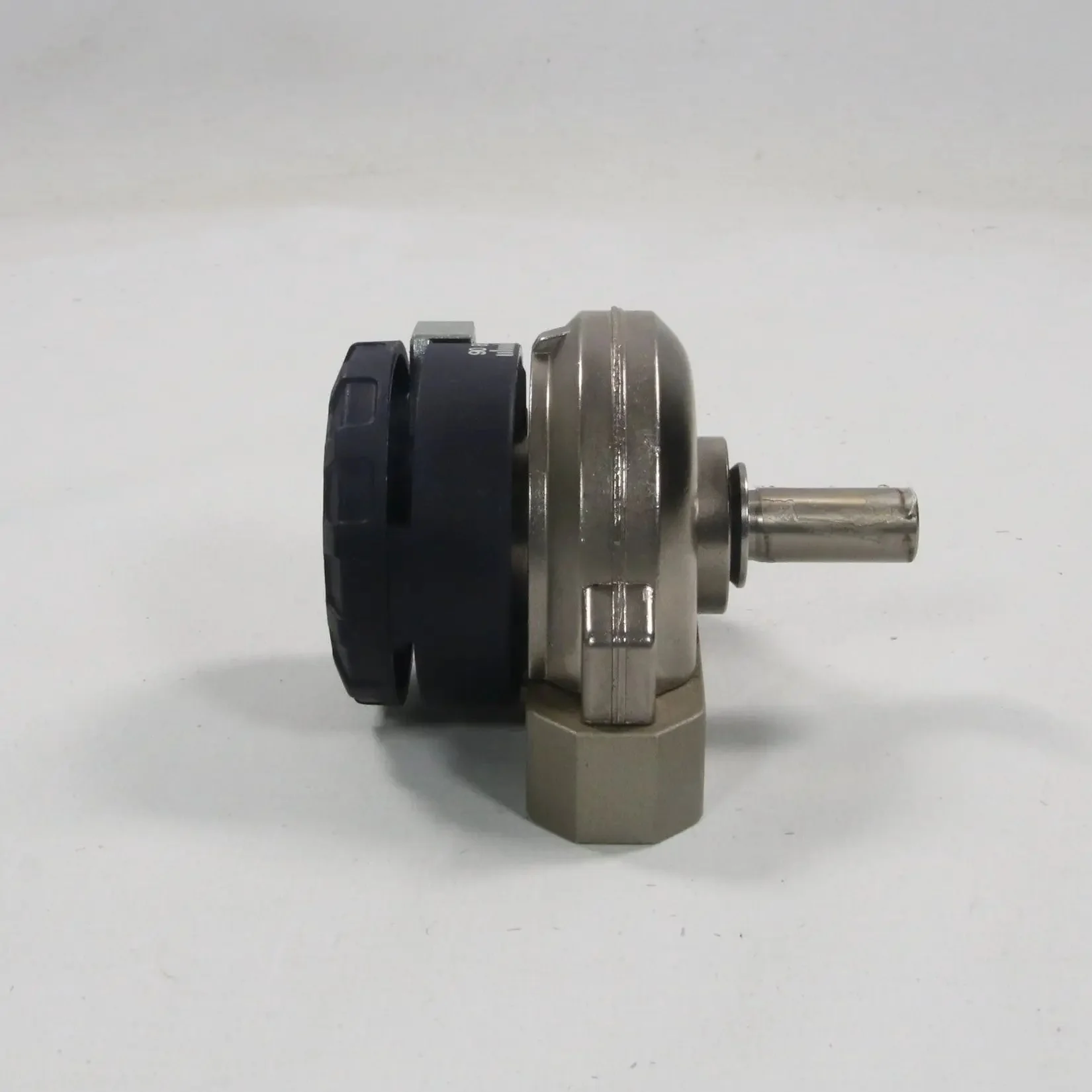

Festo DSR-16-180-P Semi Rotary Drive - 11910

- Brand: Festo

- Model: DSR-16-180-P

- Type: Semi-Rotary Drive / Pneumatic Rotary Actuator

- Art. number: 11910

- Technical specifications:
- Rotation angle: 180°
- Torque: 2 Nm
- Operating pressure: 2–8 bar
- Port size: M5
- Mounting: Direct mounting via holes
- Cycle time: Fast
- End position cushioning: Elastic cushioning rings
- Materials: Housing – Die-cast zinc; Vane/shaft – steel (nickel plated); Seals – NBR (nitrile rubber)
- Temperature range: -10°C to +60°C
- Protection class: IP65
- Additional features: Adjustable end stops; manual override option (via shaft); compact design; high reliability for industrial use; suitable for direct mounting on quarter-turn valves or as rotary module in handling systems
- Standards: Compliant with ISO 5211 / VDI/VDE 3845 (for valve mounting); CE, RoHS compliant

Weight: 300 g

Dimensions: 80 x 80 x 60 mm

Country of origin: Germany

HS code: 8412.31
