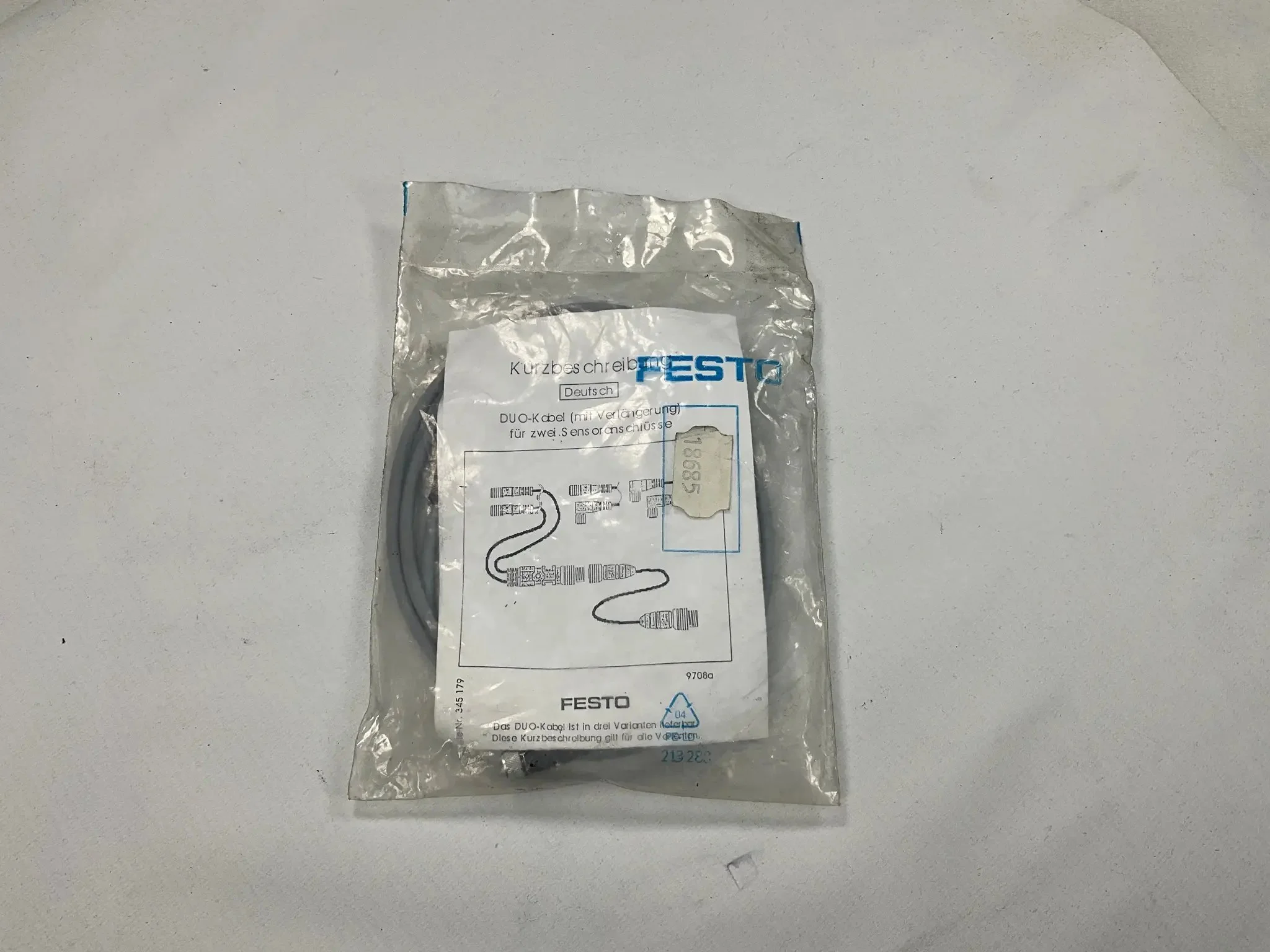

Festo KM12-DUO-M8-GDGD DUO Cable 18685
Brand: Festo
Part Number/Model: 18685 KM12‑DUO‑M8‑GDGD
Type: DUO Cable (M12 plug → 2× M8 sockets)
Cable Length: 0.6 m
Conductor Configuration: 2 × (3 × 0.25 mm²)
Cable Diameter: 4.5 mm
Operating Voltage (AC/DC): Up to 60 V AC / 75 V DC
Max Current: 2.8 A
Protection Rating (IP): IP67 (plugged & screwed)
Ambient Temp (Fixed): –30 °C to +70 °C
Ambient Temp (Flexible): –5 °C to +70 °C
Cable Material: Polyurethane

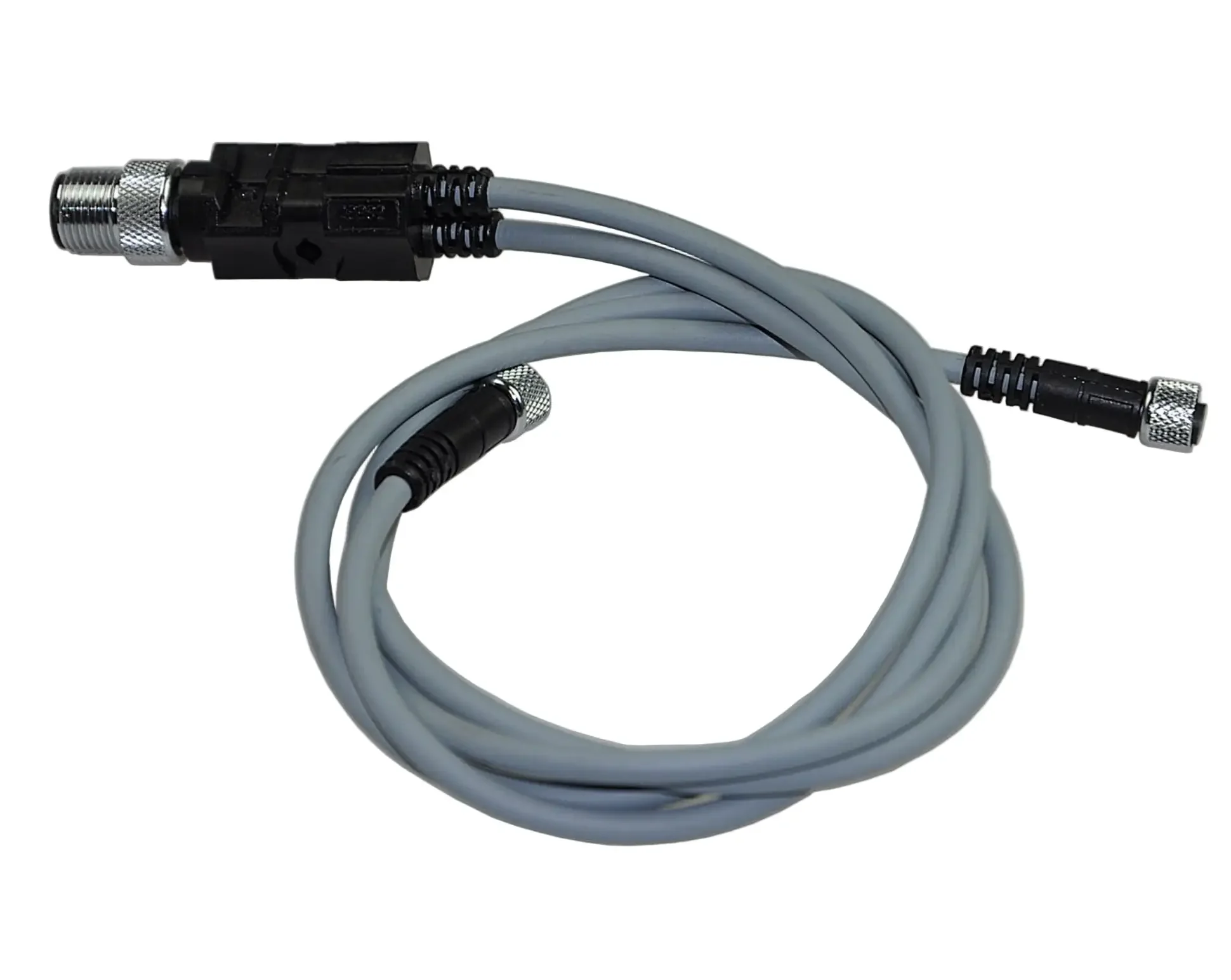

Configuration: Straight M12 plug to two straight M8 sockets
Approximate Weight: 70 g
Country of origin: Germany
Original: $78.05
-70%$78.05
$23.41

Description
Brand: Festo
Part Number/Model: 18685 KM12‑DUO‑M8‑GDGD
Type: DUO Cable (M12 plug → 2× M8 sockets)
Cable Length: 0.6 m
Conductor Configuration: 2 × (3 × 0.25 mm²)
Cable Diameter: 4.5 mm
Operating Voltage (AC/DC): Up to 60 V AC / 75 V DC
Max Current: 2.8 A
Protection Rating (IP): IP67 (plugged & screwed)
Ambient Temp (Fixed): –30 °C to +70 °C
Ambient Temp (Flexible): –5 °C to +70 °C
Cable Material: Polyurethane
Configuration: Straight M12 plug to two straight M8 sockets
Approximate Weight: 70 g
Country of origin: Germany
