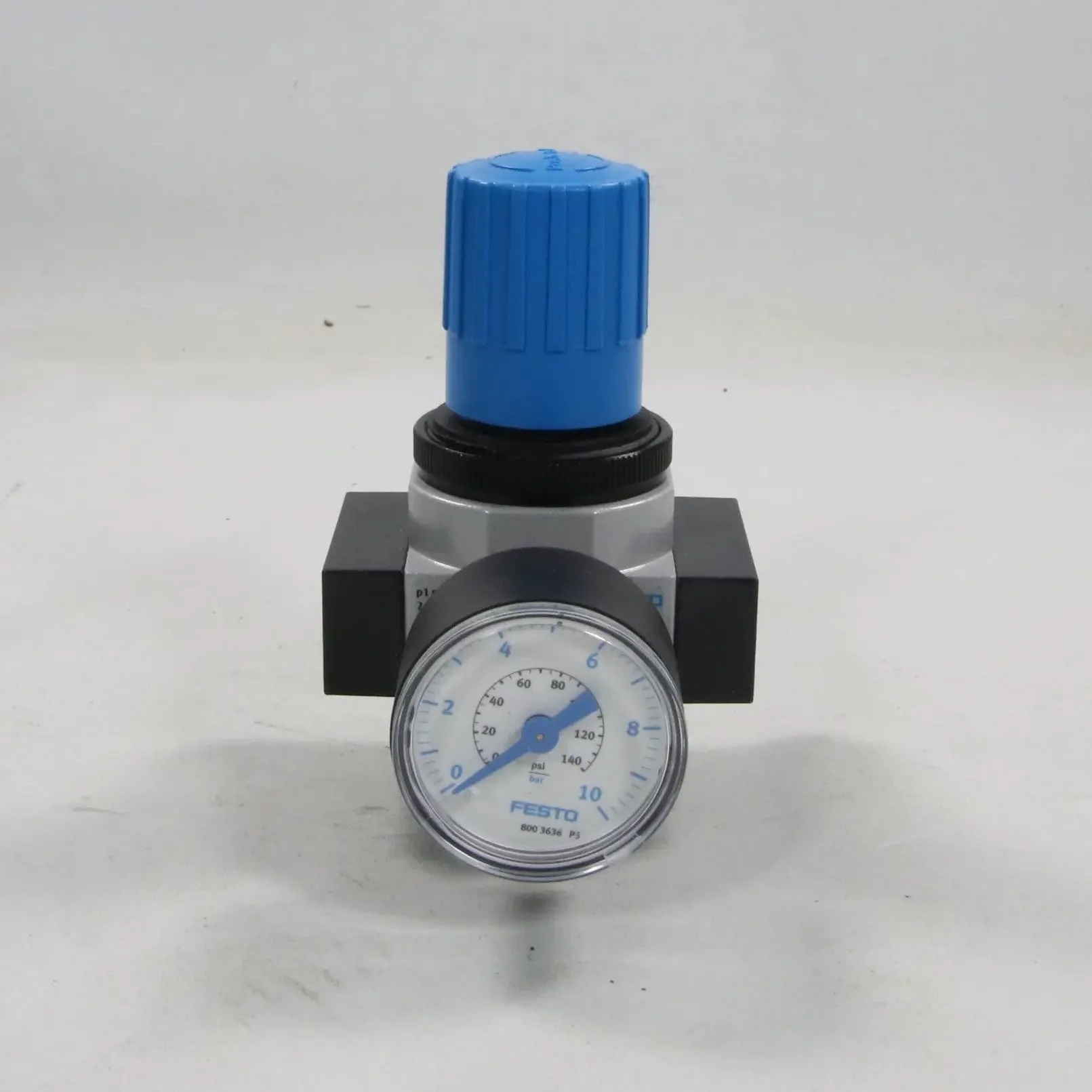

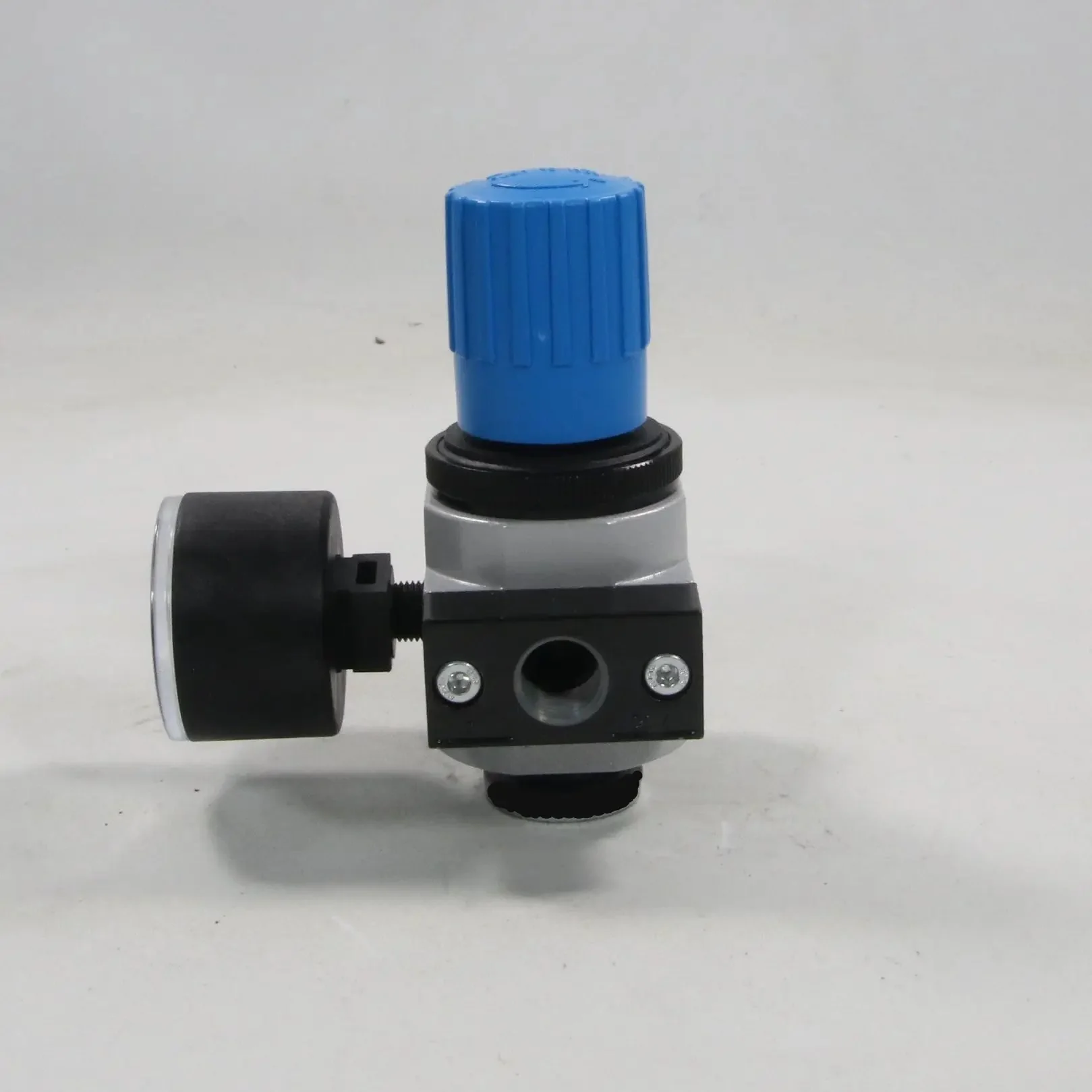

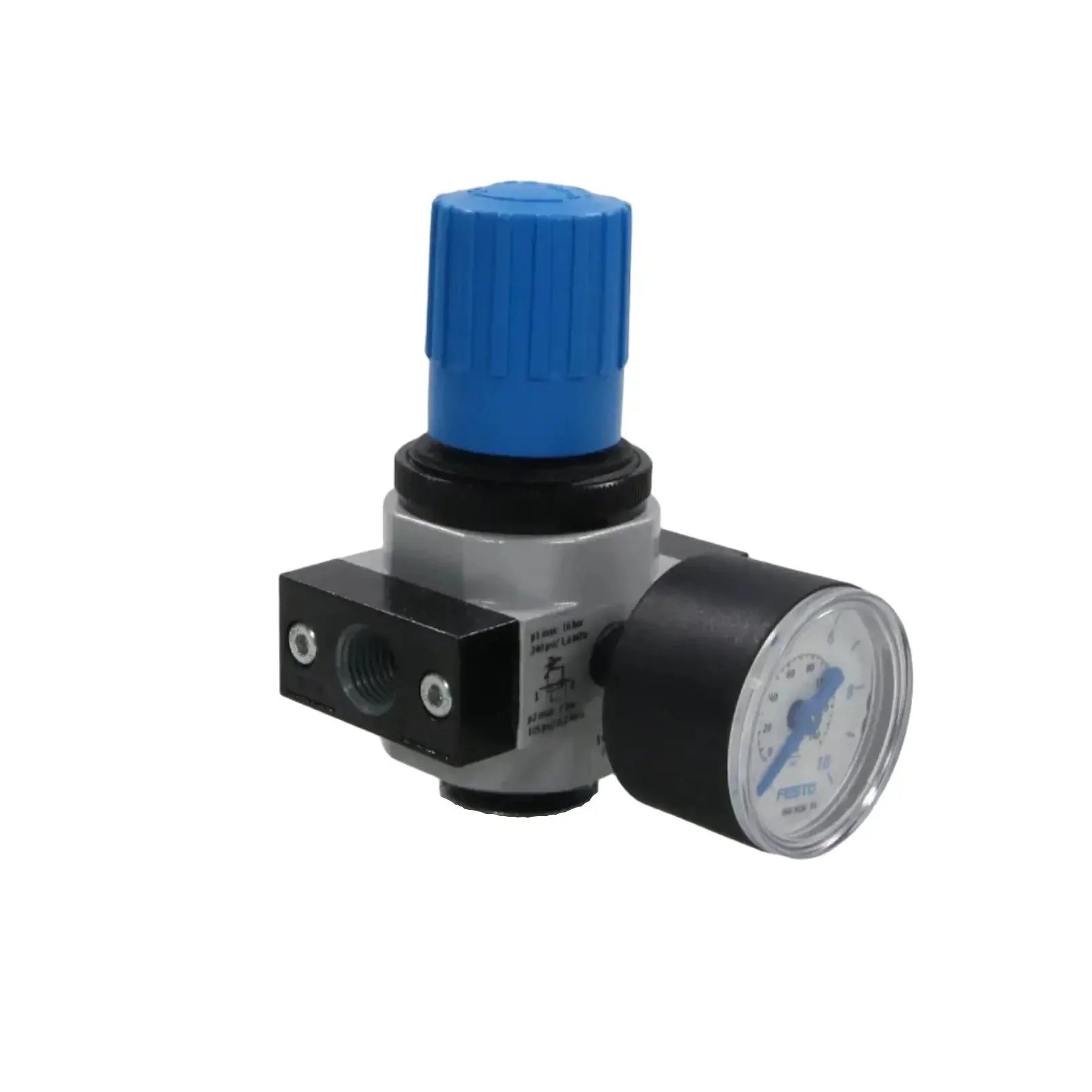

Festo LR-1/4-D-7-MINI Pressure Regulator - 162583

- Brand: Festo

- Model: LR-1/4-D-7-MINI

- Type: Pressure Regulator

- Art. number: 162583

- Technical specifications:
- Port size: G1/4
- Pressure regulation range: 0.5–7 bar
- Max. inlet pressure: 16 bar
- Flow rate: Approx. 1600 l/min
- Supply pressure effect: Low
- Hysteresis / Repeatability: High precision
- Gauge: With gauge
- Drain: Manual
- Housing material: Die-cast zinc
- Diaphragm / Seals: NBR
- Temperature range: -10°C to +60°C
- Additional features: Lockable rotary knob; relieving type; compact MINI size for space-saving installation; high flow in small form factor; suitable for compressed air preparation in pneumatic systems
- Standards: Compliant with relevant ISO/EN for pneumatic components; RoHS compliant

Weight: 450 g

Dimensions: 155 x 75 x 45 mm

Country of origin: Hungary

HS code: 8481.80
