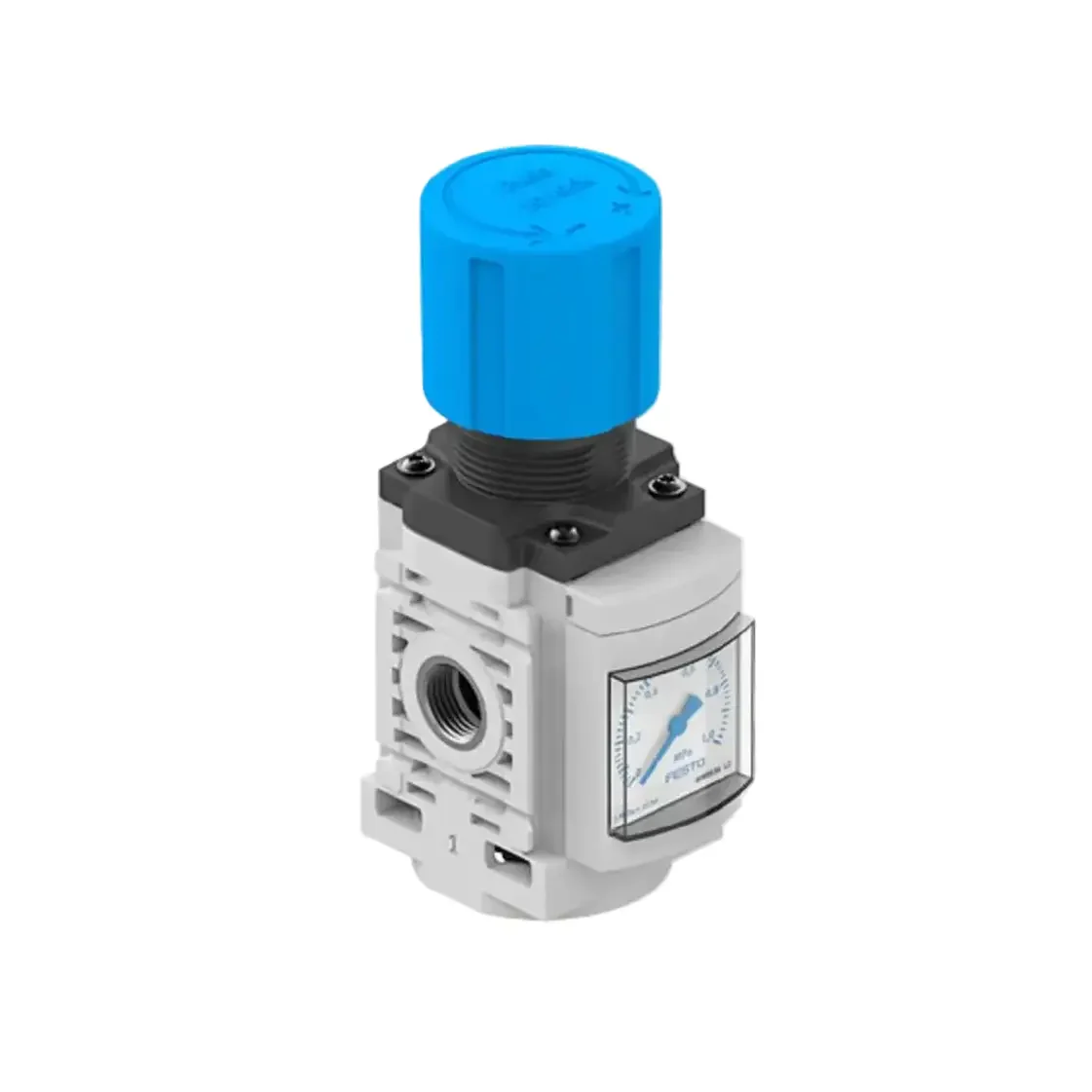

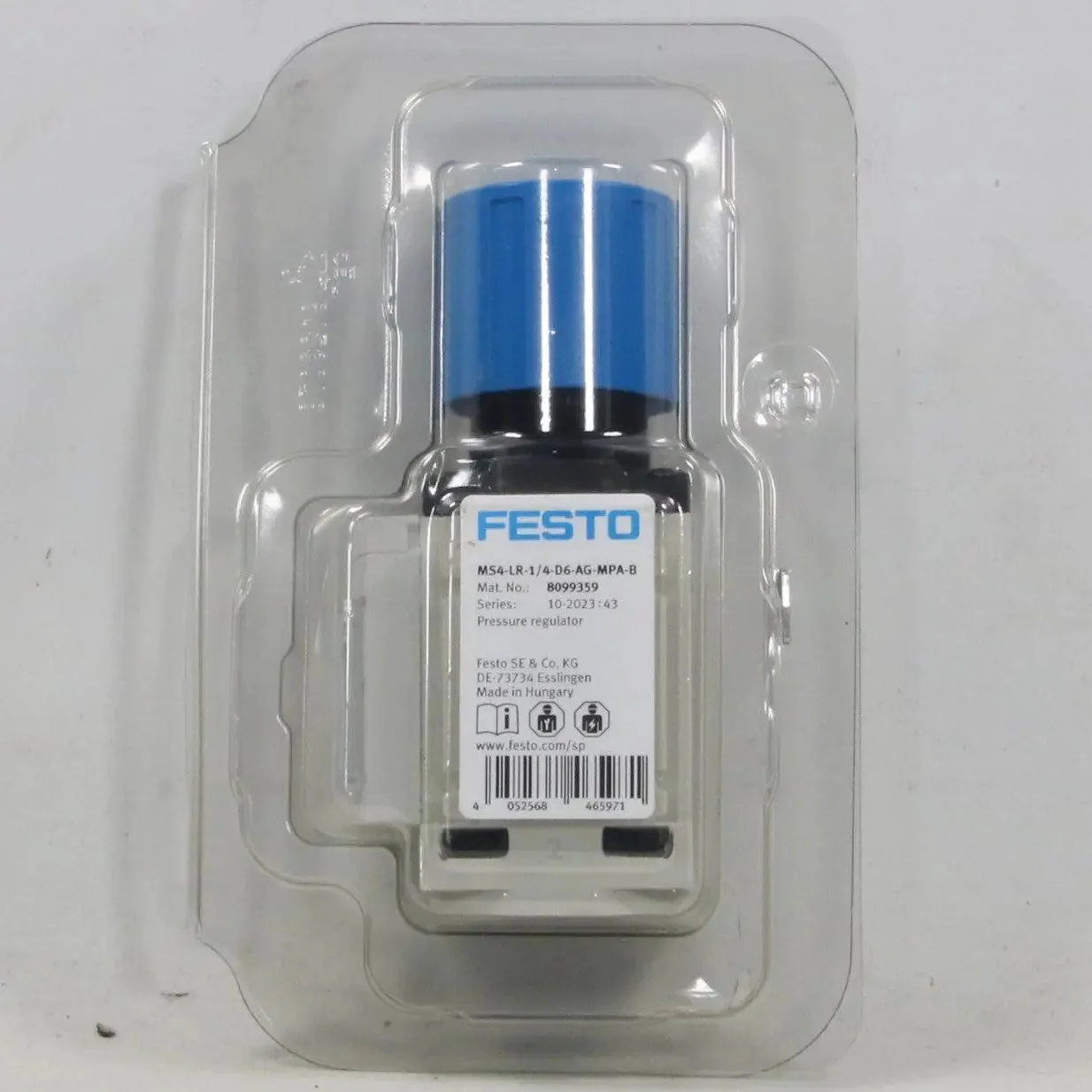

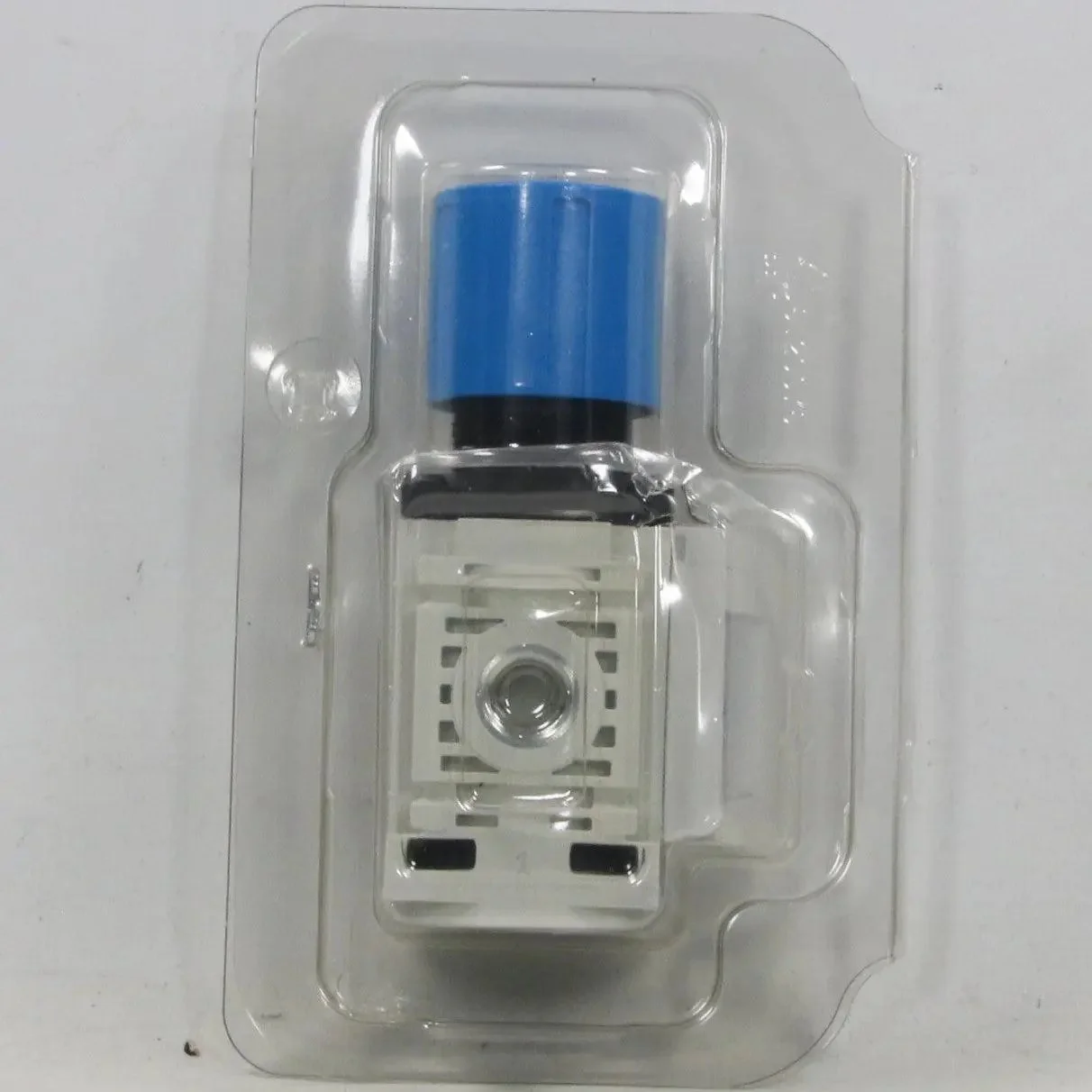

Festo MS4-LR-1/4-D6-AG-MPA-B Pressure Regulator - 8099359

- Brand: Festo

- Model: MS4-LR-1/4-D6-AG-MPA-B

- Type: Pressure Regulator

- Part number: 8099359

- Technical specifications:
- Port size: G1/4
- Pressure regulation range: 0.3–7 bar
- Flow rate: 1800 l/min
- Gauge: Integrated pressure gauge
- Mounting: MPA-B bracket
- Drain: Manual condensate drain
- Housing material: Die-cast aluminum
- Seals: NBR
- Temperature range: -5°C to +50°C
- Mounting: Modular
- Additional features: Lockable rotary knob; high regulation accuracy; integrated gauge for easy monitoring; MPA-B bracket for stable mounting; suitable for compressed air preparation in automation, machinery, or pneumatic systems
- Standards: Compliant with ISO 8573 / EN ISO 12100; CE, RoHS compliant

Weight: 200 g

Dimensions: 180 x 110 x 60 mm

Country of origin: Hungary

HS code: 8481.80
