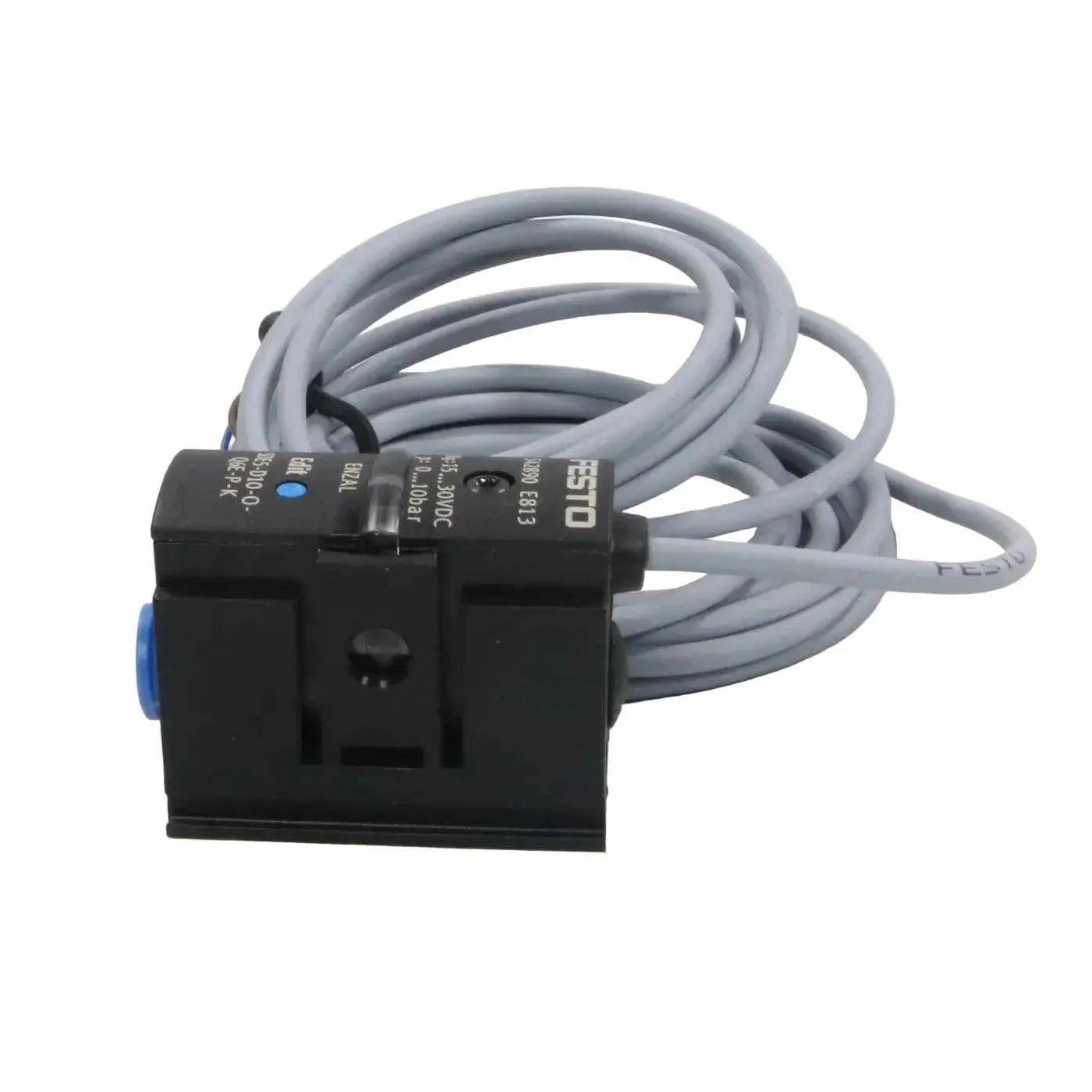

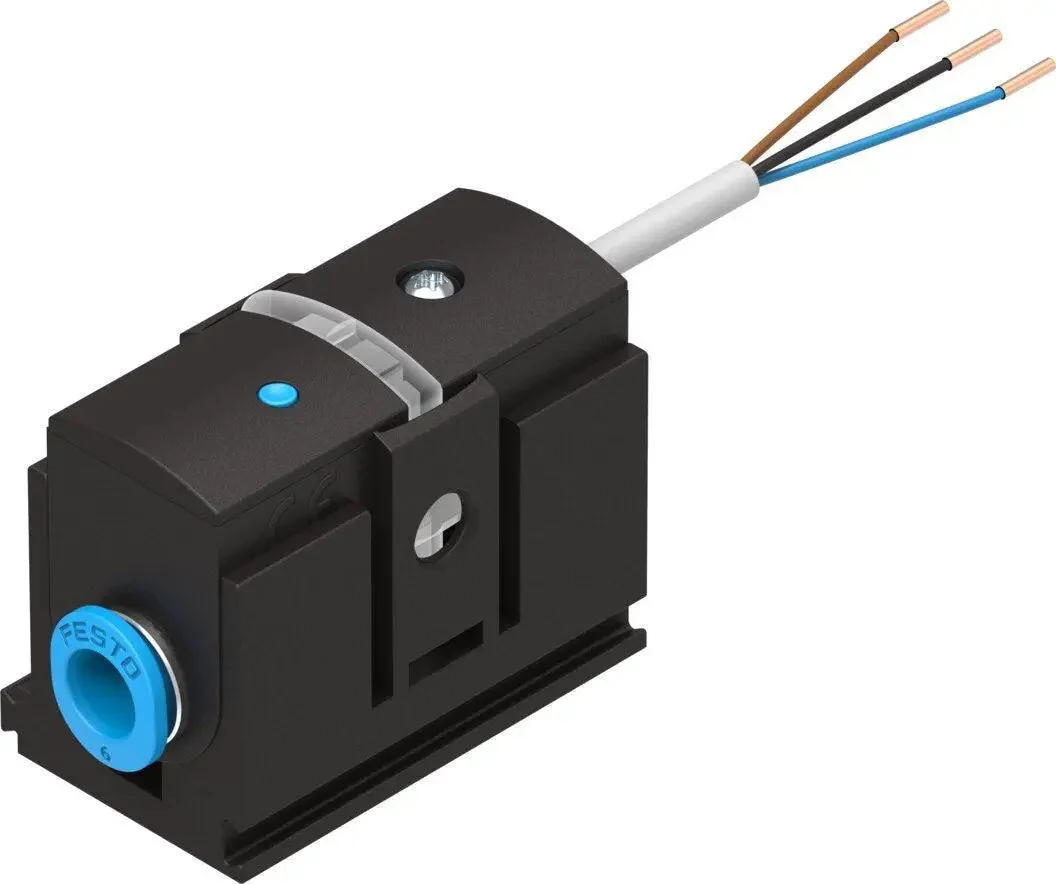

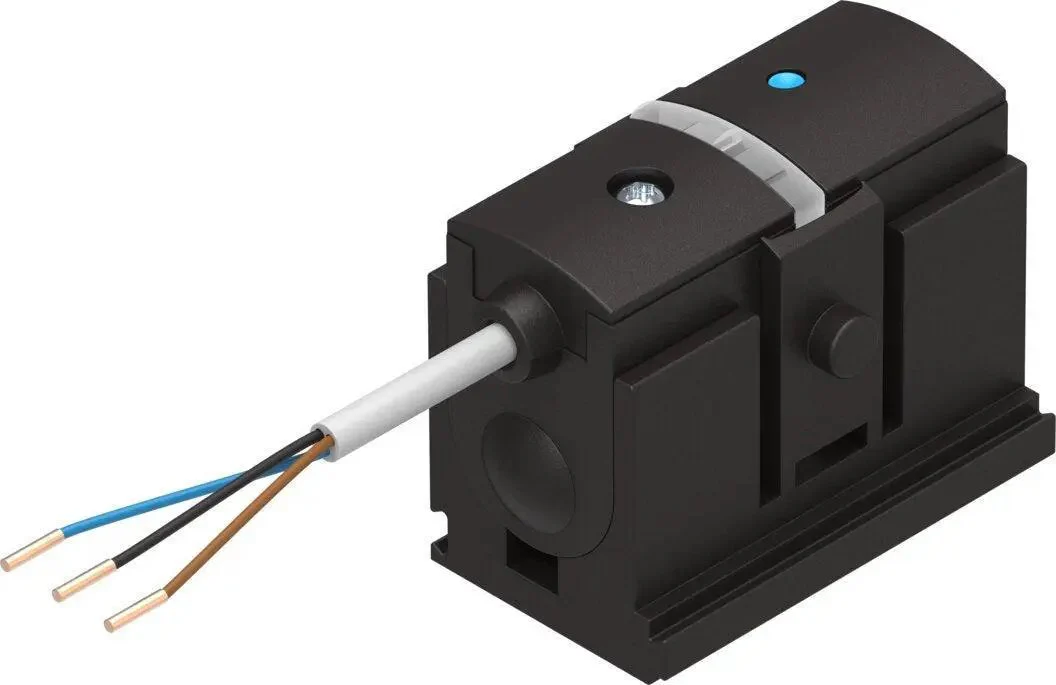

Festo SDE5-D10-0-0-Q6E-P-K Pressure Sensor

- Brand: Festo
- Model: SDE5-D10-0-0-Q6E-P-K
- Type: Pressure Sensor
- Material number: 542890
  - Function: Compact electronic pressure sensor for monitoring relative pressure in pneumatic systems
  - Measuring Range: 0....10 bar
  - Overpressure Resistance: 15 bar
  - Accuracy: ±3 % of full scale
  - Repeatability: ±0.3 % of full scale
  - Temperature Coefficient: ±0.05 %/K
  - Switching Output: PNP, normally open (NO)
  - Switching Capacity: Max. 100 mA
  - Switching Frequency: Max. 100 Hz
  - Response Time: < 35 ms
  - Supply Voltage: 15 … 30 V DC
  - Current Consumption: ≤ 35 mA

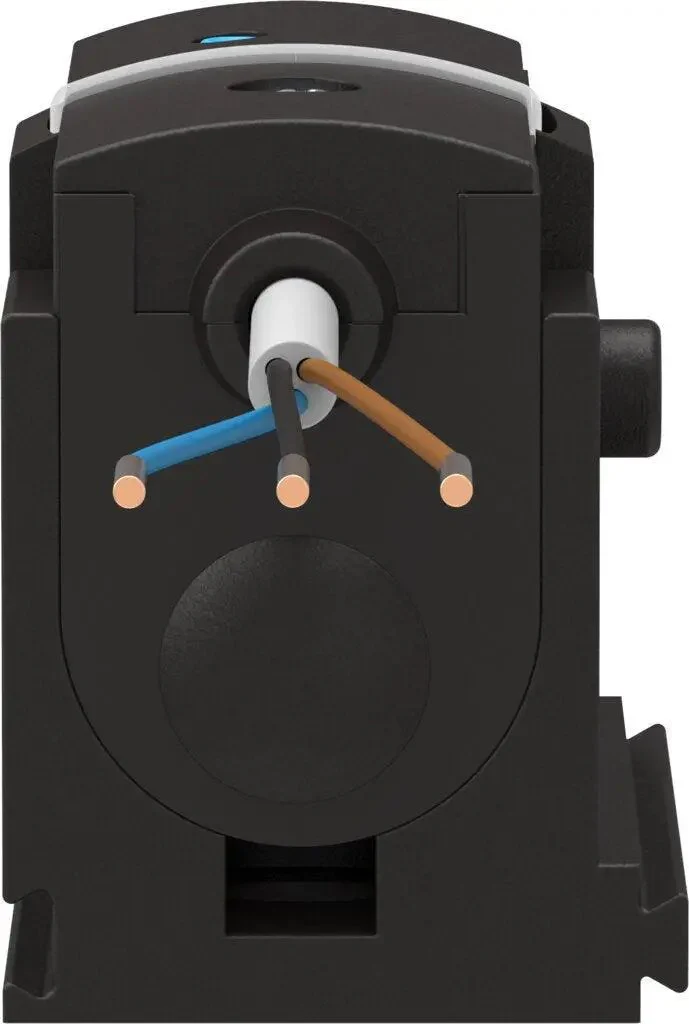

  - Electrical Connection: Cable

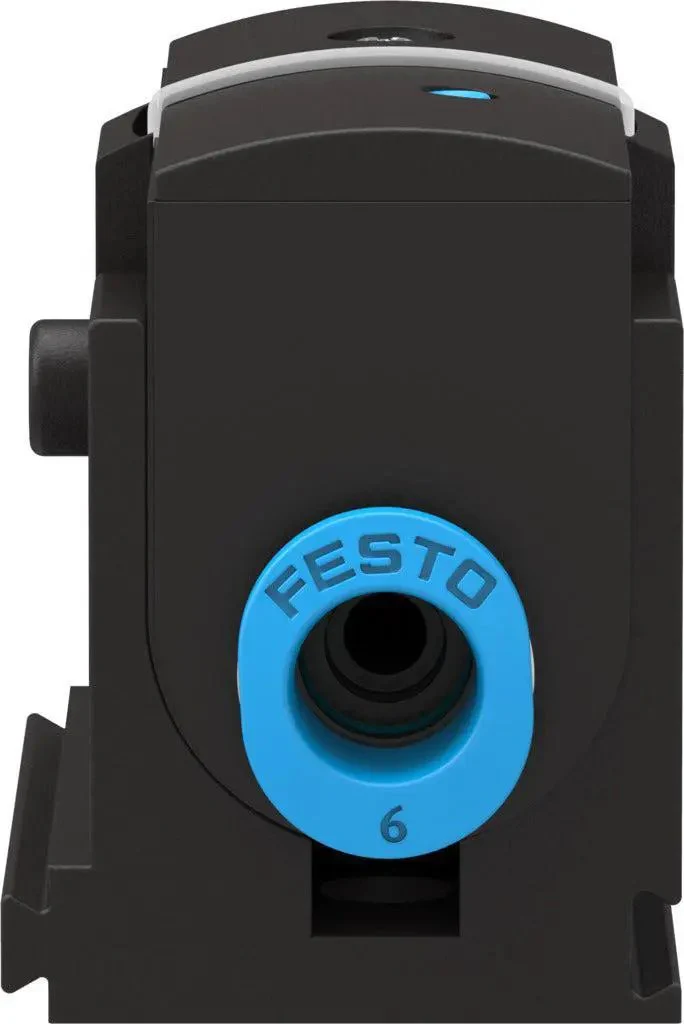

  - Pneumatic Connection: Push-in fitting QS6 (6 mm tubing)
  - Mounting: Direct mounting or bracket
  - Protection Rating: IP65 / IP67
  - Operating Temperature: 0 … +50 °C
  - Storage Temperature: -20 … +70 °C
  - Media Temperature: 0 … +50 °C
  - Media Compatibility: Compressed air (filtered, unlubricated or lubricated)
  - Features: LED status indicators, compact design, low hysteresis
- Dimensions: 80 x 50 x 110 mm
- Weight: 100 g
- Country of origin: Germany
- HS code: 902620
