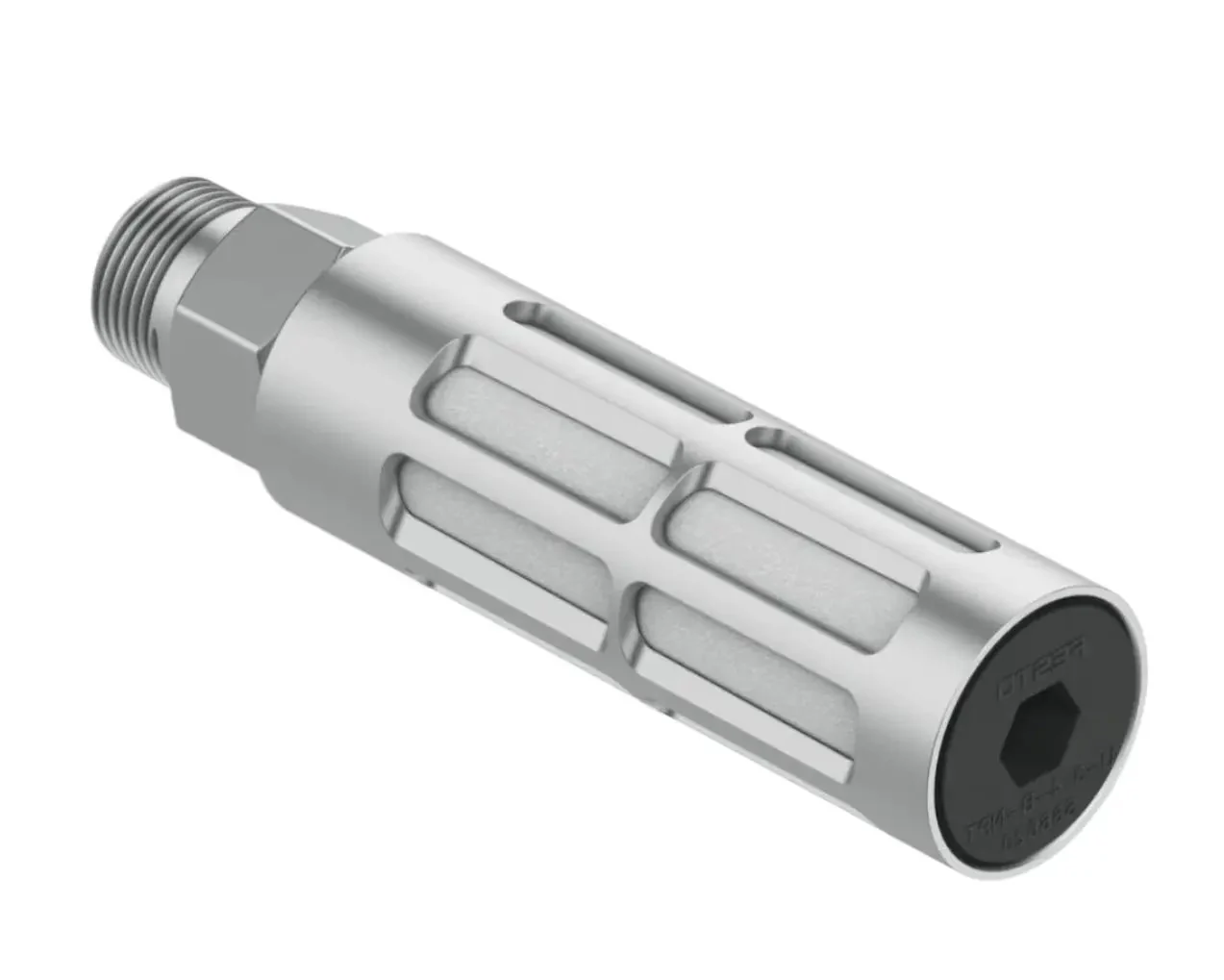

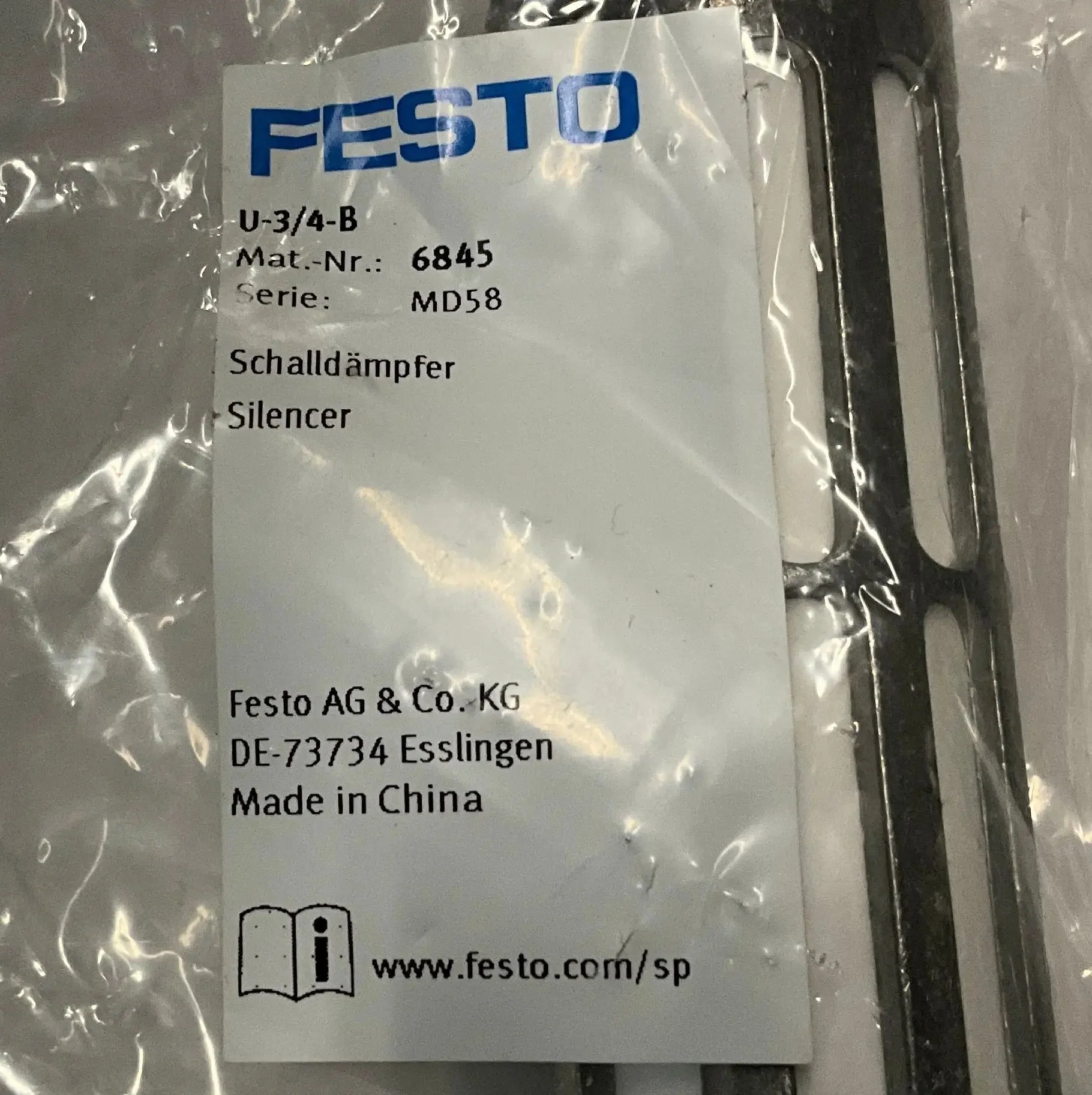

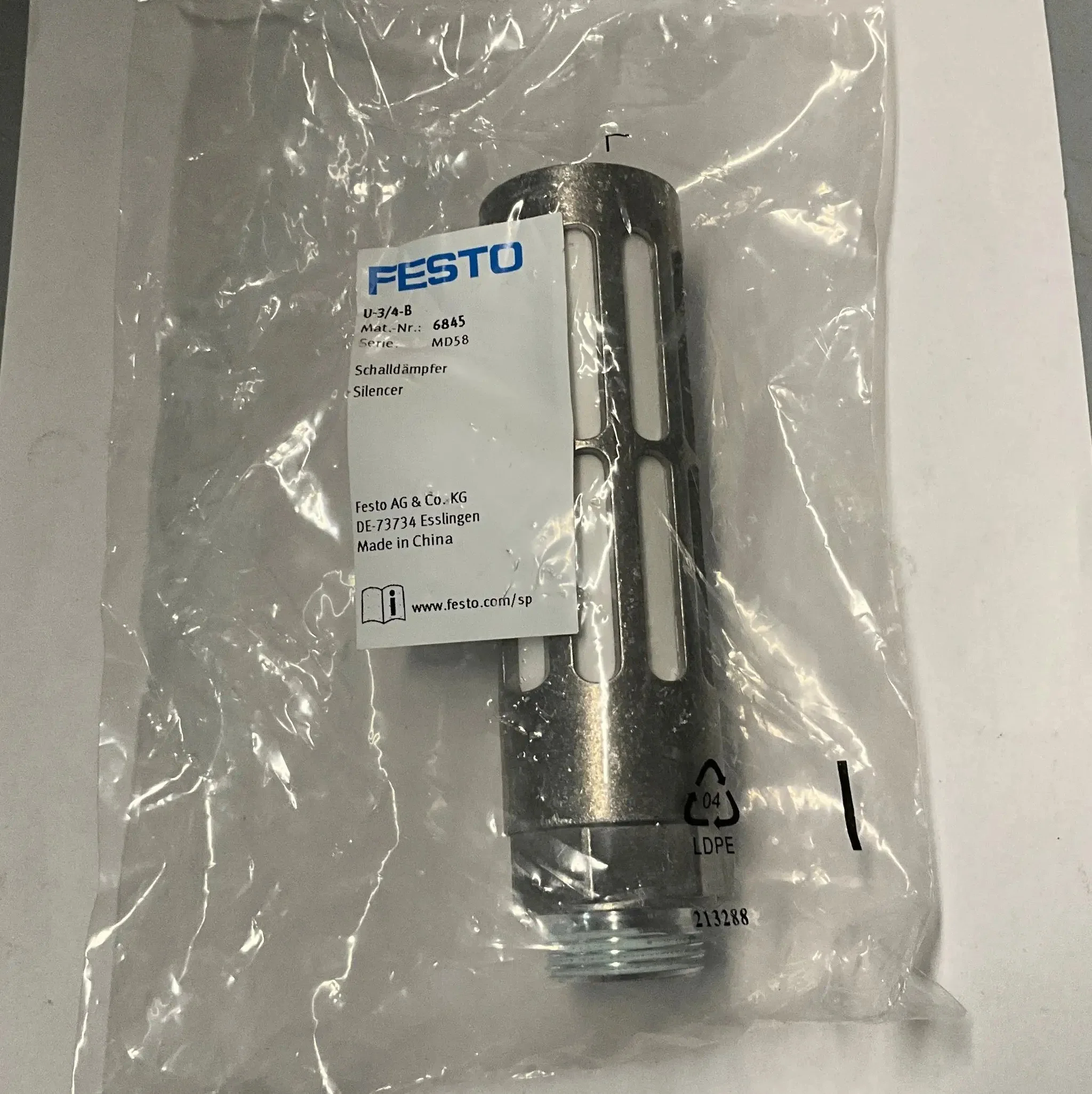

Festo U-3/4-B Pneumatic Silencer 6845

Brand: Festo
Model: U-3/4-B
Type: Pneumatic Silencer
Part Number: 6845

Technical Specs:
- Pneumatic Connection: G3/4 male thread
- Noise Level: Less than 83 dB(A)
- Flow Rate to Atmosphere: 10,000 L/min (353 SCFM)
- Operating Pressure: 0 to 10 bar
- Operating Medium: Compressed air in accordance with ISO 8573-1:2010
- Note on Operating Medium: Lubricated operation possible
- Ambient Temperature: -10°C to 70°C
- Body Material: Die-cast aluminum
- Silencer Insert Material: Polyethylene (PE)
- Mounting Position: Optional
- Additional Features:
  - Compact and rugged design for space-limited applications
  - High flow rate up to 19,900 L/min (depending on conditions)
  - Achieves significant noise reduction through air speed reduction
- Certifications: ISO 9001, ISO 14001, ISO 8573-1 certified, RoHS compliant
- Symbol: 991473 (Festo designation)

Dimension:
- Hex Size: 32 mm
- Overall Length: 138 mm

Weight: 130 g

Country of Origin: China

HS Code: 848790
