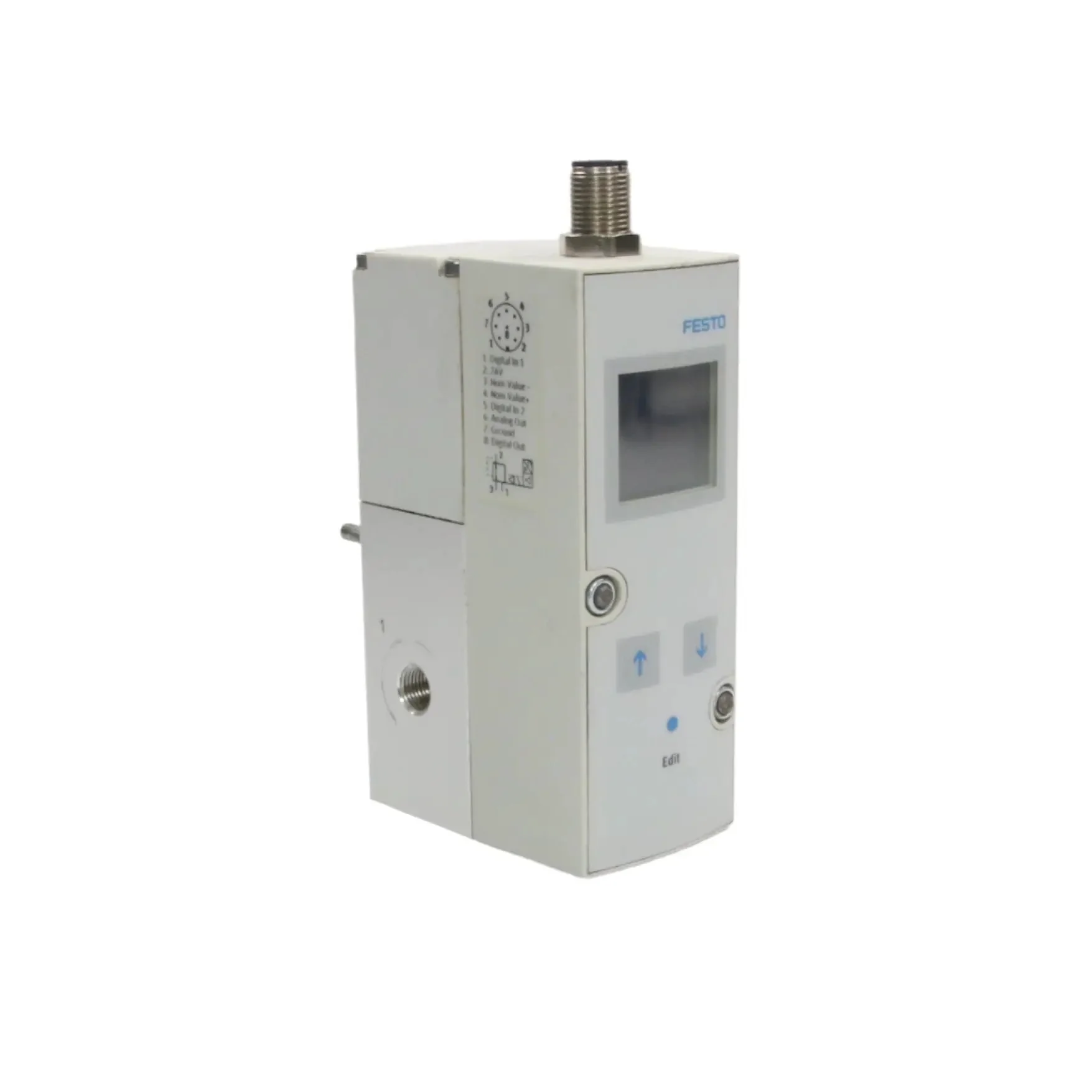

Festo VPPM-6L-L-1-G18-0L6H-A4P-C1 Proportional Pressure Regulator

Brand: Festo
Part Number: VPPM-6L-L-1-G18-0L6H-A4P-C1
Model: Proportional Pressure Regulator
Series: VPPM

Order Nr.: 558338

Nominal Width (Supply): 6 mm
Nominal Width (Exhaust): 4.5 mm
Pneumatic Connections: 3 x G1/8
Pressure Regulation Range: 0.06 bar to 6 bar
Inlet Pressure Range: 0 bar to 8 bar
Standard Nominal Flow Rate: 900 l/min
Max. Pressure Hysteresis: 0.03 bar
Actuation Type: Electrical
Control Type: Pilot-controlled diaphragm regulator
Input Signal Range: 4–20 mA
Output Signal Range: 4–20 mA
Switching Output: PNP
Operating Voltage Range (DC): 21.6 V to 26.4 V
Max. Current Consumption: 300 mA
Max. Electrical Power Consumption: 7 W
