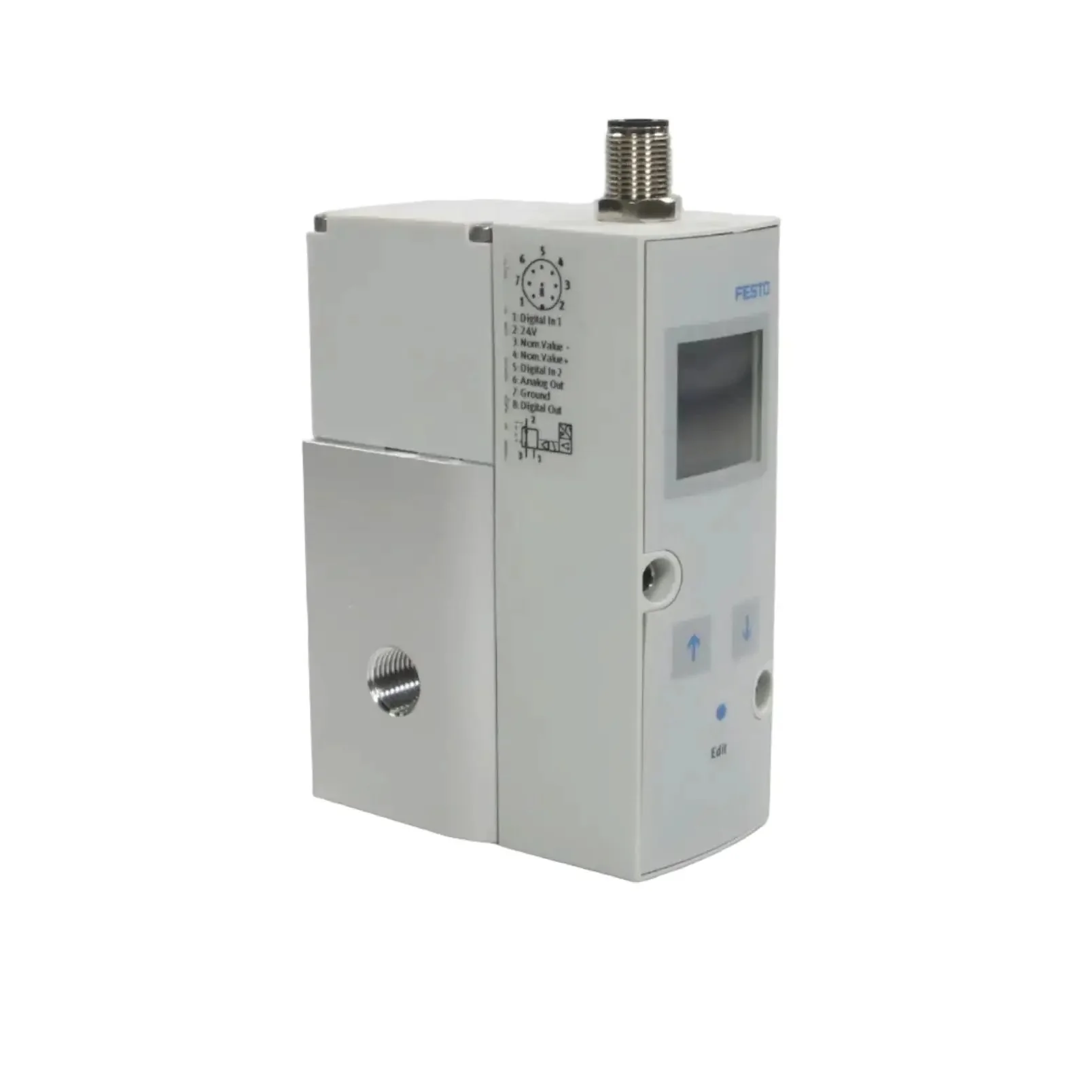

Festo VPPM-8L-L-1-G14-0L6H-A4P-S1C1 Proportional Pressure Regulator

- Brand: Festo

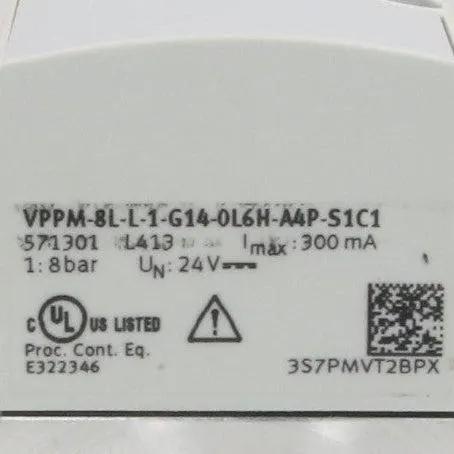

- Model: VPPM-8L-L-1-G14-0L6H-A4P-S1C1
- Type: Proportional Pressure Regulator
- Part number: 571301
  - Function: Precision 3- way pressure regulator with integrated closed-loop control for proportional regulation of output pressure
  - Nominal Size: 8 mm
  - Mounting Position: Any
  - Operating Pressure Range: 0.08 – 10 bar
  - Set Pressure Range: 0.06 – 6 bar
  - Max Flow Rate: 1750 l/min
  - Accuracy: ±0.06 bar (hysteresis)
  - Linearity Deviation: ±0.06 bar
  - Repeatability: ±0.03 bar
  - Control Signal: 0 – 10 V (analog)
  - Output Signal: 0 – 10 V (analog feedback)
  - Supply Voltage: 24 V DC ±20 %
  - Current Consumption: Max. 1.0 A
  - Pneumatic Connection: G 1/4"

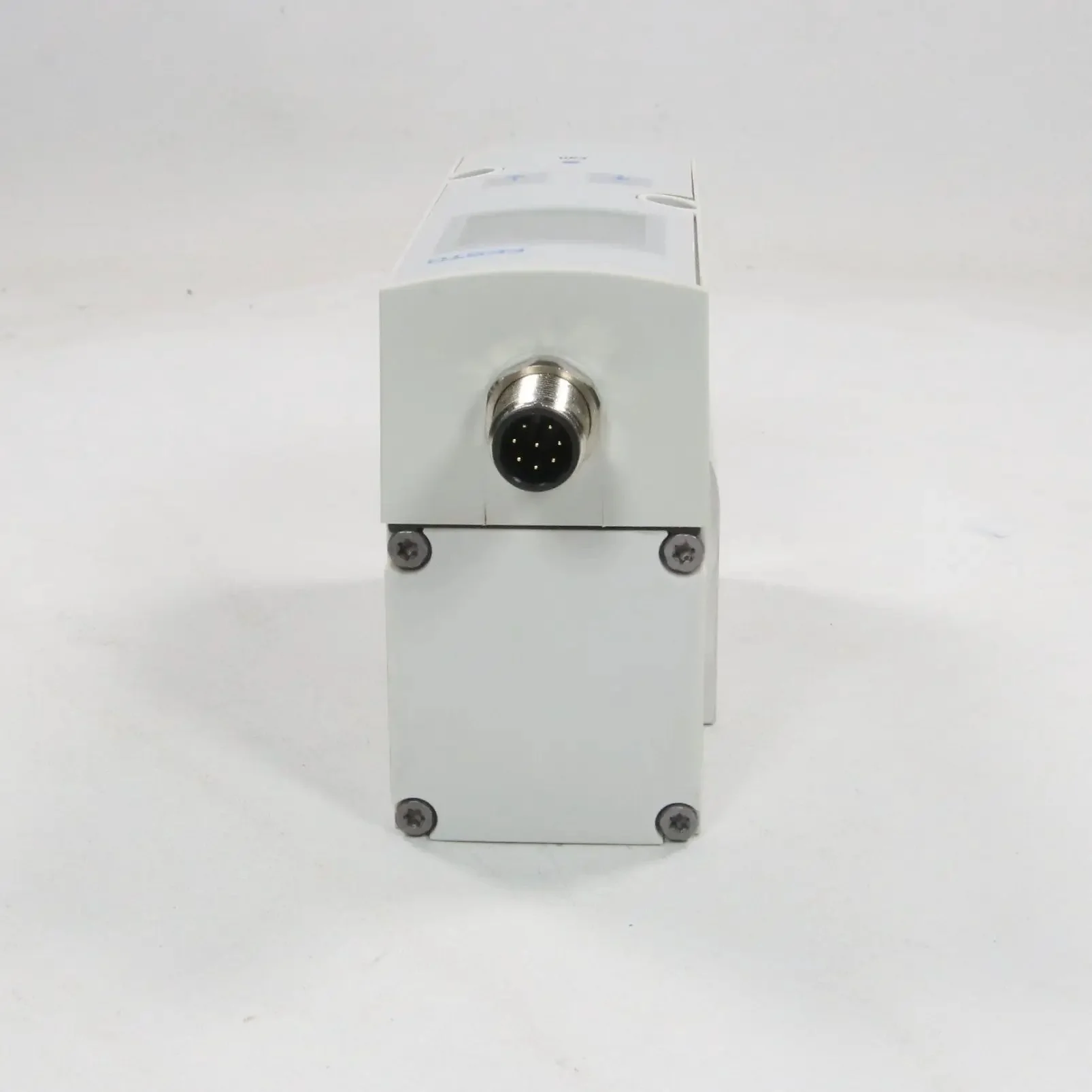

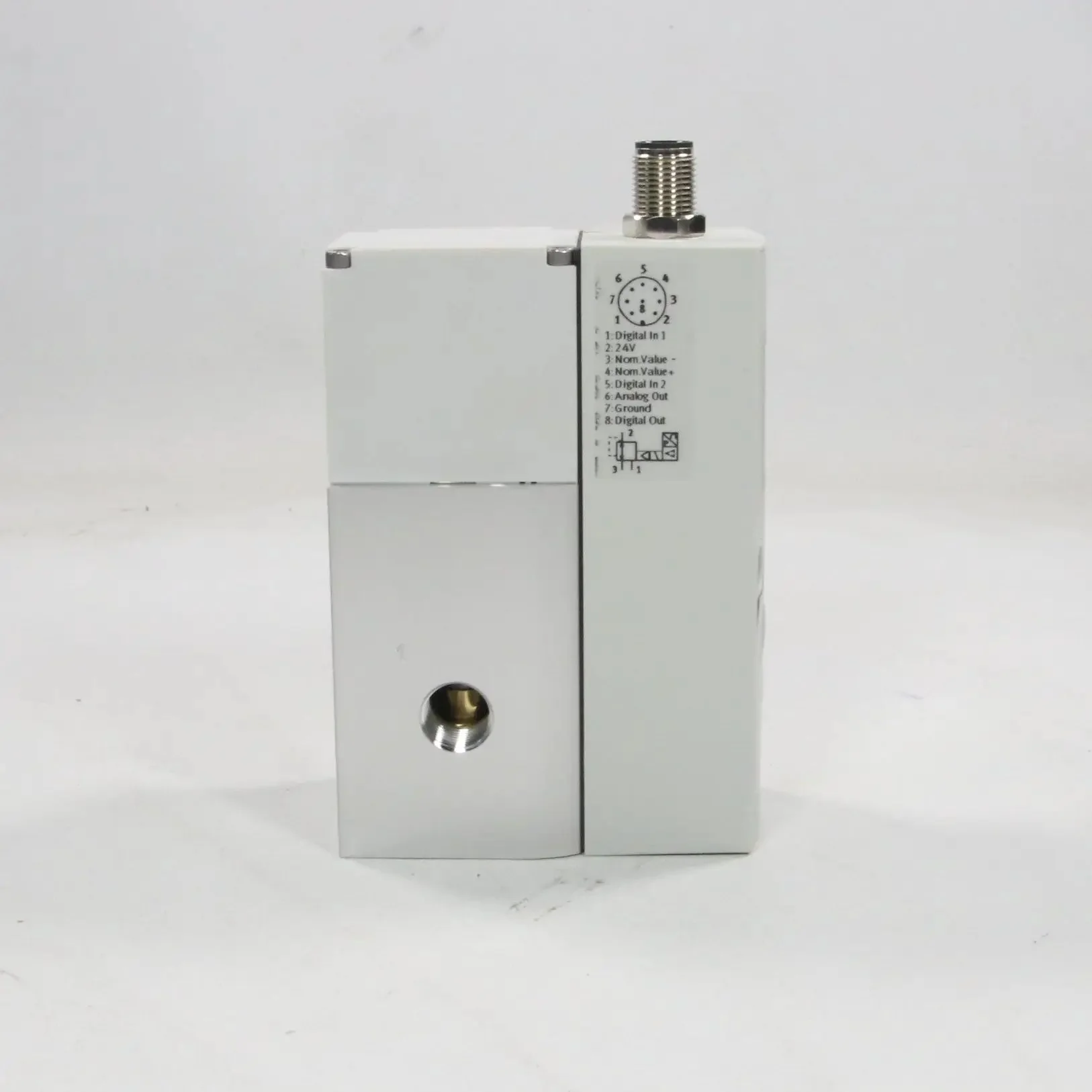

  - Electrical Connection: M12 × 1, 8-pin
  - Display: Integrated LCD display with LED status indicators
  - Protection Rating: IP65
  - Operating Temperature: 0 °C to +50 °C
  - Storage Temperature: –20 °C to +70 °C
  - Air Quality: ISO 8573-1:2010 [7:4:4]
  - Features: Integrated pressure sensor, closed-loop control, teach-in function, manual override, LED bar graph, diagnostic LEDs, PNP
- Dimensions: 80 x 40 x 130 mm
- Weight: 800 g

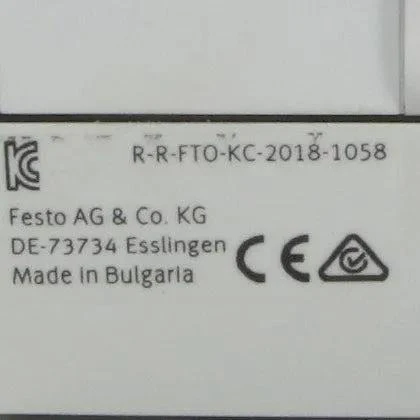

- Country of origin: Bulgaria
- HS code: 903289
