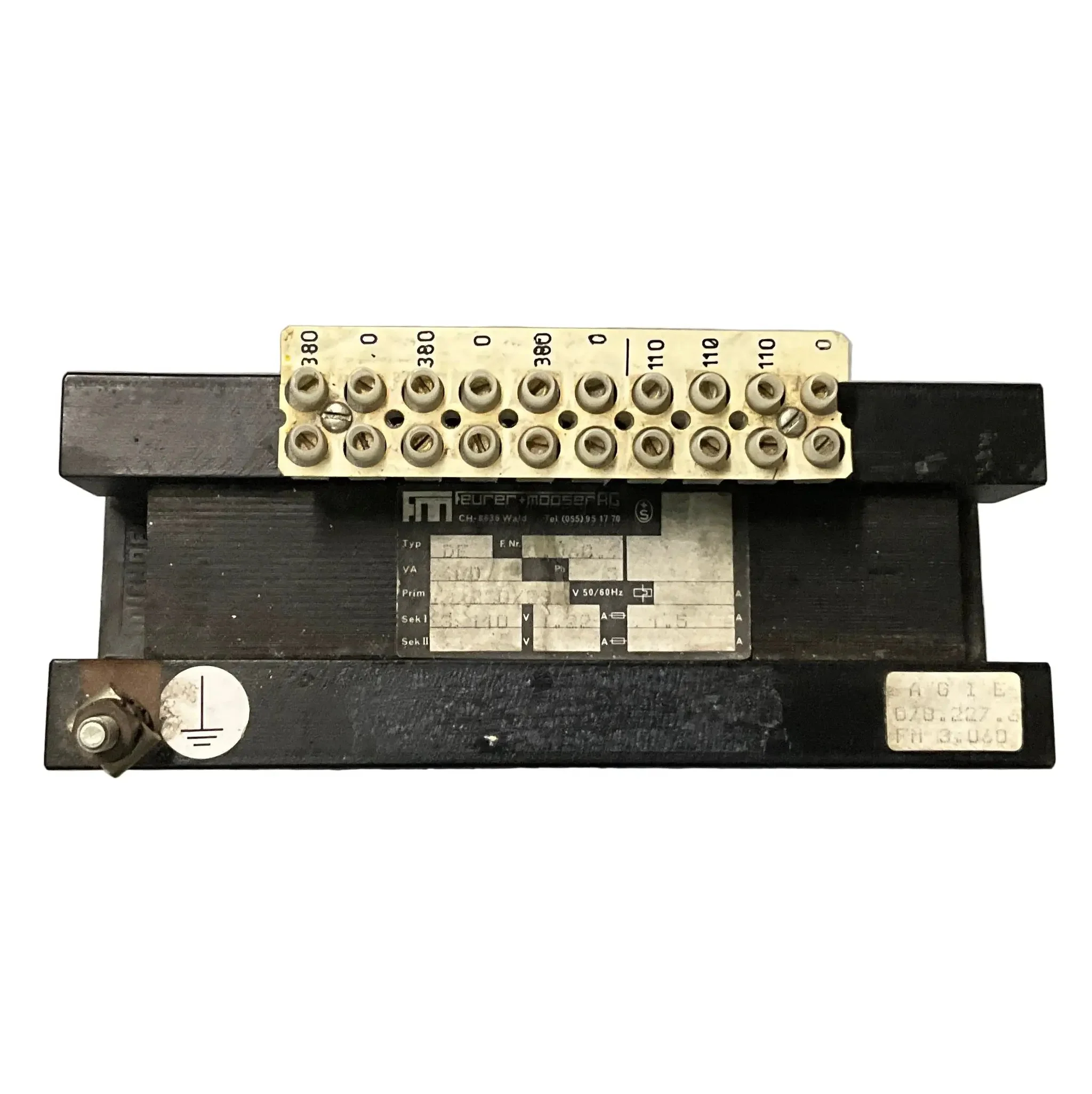

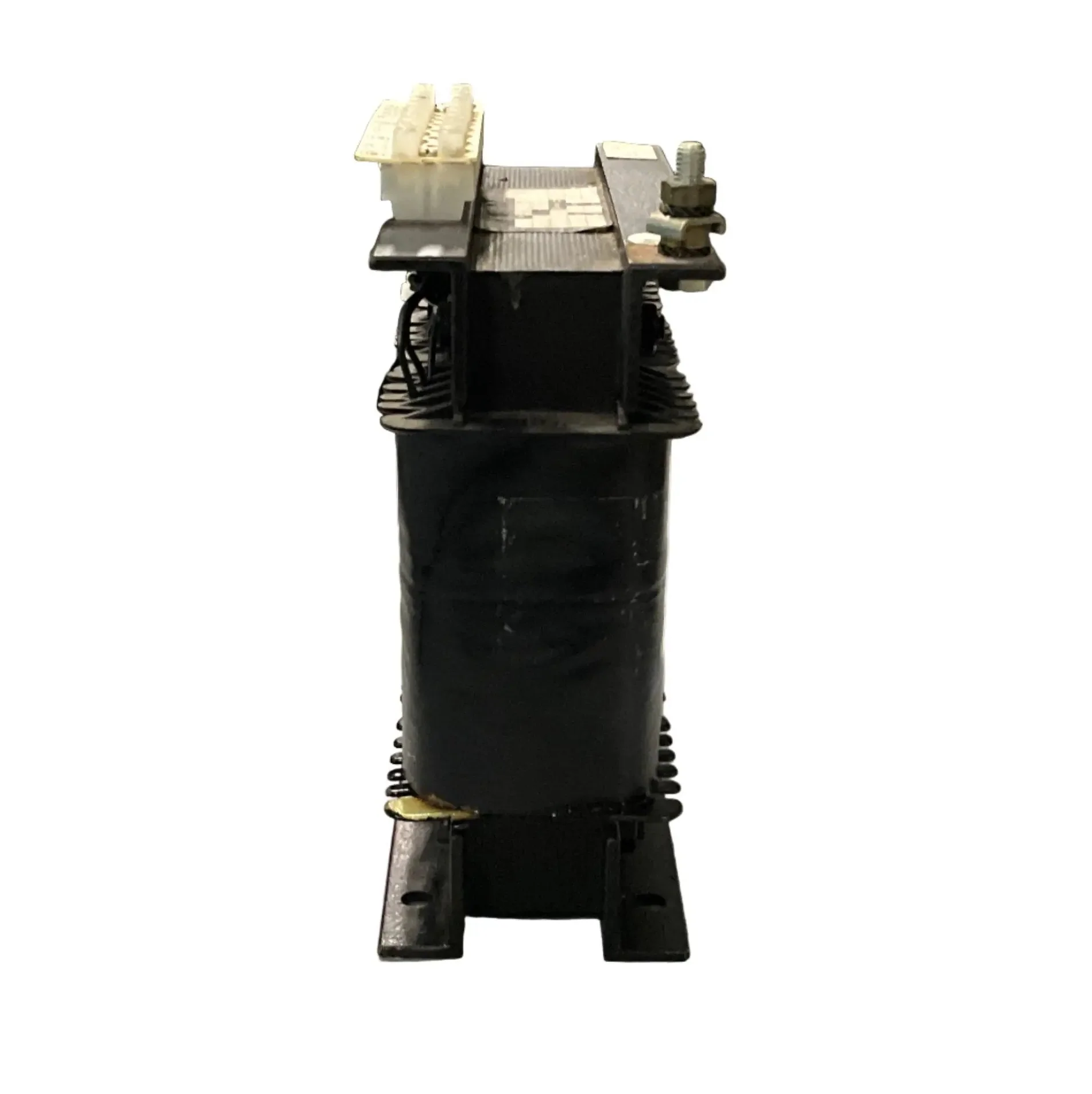

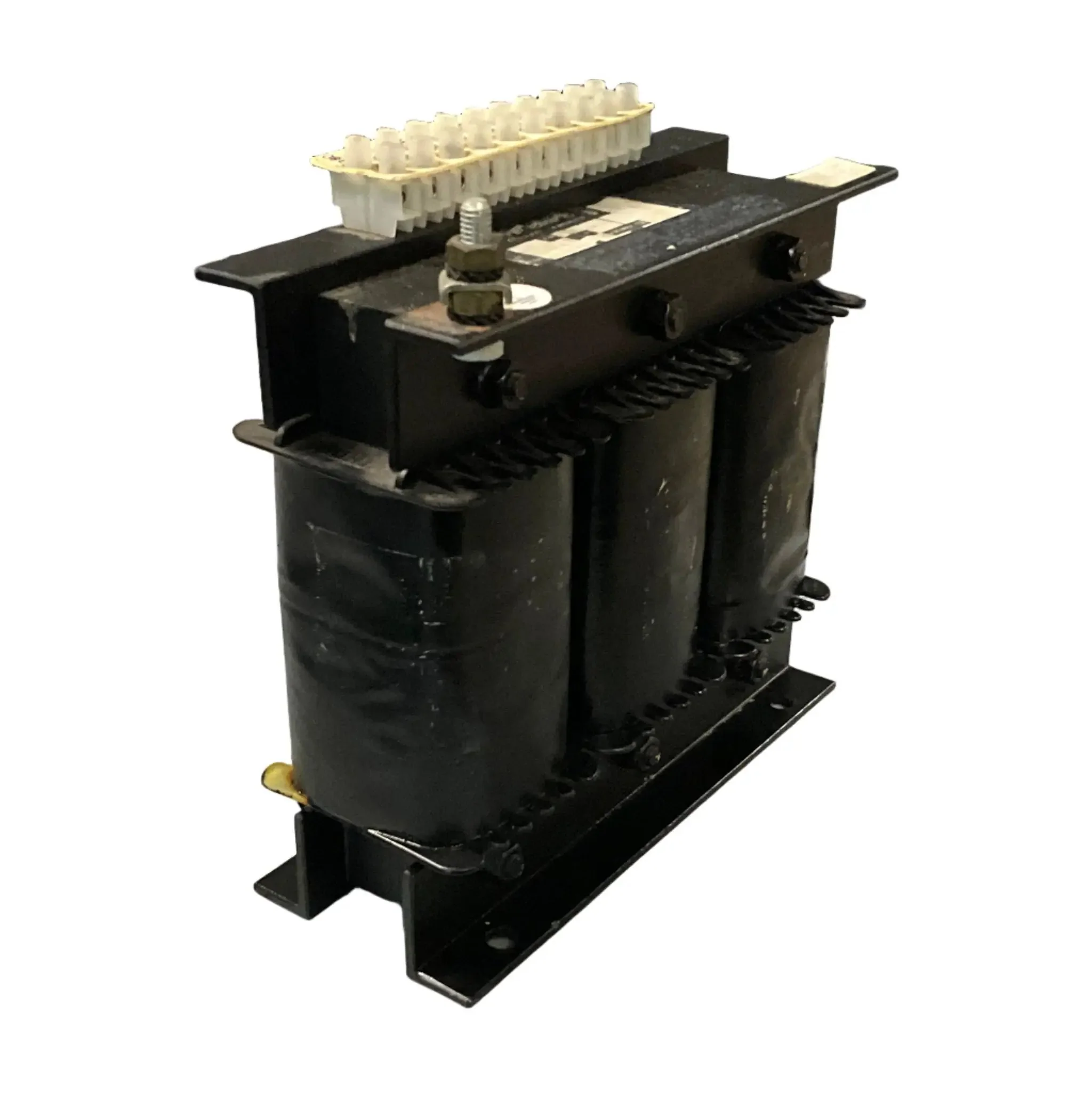

Feurer + Mooser DE 3.060.9 Line Reactor Transformer

Brand: Feurer + Mooser
Model: DE 3.060.9
Type: Line Reactor Transformer (3-phase line reactor)
Part Number: DE 3.060.9

Agie Part Number: D78.227.6 FM 3.060

Technical Specs:
- Reactor Type: 3-phase line reactor
- Voltage: 400 V - 3 x 220/380 V
- Frequency: 50 Hz
- Current Rating: 1.5 A
- Impedance: 3%
- Inductance: ±10%
- Insulation Class: T40/F
- Electrical Connection: Screw terminal
- Protection Rating: IP00
- Ambient Temperature Range: -20°C to 40°C
- Additional Features:
  - Impregnated against rust with resin for durability
  - Built-in thermal cut-out for overheat protection
  - Designed for installation in protected environments

Weight: 7.5 kg

Dimensions: 200 x 180 x 80mm

Country of Origin: Germany

HS Code: 8504.50
