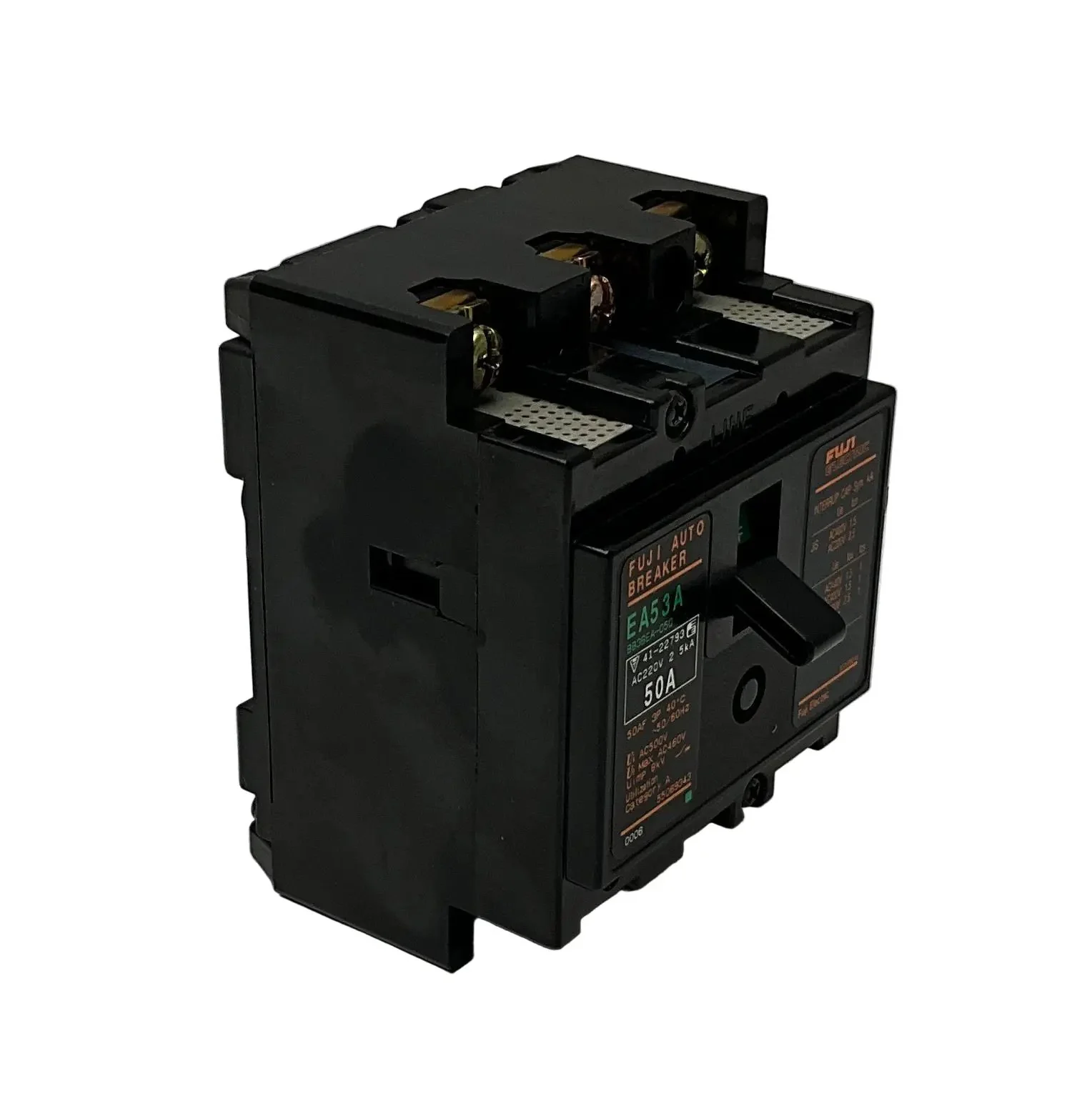

Fuji Electric EA53A Moulded Case Circuit Breaker - 50A

Brand: Fuji Electric
Model: EA53A
Type: Moulded Case Circuit Breaker
Part Number: BB3BEA-050

Technical Specs:
- Rated Current: 50 A
- Number of Poles: 3-pole
- Rated Operating Voltage: 220 V AC
- Rated Breaking Capacity: 2.5 kA (AC)
- Trip Characteristic: Thermal-magnetic
- Mounting: DIN rail or panel mount
- Auxiliary Switch: Included (1 NO + 1 NC)
- Operating Temperature Range: -5°C to +40°C
- Insulation Voltage: 500 V
- Additional Features:
  - Compact design for space-saving installation
  - High breaking capacity for reliable fault interruption
  - Manual reset after tripping
- Certifications: CE compliant

Dimensions: 95 x 85 x 75 mm

Weight: 480 g

Country of Origin: Japan

HS Code: 8536.20
