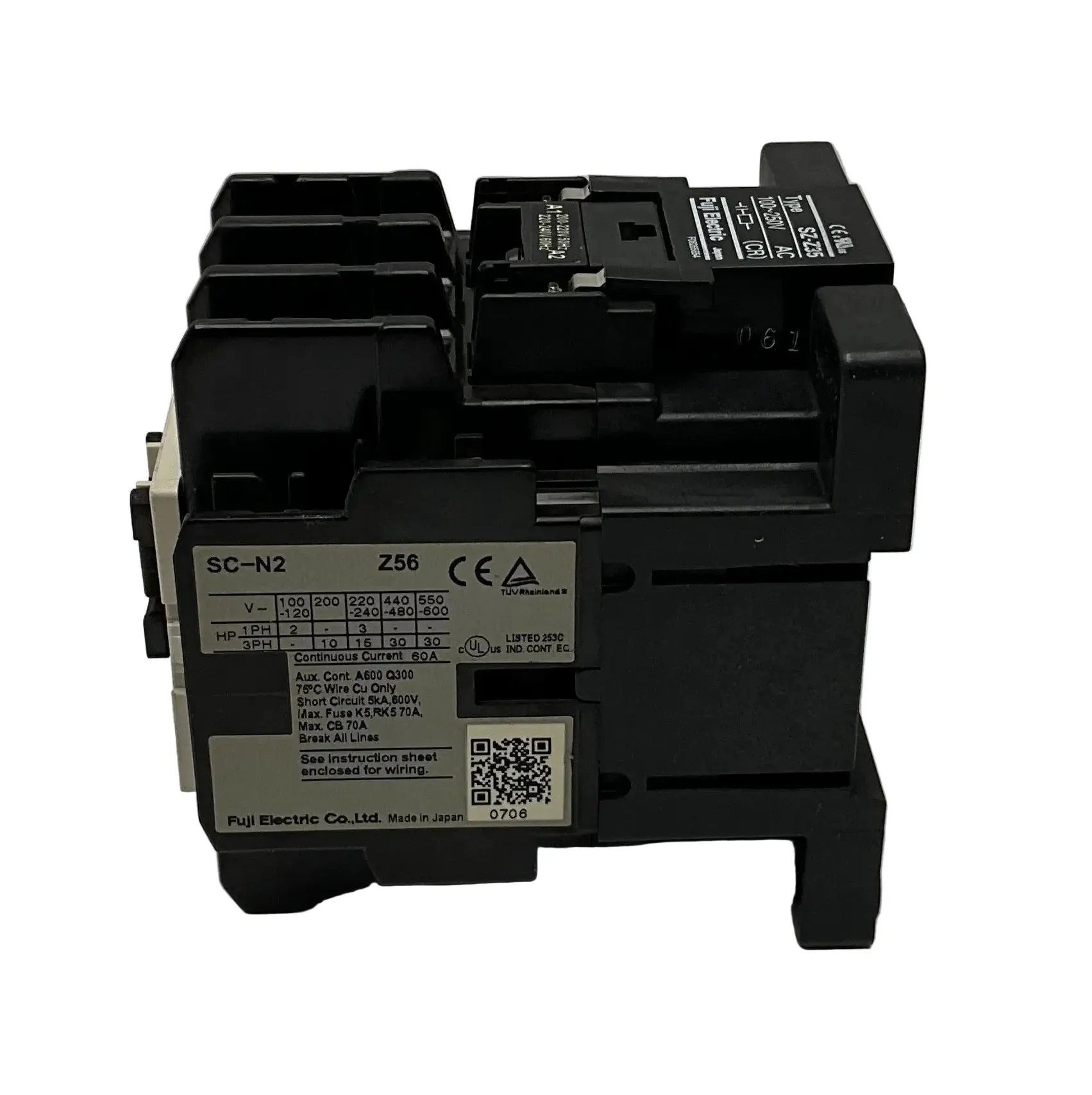

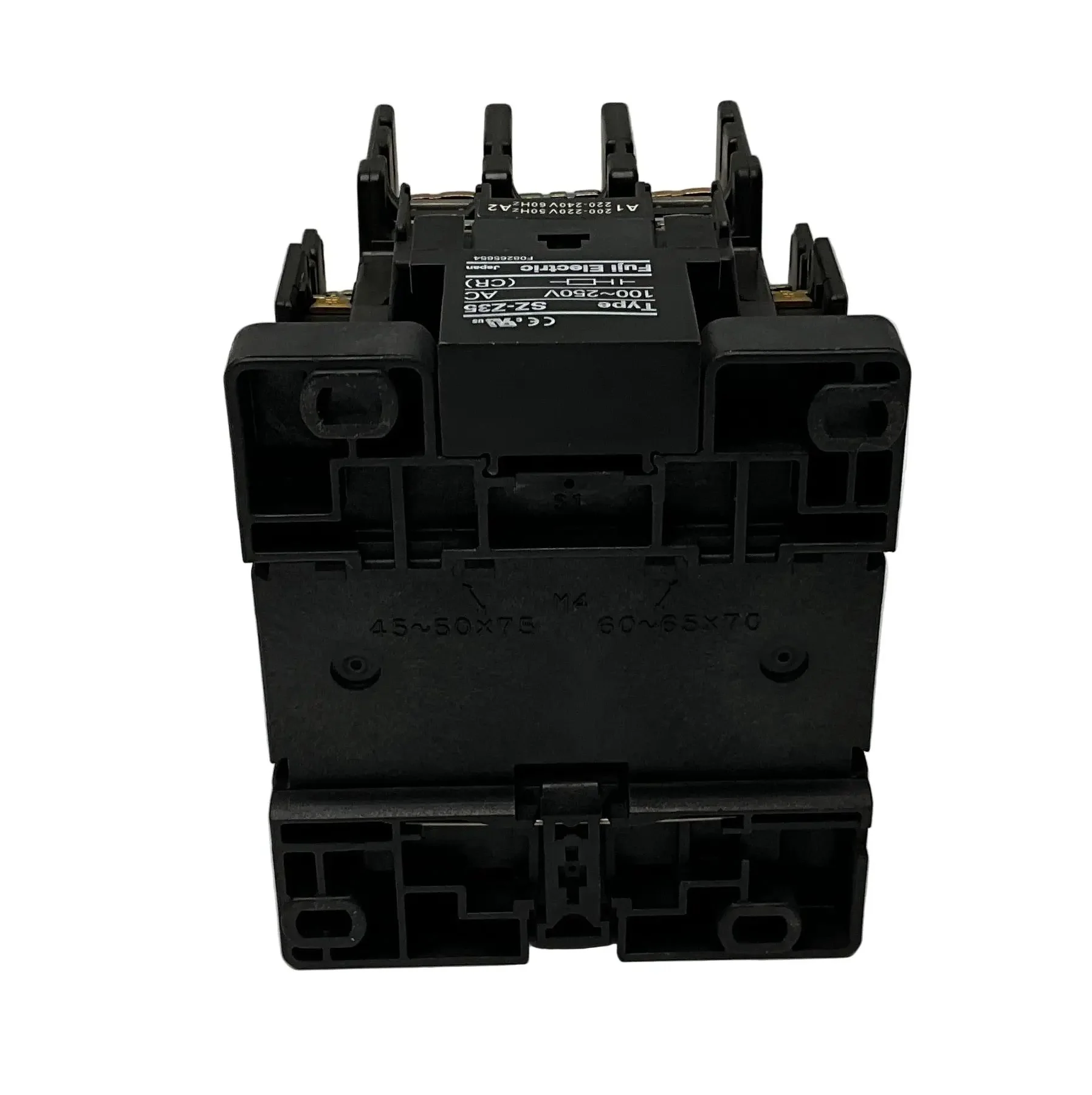

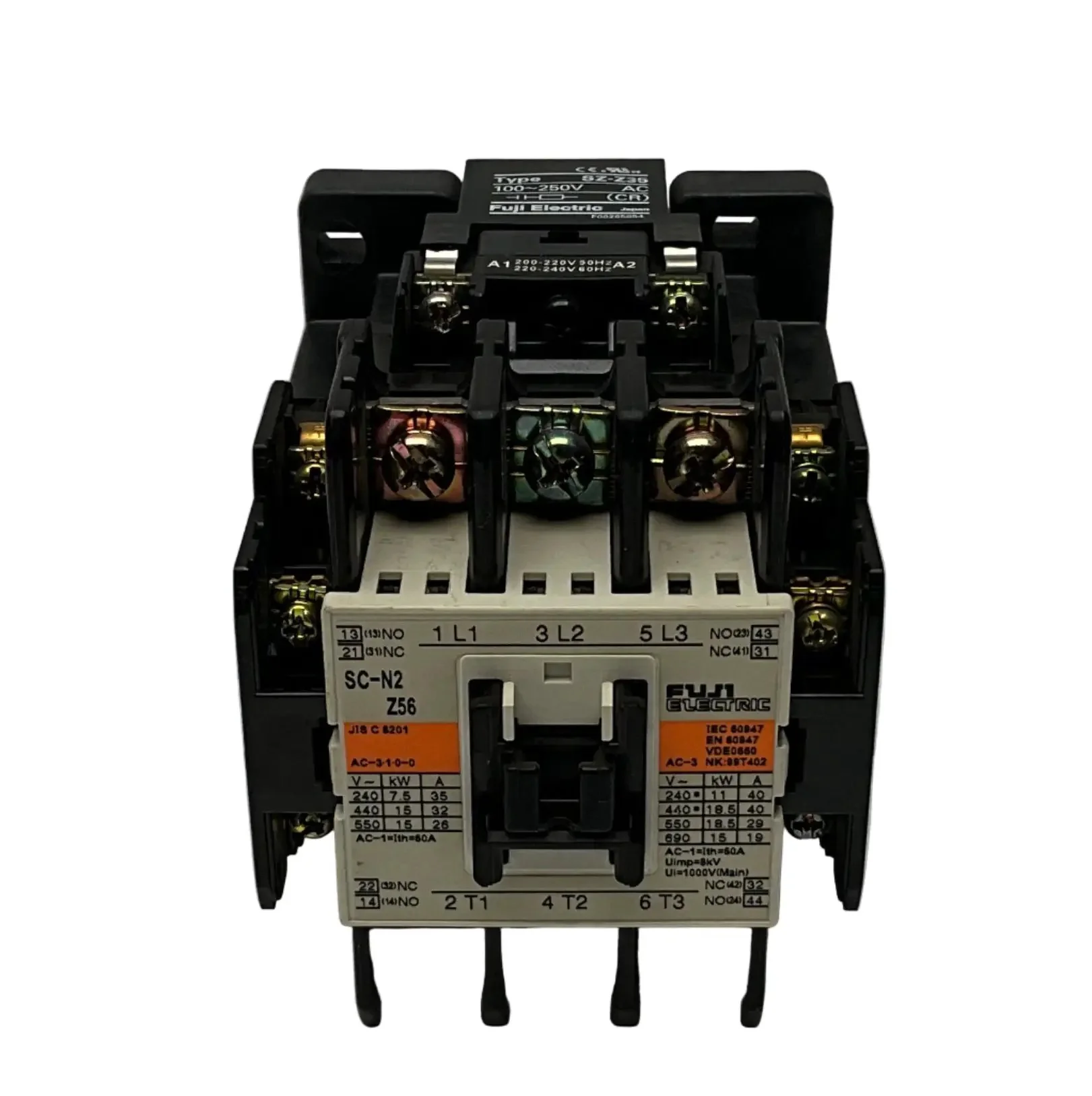

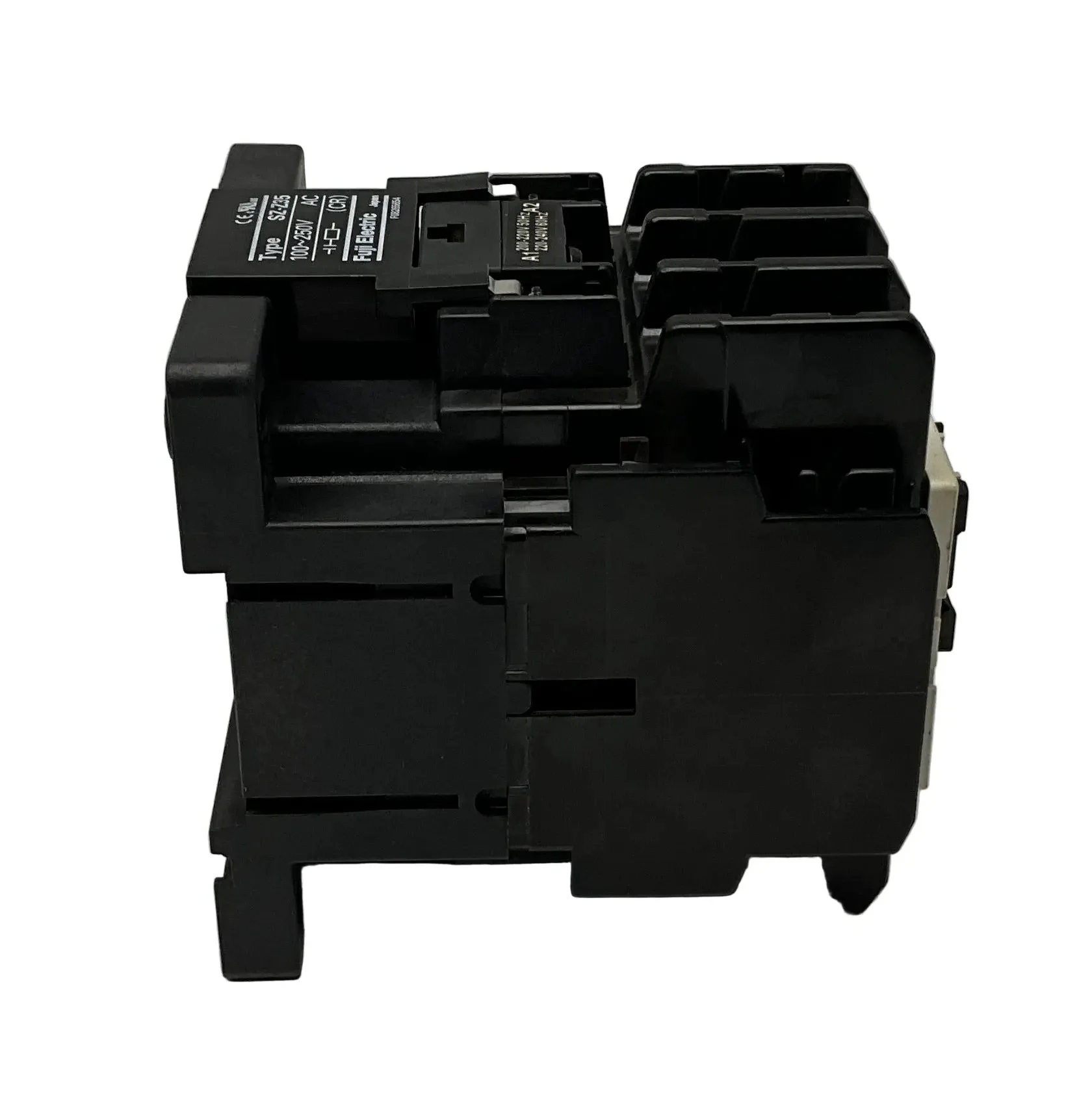

Fuji Electric SC-N2 Z56 Magnetic Contactor

Brand: Fuji Electric
Model: SC-N2 Z56
Type: Magnetic Contactor
Part Number: SC-N2/Z56

Technical Specs:
- Rated Voltage: 690 V AC
- Rated Current: 40 A (AC-3, 400 V)
- Power Rating: 18.5 kW (25 HP at 400 V AC)
- Poles: 3-pole
- Frequency: 50/60 Hz
- Coil Voltage: 200 -220V AC (50 Hz) / 220-240 V AC (60 Hz)
- Surge Suppressor: 100 ~ 250 V AC
- Auxiliary Contacts: 1 NO + 1 NC
- Mounting: DIN rail or panel mount
- Operating Temperature Range: -5°C to +40°C
- Additional Features:
  - Compact design with snap-on auxiliary contact blocks
  - High breaking capacity for reliable operation
  - CE marked for European compliance

Dimension: 100 x 90 x 75 mm

Weight: 650 g

Country of Origin: Japan

HS Code: 8536.49
