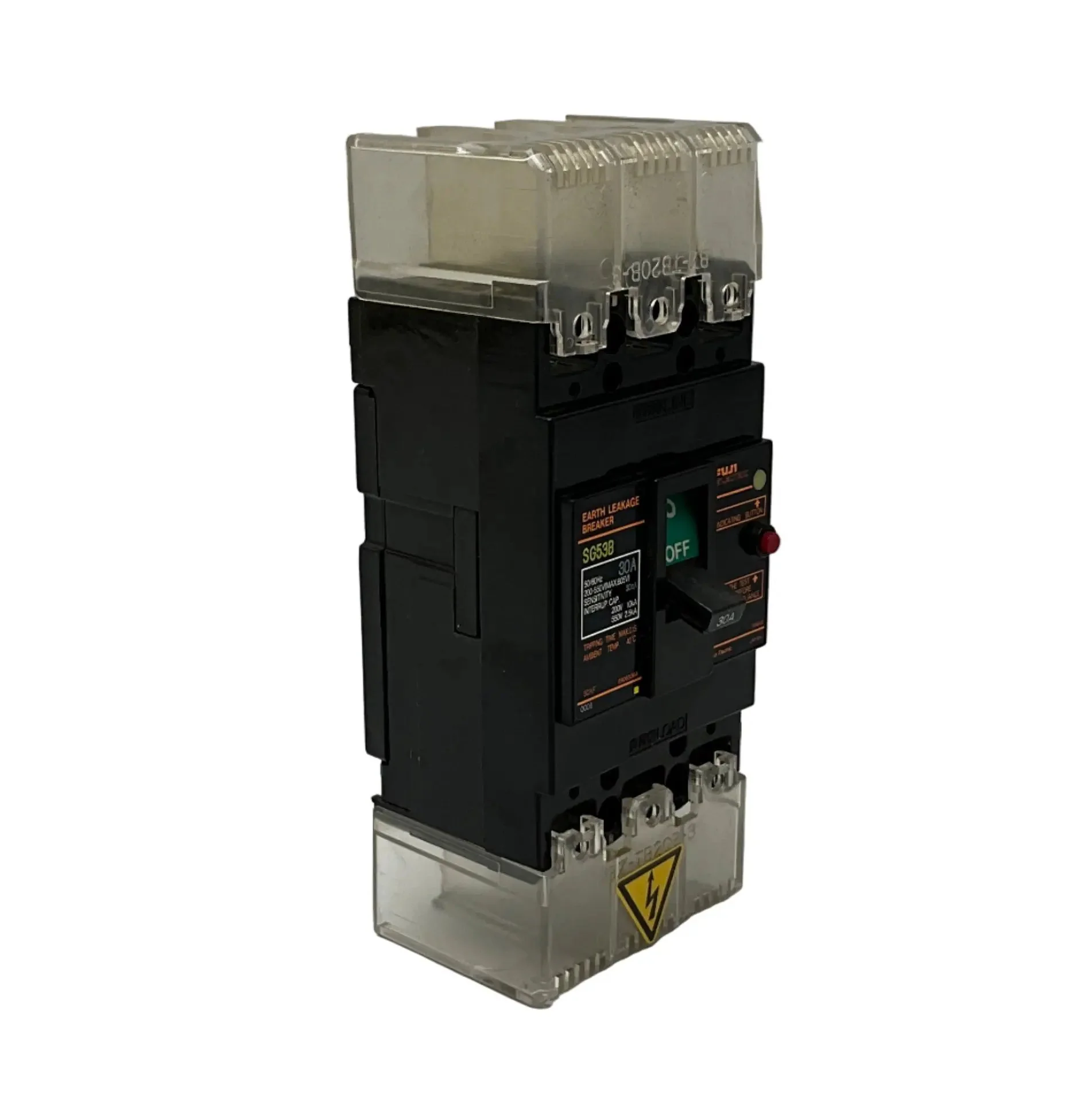

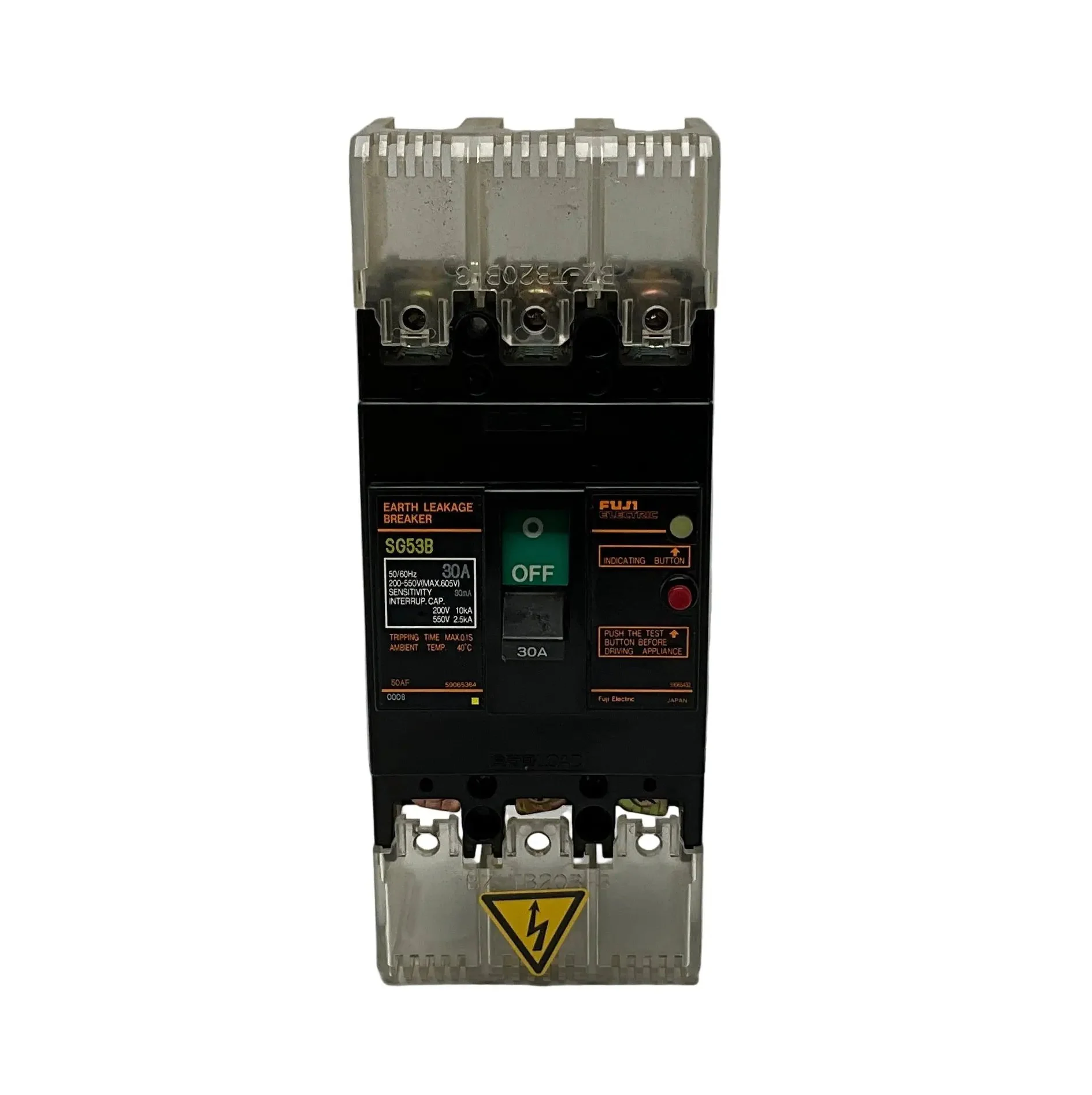

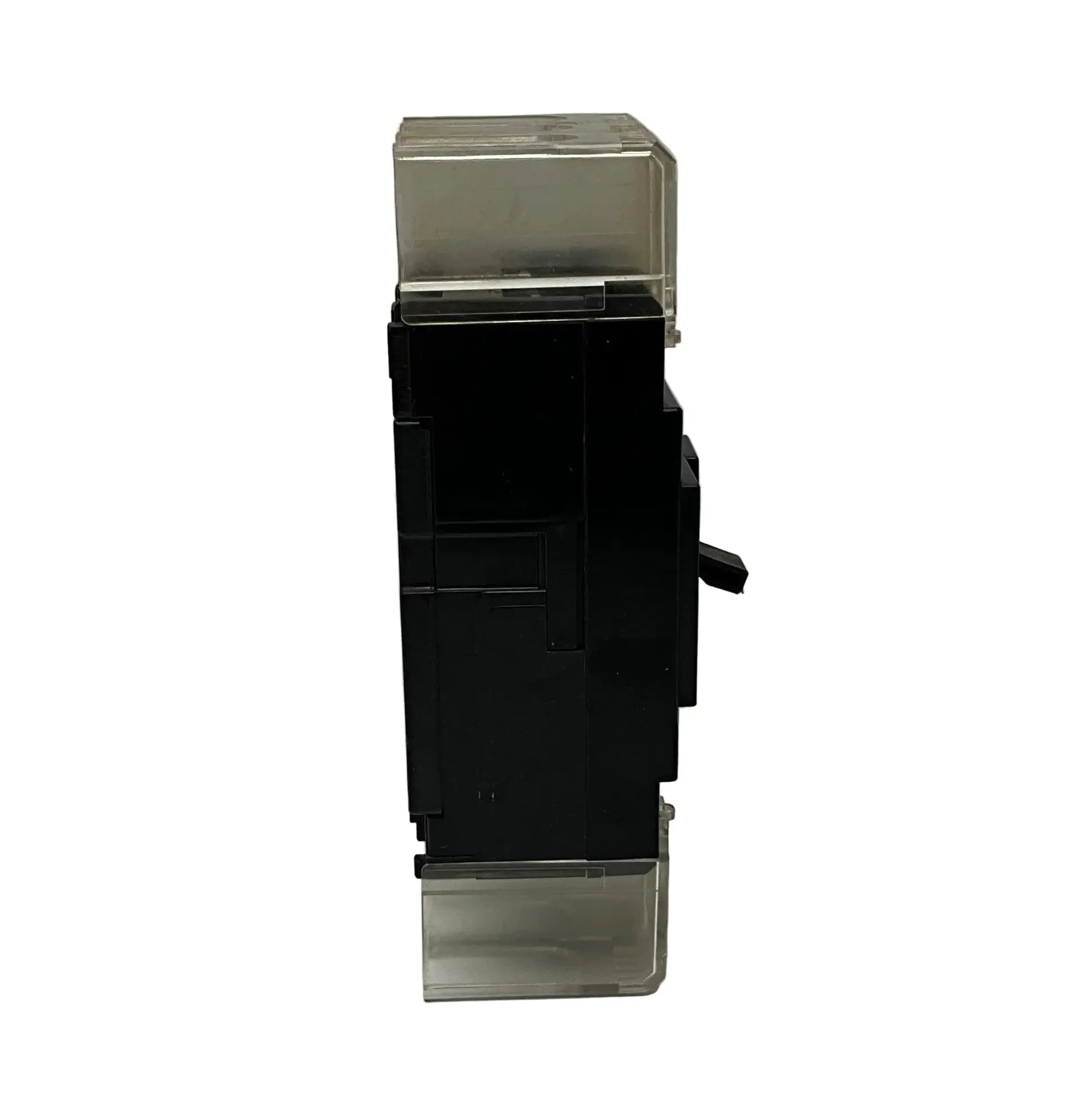

Fuji Electric SG53B Earth Leakage Circuit Breaker - 30A

Brand: Fuji Electric
Model: SG53B
Type: Earth Leakage Circuit Breaker
Part Number: SG53B

Technical Specs:
- Rated Current: 30 A
- Number of Poles: 3-pole
- Rated Voltage: 200 to 550 V AC
- Frequency: 50/60 Hz
- Breaking Capacity: 10 kA @ 200 V, 2.5 kA @ 550 V
- Trip Characteristic: Earth leakage protection (30 mA sensitivity)
- Mounting: DIN rail or panel mount
- Auxiliary Contacts: Optional
- Operating Temperature Range: -5°C to +40°C
- Insulation Voltage: 500 V AC
- Additional Features:
  - Compact design for space-saving installation
  - High reliability for continuous operation
  - Discontinued by manufacturer
- Certifications: CE compliant

Dimensions: 200 x 80 x 75 mm

Weight: 800 g

Country of Origin: Japan

HS Code: 8536.20
