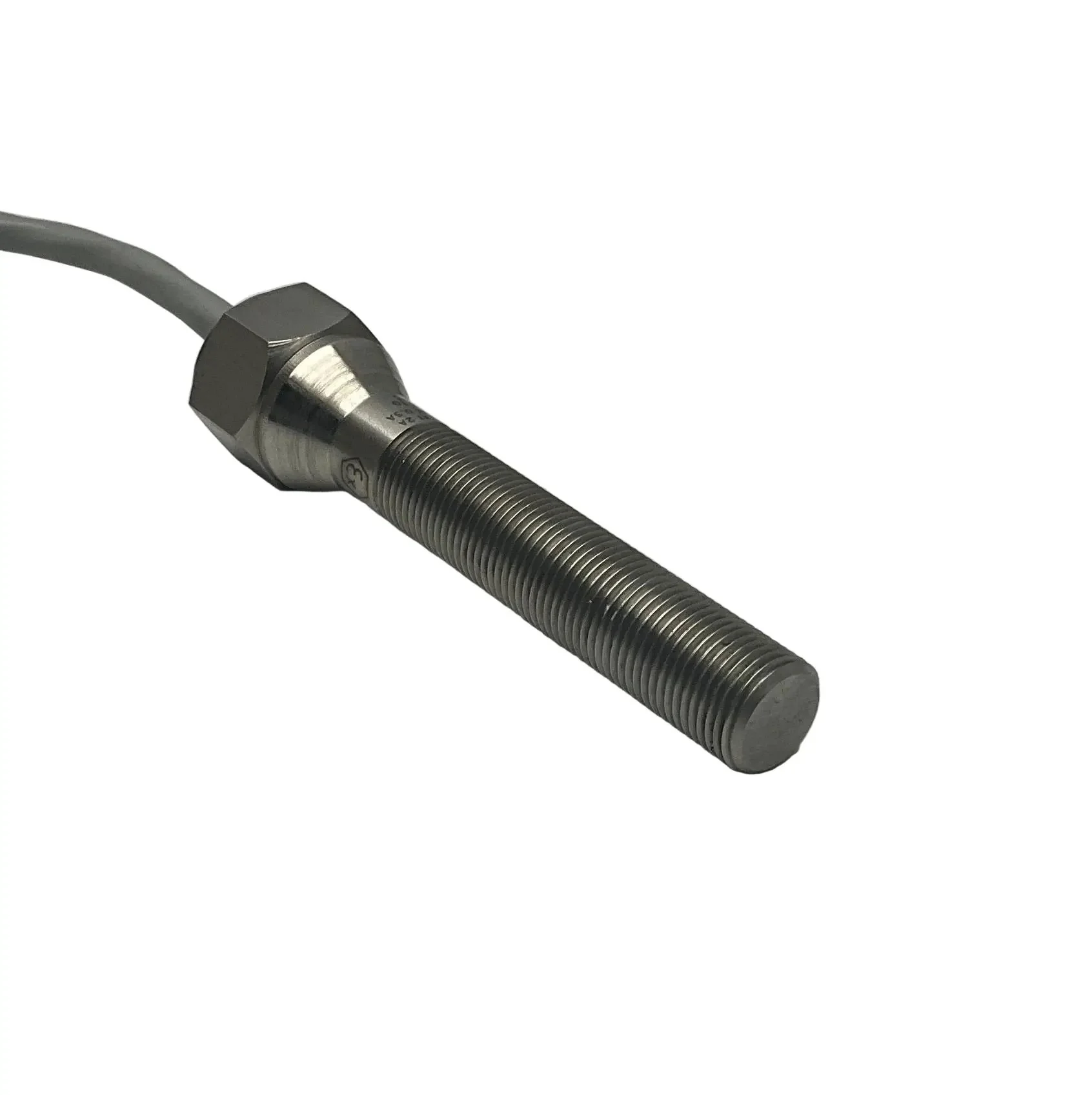

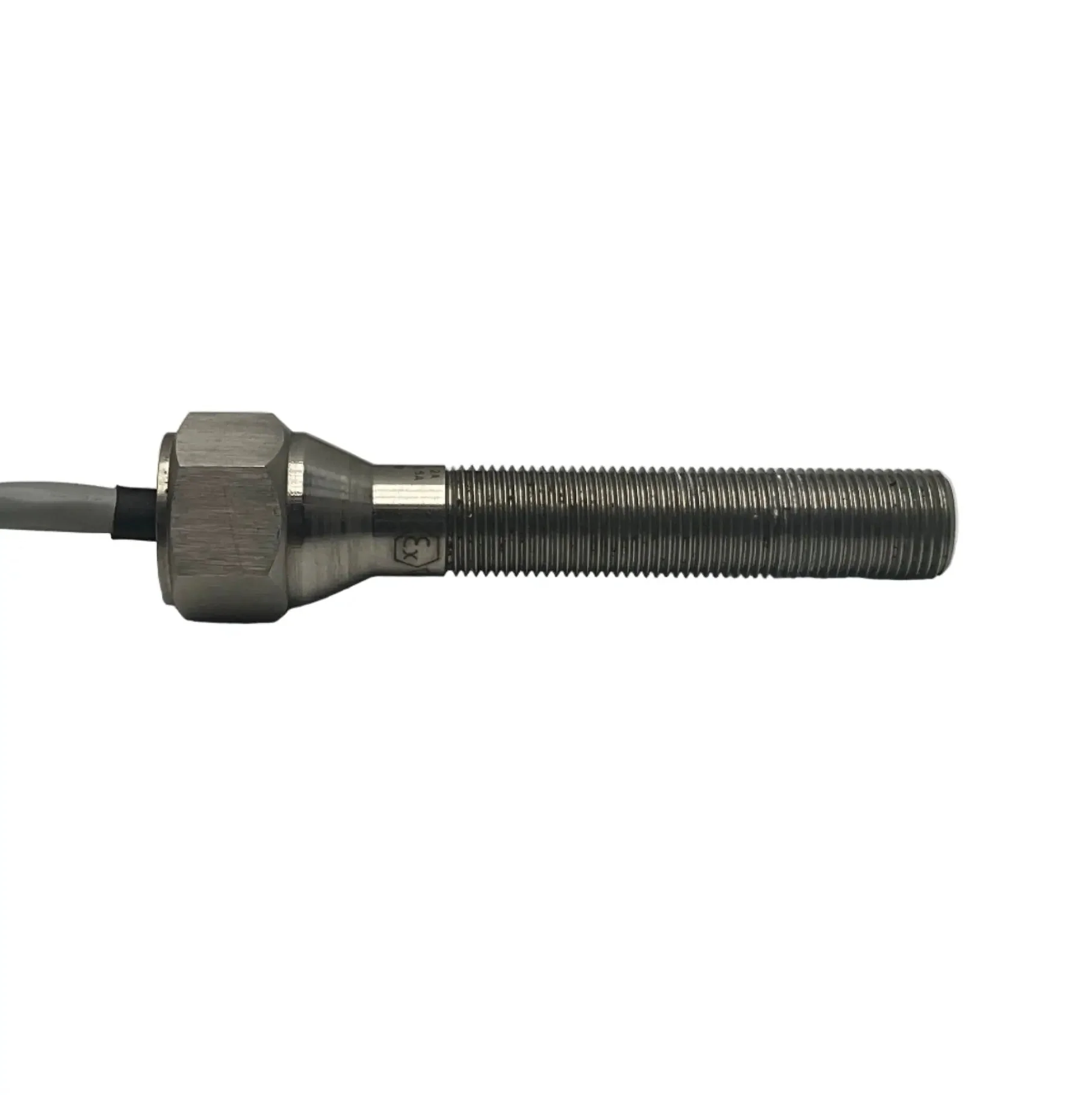

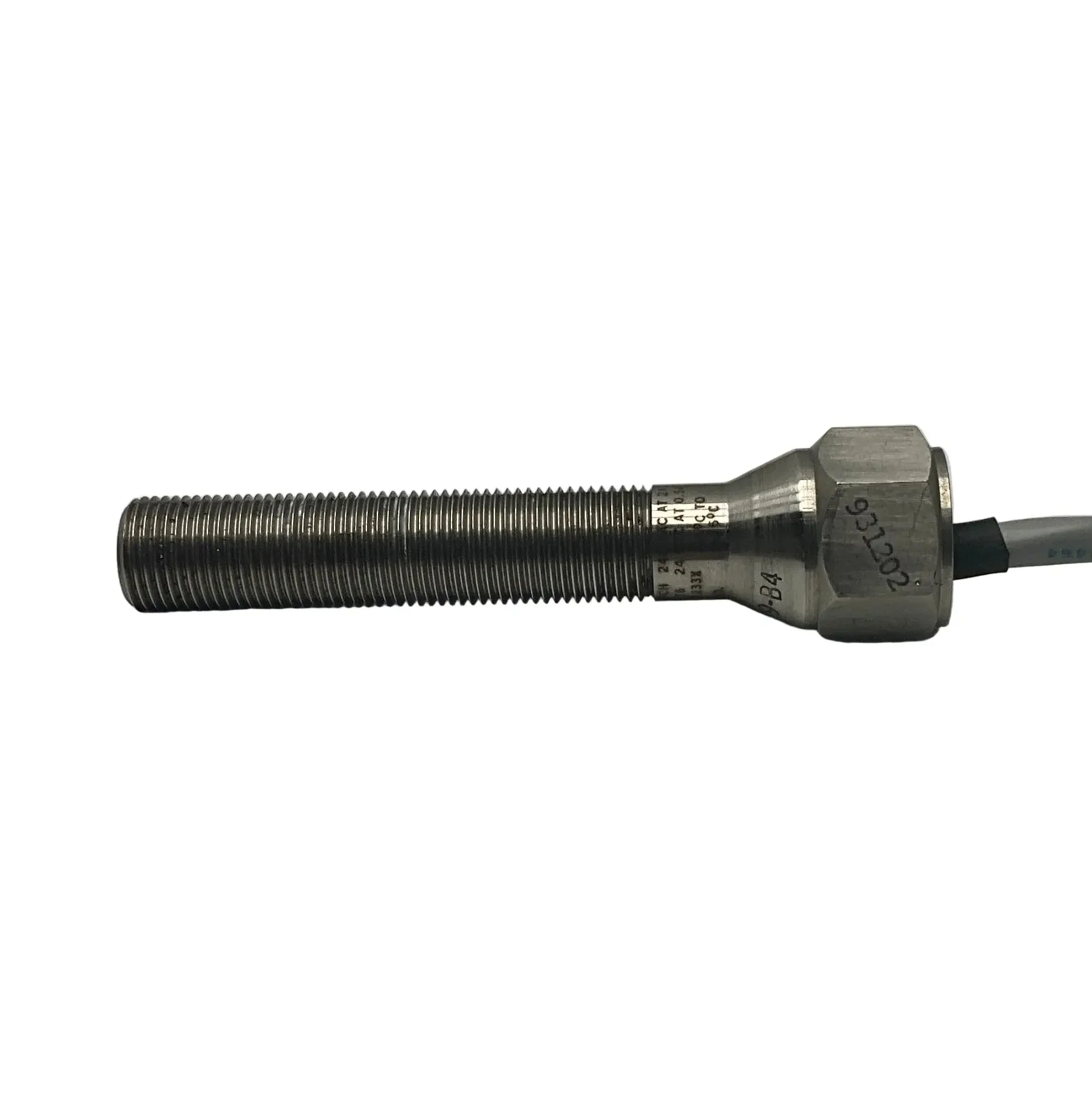

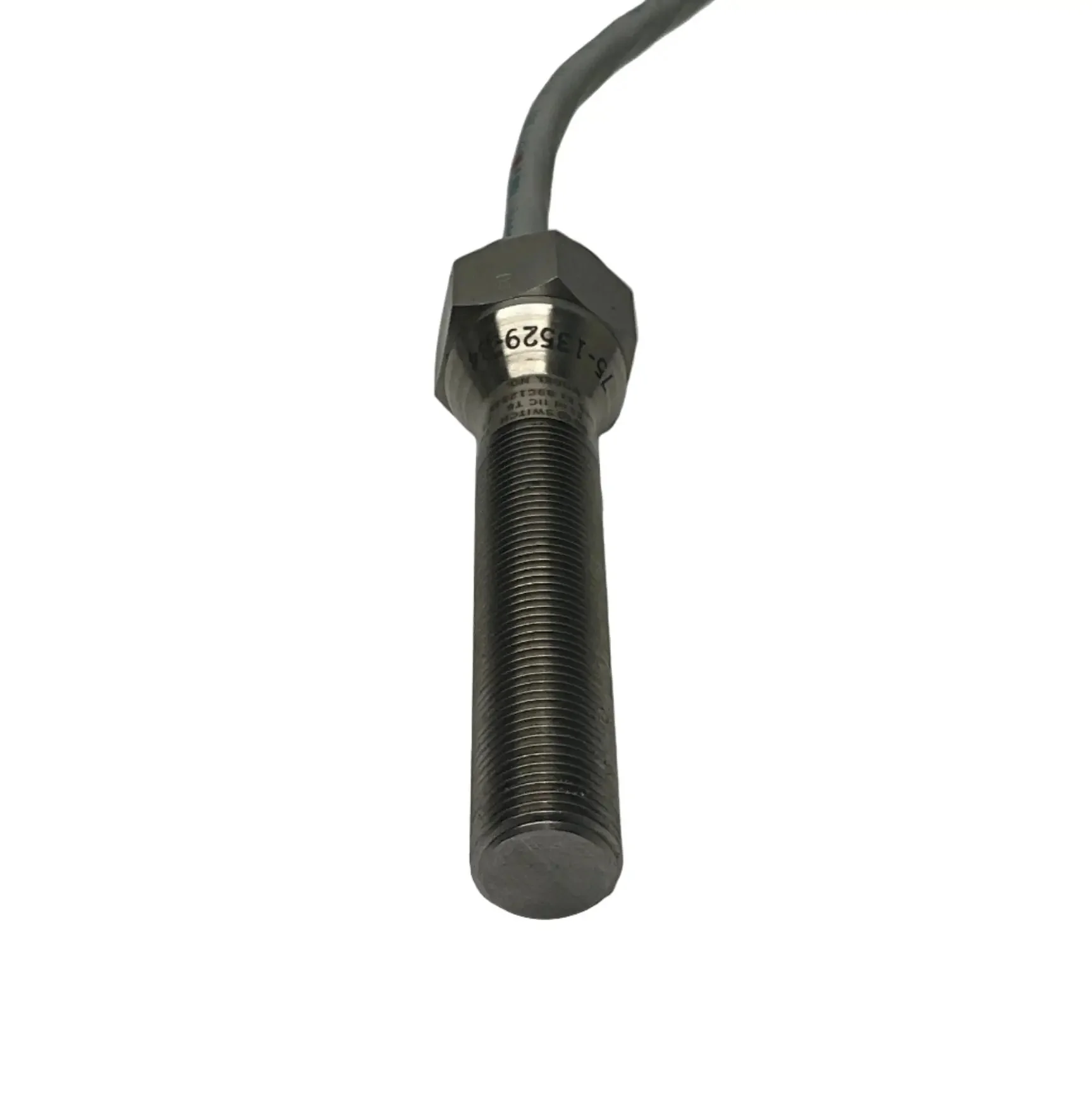

Go Switch 75-13529-B4 Proximity Limit Switch

Brand: GO Switch (TopWorx / Emerson)

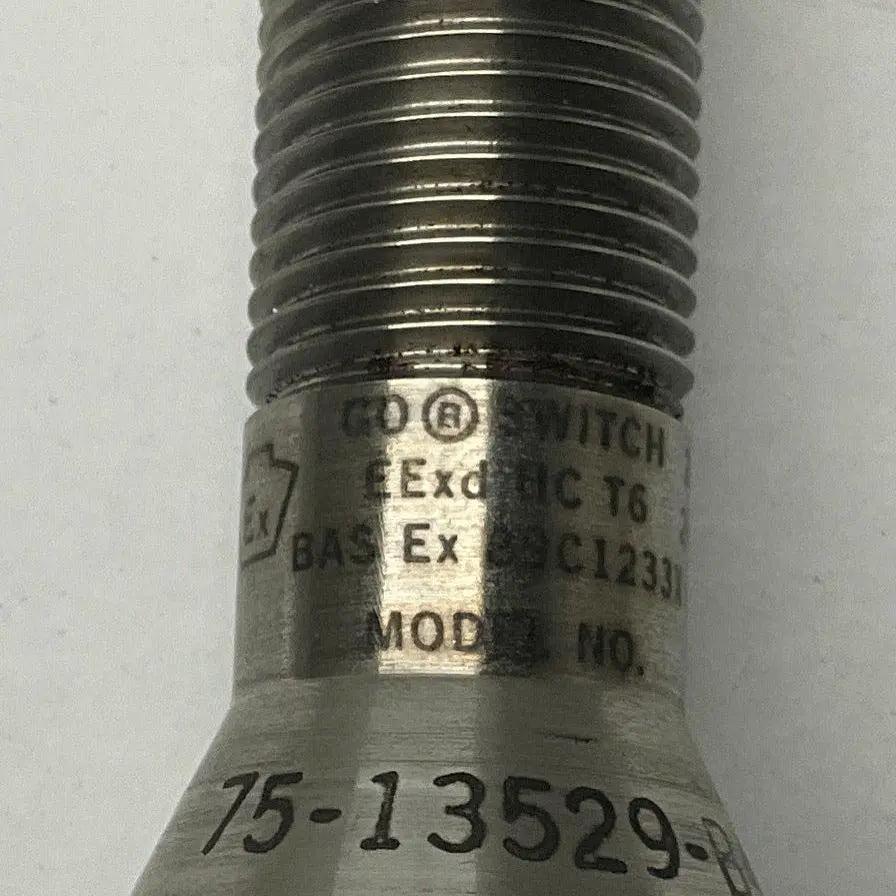

Model: 75-13529-B4
Type: Proximity Limit Switch
Part Number: 75-13529-B4

Technical Specs:
- Sensor Type: Magnetic reed proximity switch (leverless limit switch)
- Housing: 316L Stainless Steel cylindrical body
- Contact Configuration: SPCO / SPDT (Form C), volt-free Palladium-Silver contacts
- Switching Current: Maximum 4 A
- Switching Voltage: AC/DC - multiple voltages supported: 250 V AC / 24 V DC
- Switching Power: 60 W
- Sensing Distance: 3-10 mm
- Actuation: Magnetic

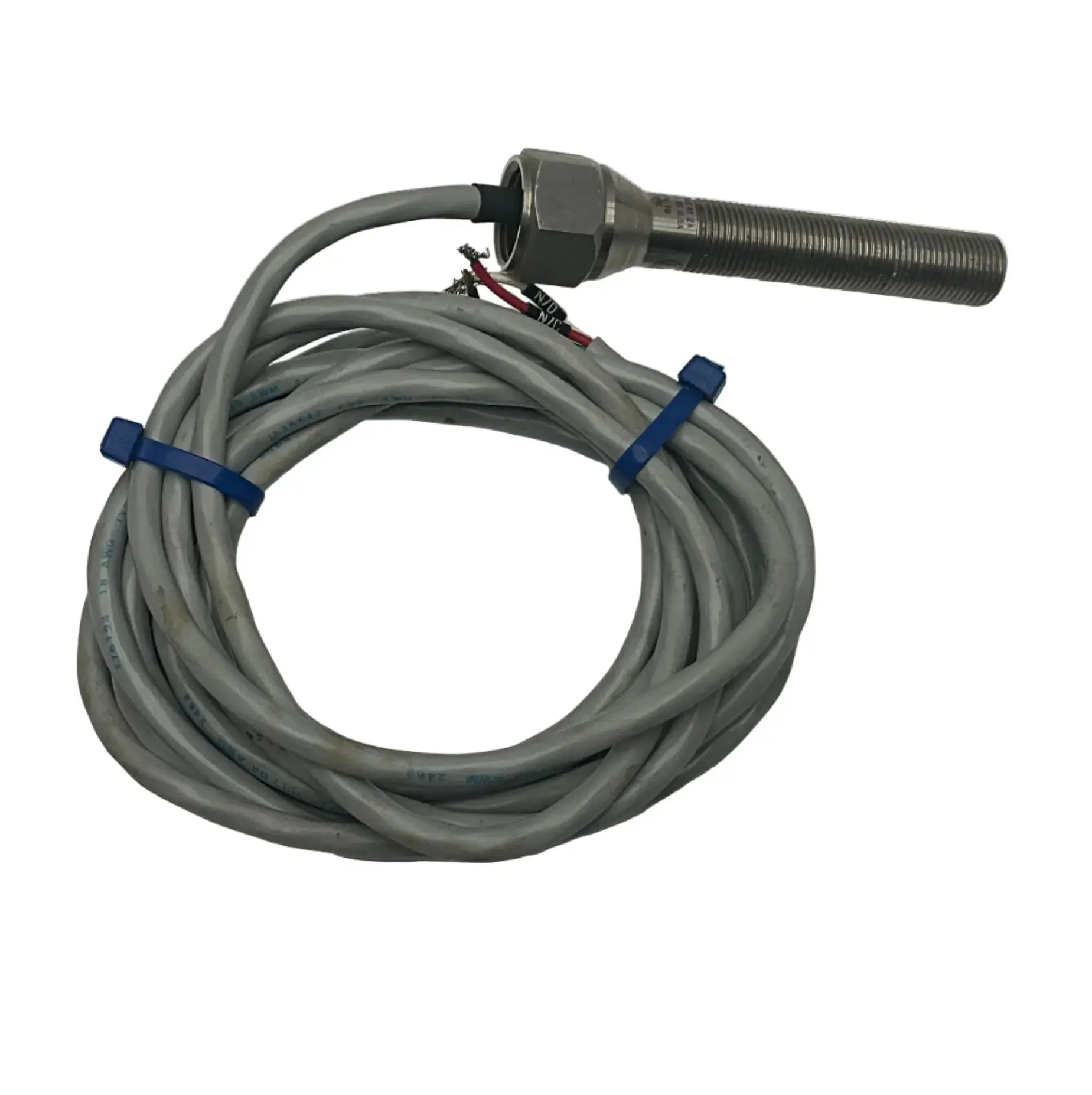

- Electrical Connection: 2 m cable
- Operating Temperature Range: -40°C to 125°C
- Protection Rating: IP67
- RFI Immunity: High
- Power Consumption: None
- Leakage Current: None
- Voltage Drop: None
- Additional Features:
  - All-steel construction for corrosion resistance
  - No moving parts for maintenance-free operation
  - Global hazardous area certifications (ATEX, IECEx, etc.)
  - Hermetically sealed contacts for reliability in extreme conditions

Dimension: 180 x 180 x 60 mm

Weight: 400 g

Country of Origin: USA

HS Code: 8536.50
