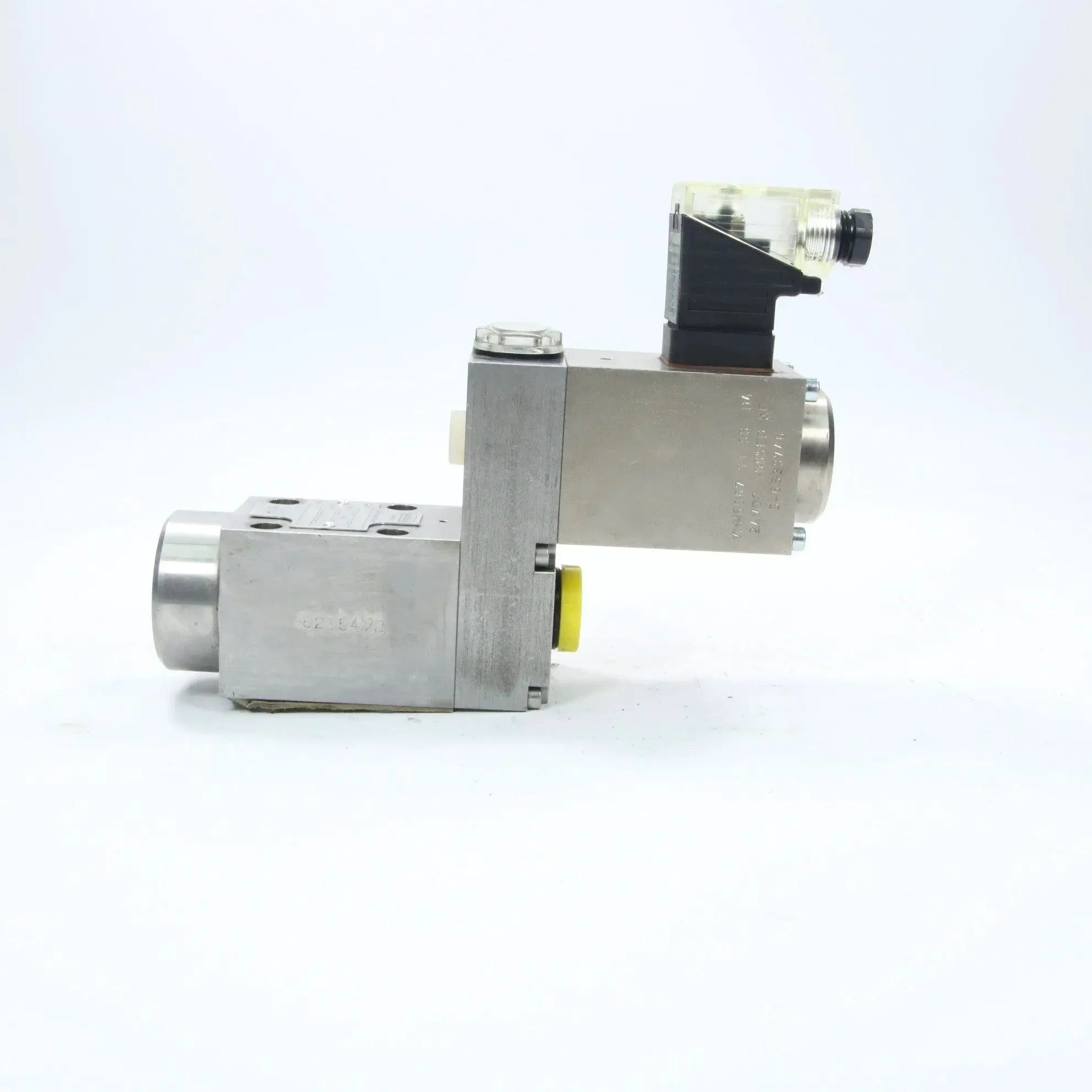

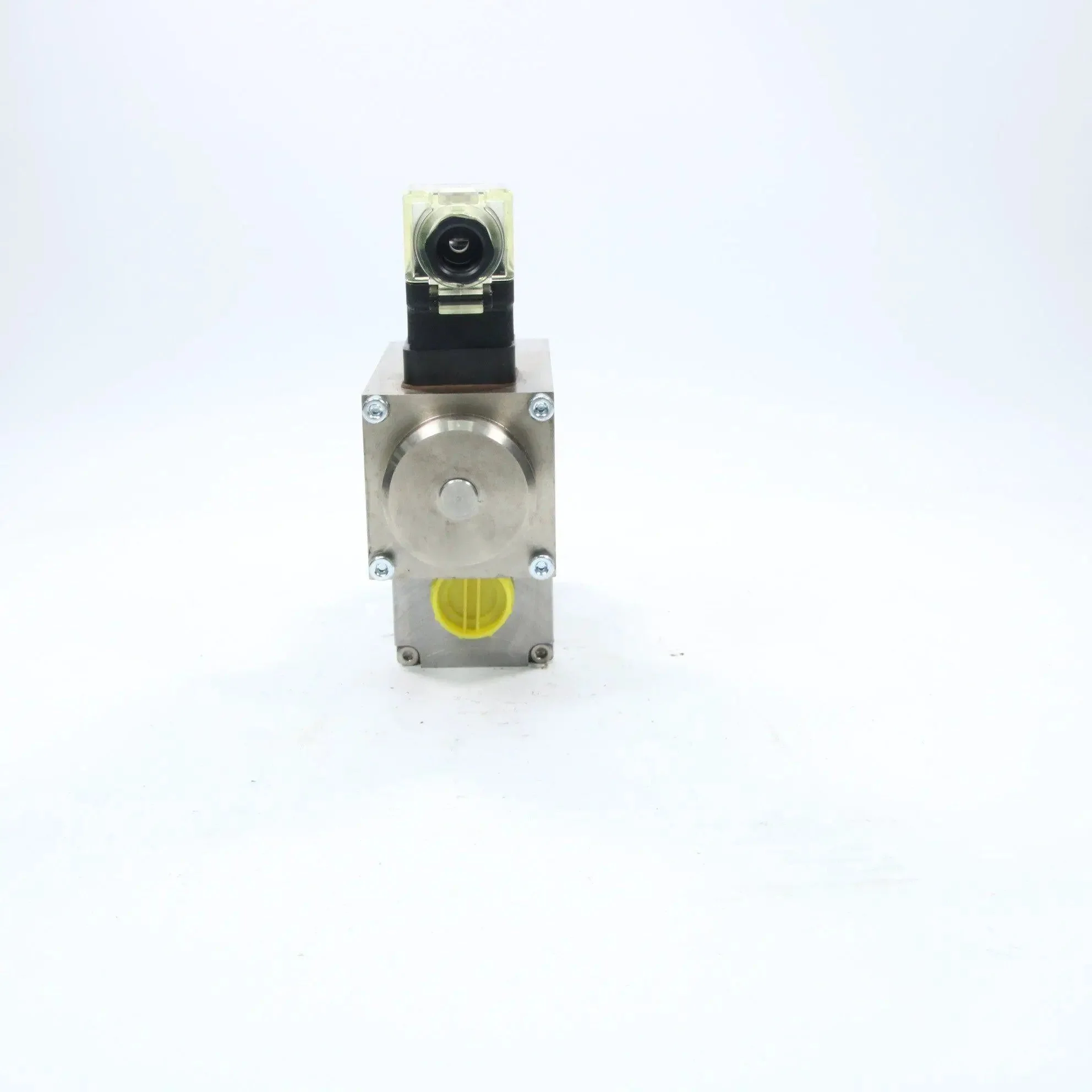

Hauhinco Solenoid Valve HFA-Wasser 6546749A

Used Hauhinco 18223.16 6546749A HFA-Wasser Solenoid valve

• 24VDC
• 320 Bar
• DN 6
• Hydraulically actuated directional seat valve for liquid media
  − Actively controllable 2-way control valve with a position controlled piston position
  − The controlled piston position specifies the variably adjustable flow cross-section
  − The valve is actuated via proportional 2-way pilot valves
  − The pilot valves are activated via the digital Controller RE4
  − Valve pistons are sealed via seals within the body, thus no inner leakages develop
  − Valve fastening structural plate form with a Hauhinco Connection diagram
  − Optionally, the valve position can be monitored by a proximit
