Hitachi EH-TP707 Touch Panel

Hitachi EH-TP707 Touch Panel

- Brand: Hitachi
- Model: EH-TP707
- Type: Touch Panel HMI
- Part Number: EX707H5P1
  - Display: 7-inch TFT LCD, 800 x 480 resolution, LED backlight, 16.7 million colors, projected capacitive (PCAP), 16:9
  - Touch Screen: True Glass, Multi Touch (swipe, zoom)
  - Processor: ARM Cortex-A9 800 MHz
  - Memory: 1 GB RAM, 4 GB flash storage
  - Power Supply: 24 V DC

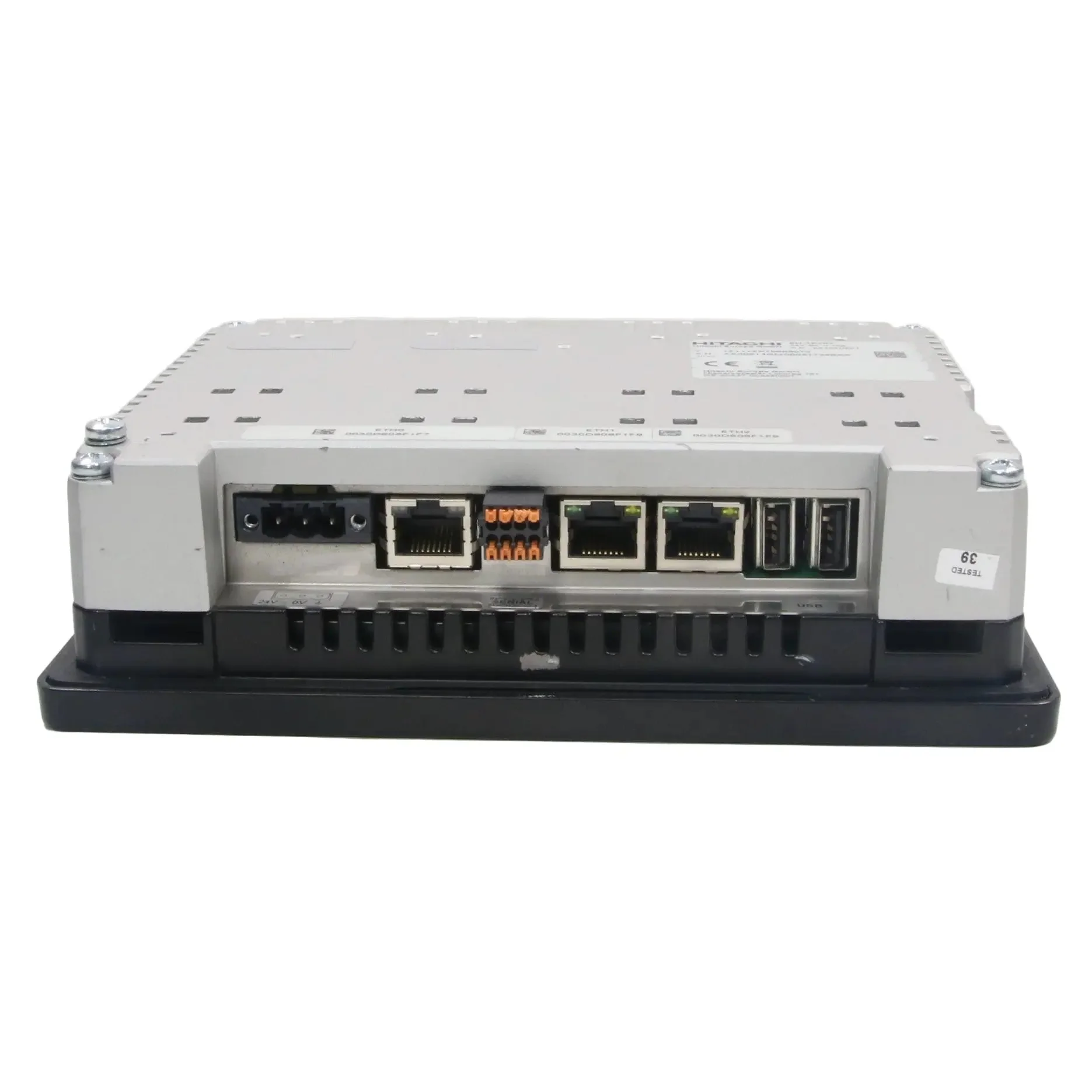

  - Interfaces: 3 x Ethernet (10/100 Mbps), 2 x USB 2.0 Host, 1 x RS-232/422/485
  - Operating System: Embedded Linux
  - Operating Temperature: -20°C to +60°C
  - Protection Rating: IP66 front panel
  - Features: IoT-ready, OPC UA client/server, VPN support, dimmable backlight, robust glass front
- Dimensions: 190 x 145 x 60 mm
- Weight: 1.7 kg
- Country of Origin: China
- HS Code: 847160

Select Condition
From $604.74
Hitachi EH-TP707 Touch Panel—
$604.74
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8

Description

- Brand: Hitachi
- Model: EH-TP707
- Type: Touch Panel HMI
- Part Number: EX707H5P1
  - Display: 7-inch TFT LCD, 800 x 480 resolution, LED backlight, 16.7 million colors, projected capacitive (PCAP), 16:9
  - Touch Screen: True Glass, Multi Touch (swipe, zoom)
  - Processor: ARM Cortex-A9 800 MHz
  - Memory: 1 GB RAM, 4 GB flash storage
  - Power Supply: 24 V DC
  - Interfaces: 3 x Ethernet (10/100 Mbps), 2 x USB 2.0 Host, 1 x RS-232/422/485
  - Operating System: Embedded Linux
  - Operating Temperature: -20°C to +60°C
  - Protection Rating: IP66 front panel
  - Features: IoT-ready, OPC UA client/server, VPN support, dimmable backlight, robust glass front
- Dimensions: 190 x 145 x 60 mm
- Weight: 1.7 kg
- Country of Origin: China
- HS Code: 847160
