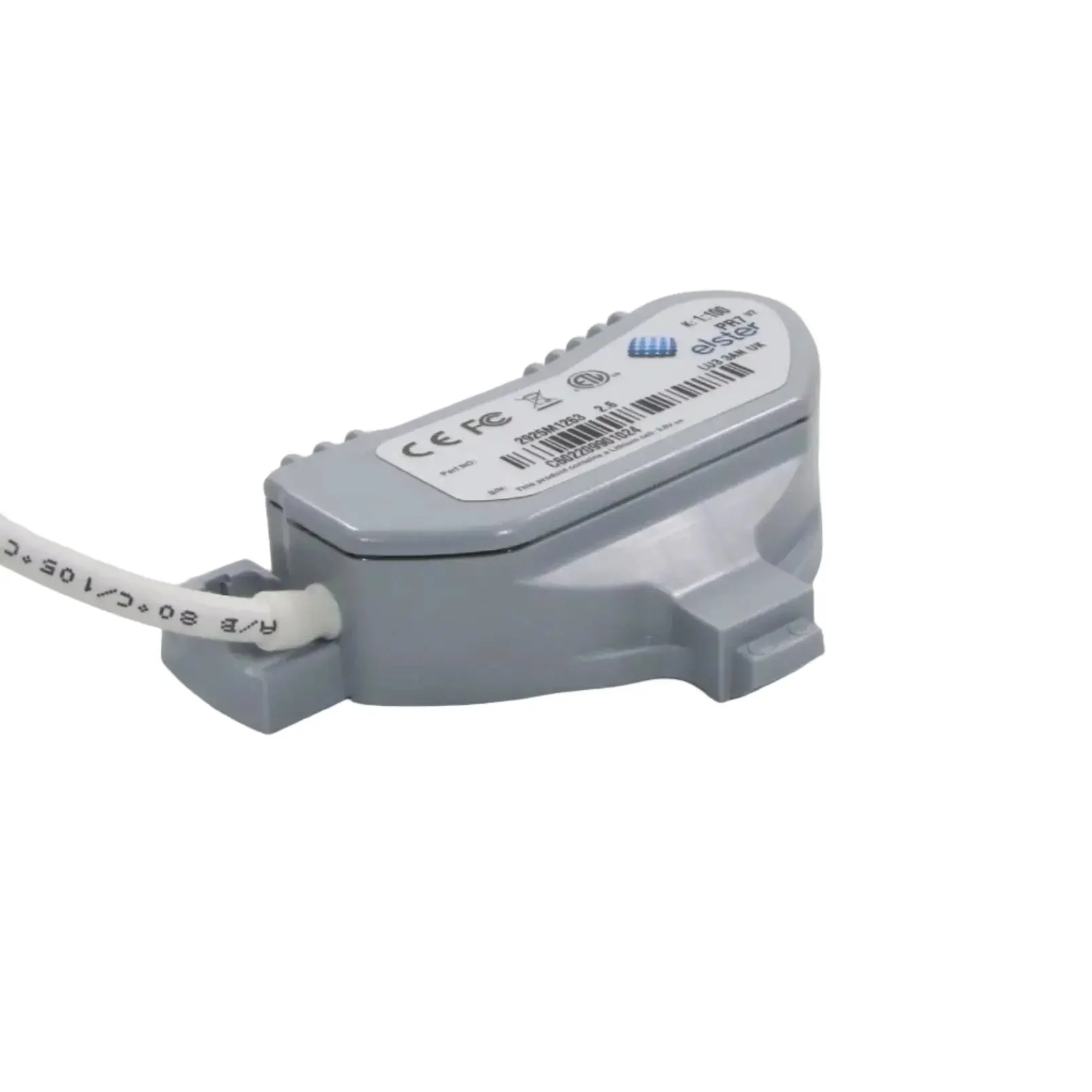

Honeywell Elster PR7 Pulse Transmitter

- Brand: Honeywell Elster

- Model: PR7 Pulser

- Type: Pulse Transmitter

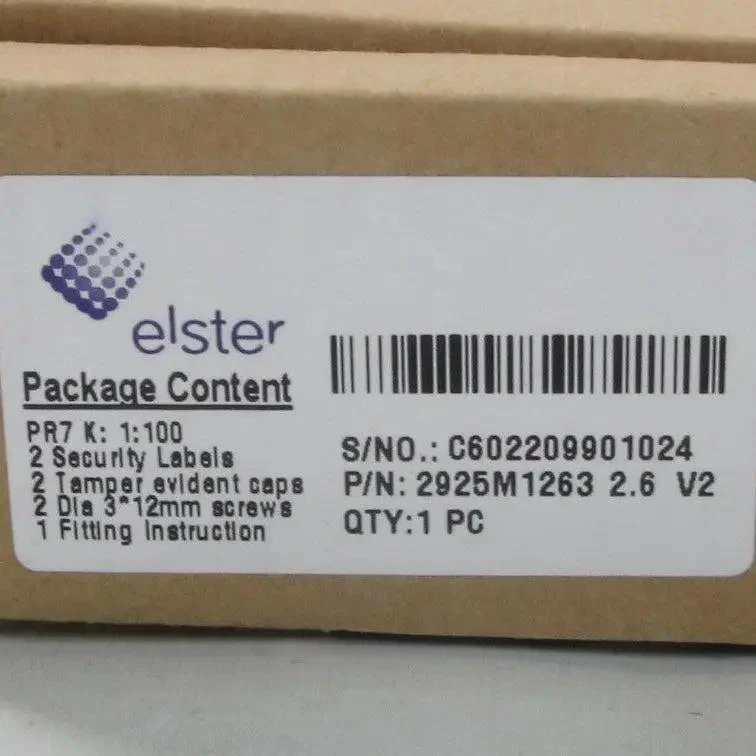

- Part number: 2925M1263 2.6 V2

- Technical specifications:
- Pulse output: Reed switch
- Pulse rate: K 1:100
- Voltage: 3.6 V DC
- Current: Low

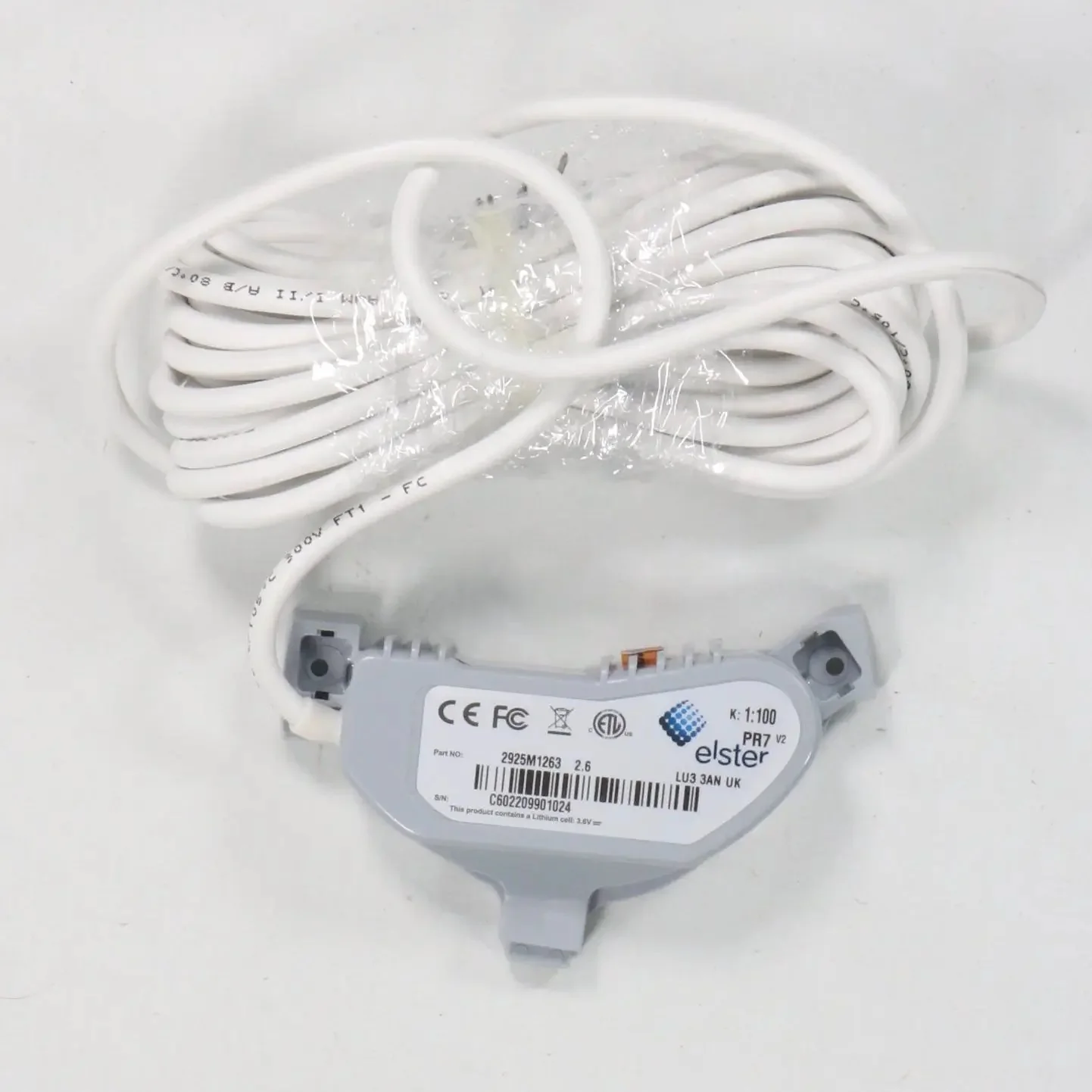

- Cable length: 2m cable with free ends
- Compatibility: Elster diaphragm gas meters (e.g., BK-G4, BK-G6, BK-G10, BK-G16)
- Function: Provides electrical pulse output proportional to gas volume passed; used for remote meter reading, billing, or monitoring without mechanical interference
- Additional features: Non-intrusive; high reliability (reed switch >10^7 operations);  low power consumption for long battery life in AMR systems
- Operating temperature: -25°C to +60°C
- Protection: IP68
- Standards: Compliant with EN 1359 / OIML R137 (for gas meters); MID approved in compatible systems; CE marked

Weight: 200 g

Dimensions: 200 x 110 x 45 mm

Country of origin: Hungary

HS code: 9026.80
