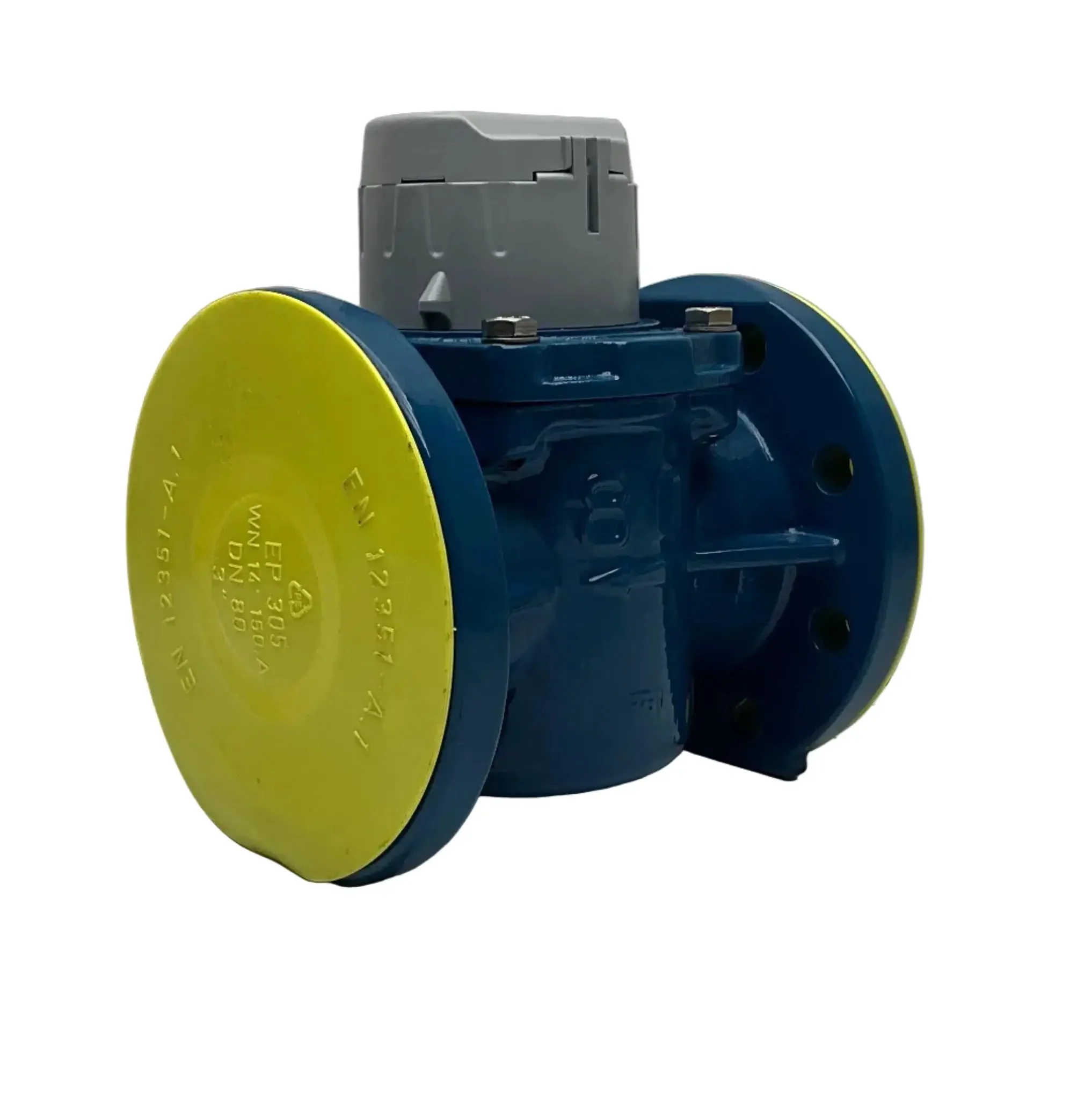

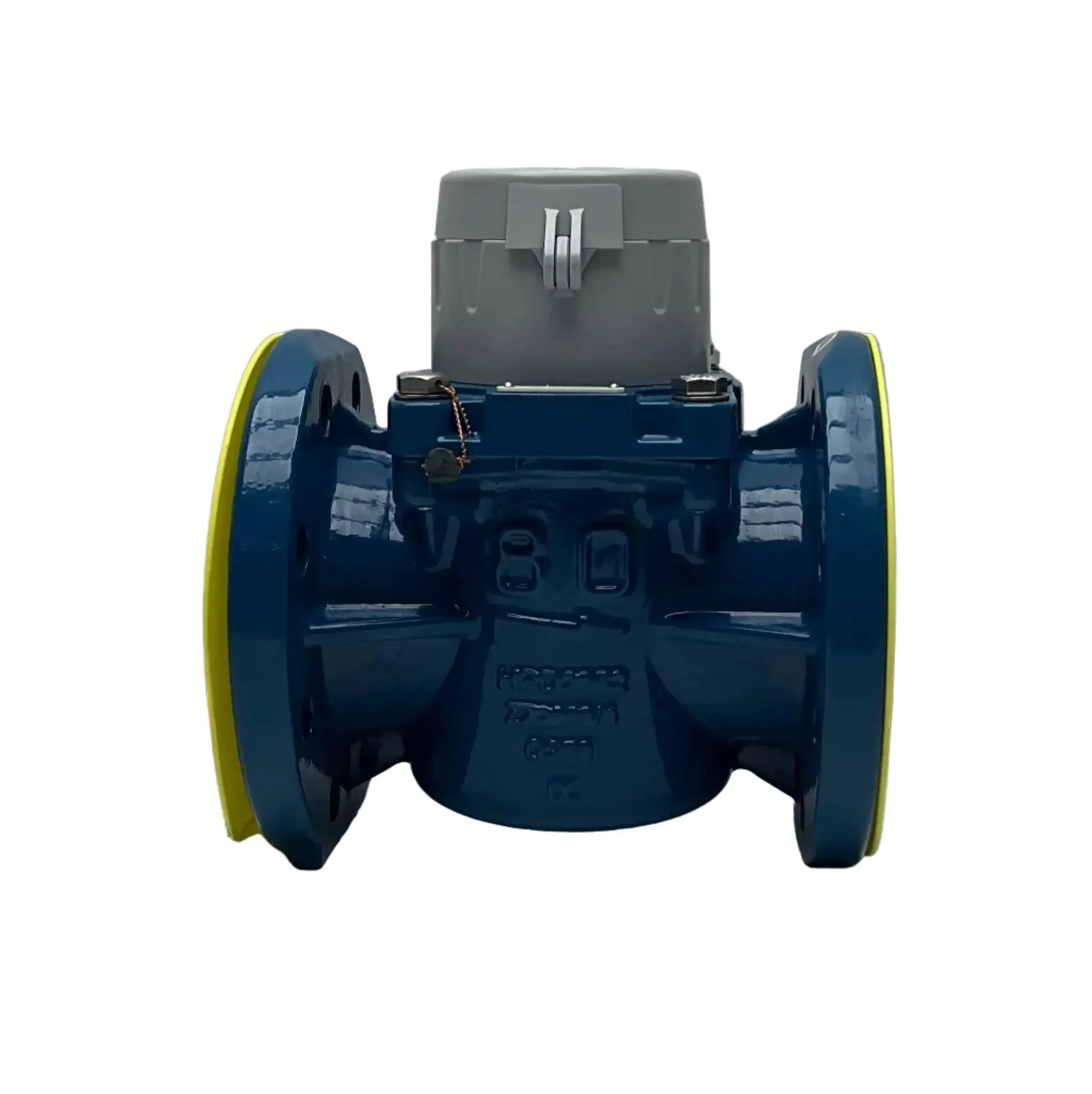

Honeywell Helix H4000 Horizontal Water Meter

- Brand: Honeywell (Elster / Honeywell Water Metering)
- Model: Helix H4000
- Type: Horizontal Helical Turbine Water Meter
- Nominal Diameter: DN80
- Pressure Rating: PN16

Technical Specs:
- Meter Type: Woltmann helical turbine
- Nominal Flow Rate (Q3): 2.05 kl/h
- Minimum Flow Rate (Q1): 1.28 kl/h
- Transition Flow Rate (Q2): Q2 = Q3 / R 2.05 kl/h
- Maximum Flow Rate (Q4): 1.25 × Q3 = 160 kl/h
- Accuracy Class: R250
- Starting Flow: < 0.3 m³/h
- Pressure Loss at Q3: < 0.25 bar
- Maximum Operating Pressure: 16 bar (PN16)
- Temperature Range: Cold water version: up to 50 °C (T50)
- Body Material: Ductile cast iron (GGG50) with epoxy coating
- Measuring Mechanism: Replaceable dry dial

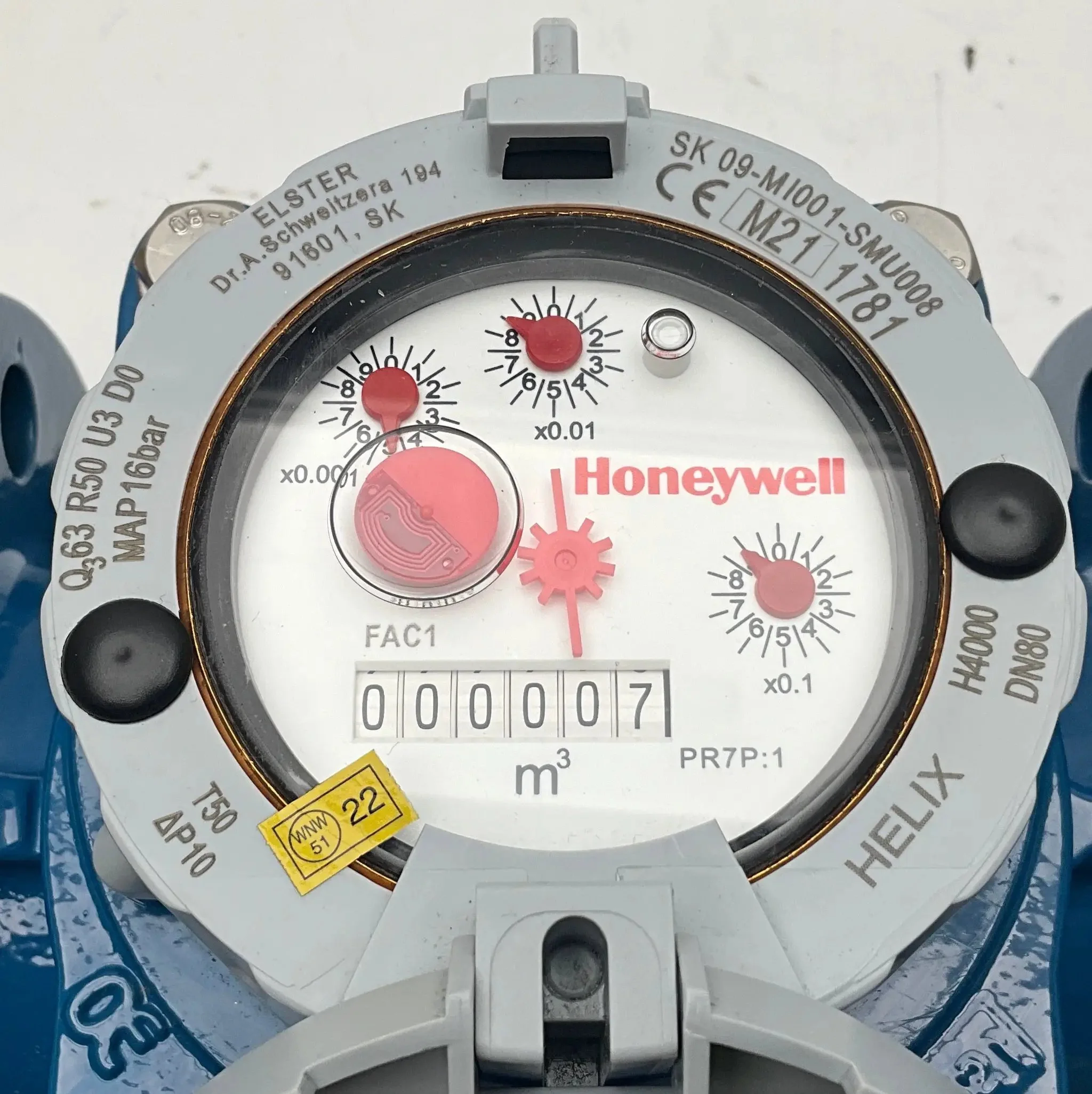

- Counter: 8-digit roller counter + pointer (totalizer in m³)
- Protection Class: IP68
- Installation: Horizontal (H) preferred

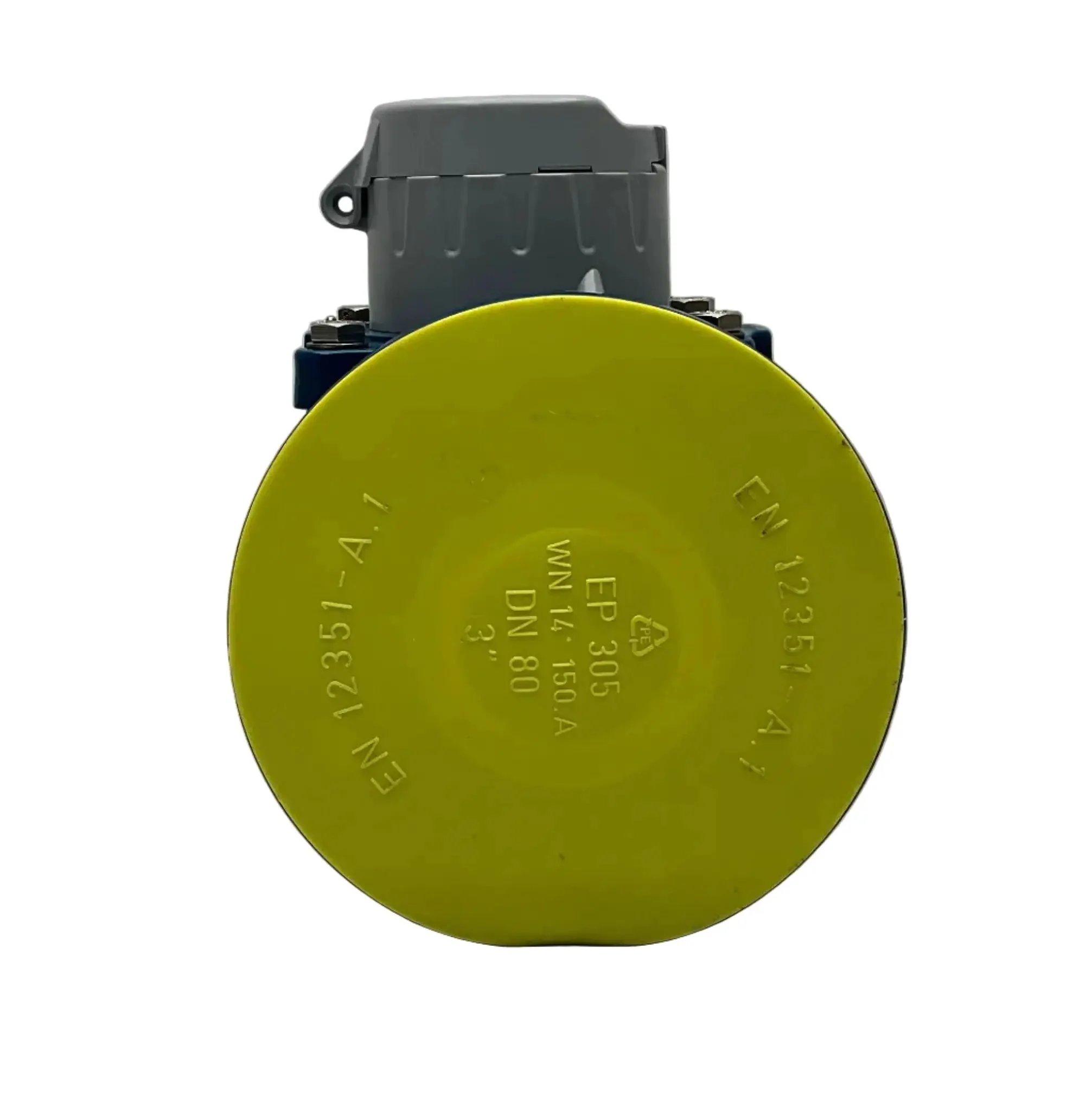

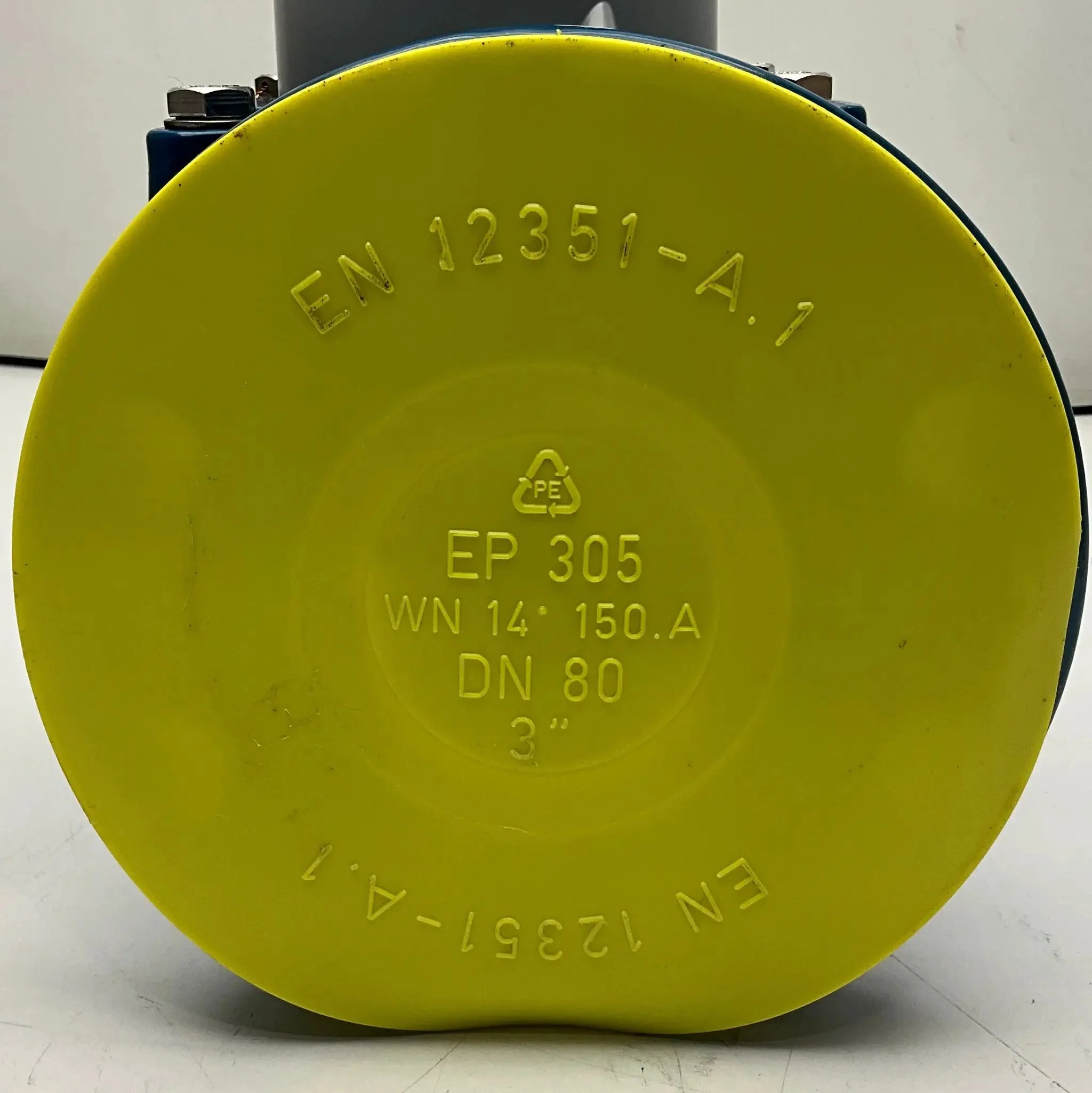

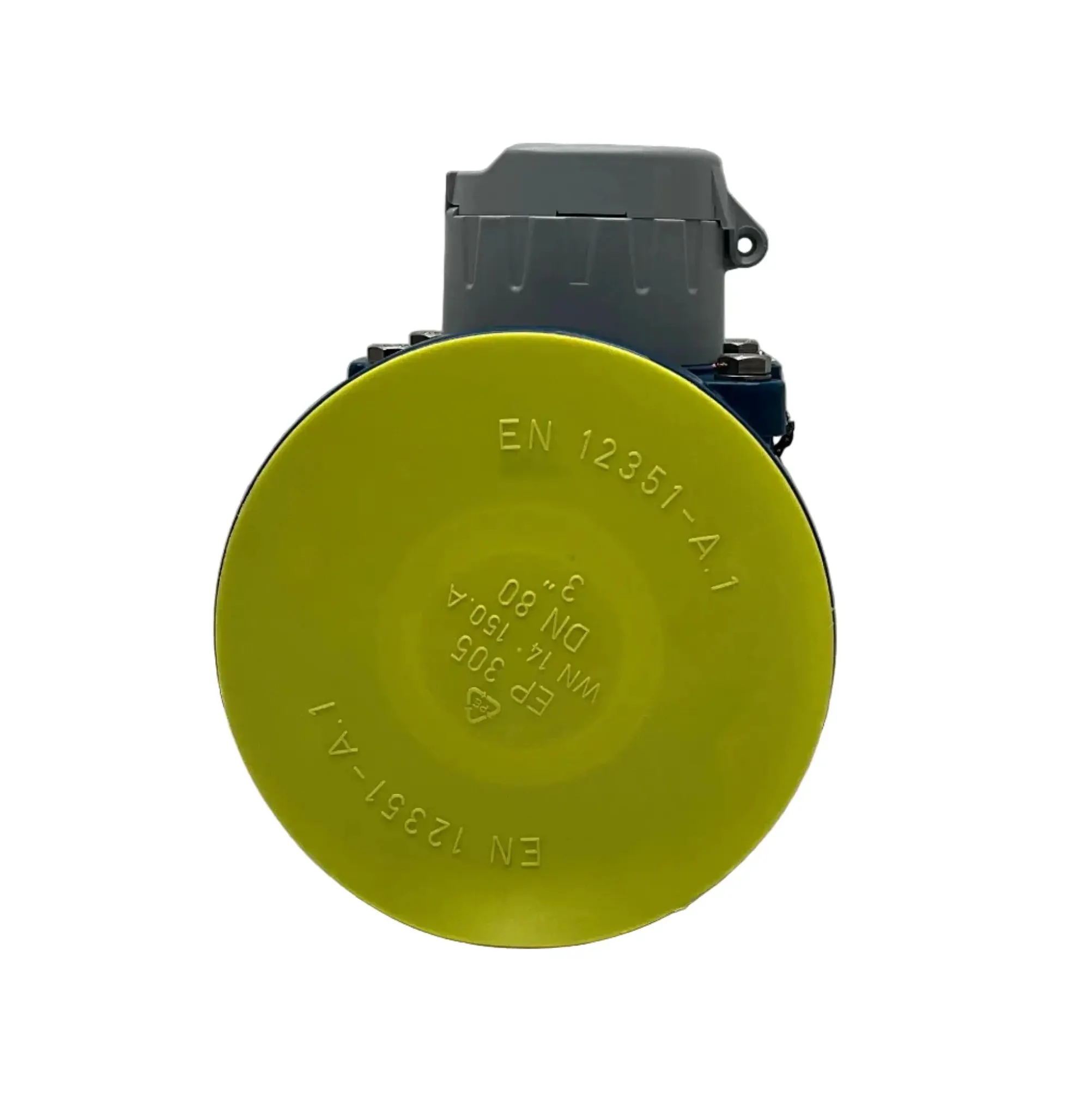

- Connections: Flanged PN16 EN 12351-A.1
- Additional Features:
  - High accuracy across wide flow range
  - Low starting flow and pressure loss
  - Tamper-proof dry dial (protected from condensation)
  - Replaceable measuring insert
  - Long-term stability and low maintenance

Dimensions:
- Nominal Diameter (DN): 80 mm
- Length (lay length): 225 mm
- Flange Outer Diameter: 200 mm (PN16)
- Height: 260 mm

Weight: 17 kg

Country of Origin: Germany

HS Code: 9028.20
