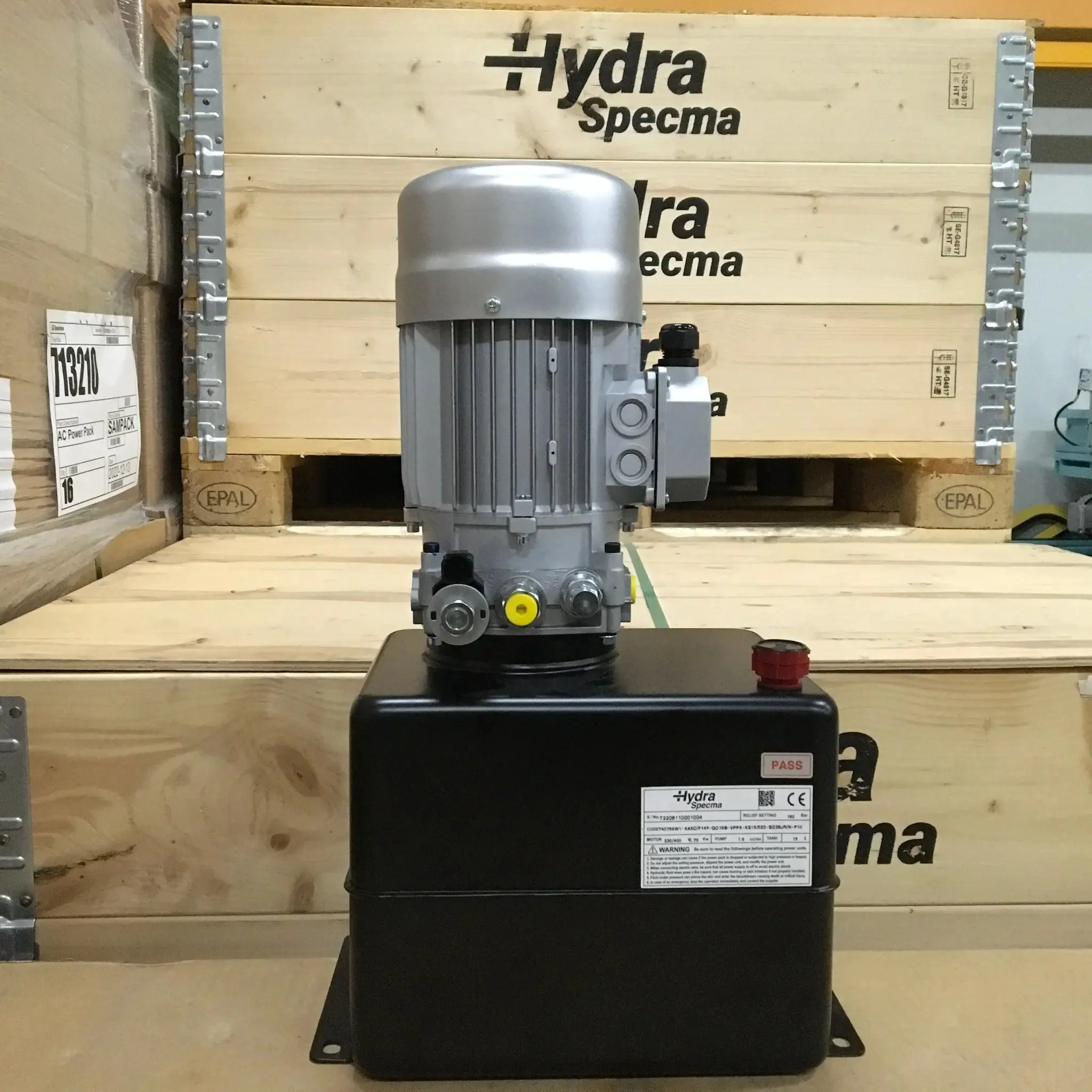

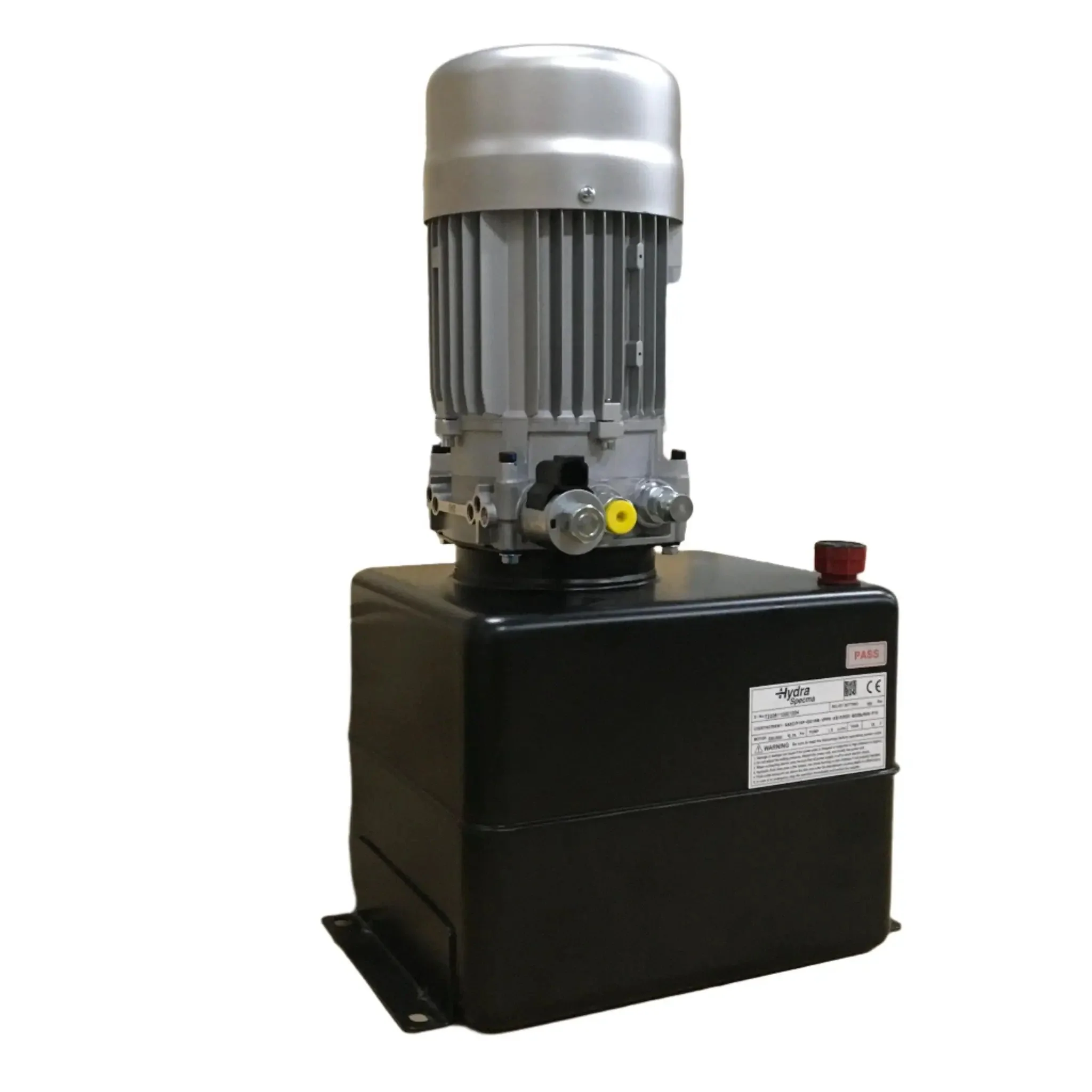

Hydraulic Power Pack Hydra Specma

- Brand: Hydra Specma
- Model: T40756W1-Xa5C/F14F-GO16B-VPPX-XS15/523-SO28JR/N-F10
- Type: Hydraulic Power Pack (compact unit for industrial hydraulic applications)
- All Tech Specs:
  - Material: Steel tank and frame for durability; standard hydraulic components
  - Voltage: 230/400 V AC (configurable)
  - Phases: 3-phase
  - Frequency: 50/60 Hz
  - Motor Power: 0.75 kW
  - Pump Displacement: 1.6 cc/Rev
  - Flow Rate: 2.208 liter/min (at 1380 rpm)
  - Relief Pressure: 160 bar
  - Tank Capacity: 15 L
  - Medium: Hydraulic oil (mineral-based, HLP/DIN 51524 recommended)
  - Filtration: Standard inline filter (≥10 µm)
  - Operating Temperature Range: -20°C to +80°C (-4°F to +176°F)
  - Protection Rating: IP54 (motor); suitable for industrial environments
  - Standards: ISO 4413; CE marked
  - Certification: CE; RoHS compliant
  - Features: Compact design for space-saving; includes motor, pump, tank, and relief valve; suitable for actuators and machinery
- Dimension: 360 mm length x 240 mm width x 550 mm height
- Weight: 0.15 kg (approximate, based on compact unit)
- Country of Origin: Denmark
- HS Code: 8412.21 (hydraulic power engines and motors)
