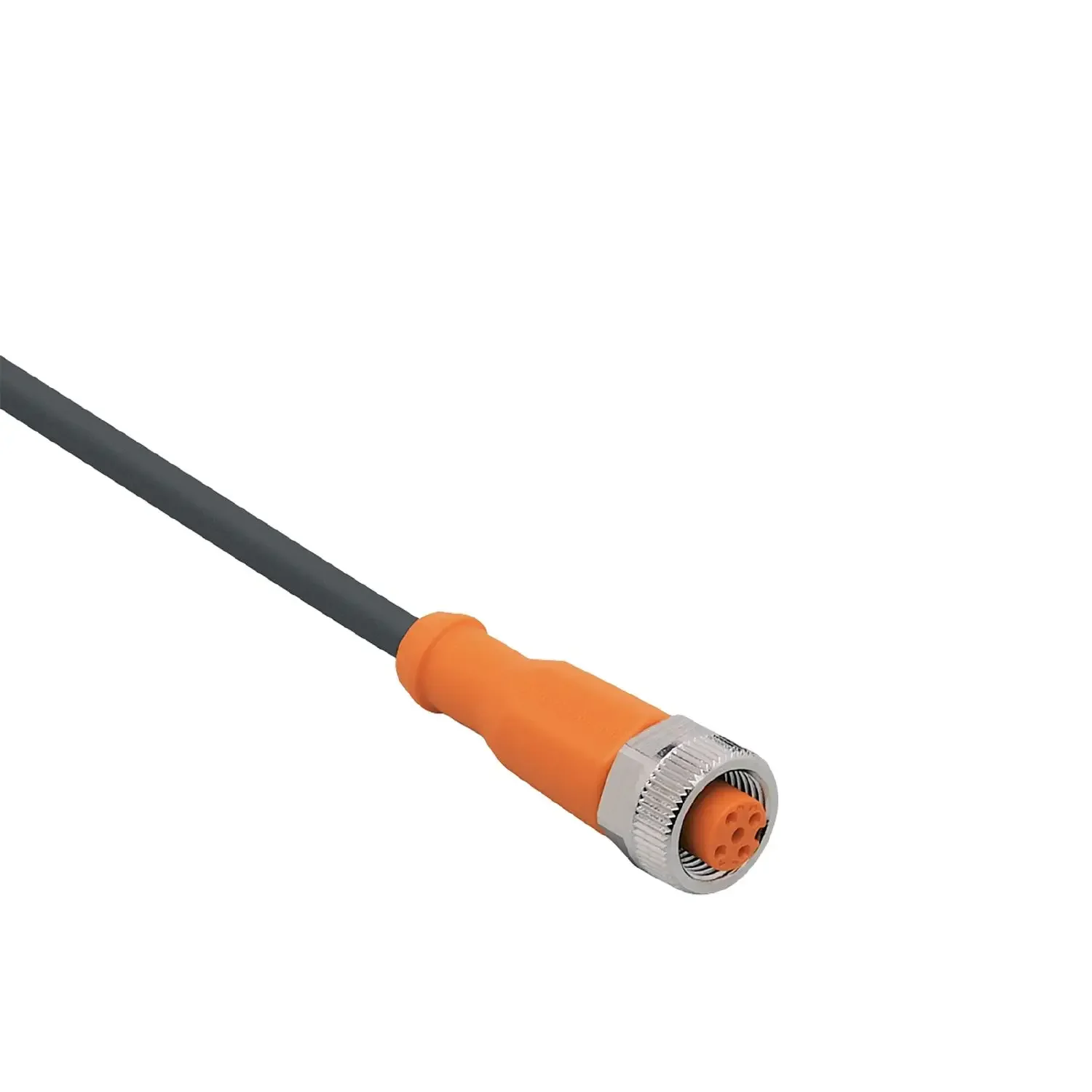

IFM Electronic EVC528 Connecting Cable

Brand: IFM Electronic
Part Number: EVC528 (ADOGH040MSS0010C04)

Specifications:
Cable Type: Round, shielded, halogen-free, silicone-free
Jacket Material: Polyurethane (PUR), black
Cable Length: 10 m (32.8 ft)
Core Configuration: 4 × 0.34 mm² (42 × Ø 0.1 mm) conductors
Connector: Straight M12 female, 5‑pin socket, gold‑plated contacts
Housing Material: TPU (orange)
Sealing Material: FKM (Viton)
Locking Nut: Brass, nickel-plated, torque 0.6–1.5 Nm
Operating Voltage: < 50 V AC / < 60 V DC
Maximum Total Current Load: 4 A
Protection Class: III
Ingress Protection: IP 65 / IP 67 / IP 68 / IP 69K
Ambient Temperature: –25 °C to +90 °C (max. 75 °C for cULus)
Flexibility Rating: Suitable for drag chains—min. bending radius 10 × cable Ø; max. speed 3.3 m/s (horizontal, 5 m travel, 5 m/s² acceleration); ≥ 2 million bending cycles; ± 180°/m torsional strain
Dimensions (Connector): 15.5 × 15.5 × 45 mm
Cable Diameter: Ø 4.9 mm
Weight: ~405 g
Country of Origin: Poland
