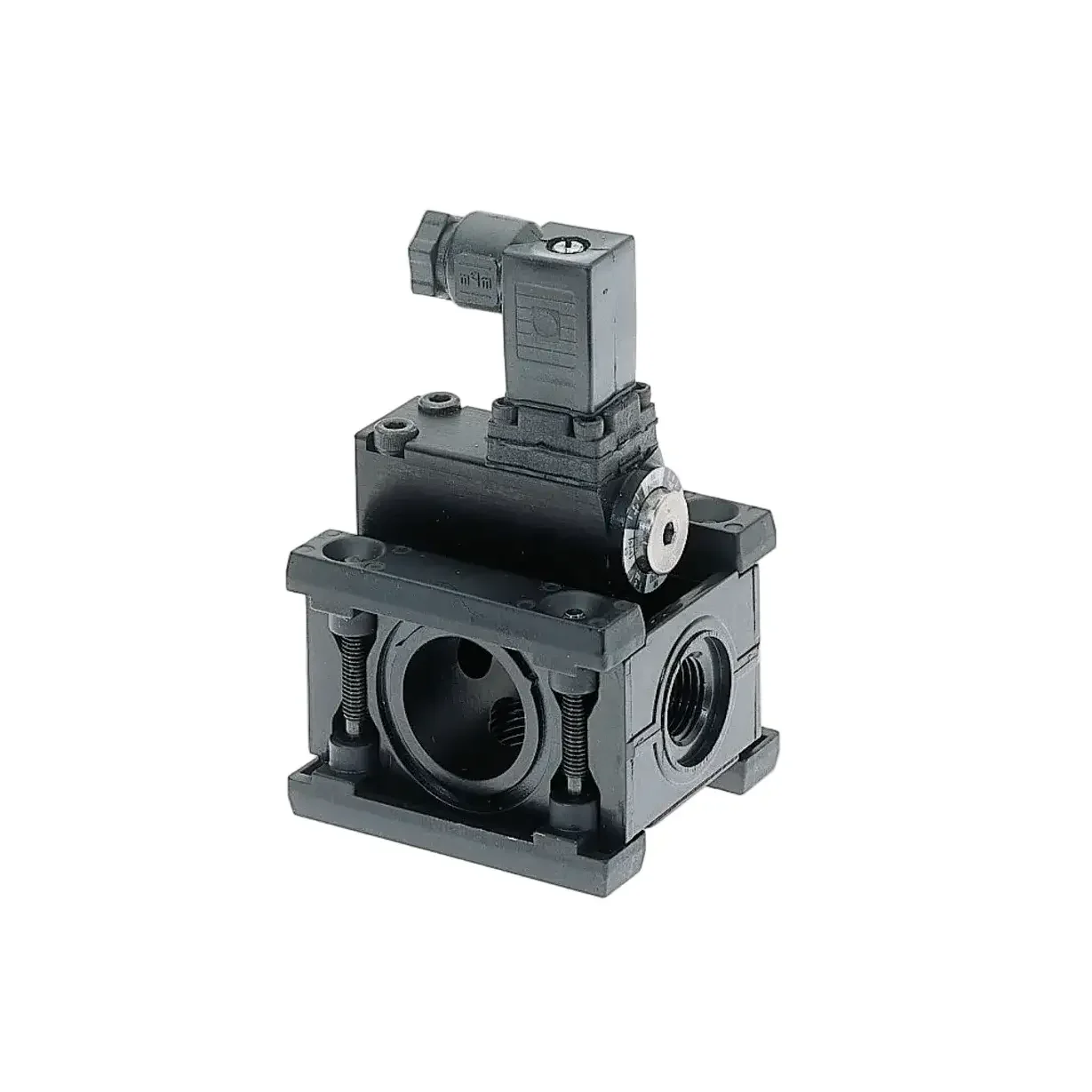

IMI Norgren 4346-99 Adjustable Pressure Switch

- Brand: IMI Norgren
- Model: 4346-99
- Type: Adjustable Pressure Switch (Pneumatic Pressure Sensor/Switch)
- Part number: 4346-99

Technical specifications:
- Pressure adjustment range: 2 to 10 bar
- Maximum inlet pressure: 20 bar
- Hysteresis: approx. 0.8 - 1.7 bar
- Repeatability: ±2% of full scale at 20°C
- Electrical rating: 240 V AC (5 A)
- Switching function: SPDT
- Electrical connection: EN 175301-803 Form C
- Protection class: IP65
- Operating temperature: -10°C to +80°C
- Media: Compressed air, neutral gases
- Mounting: Via Olympian Plus 64 Series porting block
- Body material: Zinc alloy / technopolymer
- Certification: CE

- Status: Discontinued

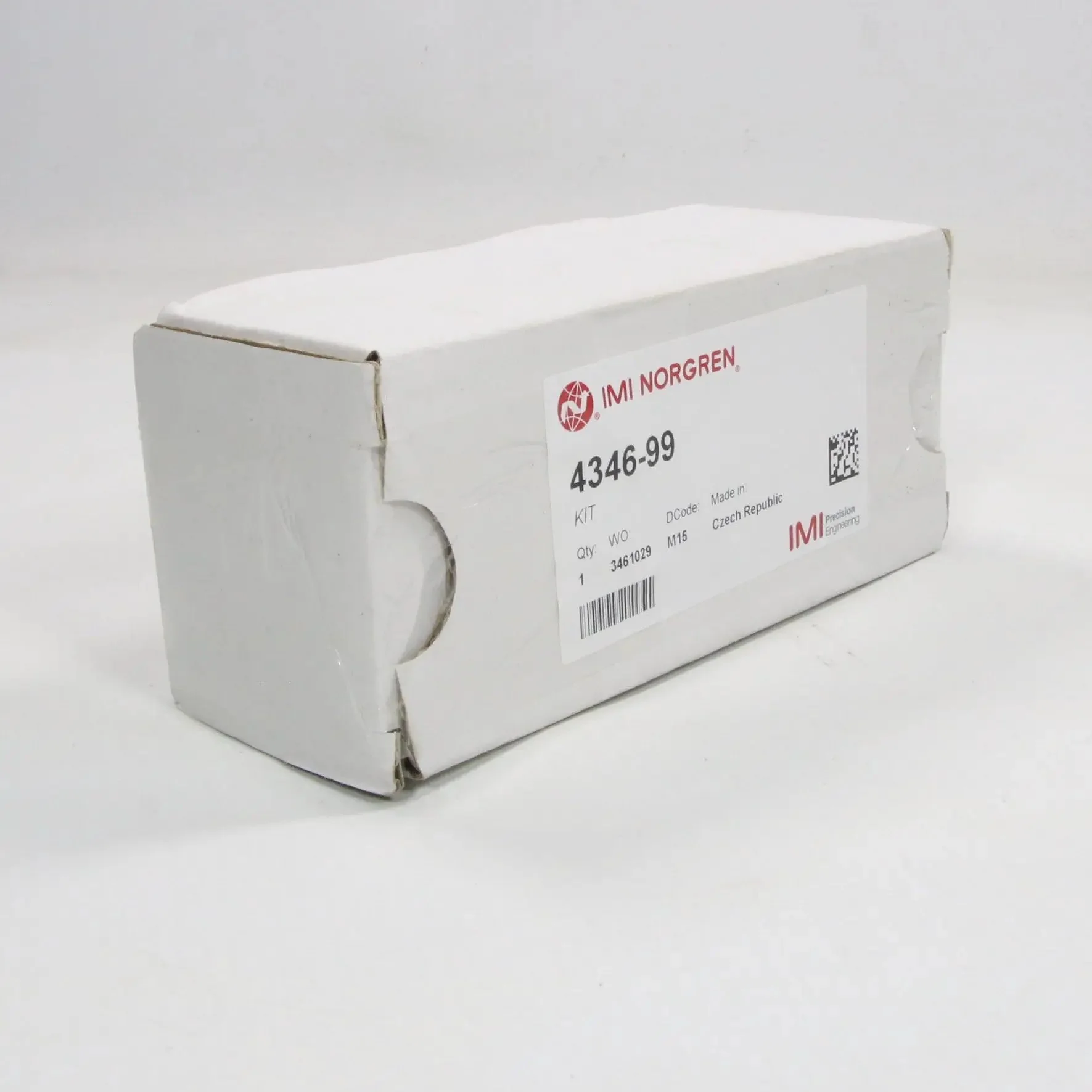

Dimensions: 155 x 70 x 65 mm (box)

Weight: 500 g

Country of origin: Czechia

HS code: 9032.90
