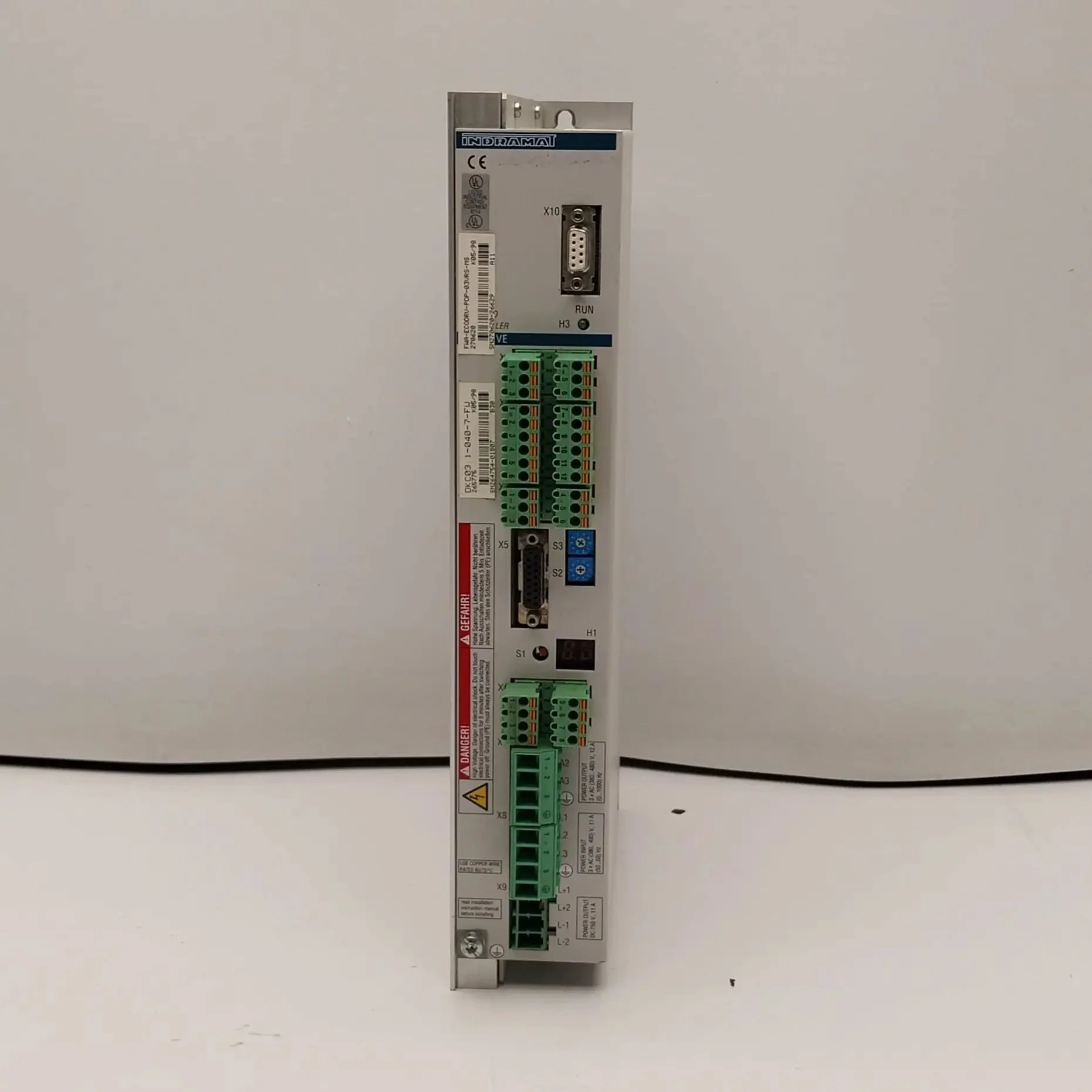

Indramat Ecodrive DKC03 1 040 7 FW Drive Controller

Brand: Indramat
Serie: Ecodrive DKC
Type: Drive Controller
Model: DKC03.1-040-7-FW
Part number: R911265775
Volt: 380–480 V (3-phase)
Fase: 3-phase
Amp: 40 A
Hz: 50/60 Hz
Kw: Approximately 11.5 kW (calculated based on input voltage and current)
Weight: 4.1 kg
Dimension: Length, Width, Height: 380 mm, 65 mm, 261 mm

Additional Specs:

• Rated DC Bus Voltage: 700 V
• Control Voltage Input: 24 V DC
• Control Power Consumption: 21 W
• Ambient Temperature Range: -10°C to +45°C (with nominal data)
• Maximum Ambient Temperature: +55°C (with reduced nominal data)
• Mounting Type: Vertical
• Cooling Type: Natural convection
• Communication Interface: PROFIBUS-DP
• Diagnostics: Advanced diagnostic capabilities
• Standards Compliance: IEC 61800-5-1, CE, UL, RoHS compliant
