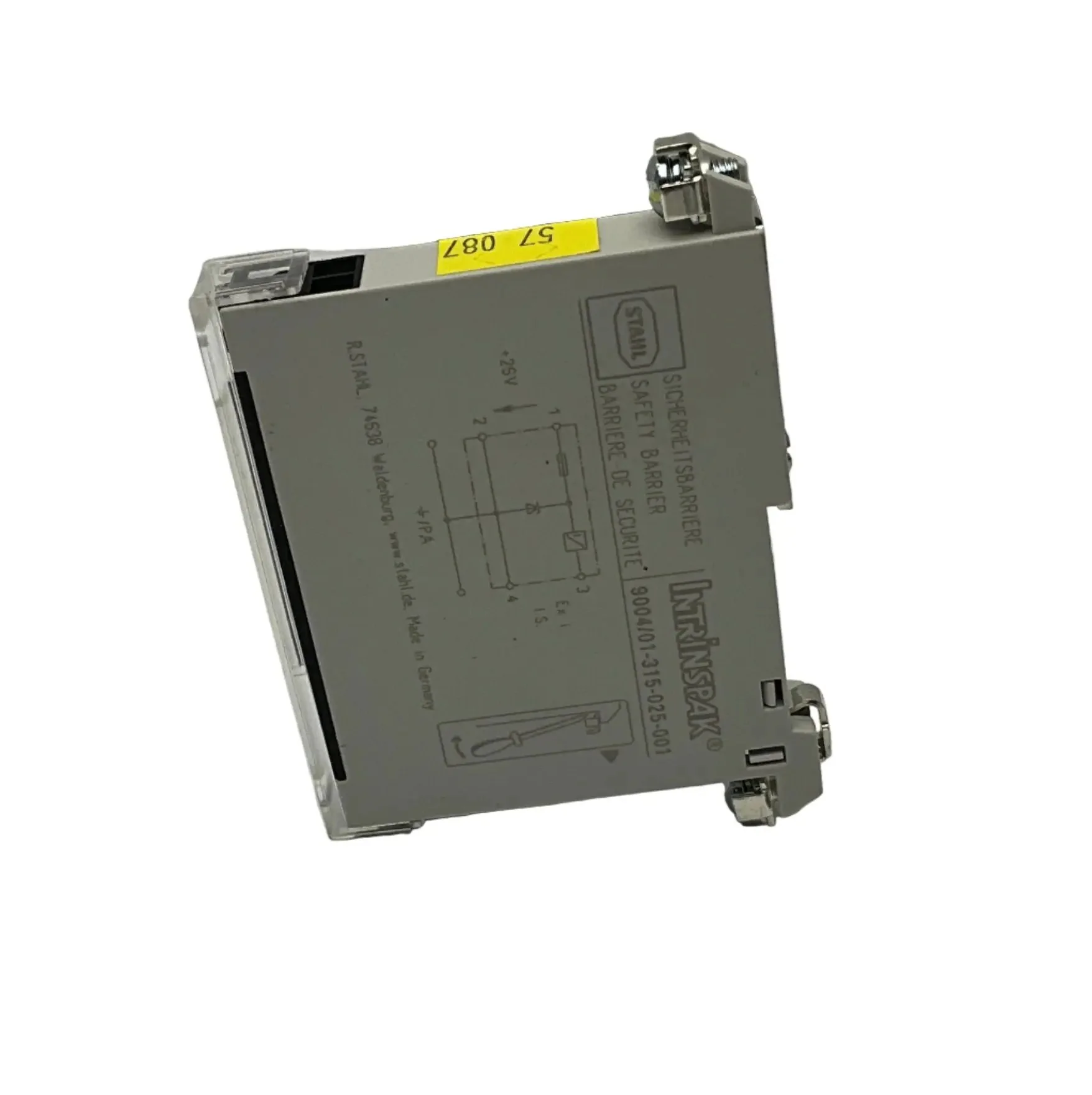

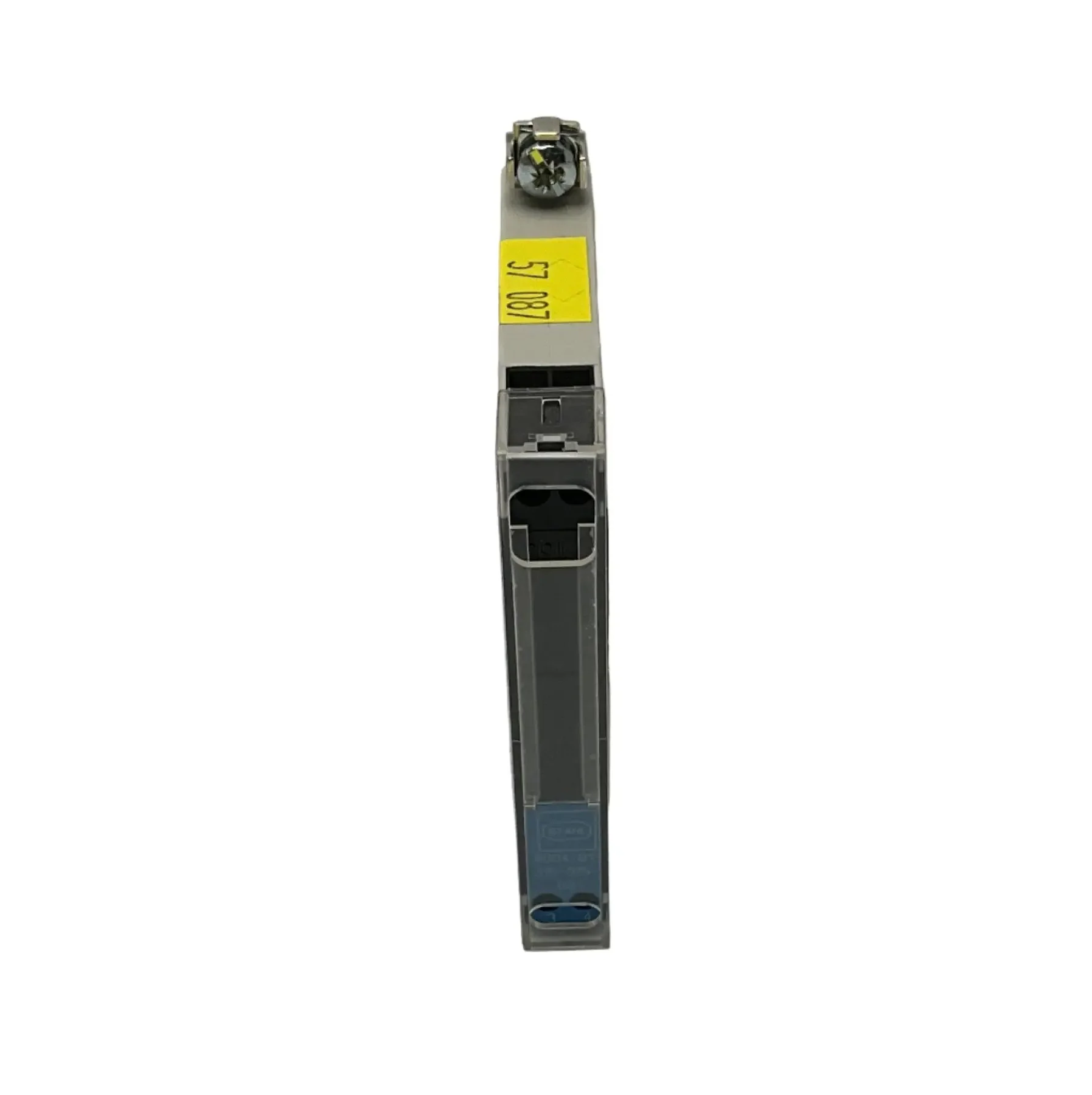

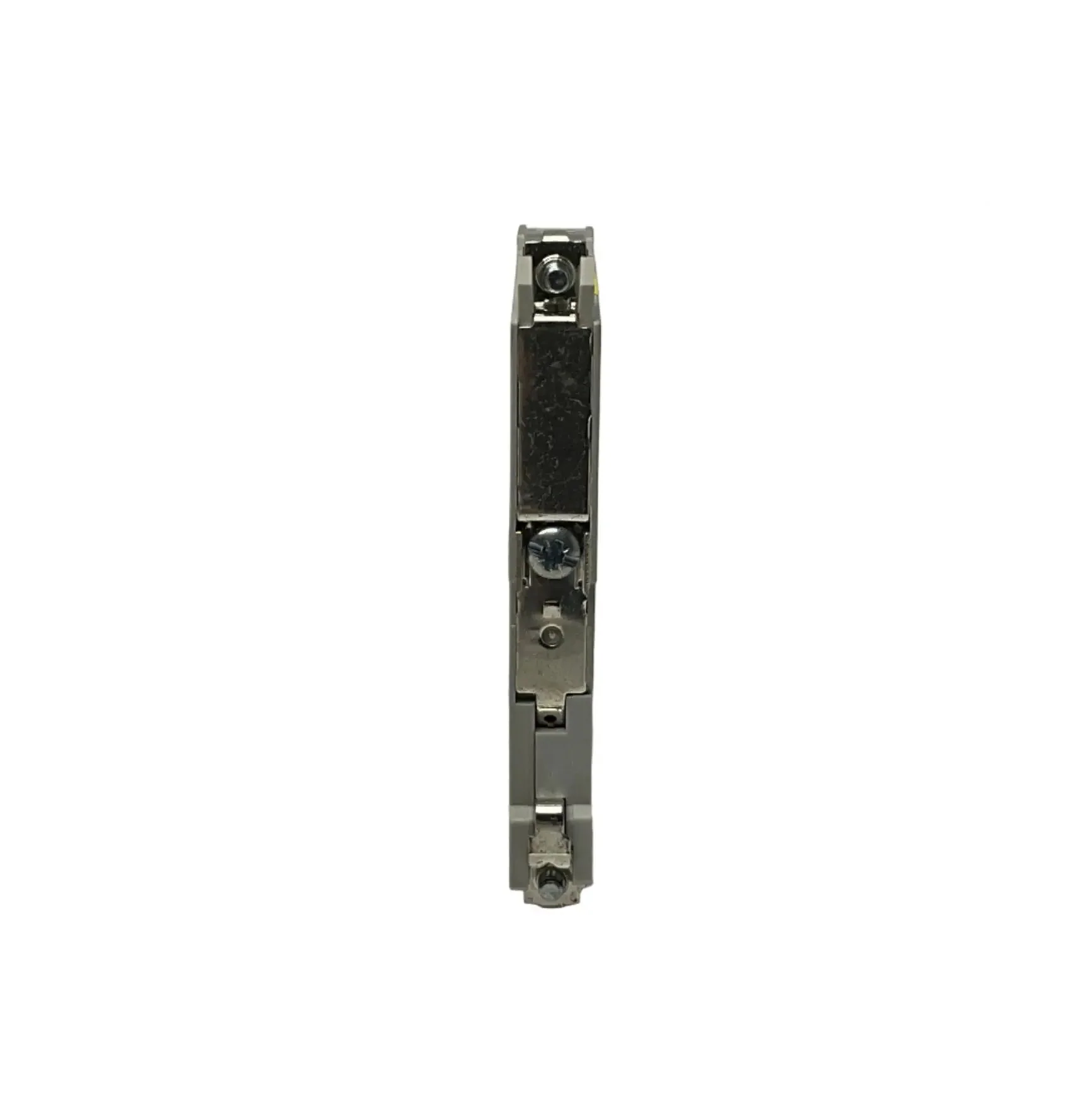

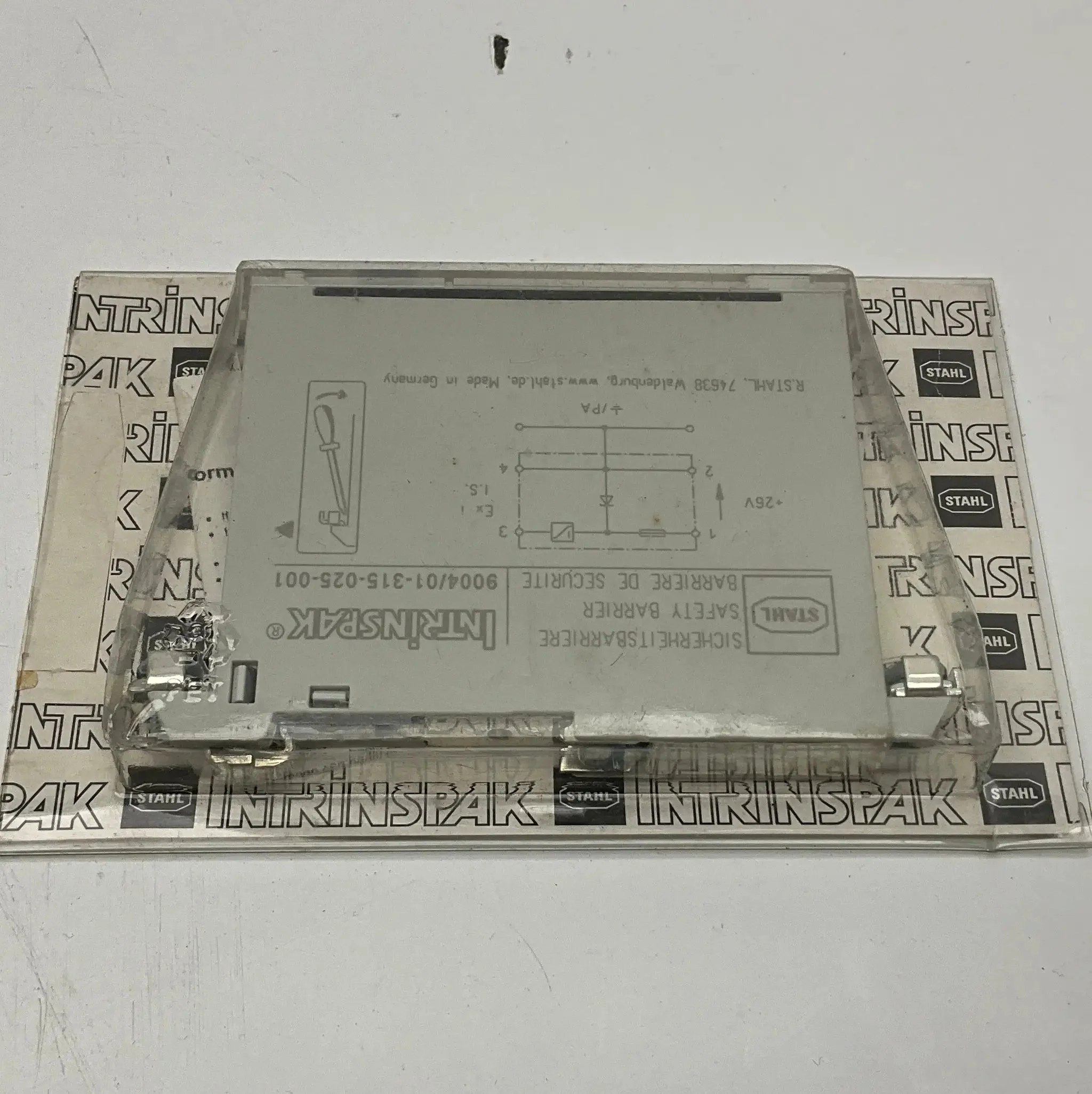

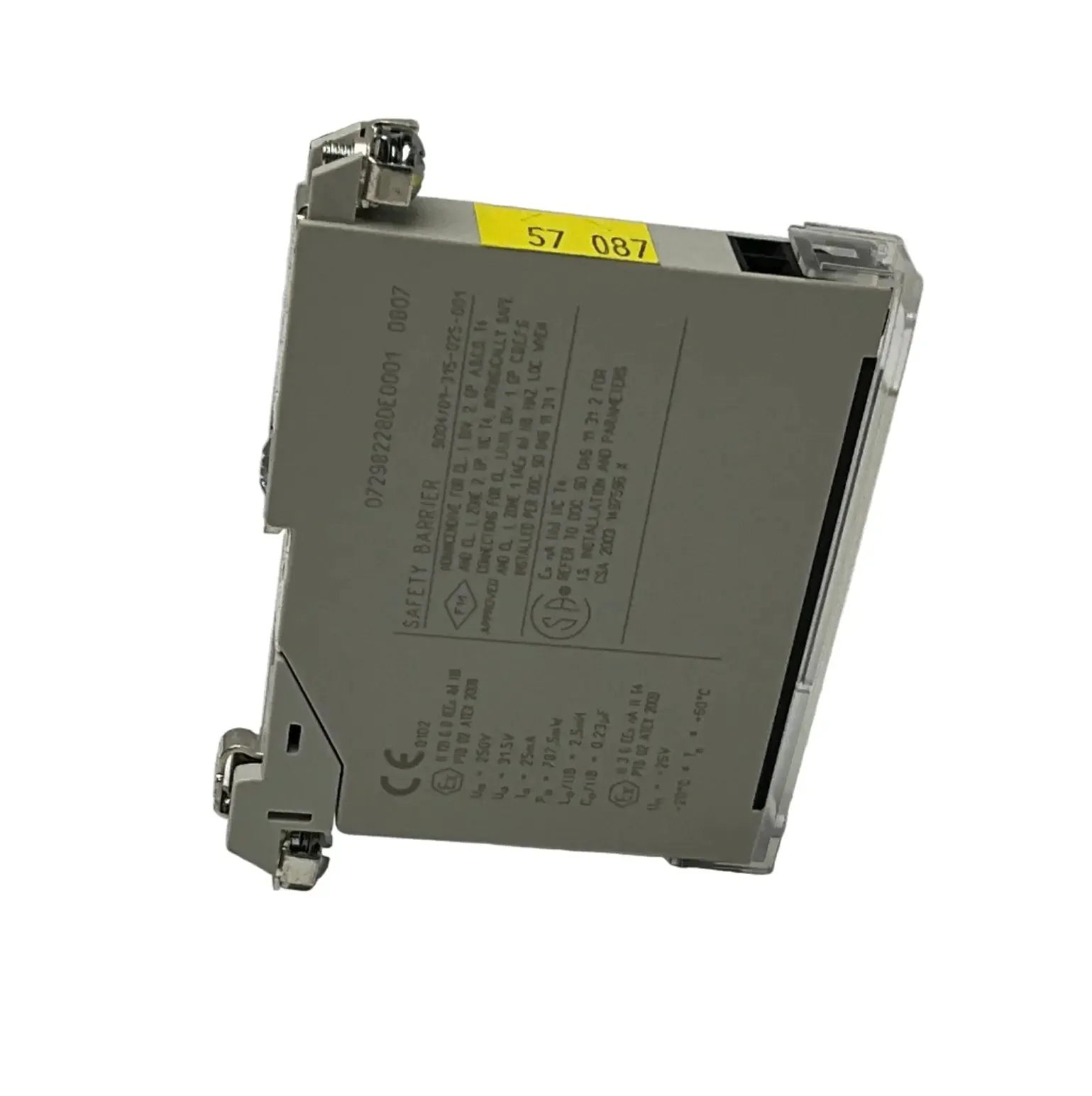

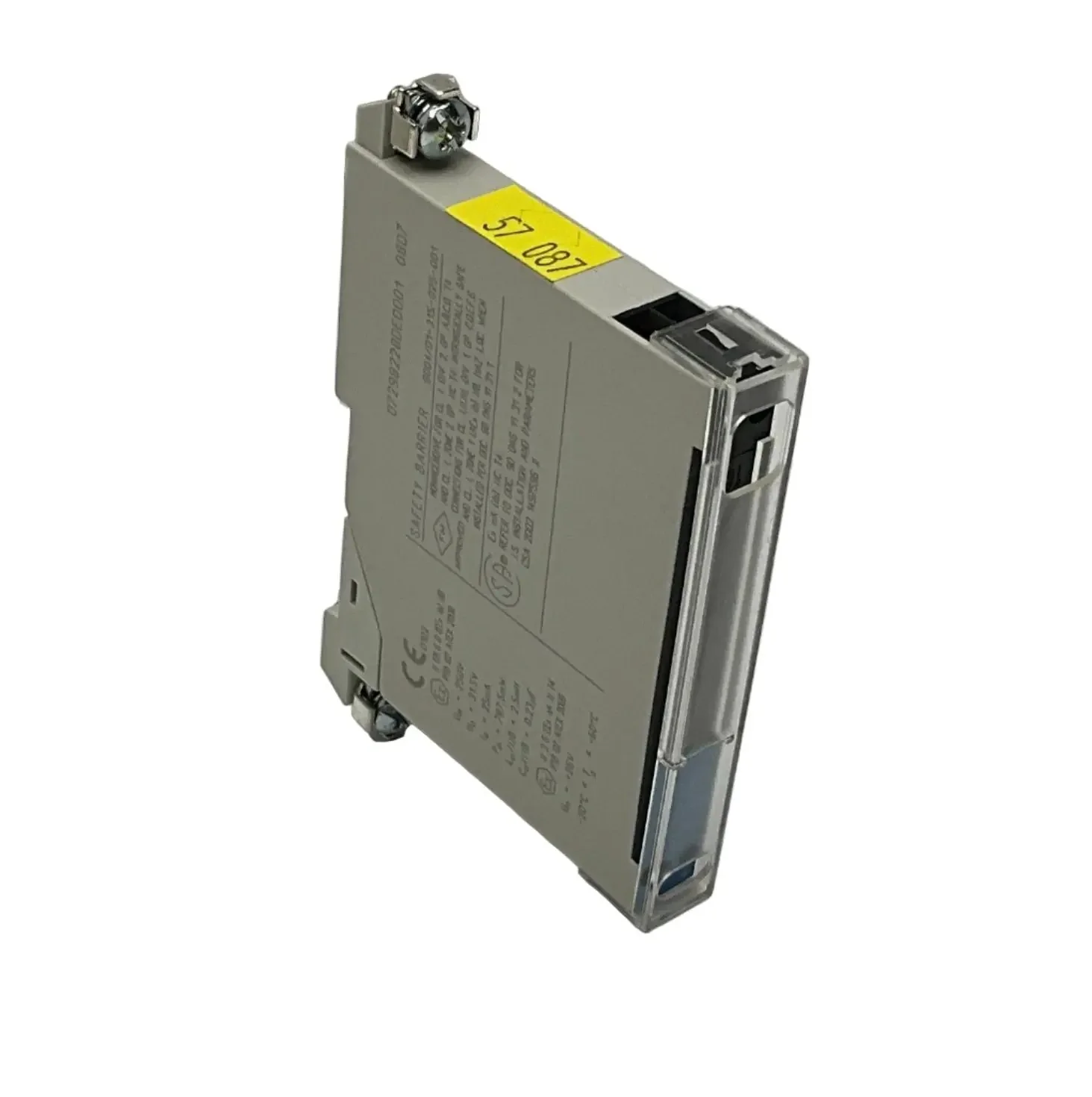

R. Stahl Intrinspak 9004/01-315-025-001 Safety Barrier

Brand: R. STAHL (IntrinsPak)
Model: 9004/01-315-025-001
Type: Safety Barrier (Intrinsically Safe Barrier)
Part Number: 9004/01-315-025-001

Technical Specs:
- Barrier Type: Single or dual channel intrinsically safe barrier for hazardous areas
- Installation: Zone 1/21 and Division 1 (non-sparking), with electronic current limitation via Zener diodes, resistors, and fuses
- Channels: 1
- Voltage: Um = 250 V
- Current Limitation: Electronic current limiting for intrinsic safety
- Protection: Interchangeable backup fuse for simplified maintenance and inventory
- Operating Temperature Range: -20°C to +60°C

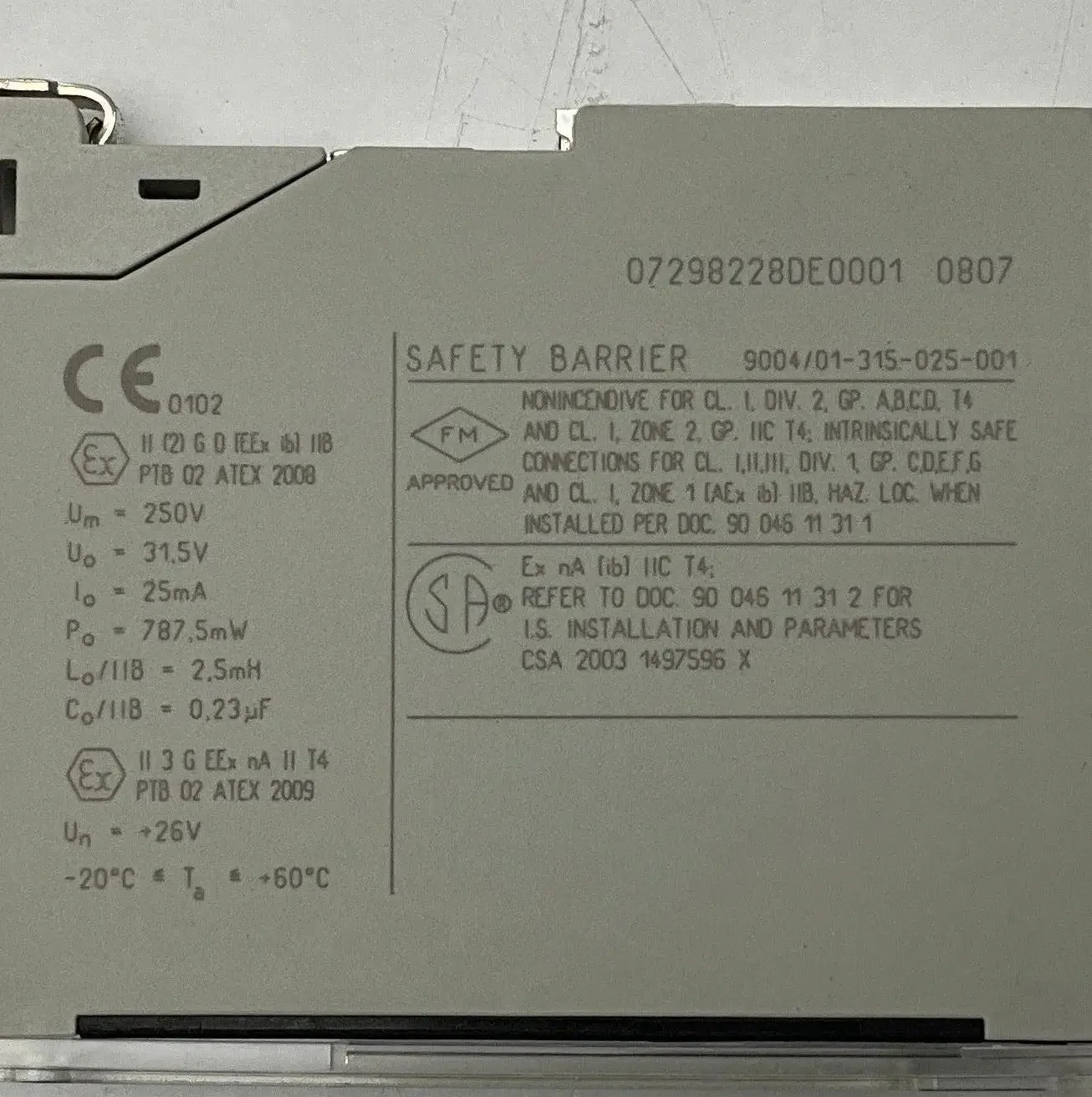

- Certification: ATEX certified (II 2 G D [EEx ib] IIC or IIB), IECEx, suitable for Zone 0/20
- Width: 12 mm (compact design for DIN rail mounting)
- Additional Features:
  - Snap-on mounting for quick assembly and PE connection
  - Galvanic isolation not required (shunt diode barrier)
  - Global approvals including UL, EAC, KGS
  - Energy limitation to prevent ignition from sparks or thermal effects

Dimension: 120 x 80 x 12 mm

Weight: 140 g

Country of Origin: Germany

HS Code: 8536.30.
