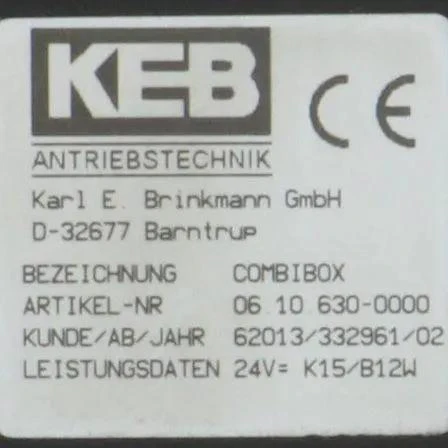

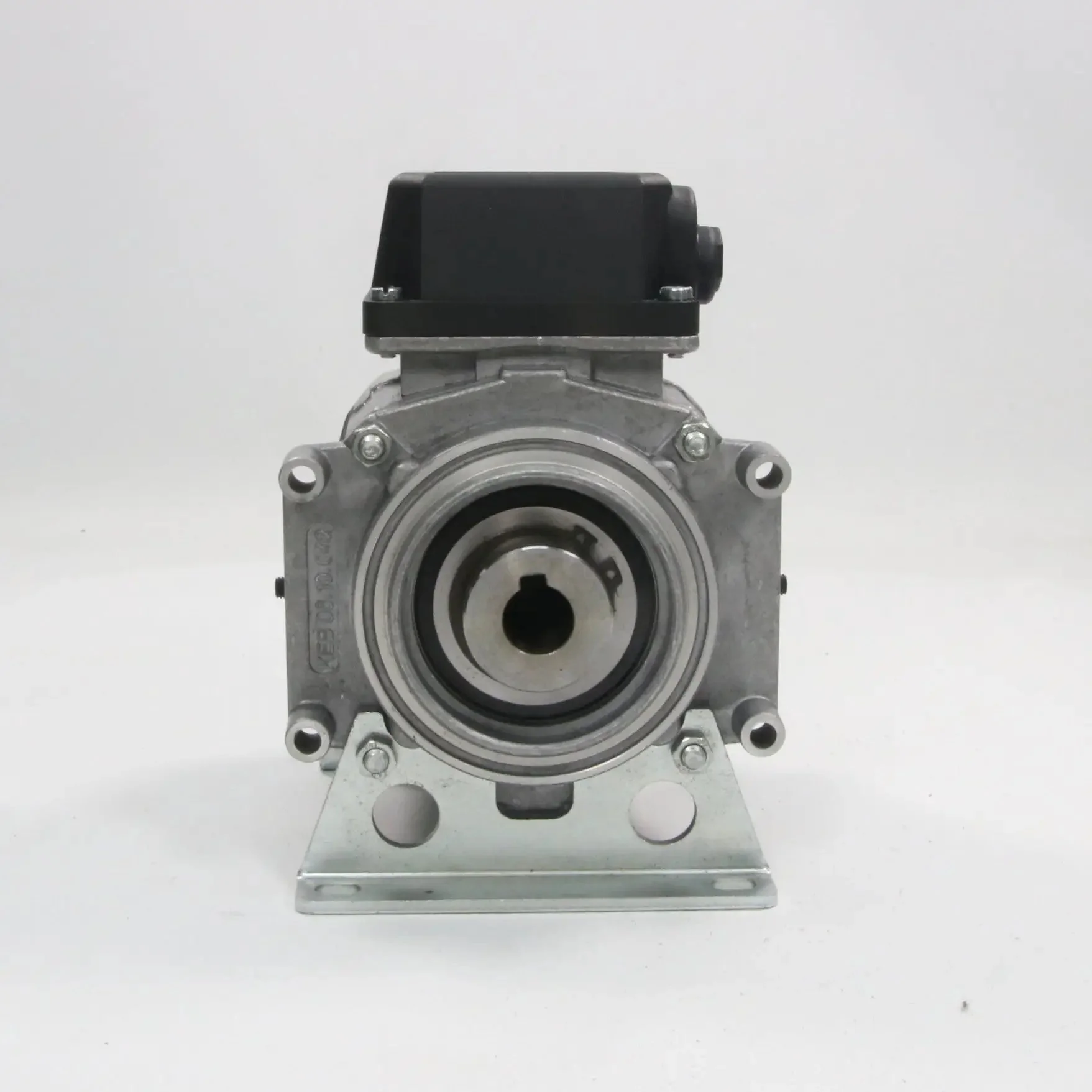

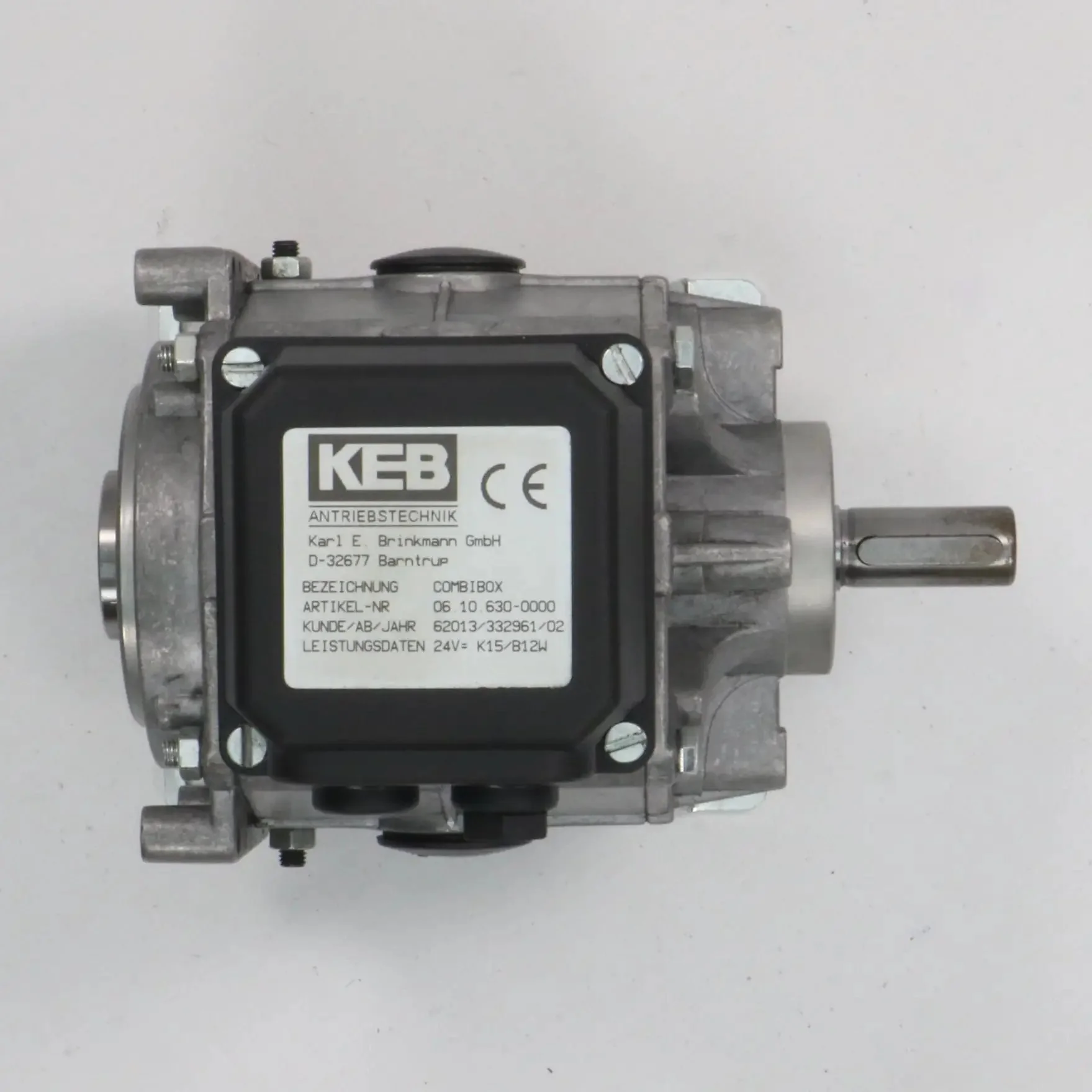

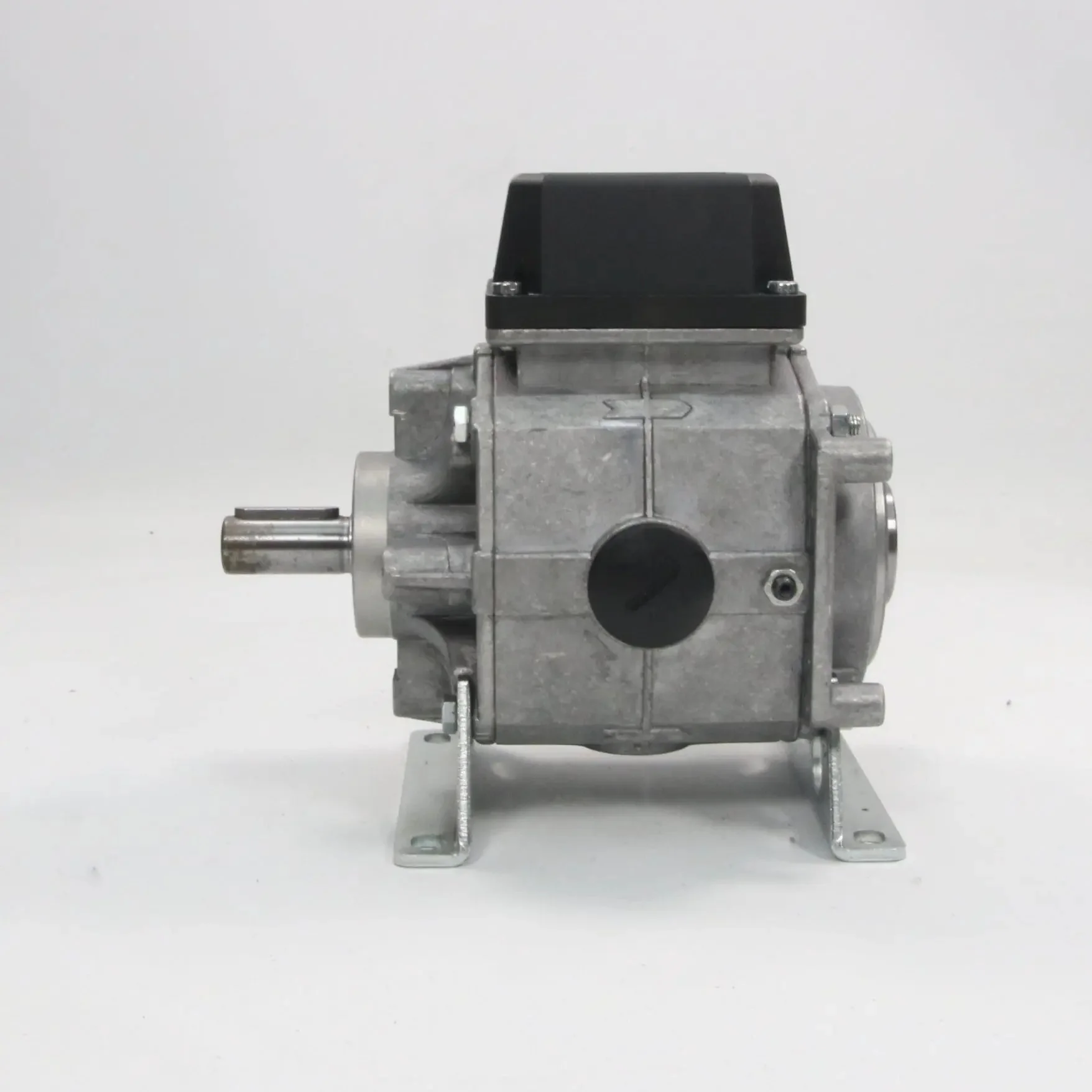

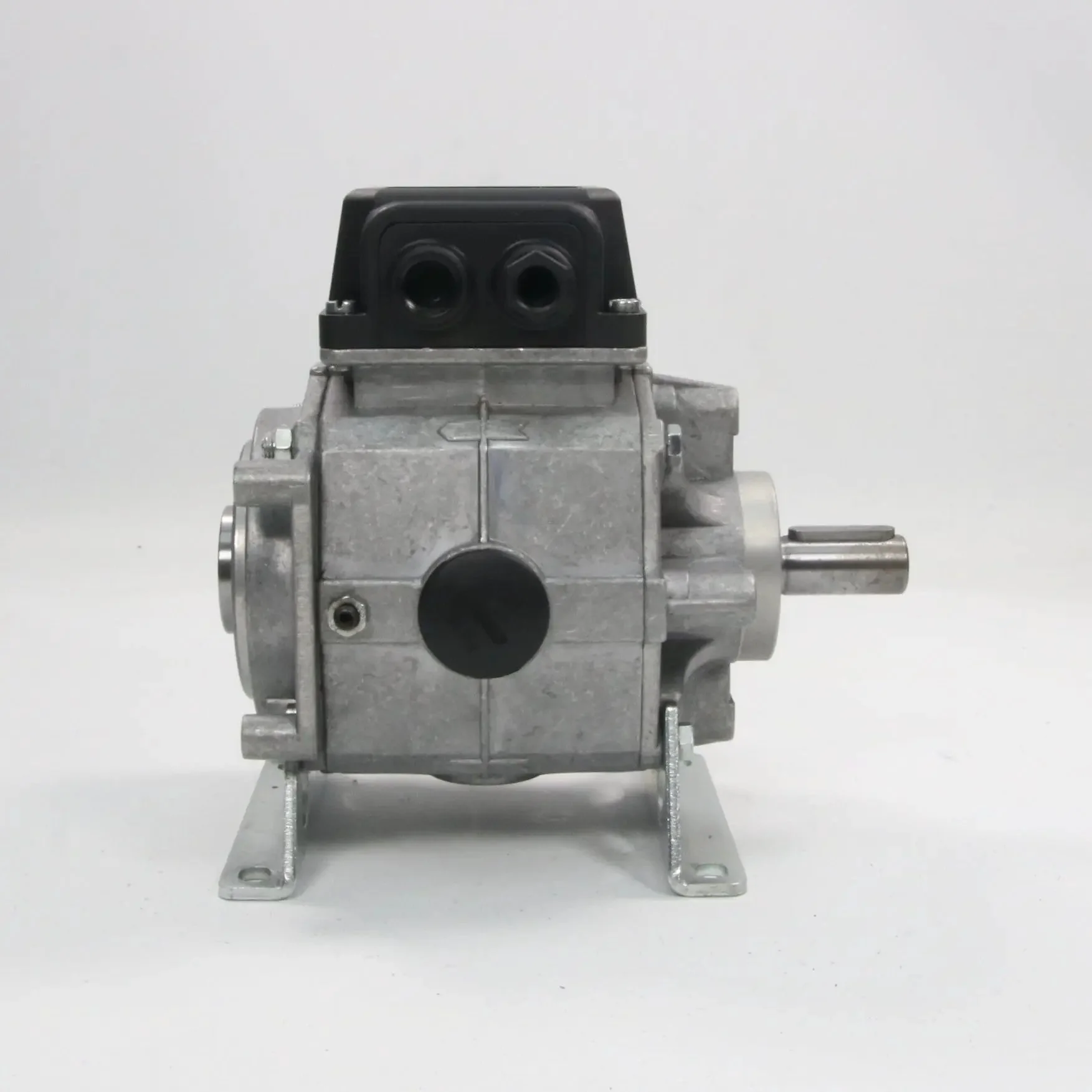

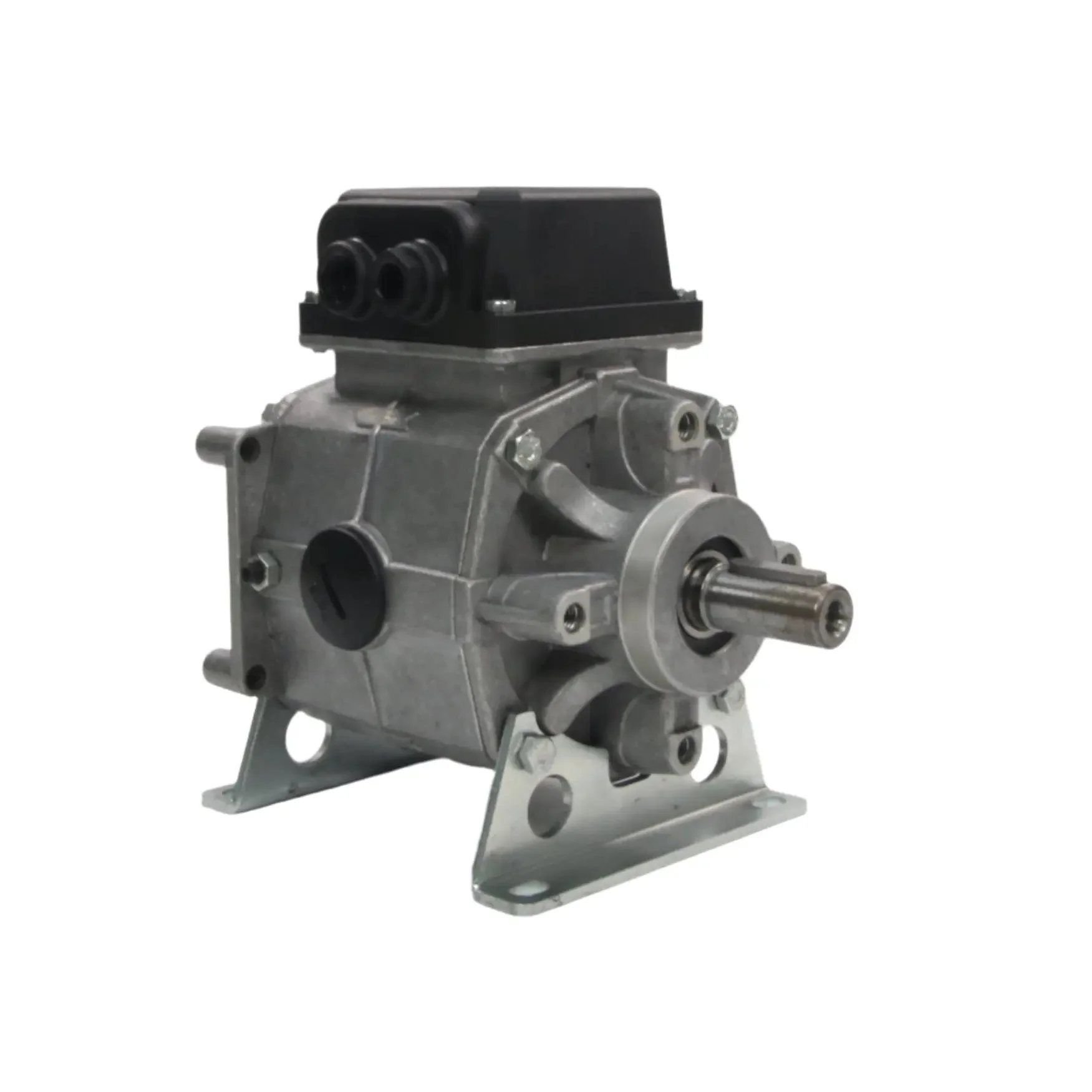

KEB Antriebstechnik COMBIBOX 06.10.630-0000 Clutch Brake
- Brand: KEB Antriebstechnik
- Part Number: 06.10.630-0000
- Model: Combibox Clutch Brake Combination
- Type: Electromagnetic Clutch Brake
- Size: 06
- Design Code: 630
- Rated Voltage: 24 V DC
- Nominal Torque: 7 Nm
- Clutch Power Consumption: 15 W
- Brake Power Consumption: 12 W
- Nominal Air Gap: 0.2 mm
- Mounting Type: Flange Mount
- Shaft Diameter: 19 mm
- Bolt Circle Diameter: 90 mm
- Mounting Bolt Size: M8
- Dimensions (L x W x H): 240 mm x 125 mm x 155 mm
- Weight: 3.8 kg
- Housing Material: Aluminum
- Operating Temperature Range: -10°C to +40°C
- Protection Class: IP20
- Certifications: CE
- Applications: Suitable for use in various industrial applications requiring precise and reliable clutch-brake operations
$604.74
KEB Antriebstechnik COMBIBOX 06.10.630-0000 Clutch Brake—
$604.74
Description
- Brand: KEB Antriebstechnik
- Part Number: 06.10.630-0000
- Model: Combibox Clutch Brake Combination
- Type: Electromagnetic Clutch Brake
- Size: 06
- Design Code: 630
- Rated Voltage: 24 V DC
- Nominal Torque: 7 Nm
- Clutch Power Consumption: 15 W
- Brake Power Consumption: 12 W
- Nominal Air Gap: 0.2 mm
- Mounting Type: Flange Mount
- Shaft Diameter: 19 mm
- Bolt Circle Diameter: 90 mm
- Mounting Bolt Size: M8
- Dimensions (L x W x H): 240 mm x 125 mm x 155 mm
- Weight: 3.8 kg
- Housing Material: Aluminum
- Operating Temperature Range: -10°C to +40°C
- Protection Class: IP20
- Certifications: CE
- Applications: Suitable for use in various industrial applications requiring precise and reliable clutch-brake operations
