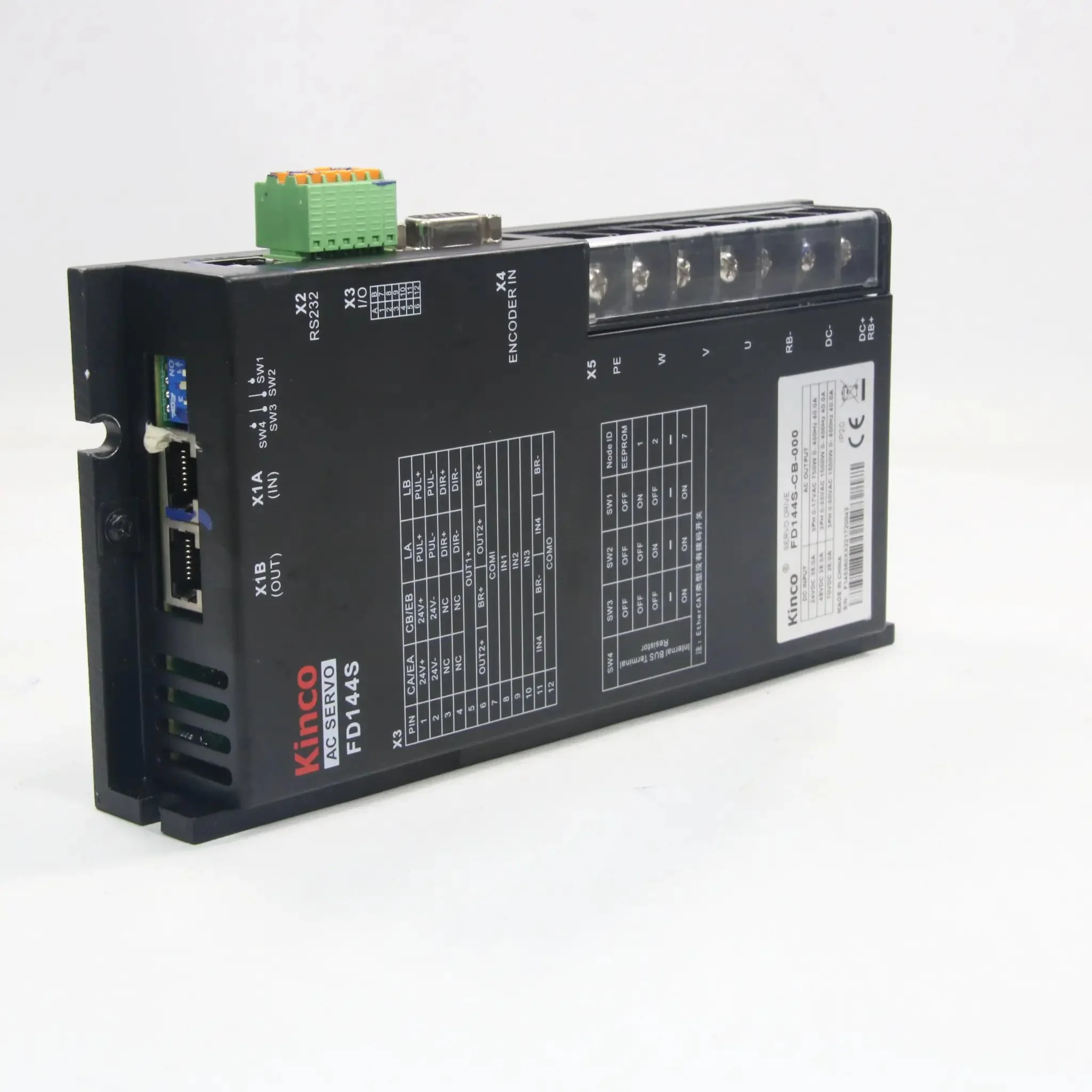

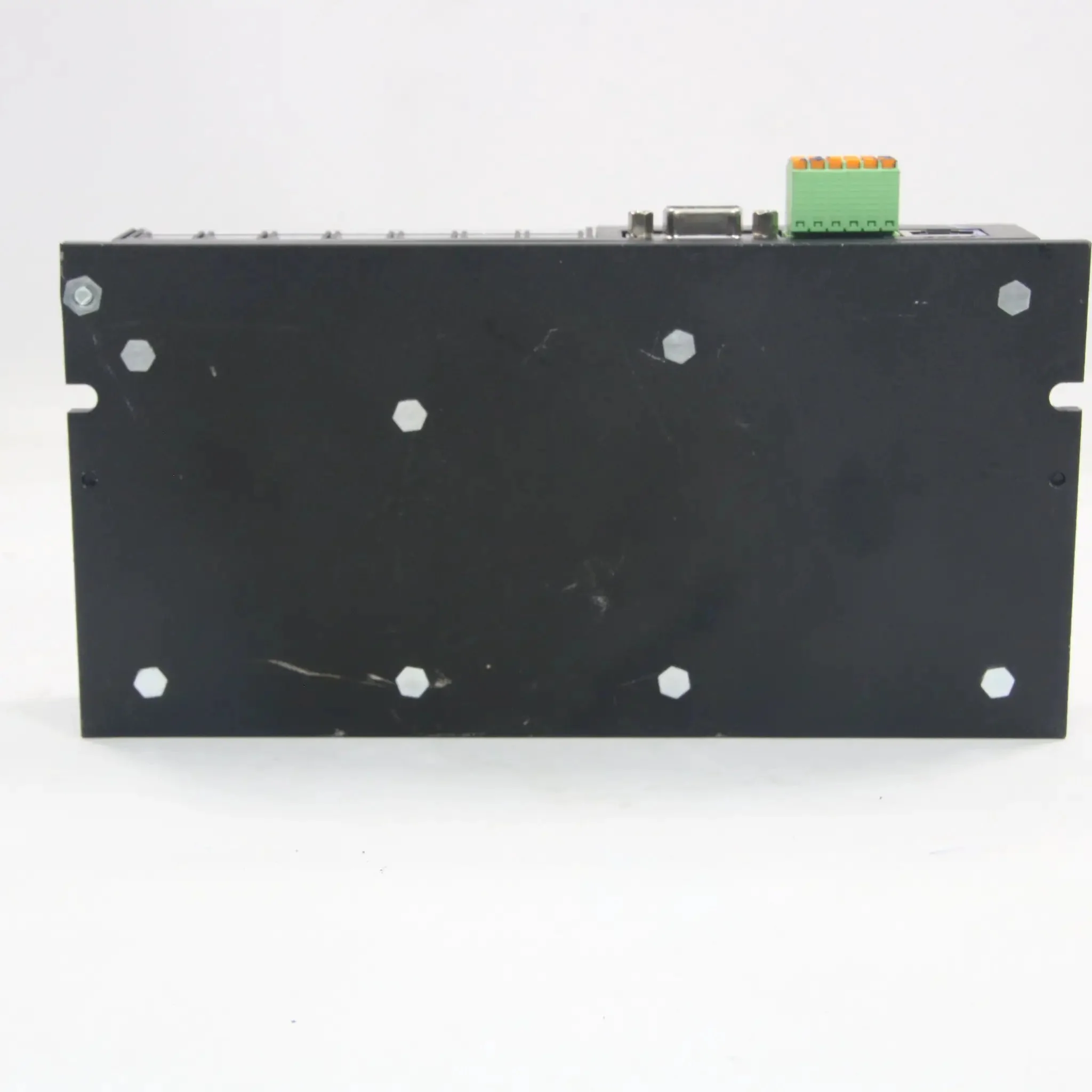

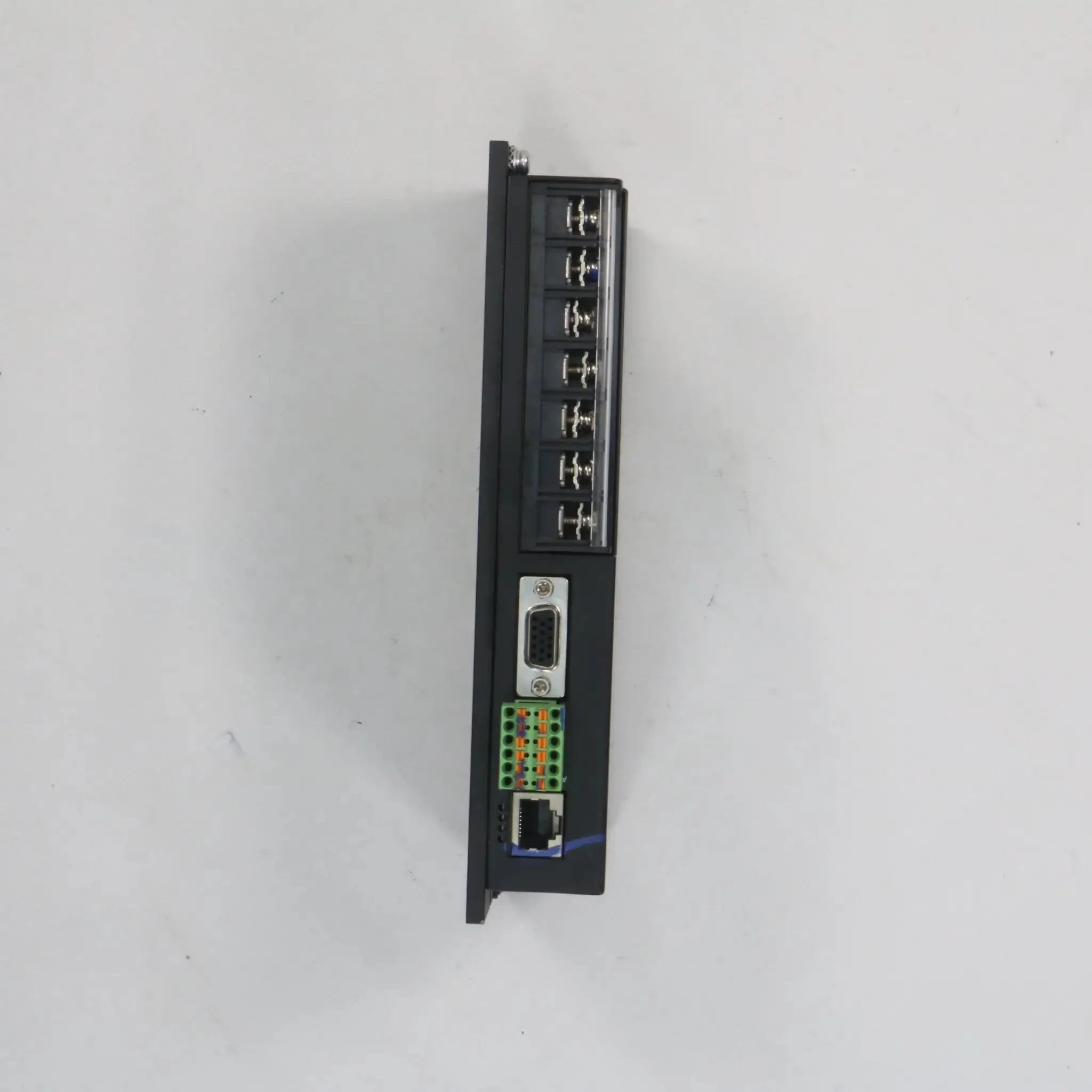

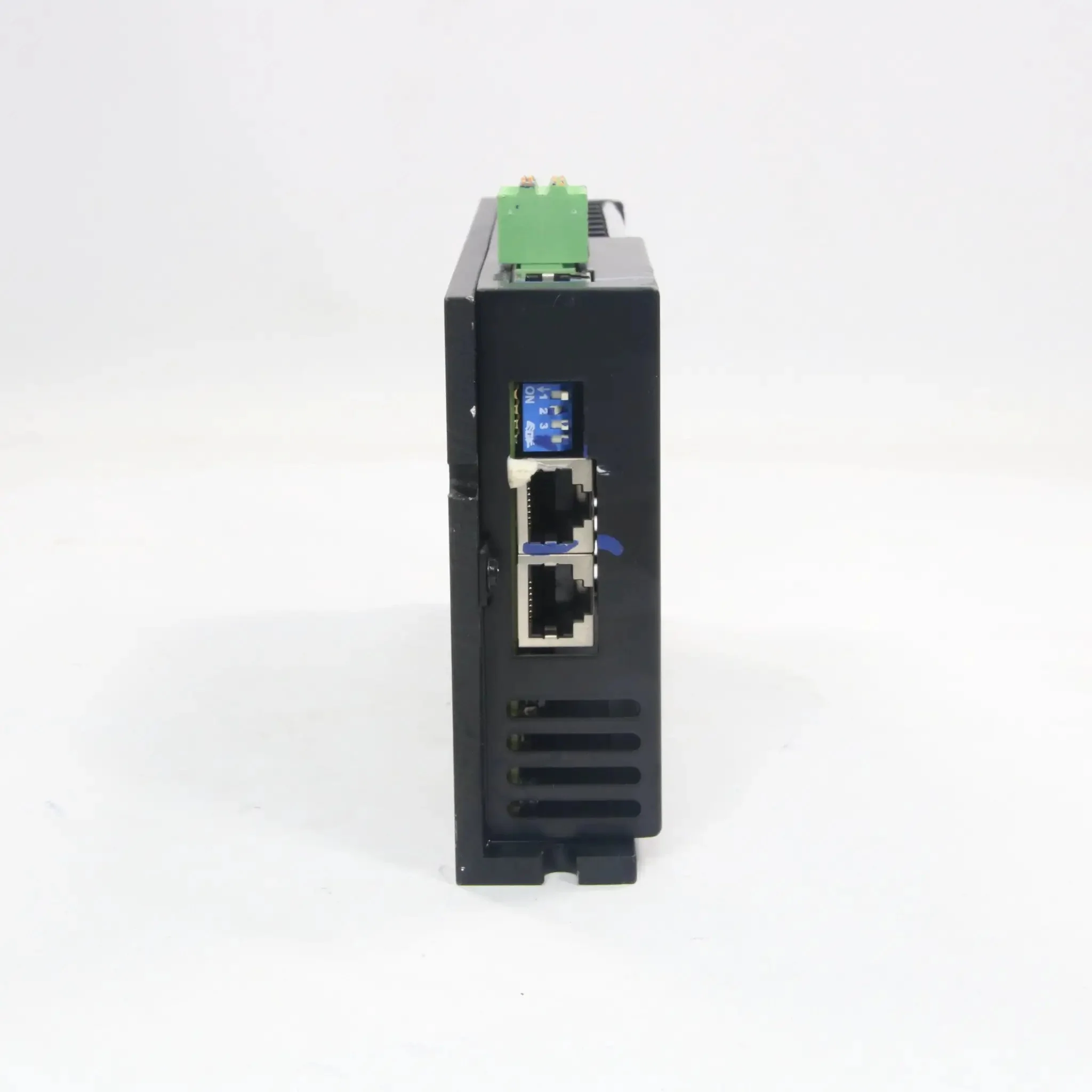

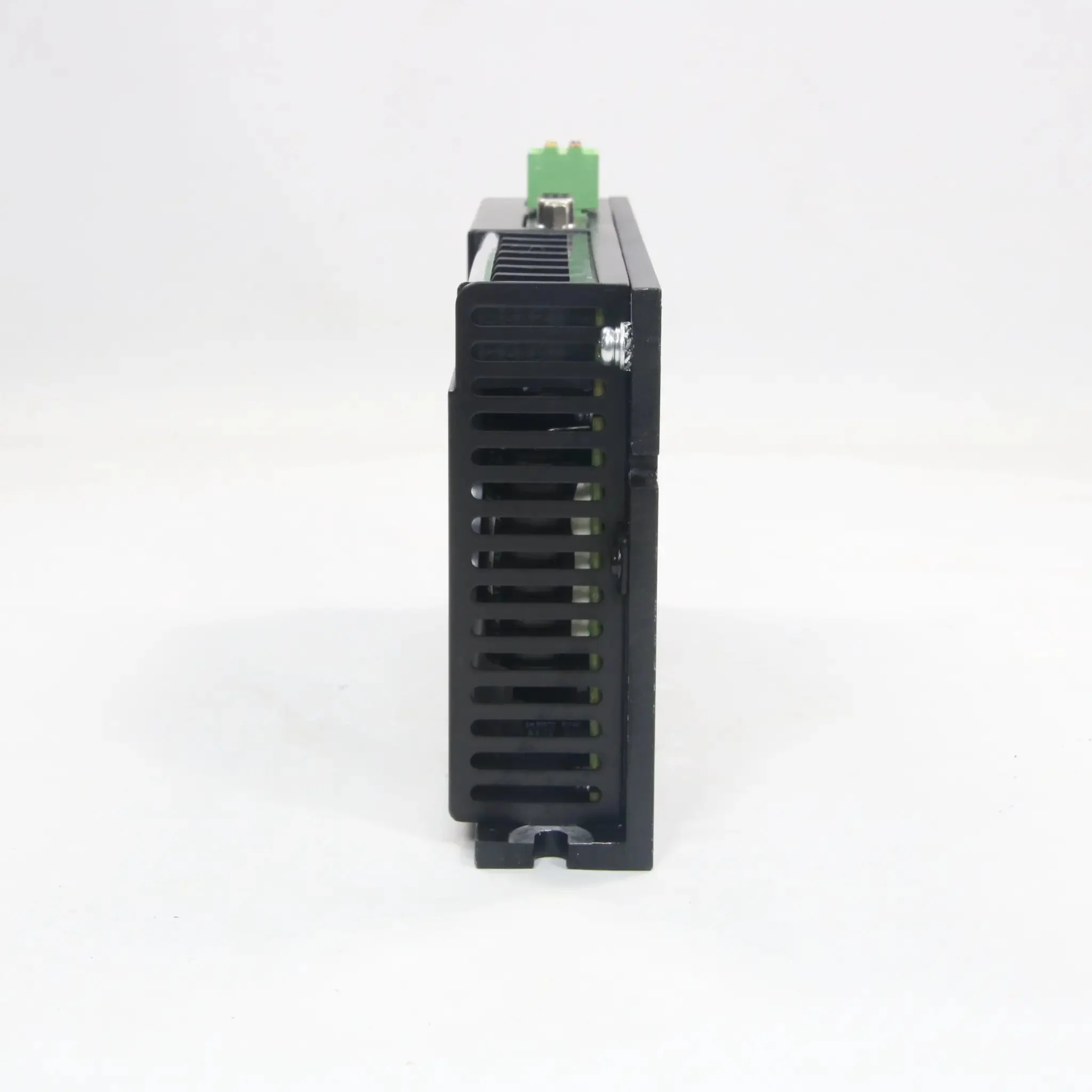

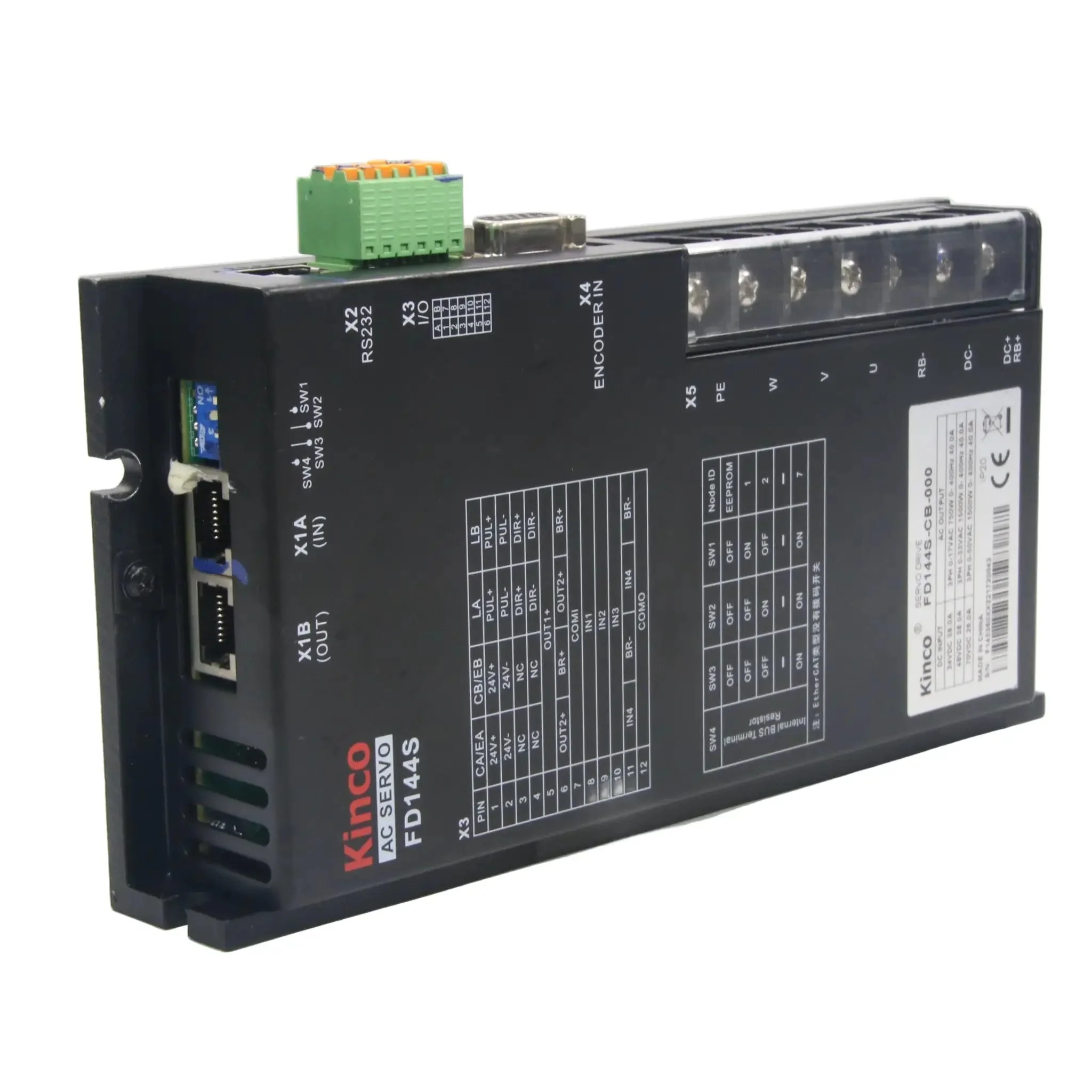

Kinco Automation FD144S-CB-000 DC Drive
- Brand: Kinco Automation
- Model: FD144S-CB-000
- Type: Low-voltage DC servo drive (for position, speed, and torque control in automation applications)
- All Tech Specs:
- Material: Aluminum housing; industrial-grade electronics for durability
- Power Range: 1.2–1.5 kW (nominal power rating)
- Input Voltage: 24–70V DC (±20% tolerance)
- Maximum Continuous Output Current: 40 A (RMS; up to 30 A without auxiliary heat dissipation)
- Peak Current: 120 A (peak, for short durations)
- Control Modes: Pulse control, analog control, RS232 (for setup), CANopen; supports dynamic switching between modes
- Feedback Type: Incremental encoder (2500 P/R standard); supports single-turn/multi-turn absolute encoders
- Brake Control: Integrated brake control device (direct drive for motor brakes, software configurable)
- Brake Chopper: Built-in (threshold adjustable via software); over-voltage alarm at 83V DC ±2V; under-voltage alarm at 18V DC ±2V
- I/O Signals: 3 digital inputs (PNP/NPN configurable, 12.5–30V high level or 0–5V low level); 1 digital output + 1 brake output (programmable functions like enable, fault reset, limits, speed control)
- Communication: RS232 (baudrate up to 115.2 kbps for PC/software configuration); CANopen for bus integration
- Encoder Output: Pulse + direction, CCW + CW, or A/B phase (5–24V compatible)
- Cooling Method: Natural air cooling (external heatsink required: 300 mm x 300 mm x 10 mm aluminum plate for 40 A operation)
- Operating Temperature Range: 0°C to +55°C (+32°F to +131°F)
- Storage Temperature Range: -20°C to +80°C (-4°F to +176°F)
- Protection Rating: IP20 (protected against solid objects; no water protection)
- Certification: CE certified; RoHS compliant
- Features: Supports encoder signal output (master-slave mode); programmable I/O; free KincoServoPlus setup software; suitable for AGVs, robots, and high-precision motion control; overload protection with automatic recovery
- Vibration Resistance: 1g per industrial standards (IEC 60068-2-6)
- Dimension: 142 mm height x 40 mm width x 115 mm depth (5.59 in x 1.57 in x 4.53 in)
- Weight: 0.9 kg
- Country of Origin: China
- HS Code: 8504.40 (static converters, including servo drives)
Original: $259.17
-70%$259.17
$77.75
Description
- Brand: Kinco Automation
- Model: FD144S-CB-000
- Type: Low-voltage DC servo drive (for position, speed, and torque control in automation applications)
- All Tech Specs:
- Material: Aluminum housing; industrial-grade electronics for durability
- Power Range: 1.2–1.5 kW (nominal power rating)
- Input Voltage: 24–70V DC (±20% tolerance)
- Maximum Continuous Output Current: 40 A (RMS; up to 30 A without auxiliary heat dissipation)
- Peak Current: 120 A (peak, for short durations)
- Control Modes: Pulse control, analog control, RS232 (for setup), CANopen; supports dynamic switching between modes
- Feedback Type: Incremental encoder (2500 P/R standard); supports single-turn/multi-turn absolute encoders
- Brake Control: Integrated brake control device (direct drive for motor brakes, software configurable)
- Brake Chopper: Built-in (threshold adjustable via software); over-voltage alarm at 83V DC ±2V; under-voltage alarm at 18V DC ±2V
- I/O Signals: 3 digital inputs (PNP/NPN configurable, 12.5–30V high level or 0–5V low level); 1 digital output + 1 brake output (programmable functions like enable, fault reset, limits, speed control)
- Communication: RS232 (baudrate up to 115.2 kbps for PC/software configuration); CANopen for bus integration
- Encoder Output: Pulse + direction, CCW + CW, or A/B phase (5–24V compatible)
- Cooling Method: Natural air cooling (external heatsink required: 300 mm x 300 mm x 10 mm aluminum plate for 40 A operation)
- Operating Temperature Range: 0°C to +55°C (+32°F to +131°F)
- Storage Temperature Range: -20°C to +80°C (-4°F to +176°F)
- Protection Rating: IP20 (protected against solid objects; no water protection)
- Certification: CE certified; RoHS compliant
- Features: Supports encoder signal output (master-slave mode); programmable I/O; free KincoServoPlus setup software; suitable for AGVs, robots, and high-precision motion control; overload protection with automatic recovery
- Vibration Resistance: 1g per industrial standards (IEC 60068-2-6)
- Dimension: 142 mm height x 40 mm width x 115 mm depth (5.59 in x 1.57 in x 4.53 in)
- Weight: 0.9 kg
- Country of Origin: China
- HS Code: 8504.40 (static converters, including servo drives)
