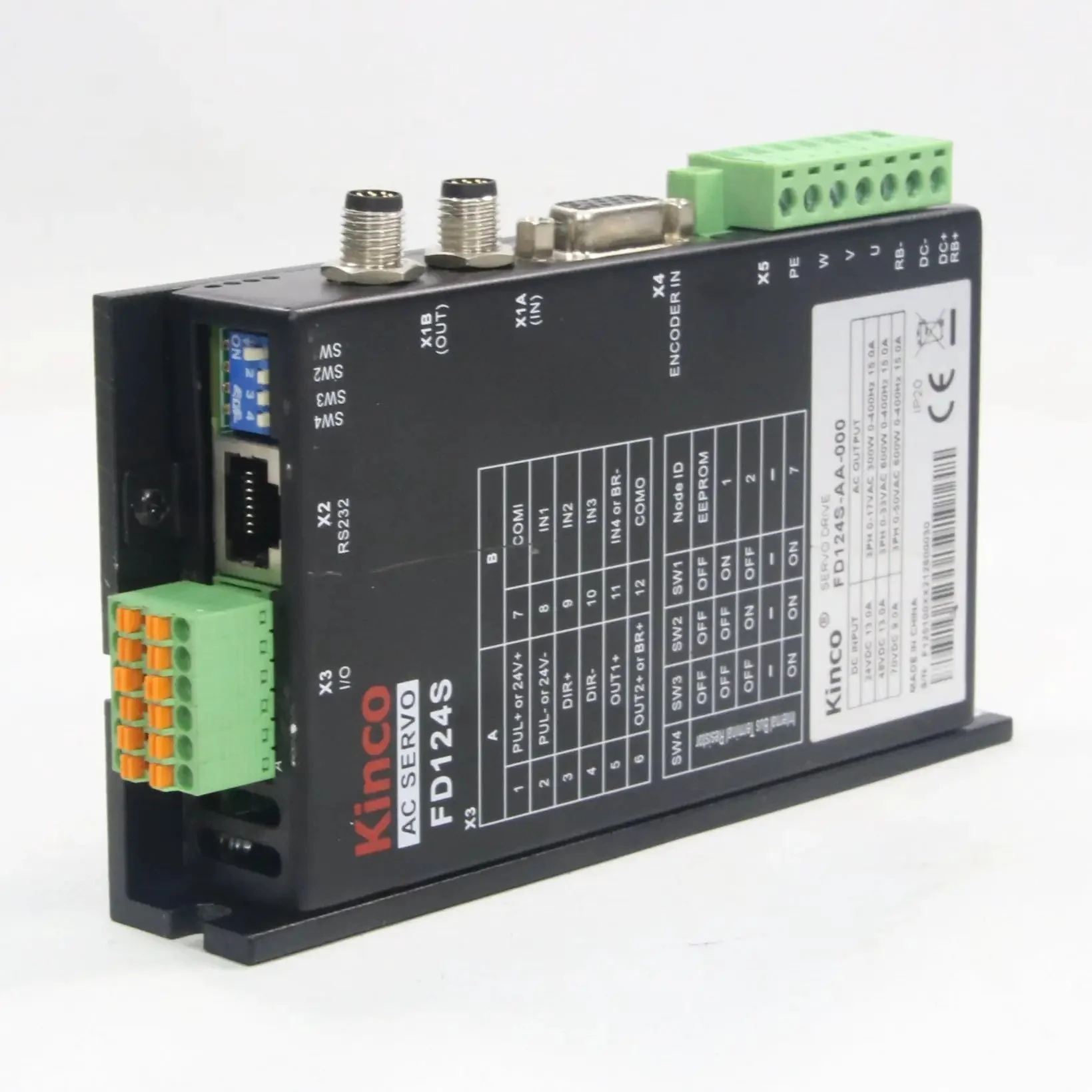

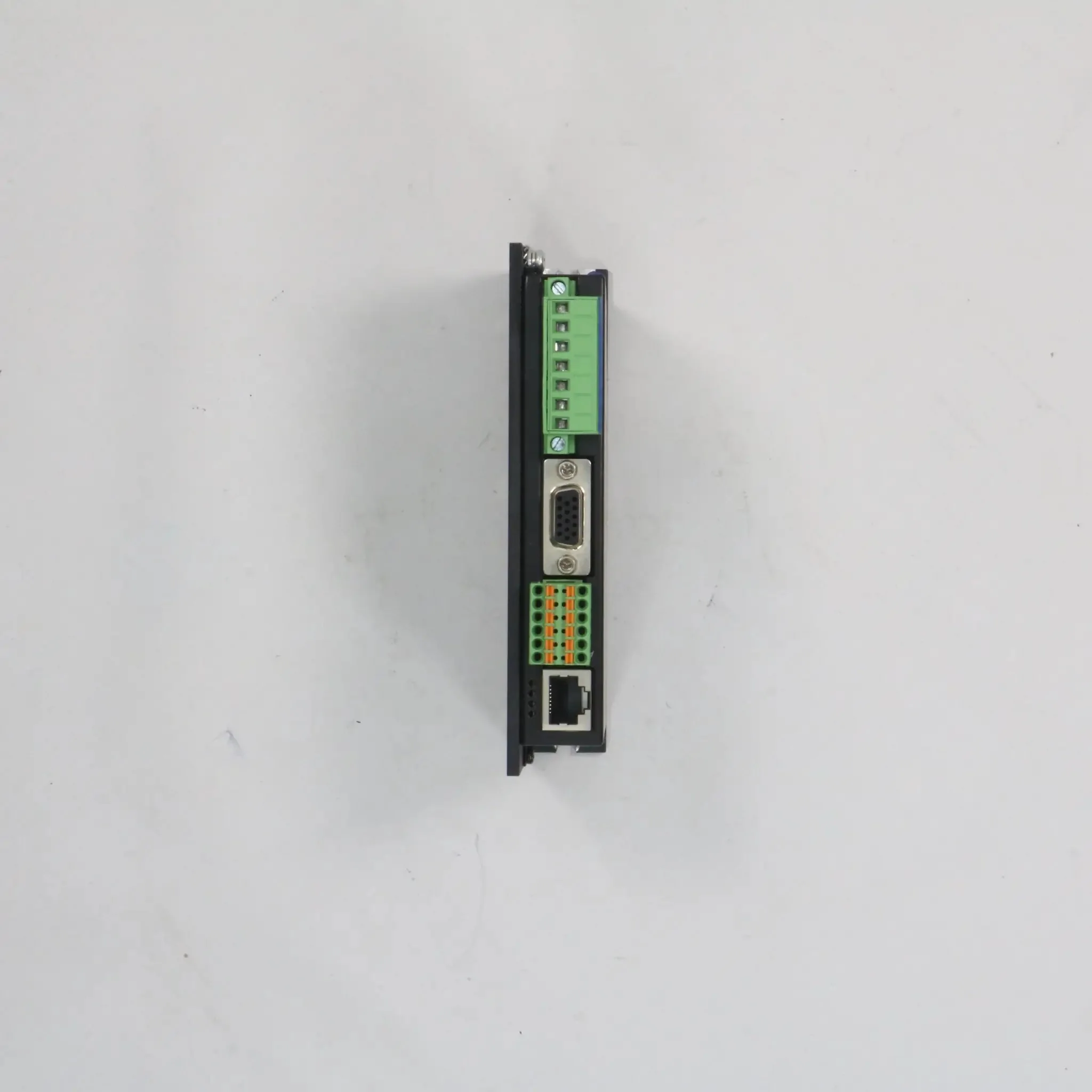

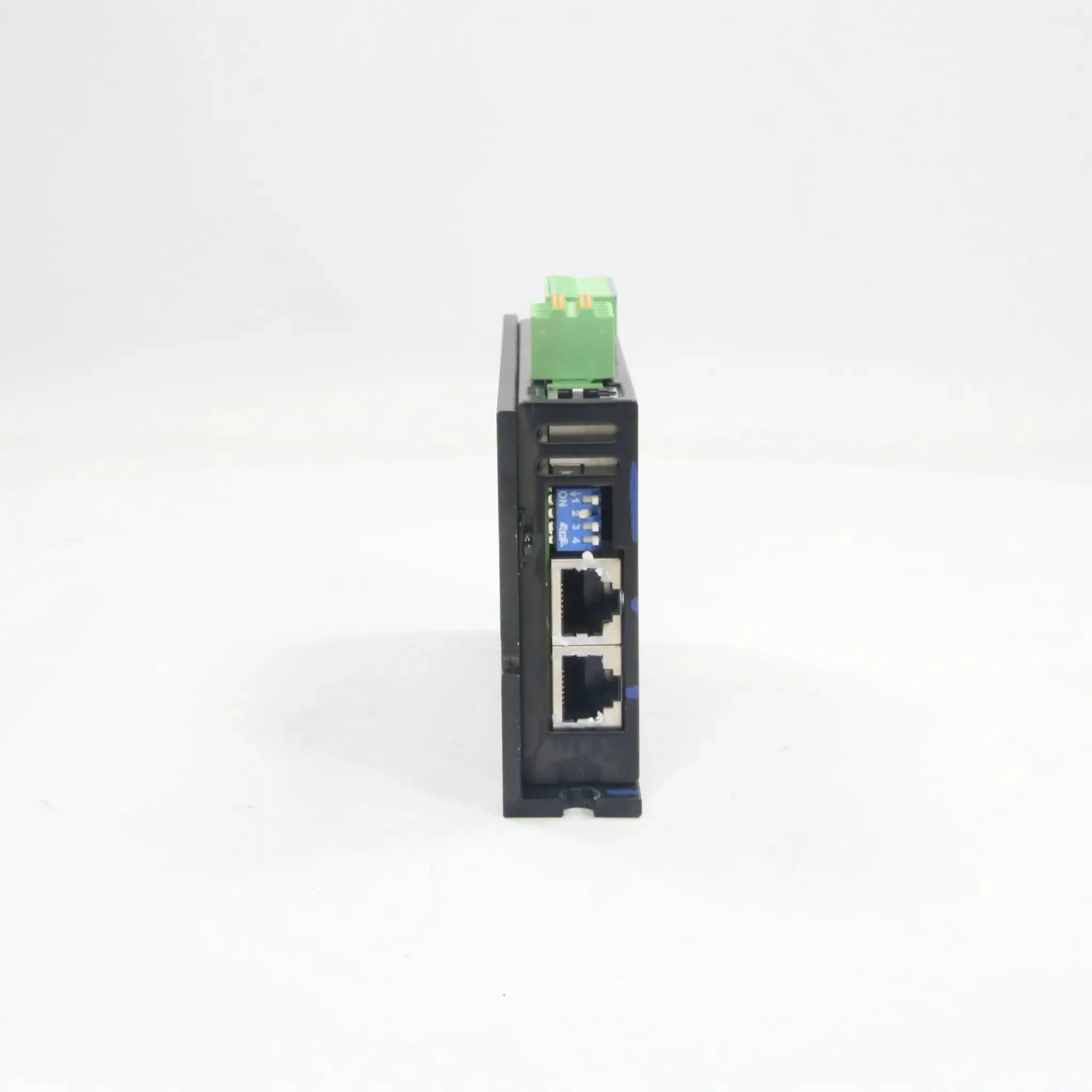

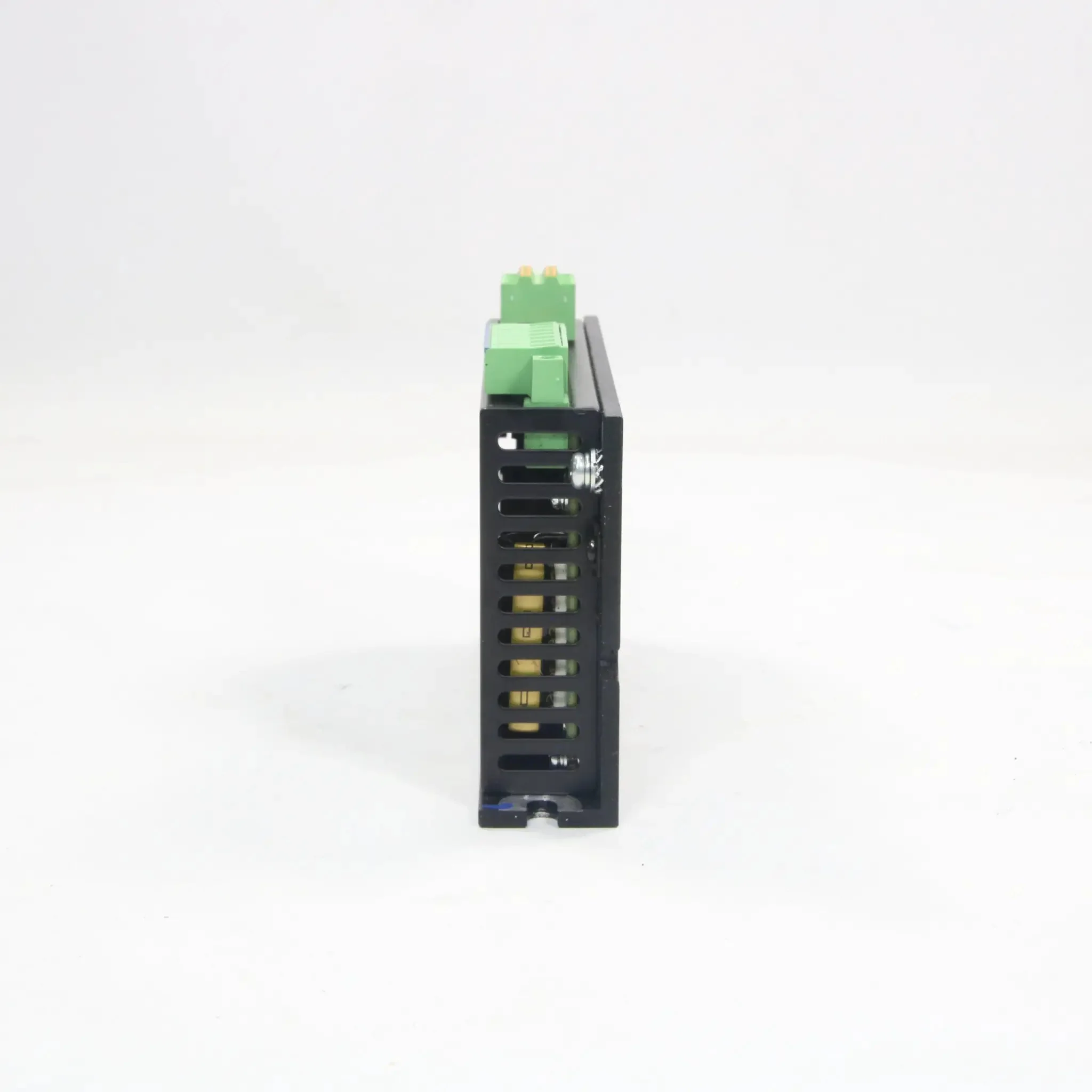

Kinco FD124S AC servo drive
- Brand: Kinco Automation
- Model: FD124S
- Type: AC servo drive (low-voltage DC servo driver for position, speed, and torque control)
- All Tech Specs:
- Material: Aluminum housing; industrial-grade electronics
- Power Range: 200–400 W
- Input Voltage: 24–70V DC
- Maximum Continuous Output Current: 15 A (RMS, up to 12 A without auxiliary heat dissipation)
- Peak Current: 48 A (peak)
- Control Modes: Pulse control, analog control, RS485 (MODBUS), CANopen, EtherCAT (depending on model variant)
- Feedback Type: Incremental encoder (2500 P/R); supports single-turn/multi-turn encoders
- Brake Chopper: Optional external braking resistor (software settable, mainly for quick start/stop)
- Brake Chopper Threshold: 73V DC ±2V (default, adjustable); 63V DC ±2V (alternate setting)
- Over-Voltage Alarm: 83V DC ±2V
- Under-Voltage Alarm: 18V DC ±2V
- Cooling Method: Natural cooling (requires oxide black 6063 aluminum plate, 300 mm x 300 mm x 10 mm for 15 A output)
- I/O Signals: 4 inputs, 2 outputs (LA-000 variant); 3 inputs, 1 output + 1 brake output (LB-000 variant)
- Communication: RS232 and RS485 ports (MODBUS RTU or pulse/direction control); optional CANopen/EtherCAT
- Operating Temperature Range: 0°C to +55°C (+32°F to +131°F)
- Storage Temperature Range: -20°C to +80°C (-4°F to +176°F)
- Protection Rating: IP20 (protected against solid objects; no water protection)
- Certification: CE certified; RoHS compliant
- Features: Supports encoder signal output (master-slave); programmable inputs/outputs; communication software for parameter configuration; suitable for AGVs, logistics robots, and high-precision applications
- Vibration Resistance: Per industrial standards (specifics not listed, typically 1g)
- Dimension: 142 mm height x 40 mm width x 115 mm depth (5.59 in x 1.57 in x 4.53 in, approximate for FD124S series)
- Weight: 0.35 kg
- Country of Origin: China
- HS Code: 8504.40 (static converters, including servo drives)
Original: $224.62
-70%$224.62
$67.39
