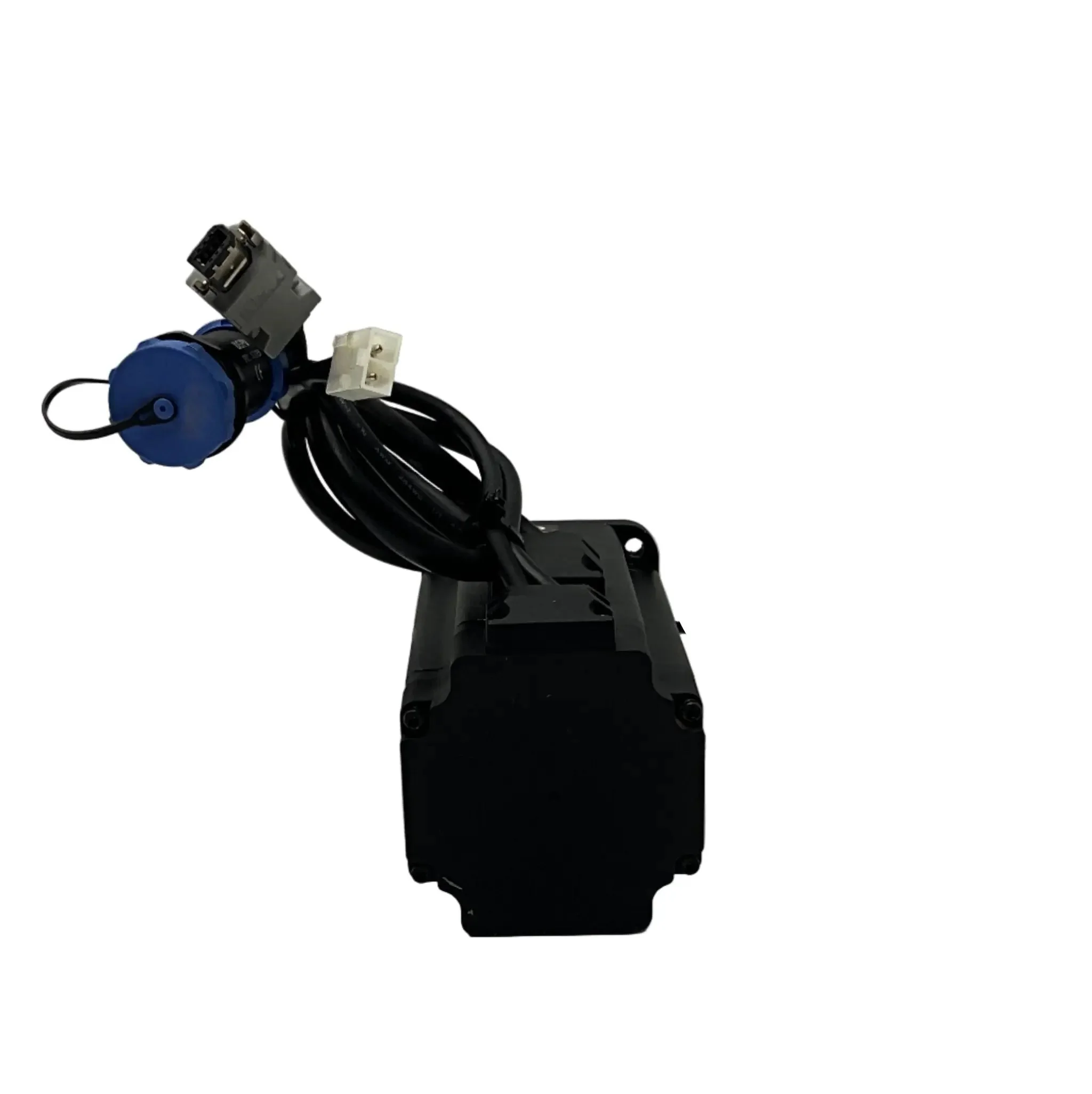

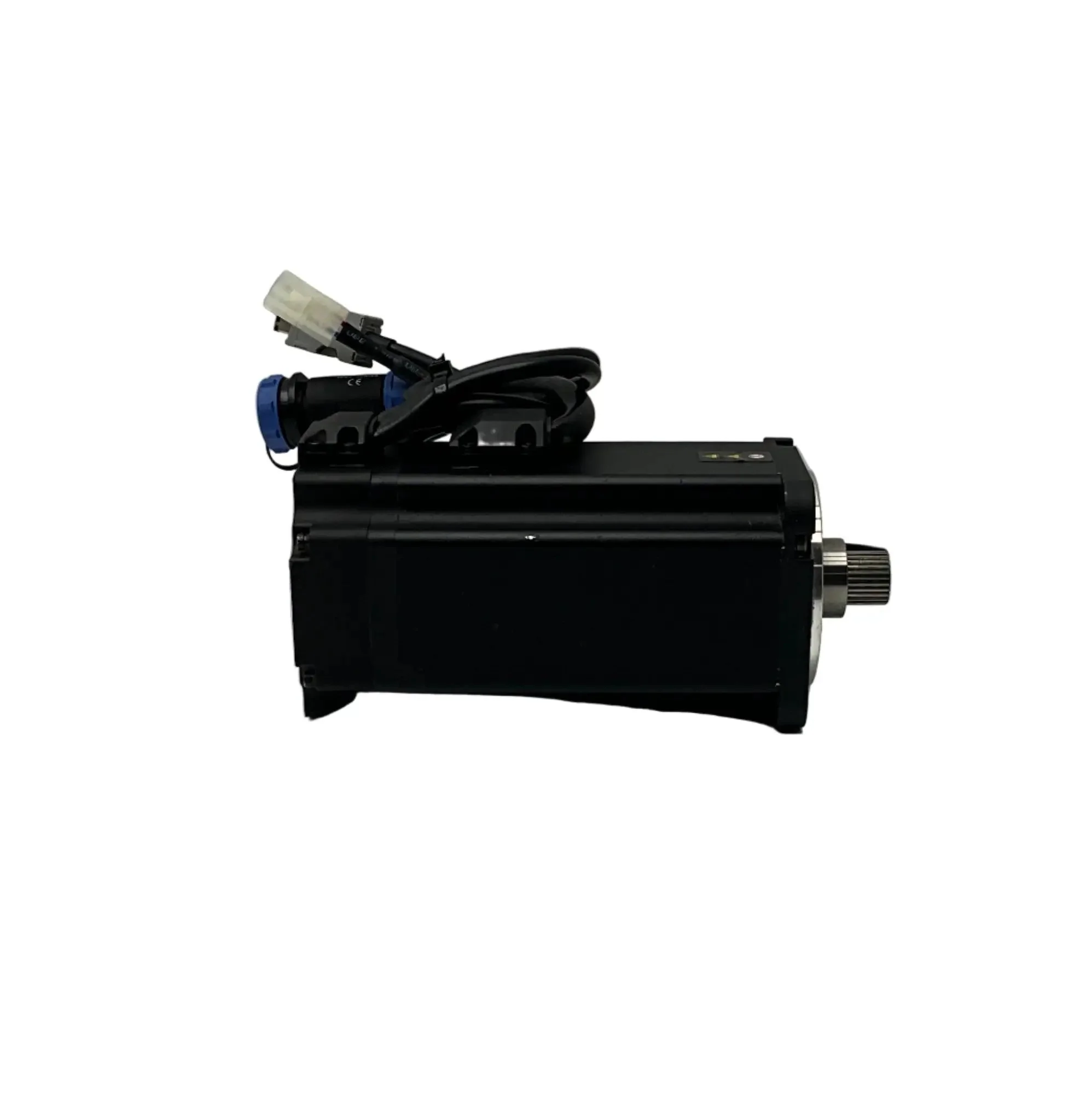

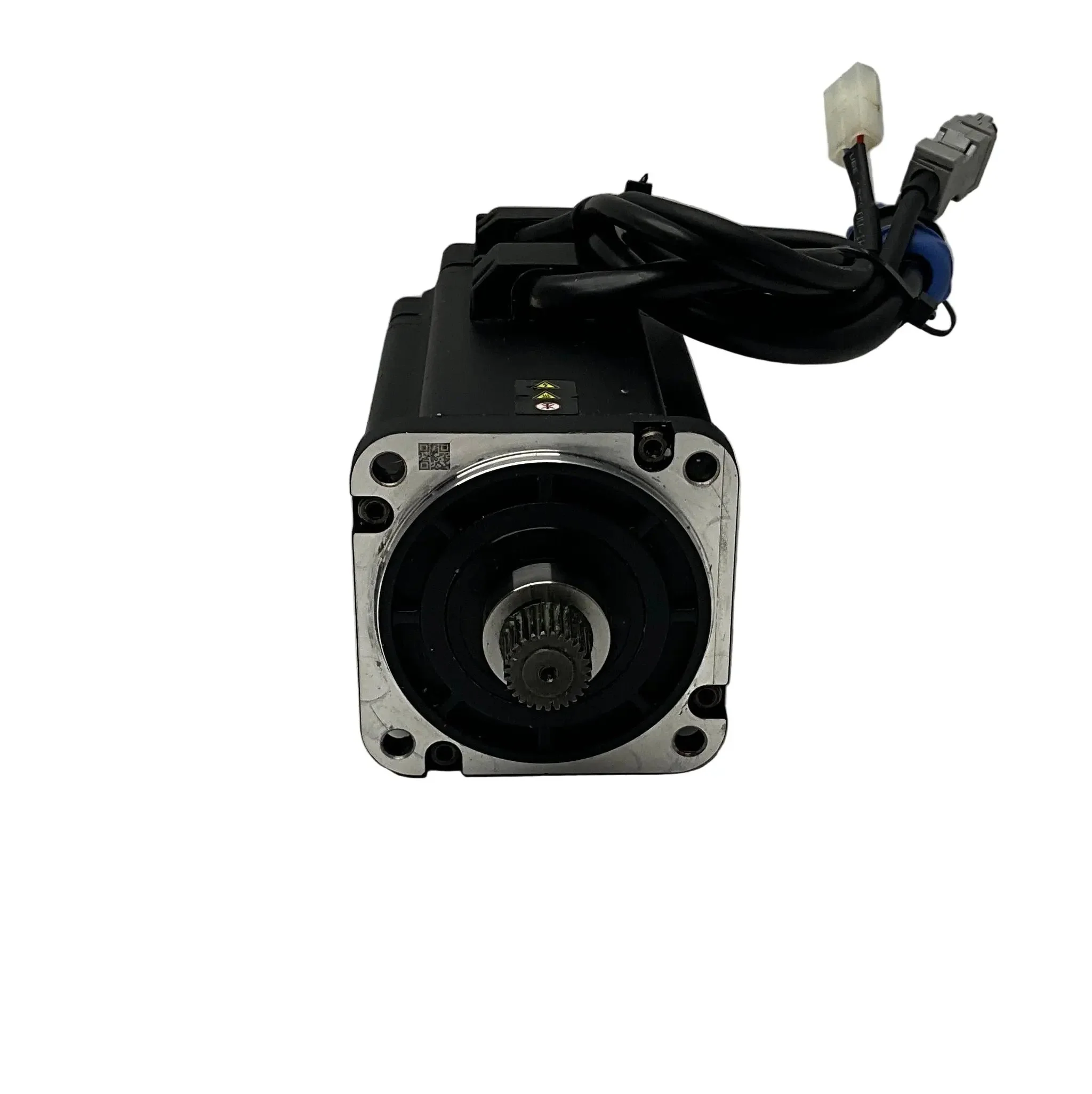

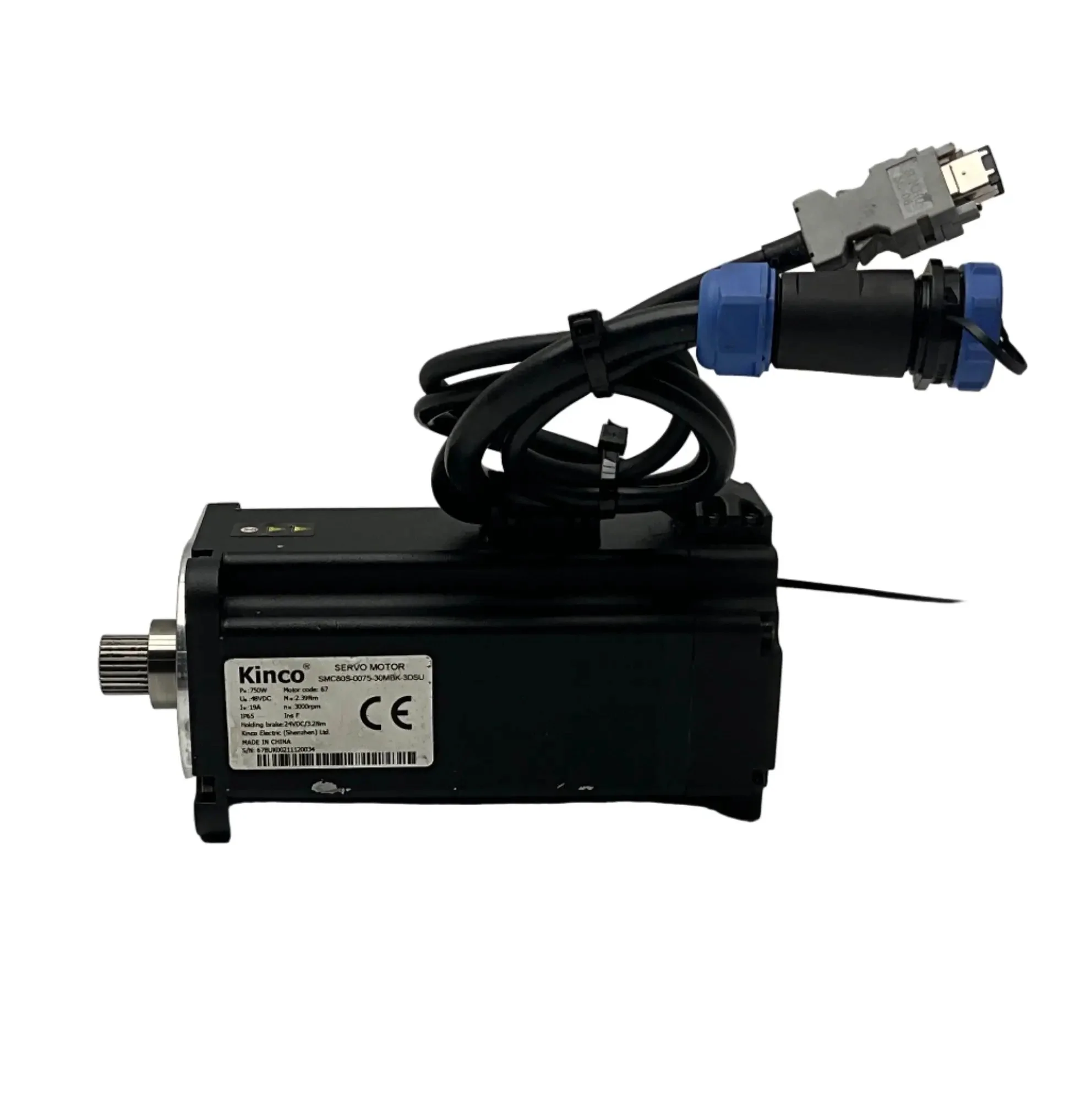

Kinco SMC80S-0075-30MBK-3DSU-(5) AC Servo Motor
Brand: Kinco
Model: SMC80S-0075-30MBK-3DSU-(5)
Type: AC Servo Motor
Part Number: SMC80S-0075-30MBK-3DSU-(5)
Technical Specs:

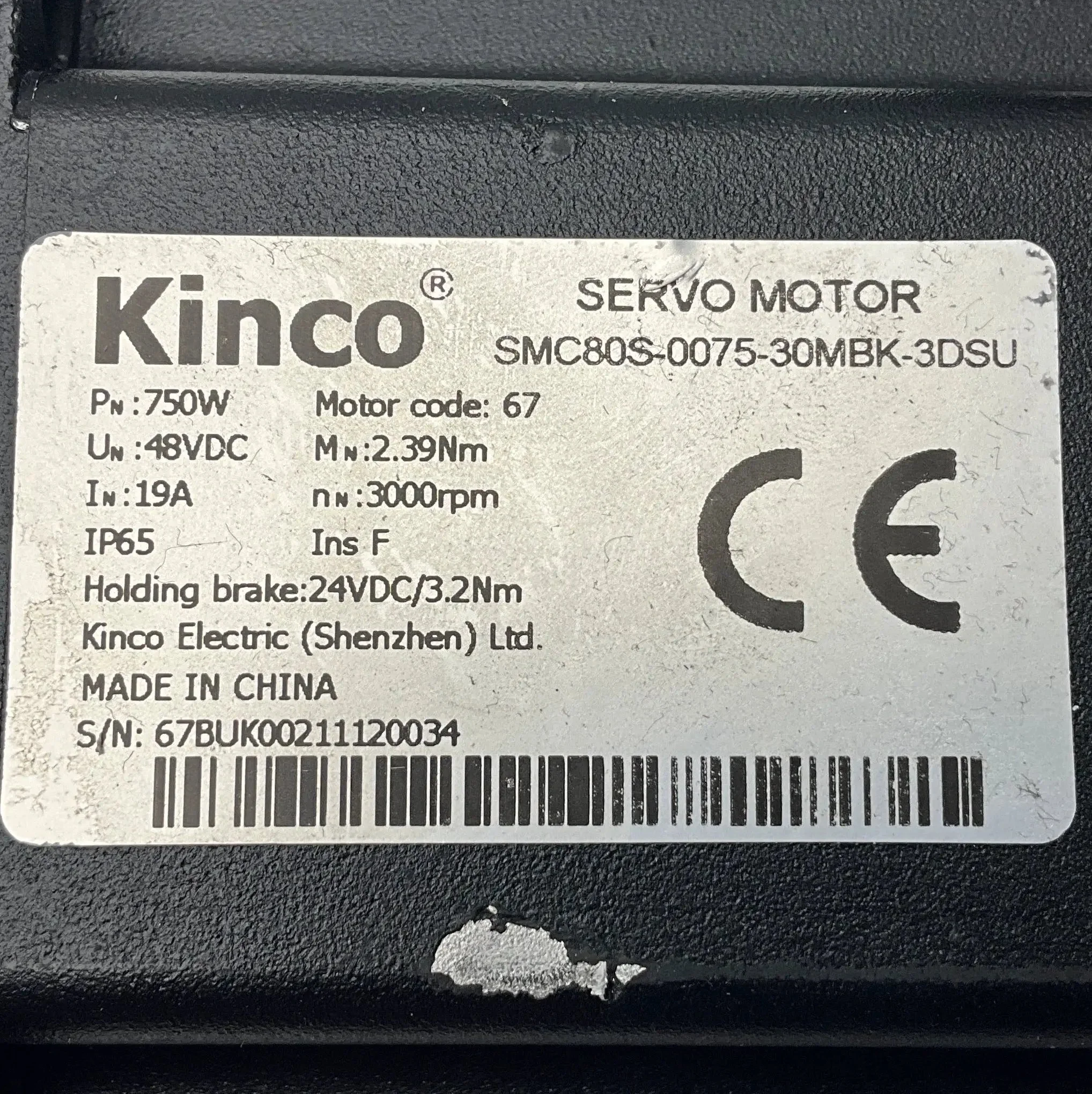

- Servo Motor Type: AC servo motor, low-voltage series
- Rated Power: 750 W
- Rated Torque: 2.39 Nm
- Rated Speed: 3000 rpm
- Maximum Torque: 7.17 Nm
- Maximum Speed: 4000 rpm
- Encoder Type: 2500 PPR incremental encoder
- Moment of Inertia: 0.25 kg·cm²
- Voltage: 48 V DC
- Rated Current: 19.0 A
- Insulation Class: F
- Protection Rating: IP65
- Ambient Temperature Range: 0°C to 40°C
- Holding brake: 24V DC/3.2Nm
- Additional Features:
- Compact and lightweight design for easy integration
- Low cogging torque for smooth operation
- Brake option (30MBK indicates brake motor)
- High overload capacity (300% for 1 second)
- Modular compatibility with Kinco servo drives and controllers
- Certifications: CE, RoHS compliant
Dimensions: 200 x 100 x 90 mm
Weight: 3.6 kg
Country of Origin: China
HS Code: 8501.52
