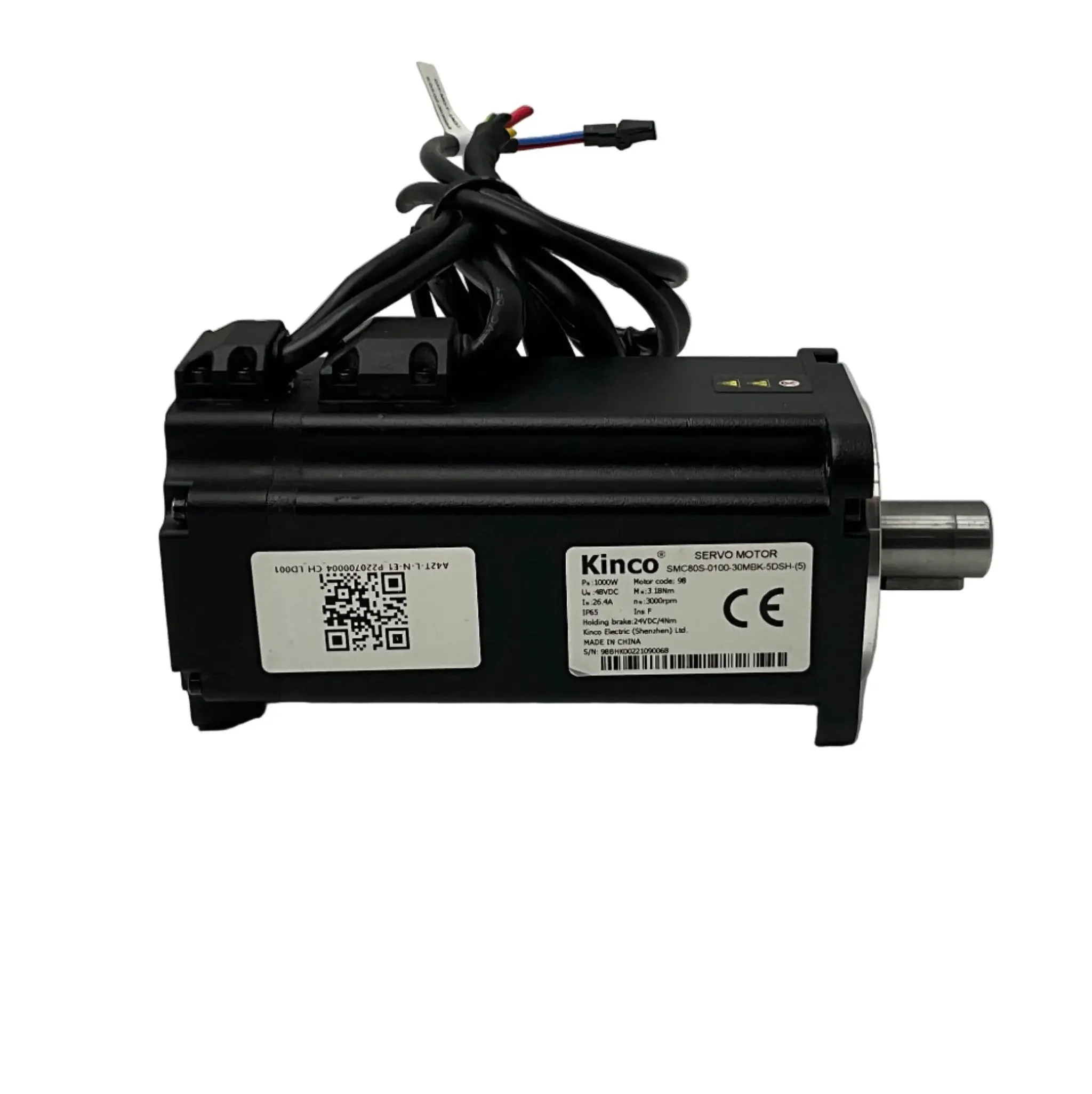

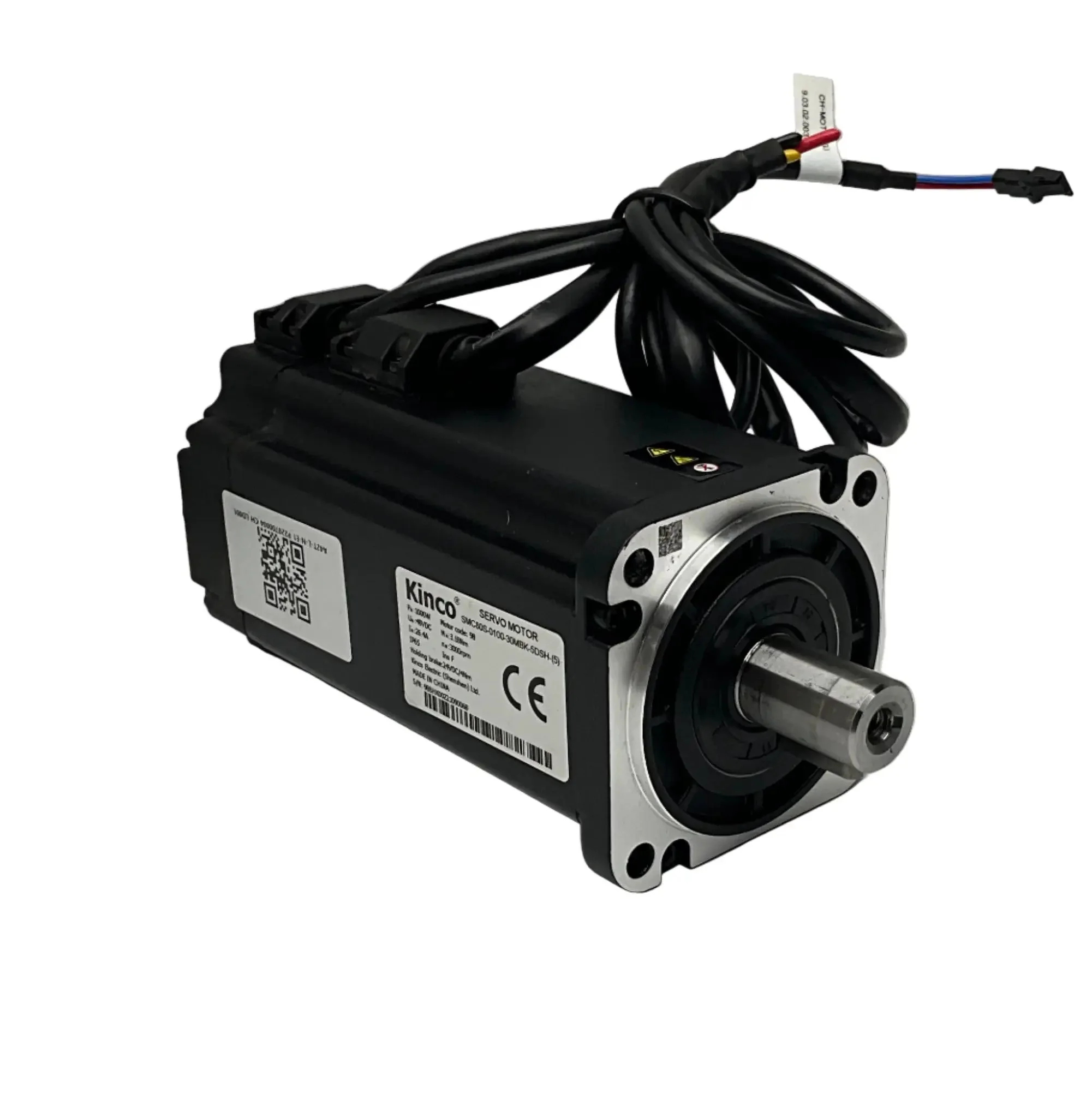

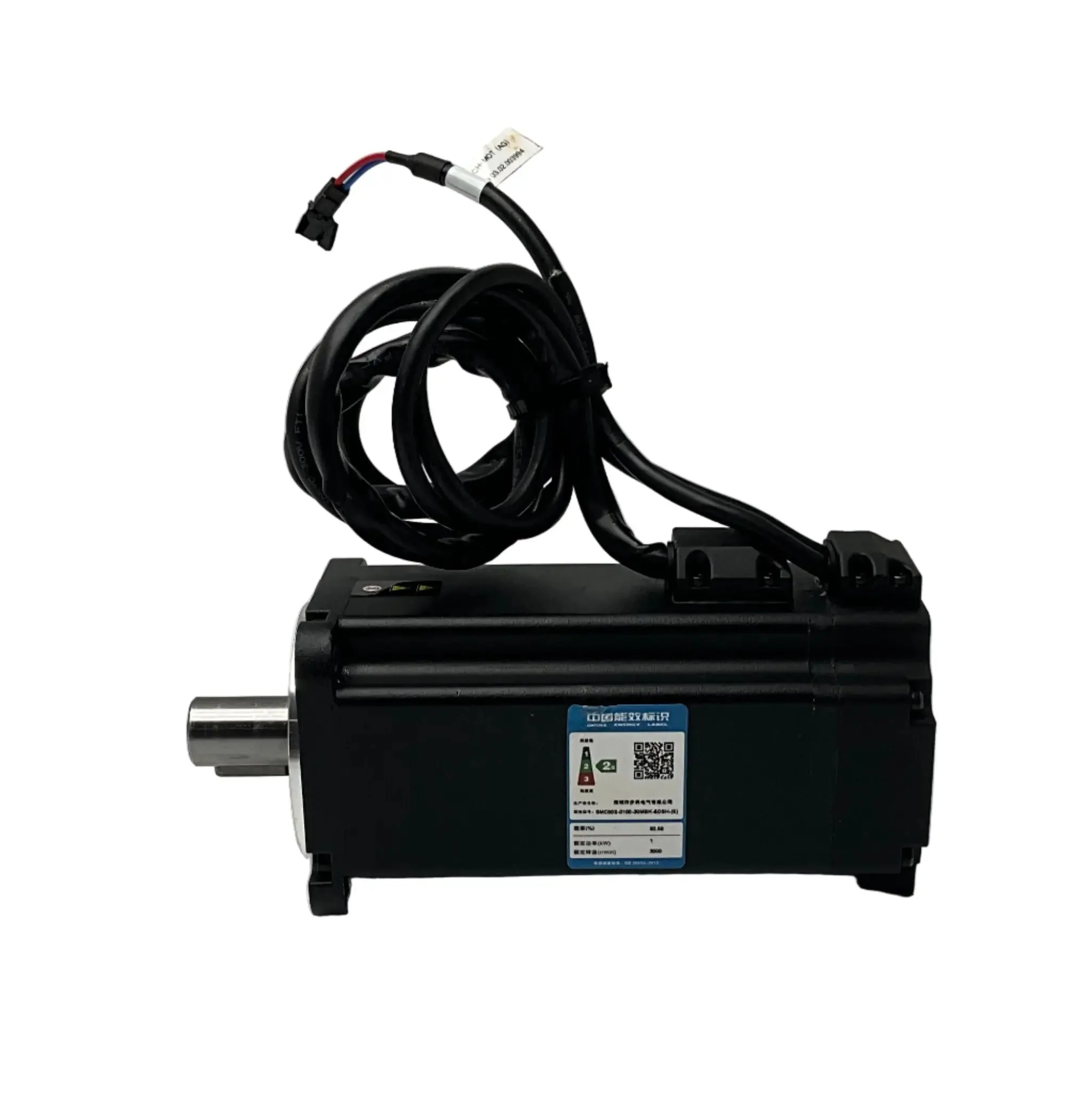

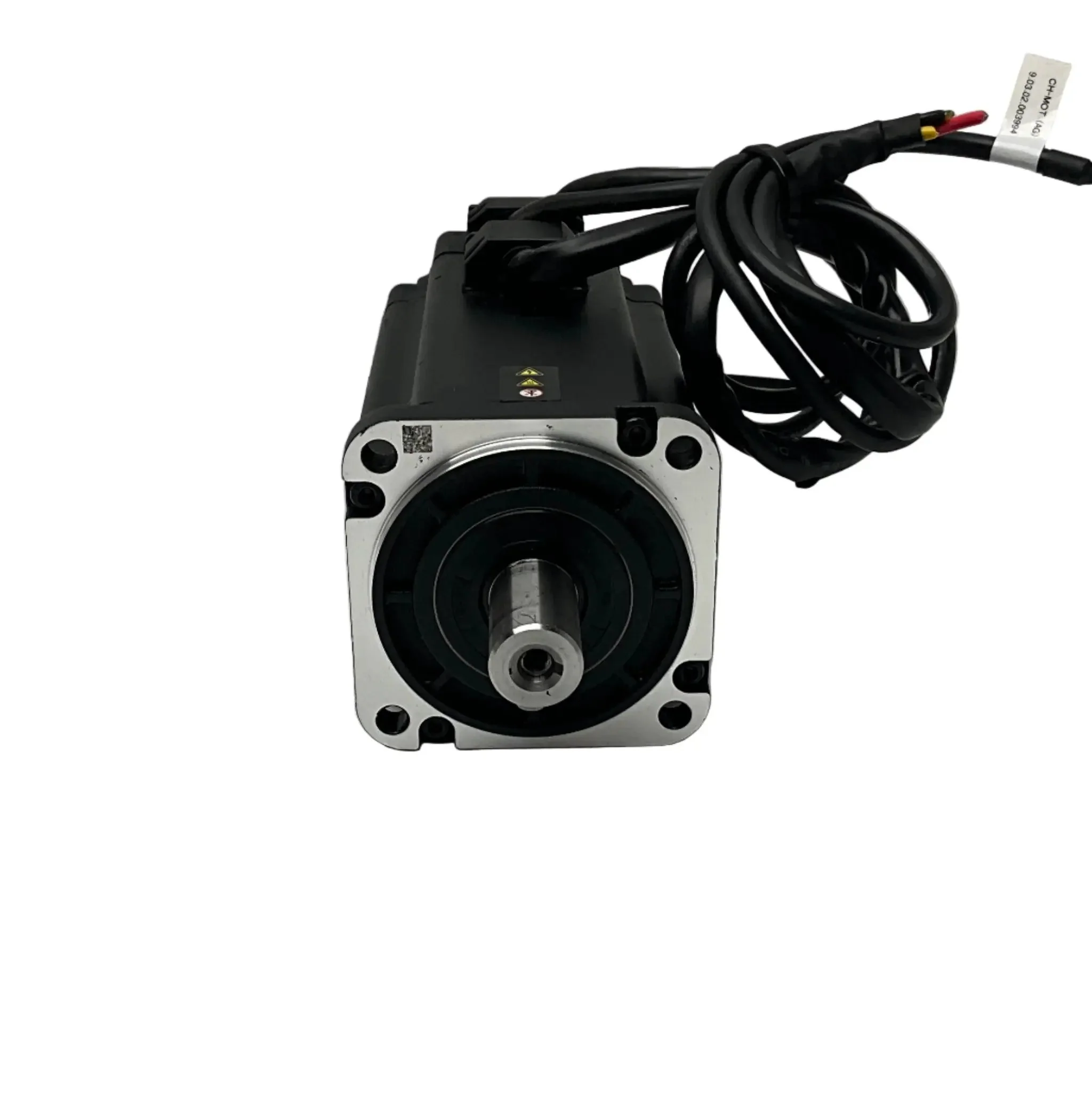

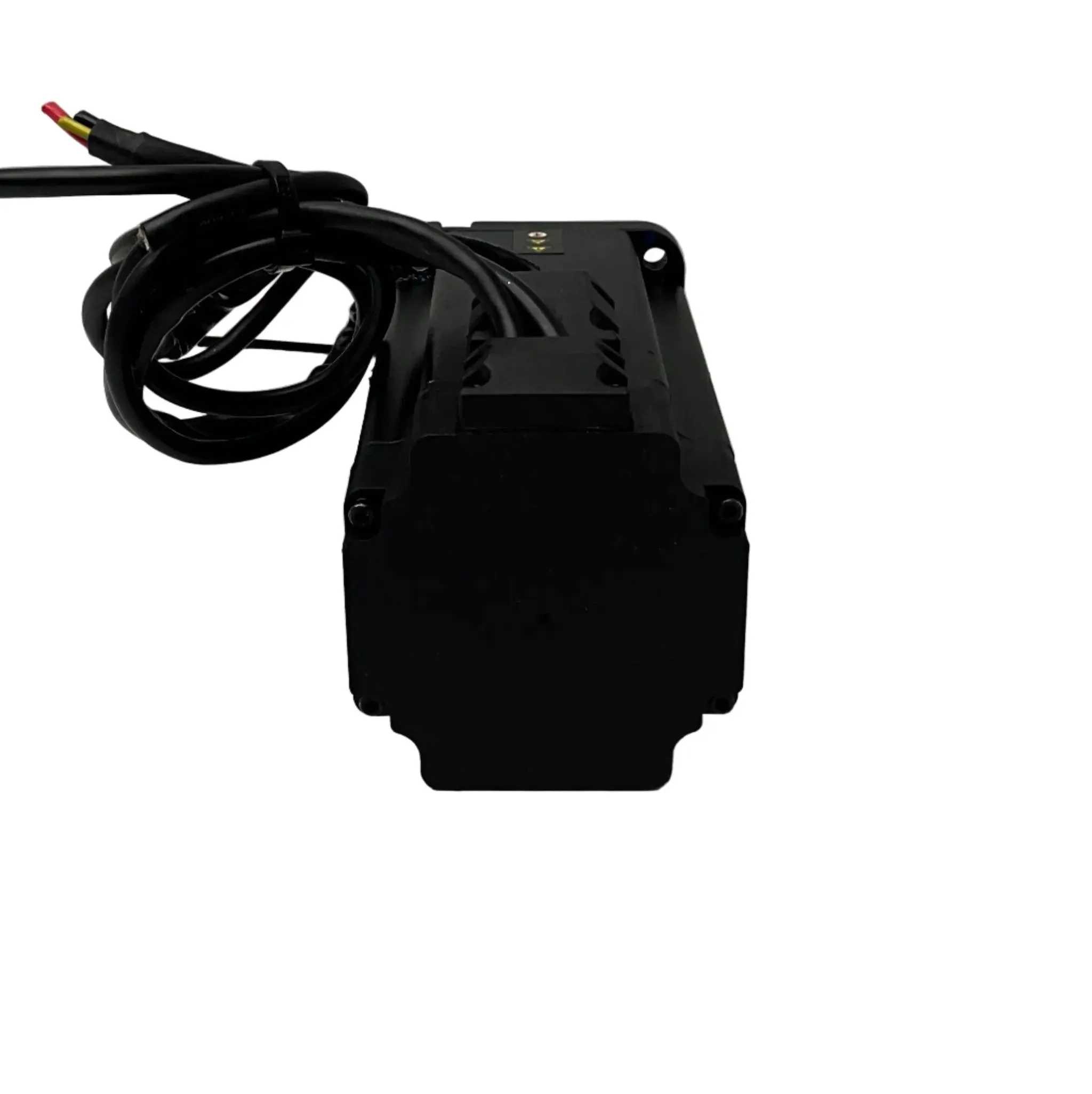

Kinco SMC80S-0100-30MBK-5DSH-(5) AC Servo Motor
Brand: Kinco

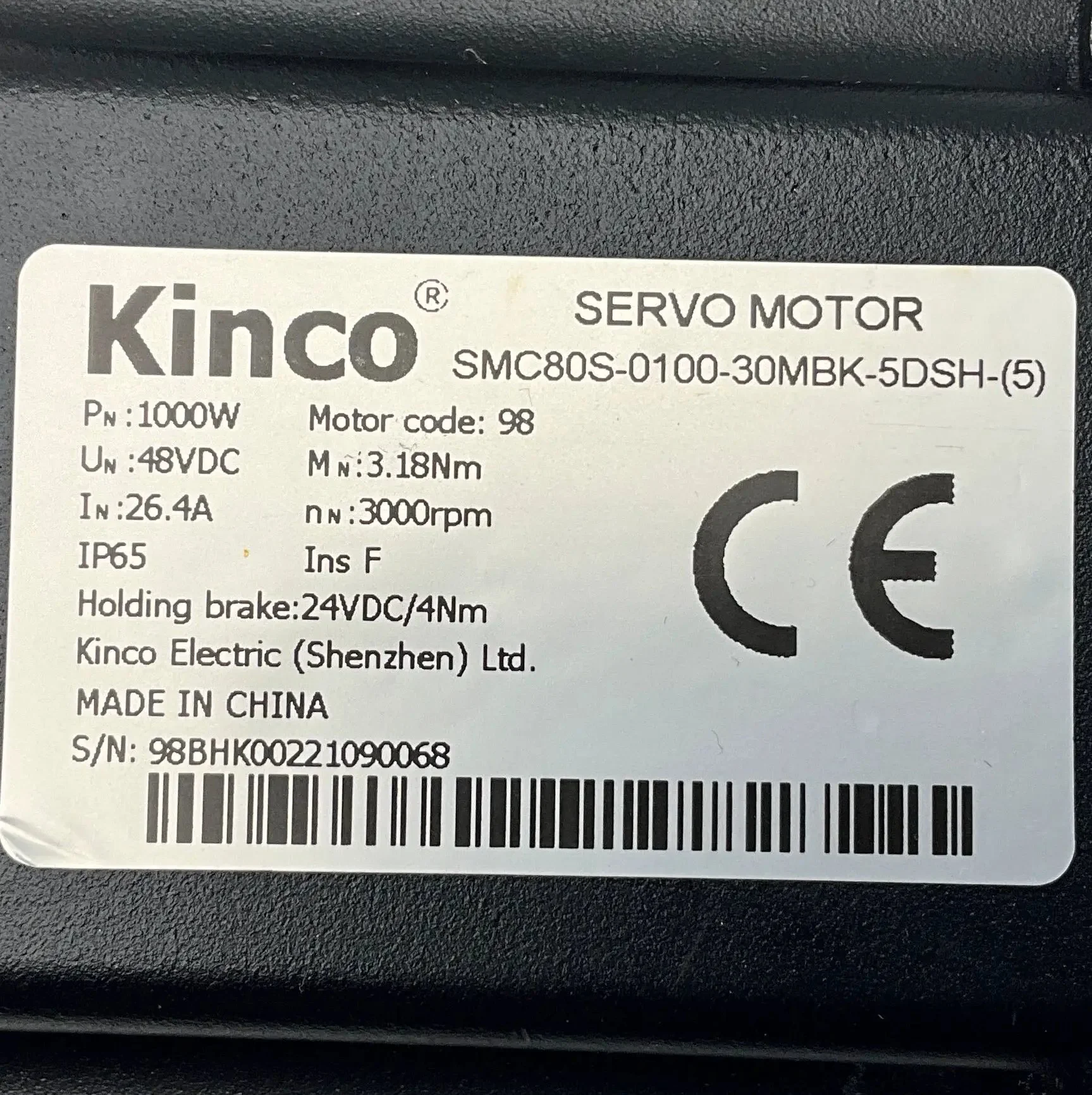

Model: SMC80S-0100-30MBK-5DSH-(5)
Type: AC Servo Motor
Part Number: SMC80S-0100-30MBK-5DSH
Technical Specs:
- Servo Motor Type: AC servo motor
- Rated Power: 1000 W
- Rated Torque: 3.18 Nm
- Rated Speed: 3000 rpm
- Maximum Torque: 9.54 Nm
- Maximum Speed: 4000 rpm
- Encoder Type: 2500 PPR incremental encoder
- Moment of Inertia: 0.25 kg·cm²
- Voltage: 48 V DC
- Rated Current: 26.4 A
- Insulation Class: F
- Protection Rating: IP65
- Ambient Temperature Range: 0°C to 40°C
- Holding brake: 24VDC/4Nm
- Additional Features:
- Compact and lightweight design for easy integration
- Low cogging torque for smooth operation
- Brake option (30MBK indicates brake motor)
- High overload capacity (300% for 1 second)
- Modular compatibility for Kinco servo systems
- Certifications: CE, RoHS compliant
Dimensions: 200 x 100 x 90 mm
Weight: 3.6kg
Country of Origin: China
HS Code: 8501.52
