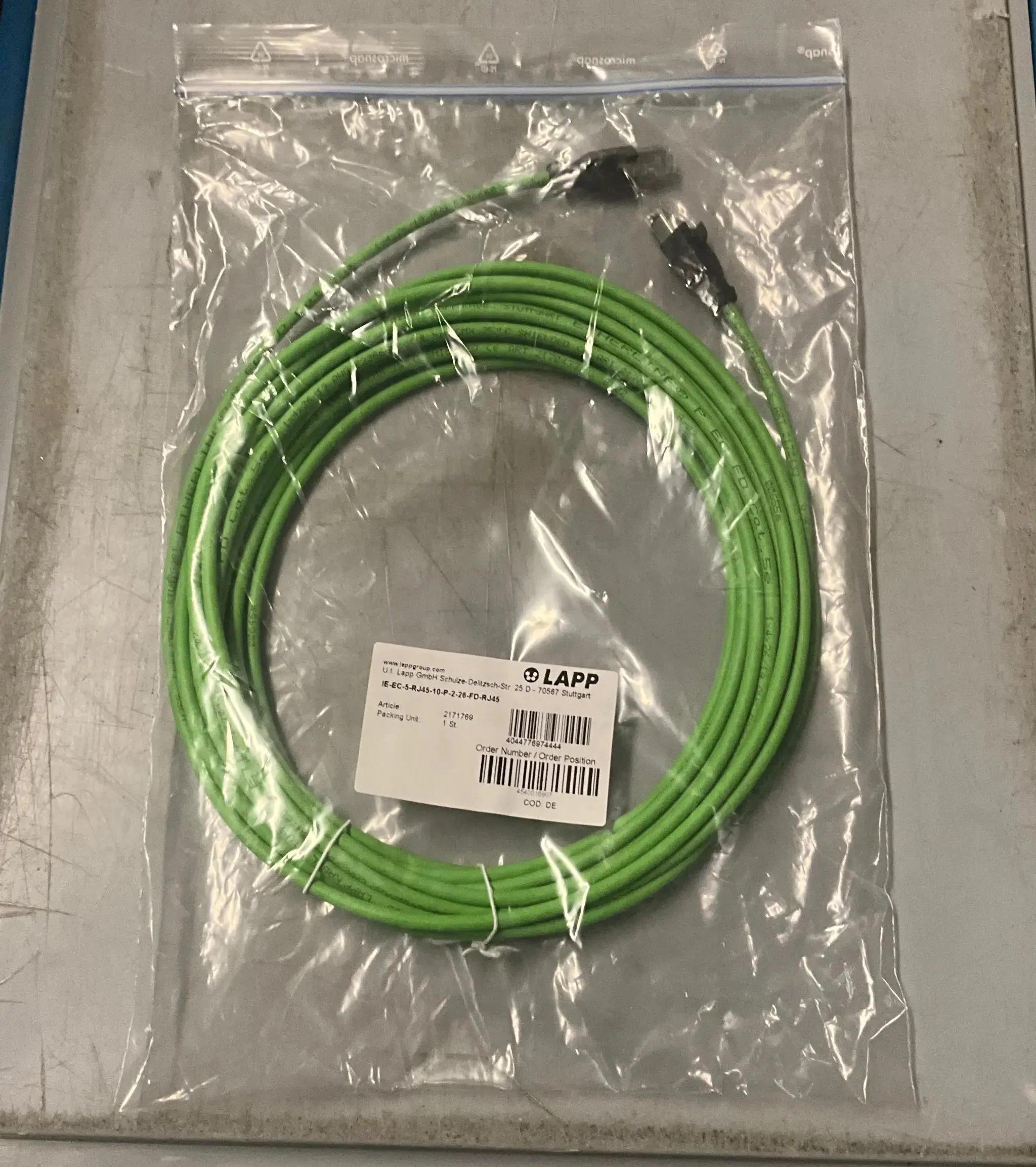

Lapp RJ45 Patch Cable

Brand: Lapp

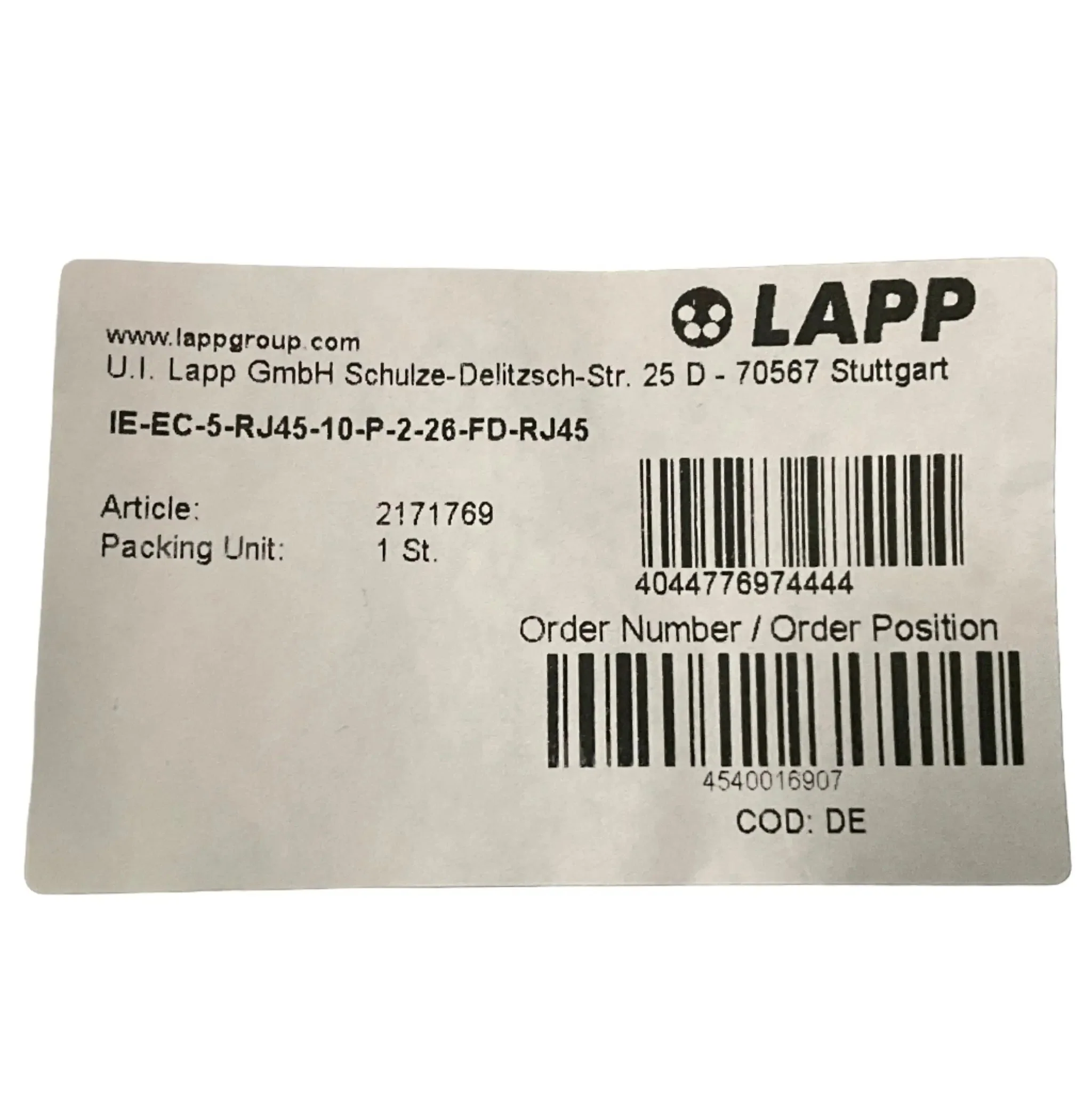

Model: IE-EC-5-RJ45-10-P-2-26-FD-RJ45
Part Number: 2171769
Series: ETHERLINE® EC FD Cat. 5e Patchcord RJ45–RJ45

Type: Patch Cable

Specifications:
Cable Type: SF/UTP (Screened Foil Unshielded Twisted Pair)
Category: 5e, Class D
Length: 10 m
Connectors: RJ45 (8‑pin) on both ends
Construction: 2 pairs (1×4), AWG 26
Outer Sheath: Polyurethane (PUR), color: green (RAL 6018)
Cable suitable for cable guide chains
Data Performance: 10/100 Mbit/s, compliant with Industrial Ethernet, EtherCAT, and EtherNet/IP
Conductors & Shielding: Copper braided conductor; overall screening via copper braid + plastic-laminated aluminium foil
NVP (Nominal Velocity of Propagation): 67%
Bend Radius:
Flexing: 16× outer diameter
Fixed installation: 4× outer diameter
Degree of Protection: RJ45 – IP20
Temperature Range:
During installation: –30 °C to +50 °C
Fixed installation: –40 °C to +80 °C
Weight: 340 g
HS Code: 8544.42
Country of Origin: Germany
