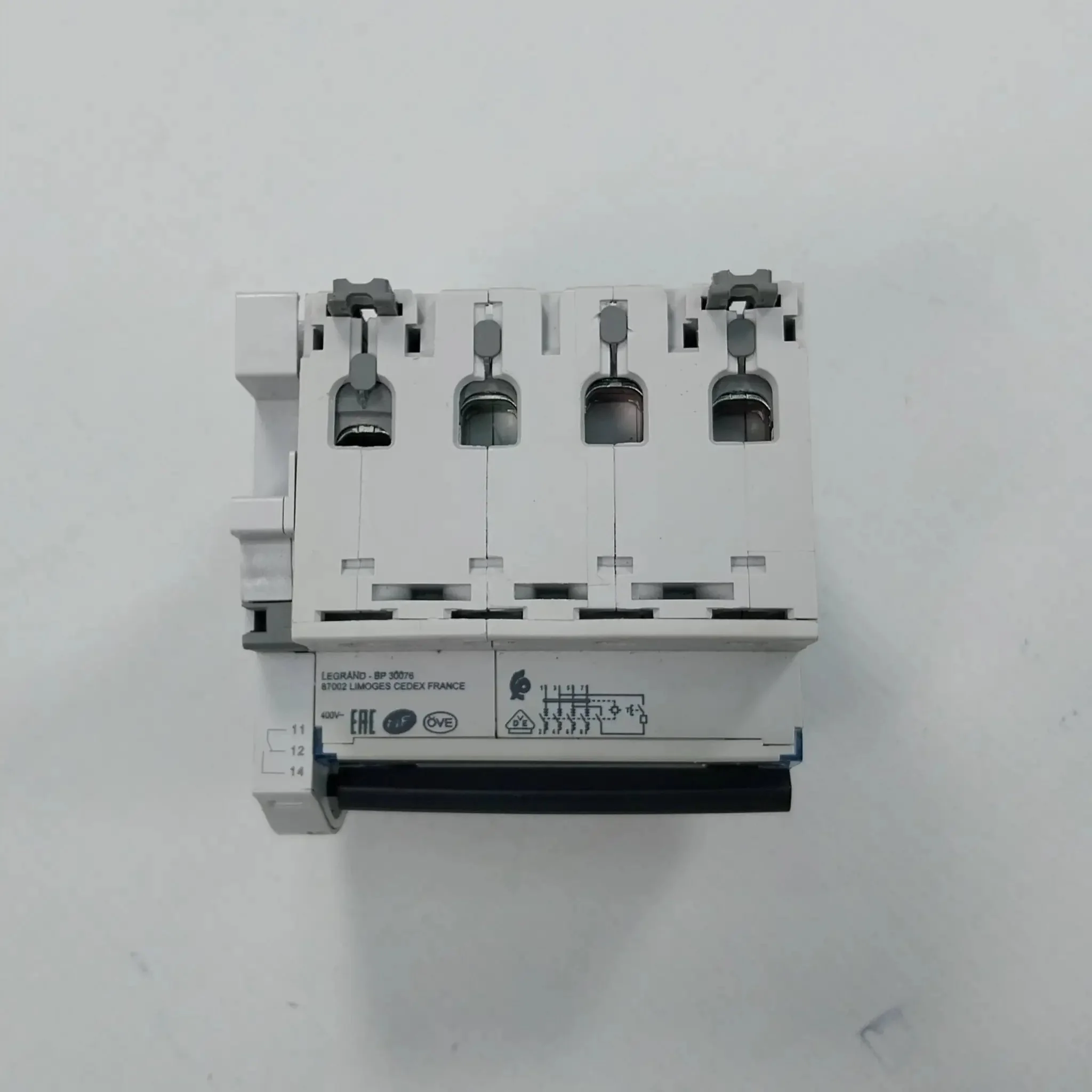

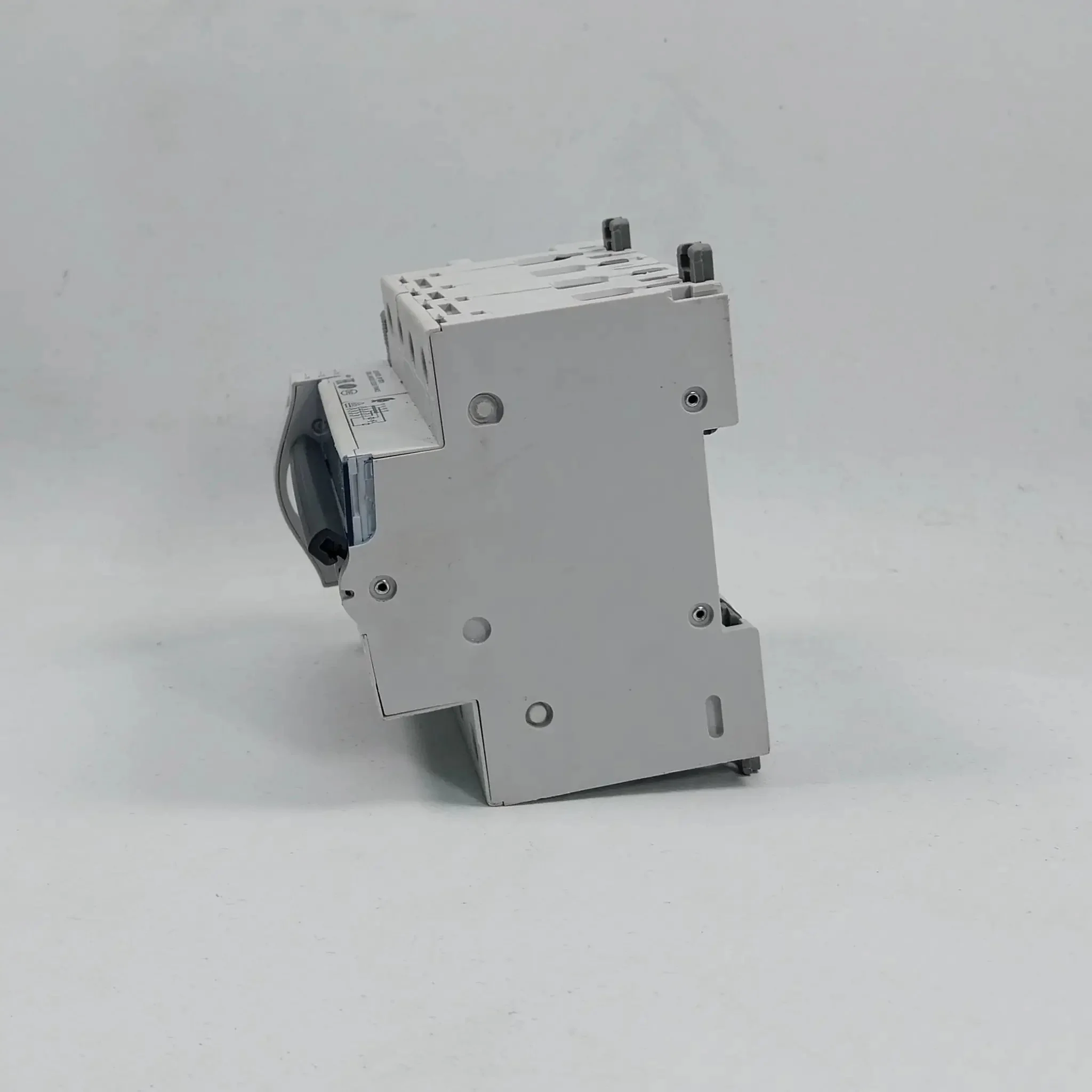

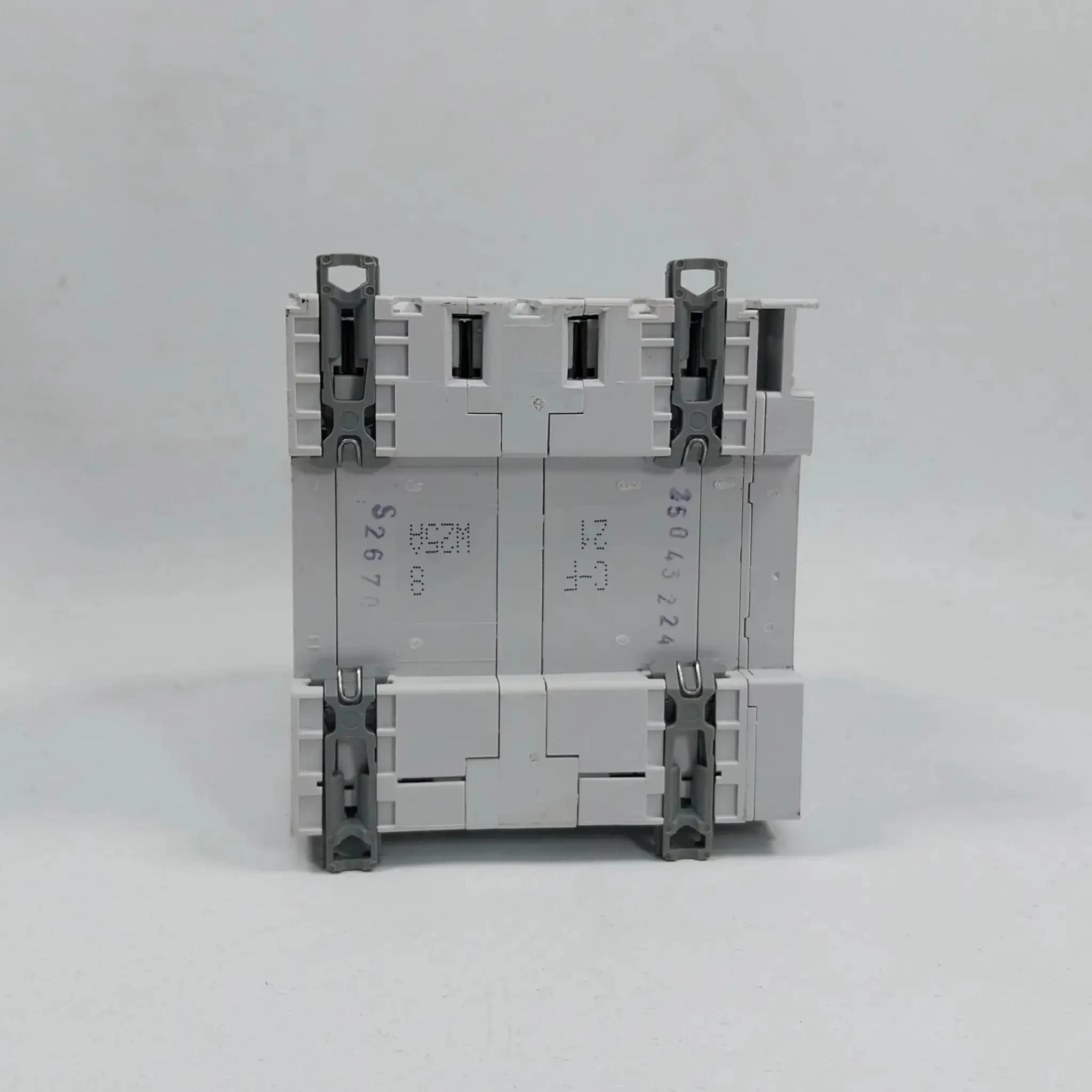

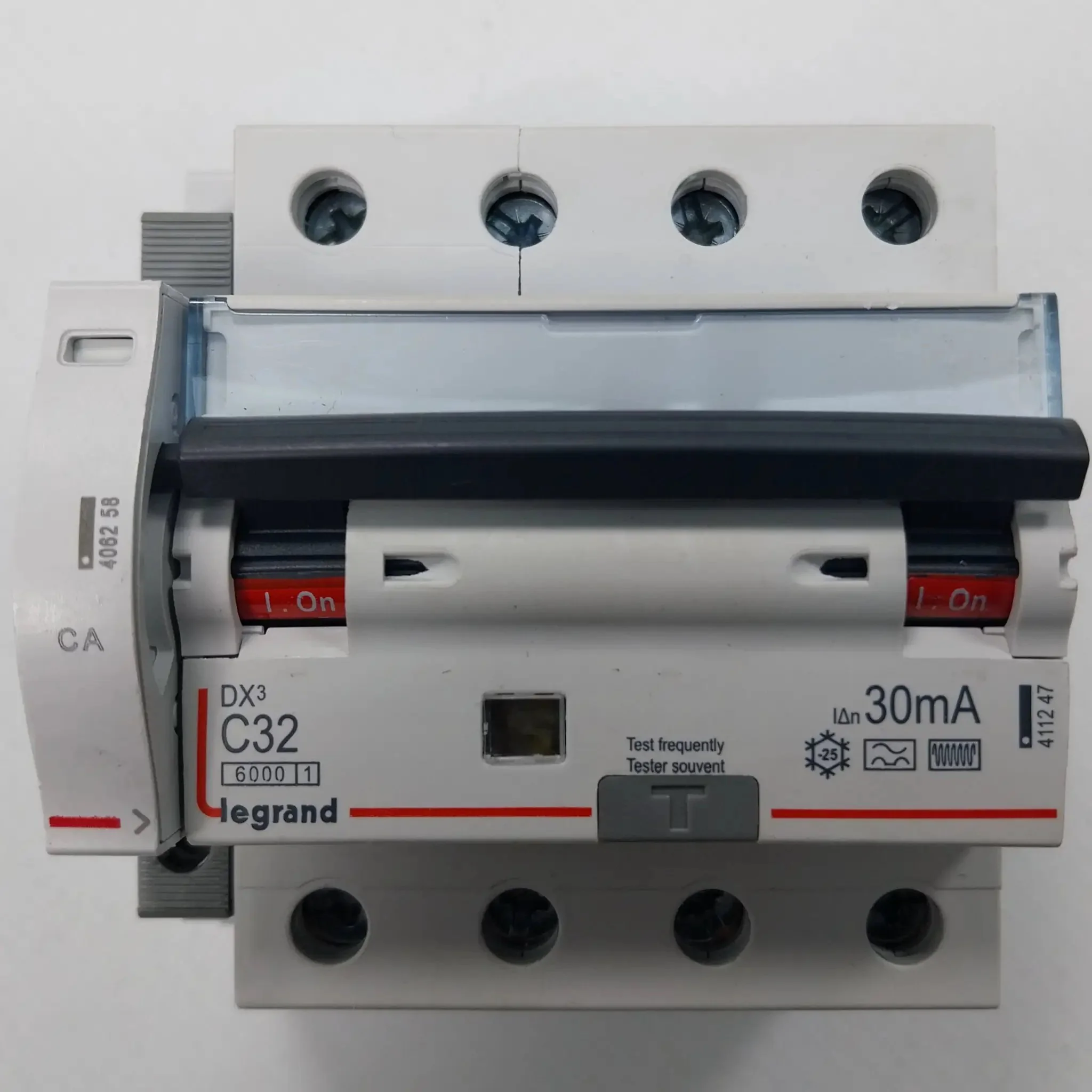

Legrand DX3 C32 Circuit Breaker

Brand: Legrand
Model/Type: DX³

Part Number: 411247
Eancode: 3245064112475

Rated Voltage: 400 V AC
Rated Current: 32 A

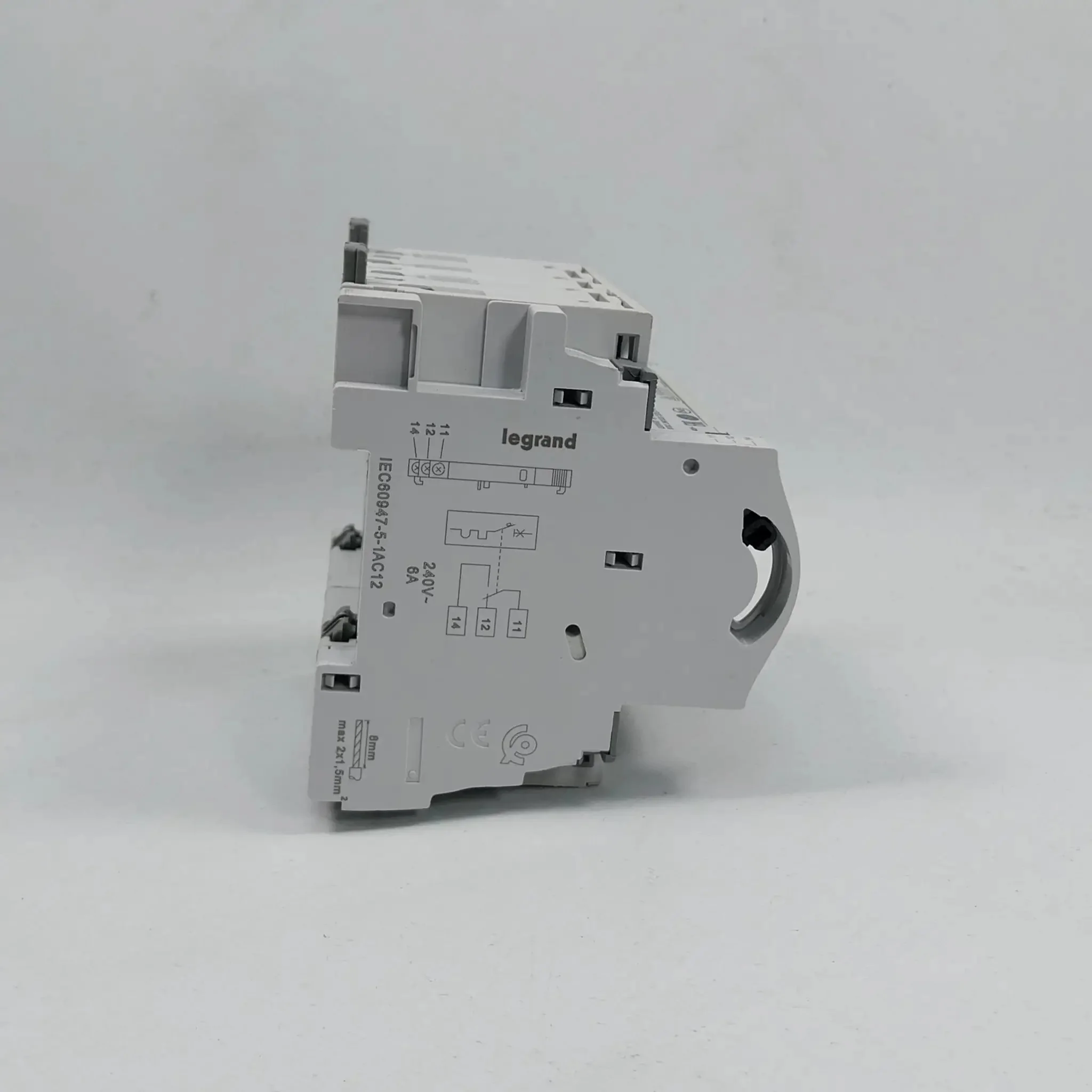

Auxiliary switch: 406258
Number of Poles: 4 (3+N)
Residual Current Sensitivity: 30 mA (Type F – AC, pulsating DC & high-frequency)
Short-Circuit Breaking Capacity: 6 kA (EN 61009-1)
Surge Current Resistance: 250 A
Width: 4 modules (71.2 mm)
Height: 83 mm
Built-in Depth: 44 mm
Mounting: DIN rail (EN/IEC 60715)
IP Rating: IP20
Anti-Nuisance Tripping: Yes
Neutral Pole Switched Simultaneously: Yes
Operating Frequency: 50 Hz
Ambient Temperature: –25 °C to +60 °C (storage –40 °C to +70 °C)
Weight: 600g

HS Code: 85363090
Country of origin: Italy
