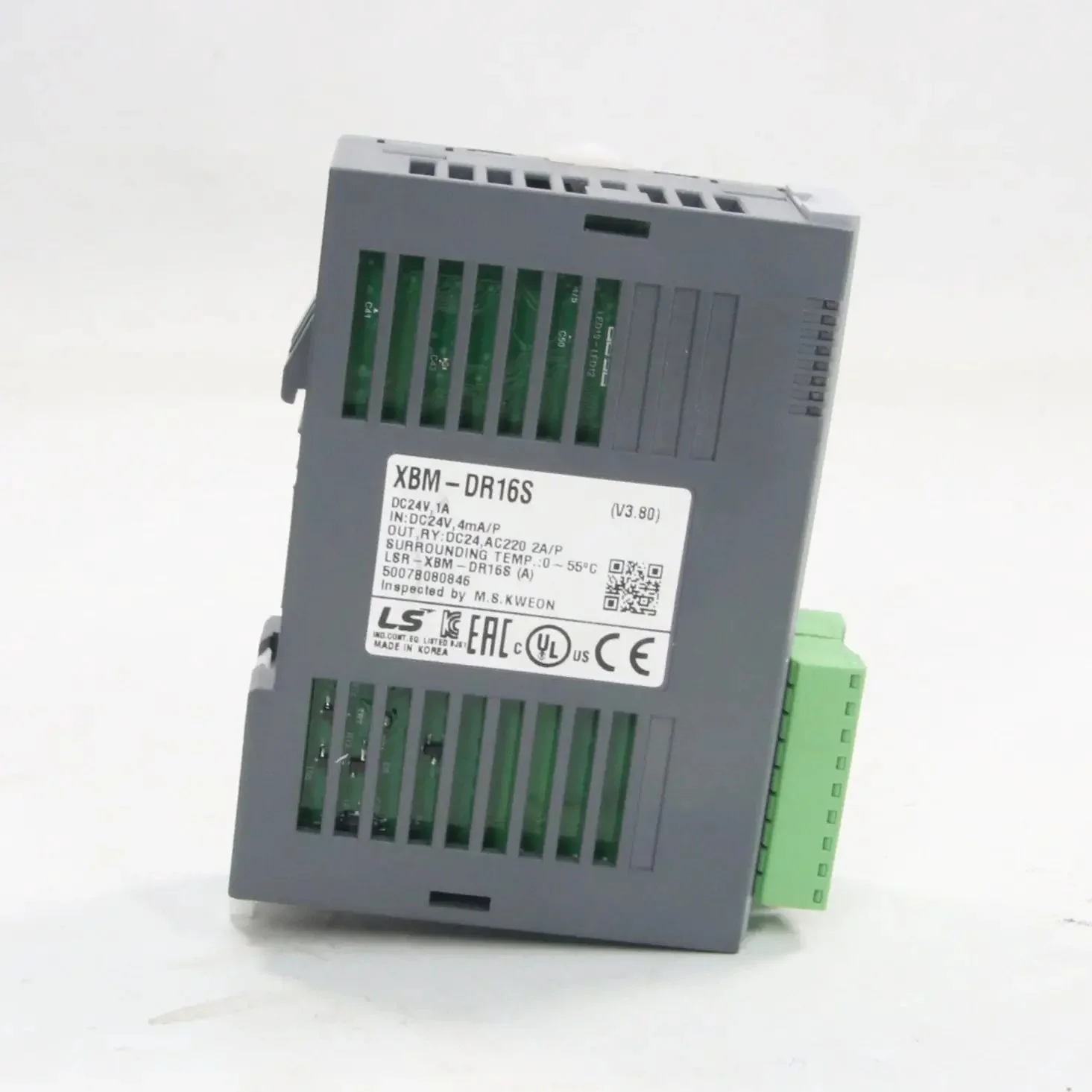

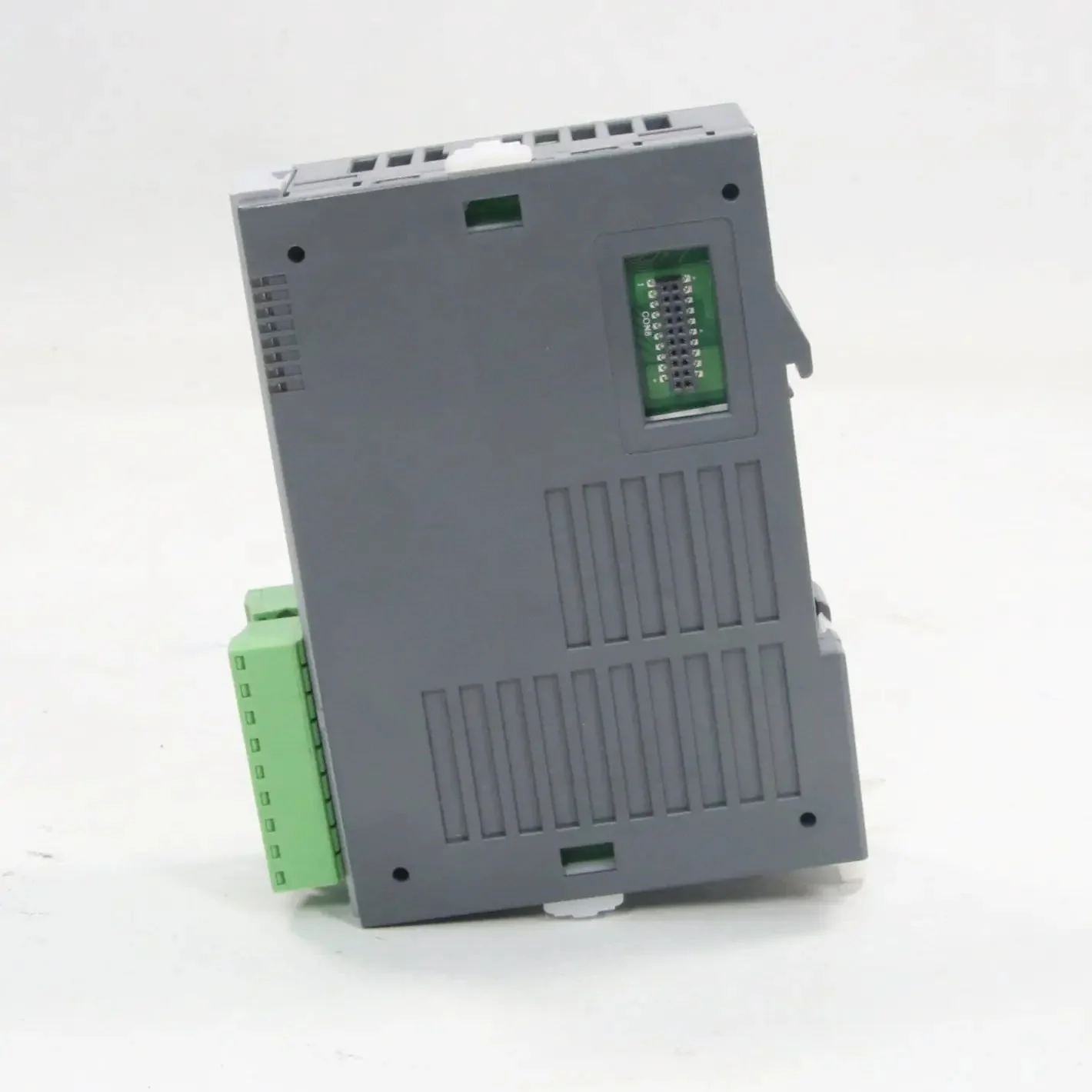

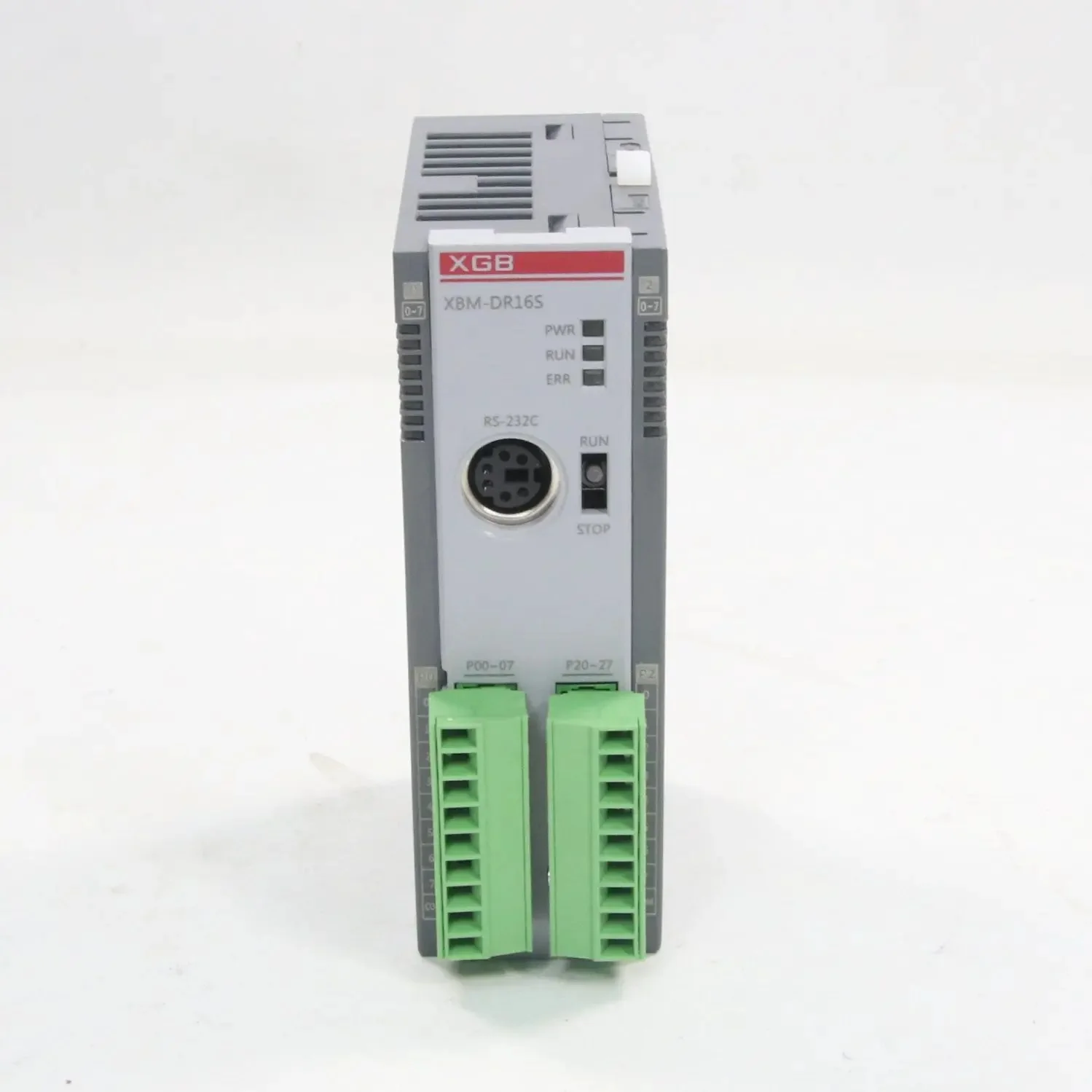

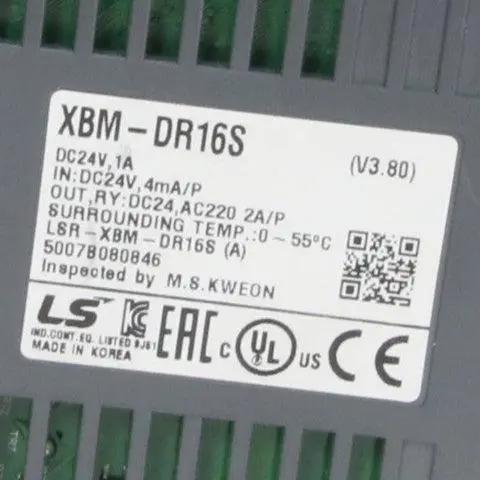

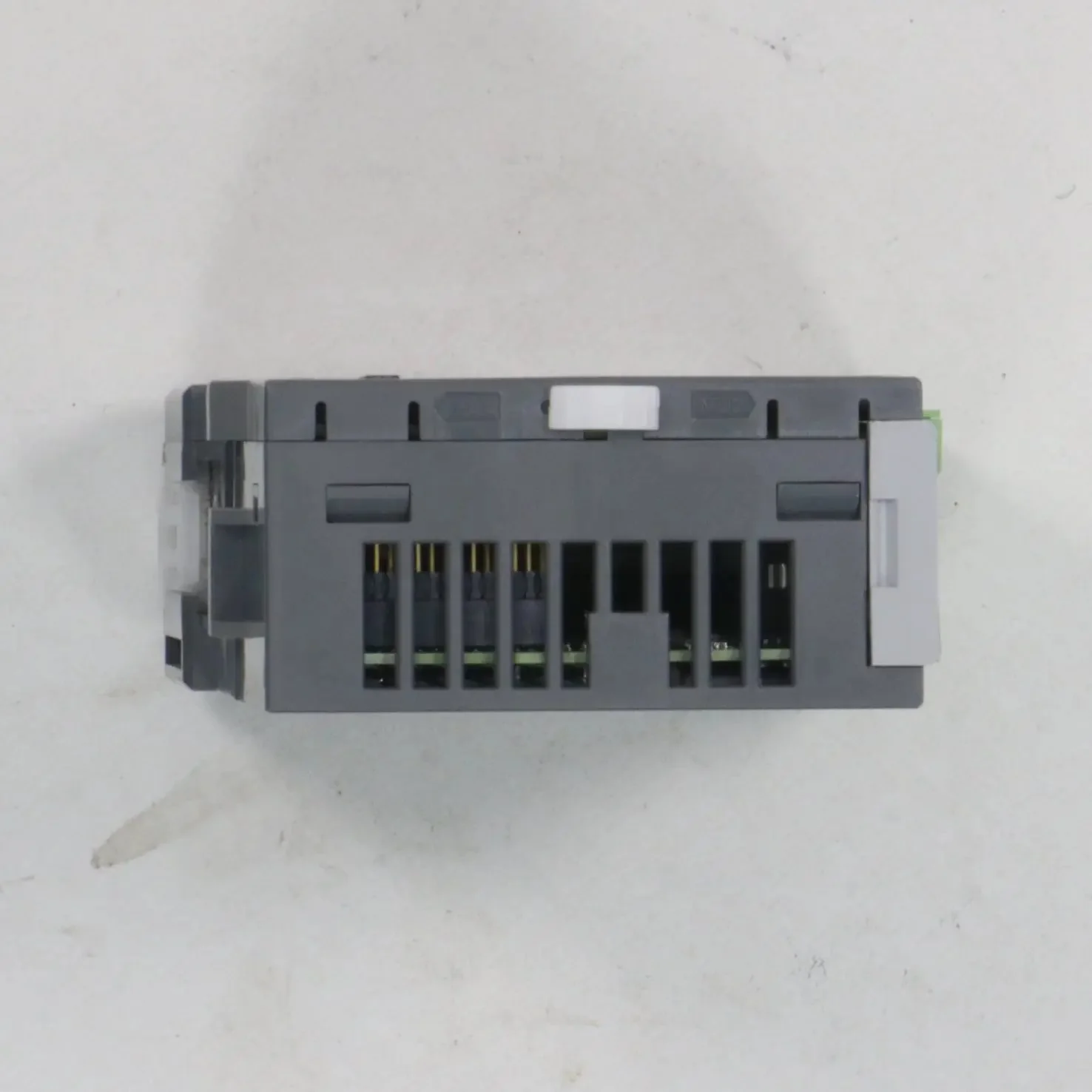

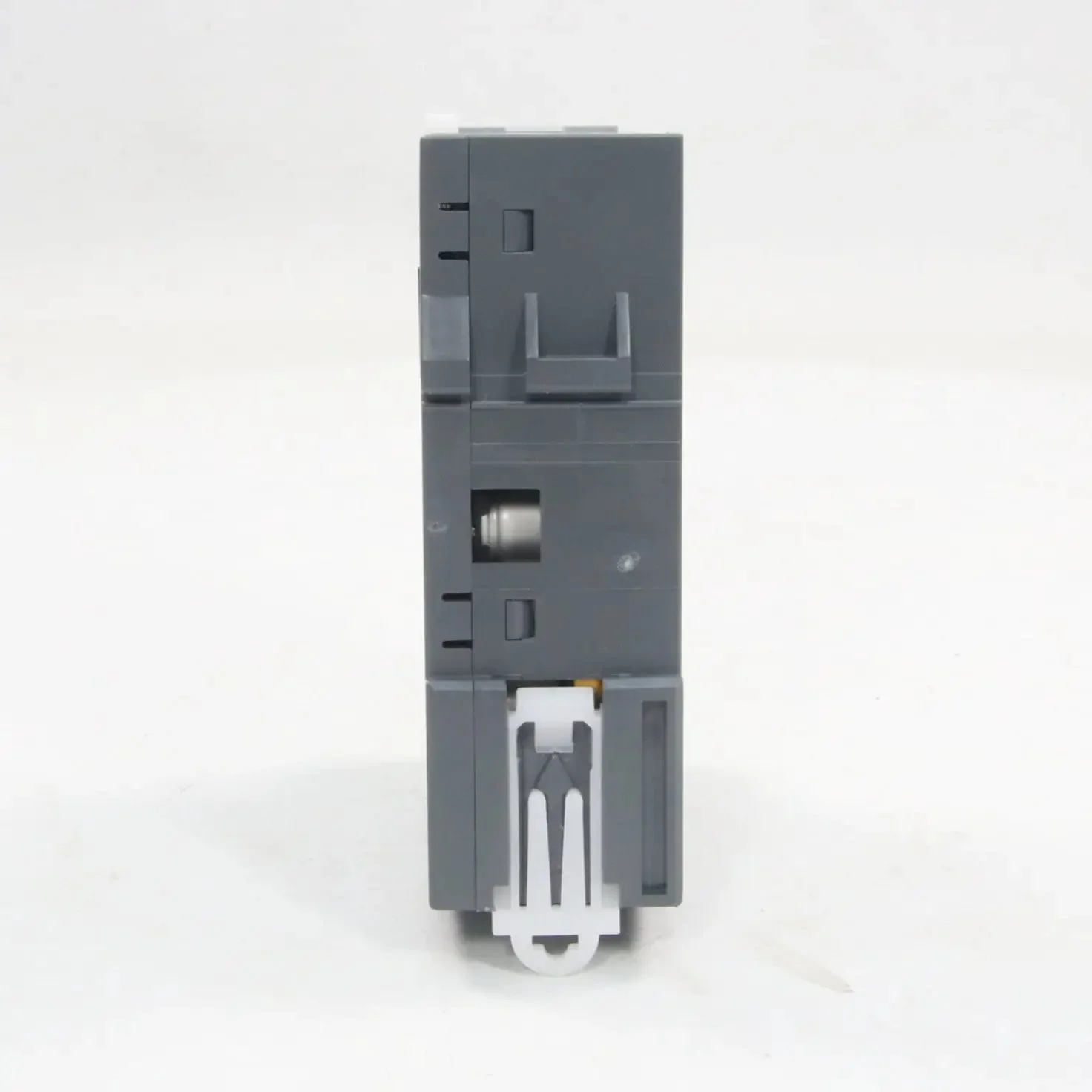

LS Electric XBM-DR16S Compact Micro PLC

- Brand: LS Electric
- Model: XBM-DR16S
- Type: Compact Micro PLC
- Tech Specs:
  - Material: Plastic housing for DIN rail mounting and industrial durability
  - Power Supply: 24 VDC
  - Inputs: 8 x DC24V inputs
  - Outputs: 8 x Relay outputs
  - CPU Processing Speed: 160 ns/step
  - Program Capacity: 10K steps
  - Communication: Built-in RS-232C/RS-485
  - Features: Built-in positioning function, pulse catch, input filter, external interrupt, PID control, high-speed counter; supports ladder programming; max 240-point I/O control; connector type for expansion
  - Operating Temperature Range: 0°C to +55°C
  - Standards: IEC/EN 61131-2; CE marked; EMC compliant
  - Certification: CE; RoHS compliant
- Dimensions: 90 x 60 x 32 mm
- Weight: 150 g
- Country of Origin: South Korea
- HS Code: 8537.10
