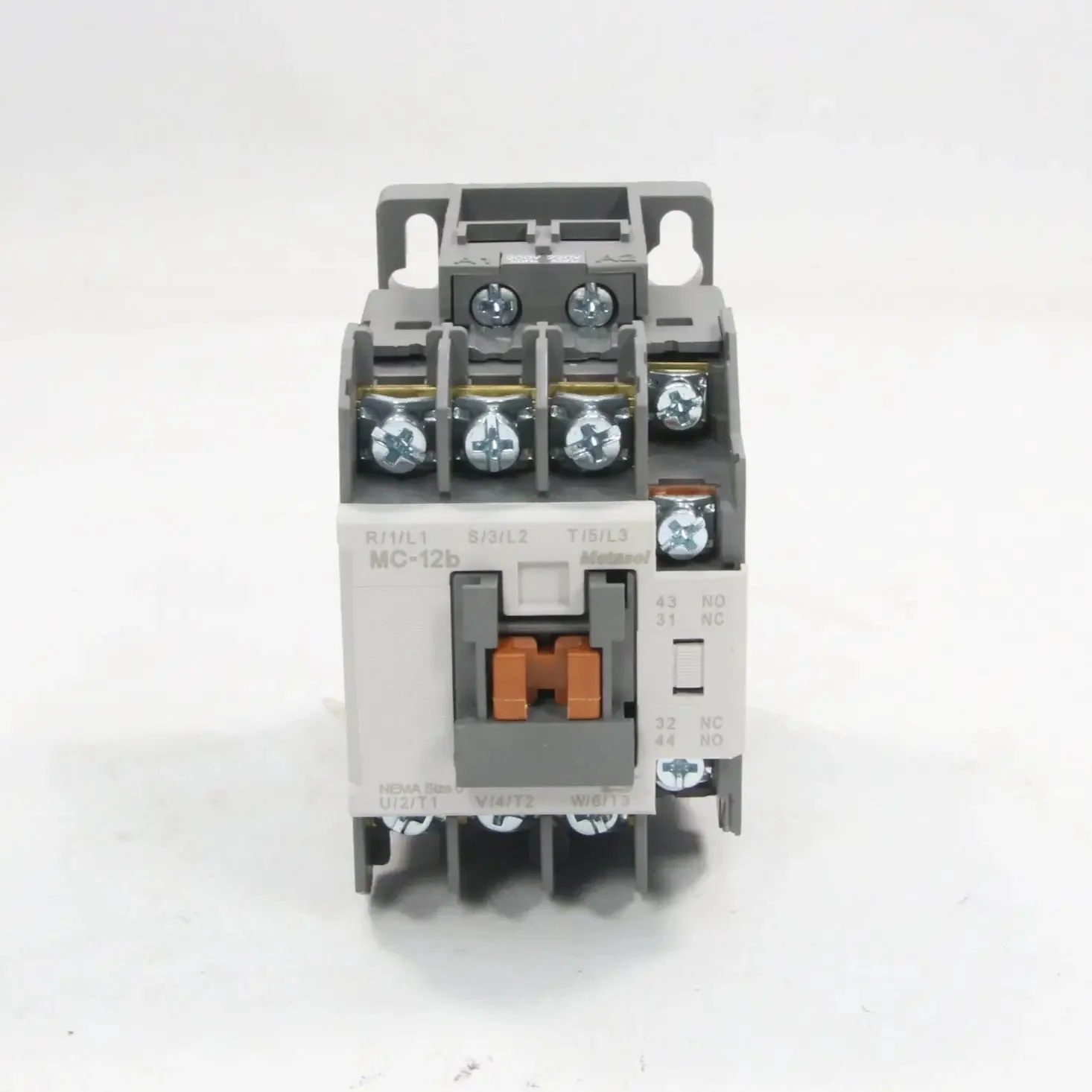

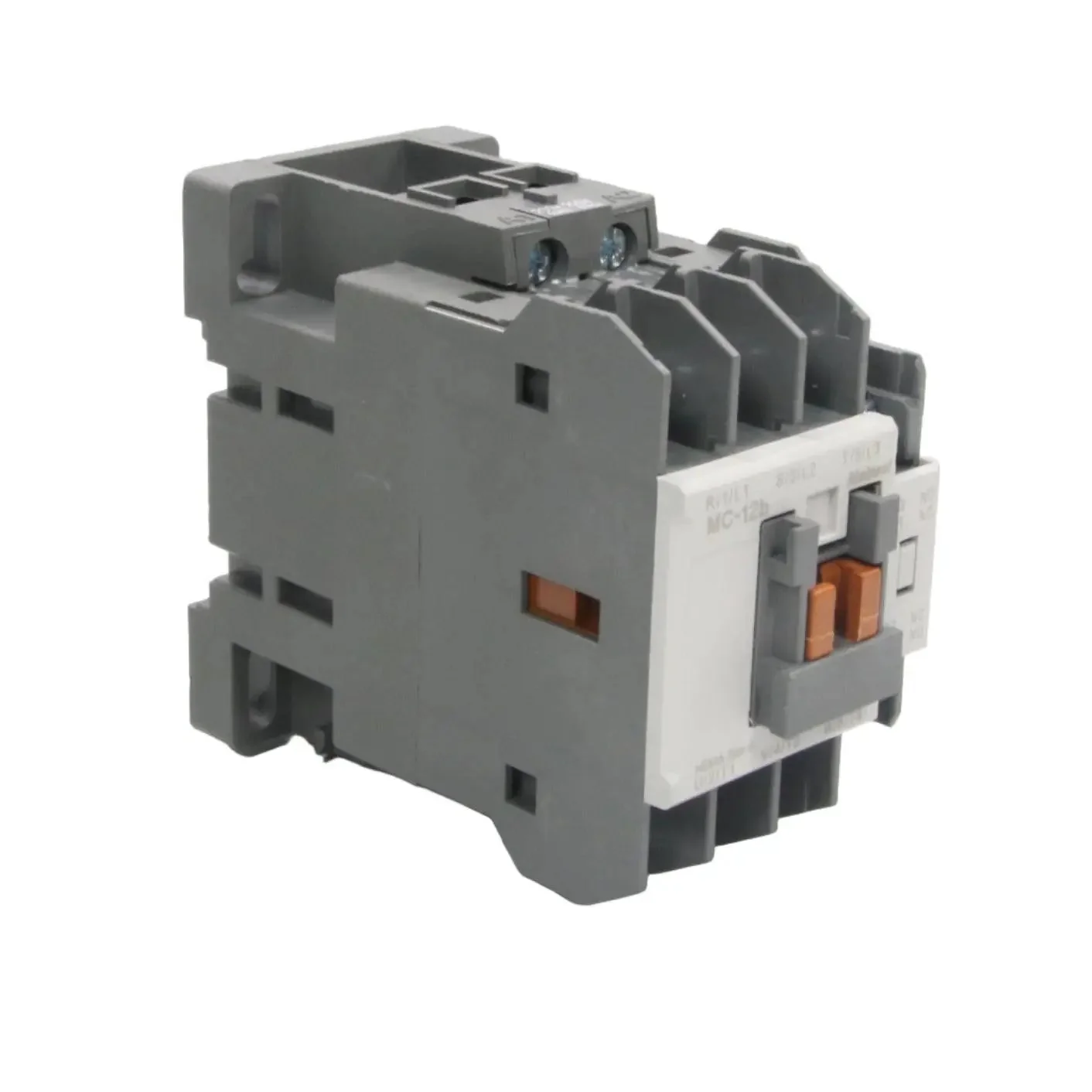

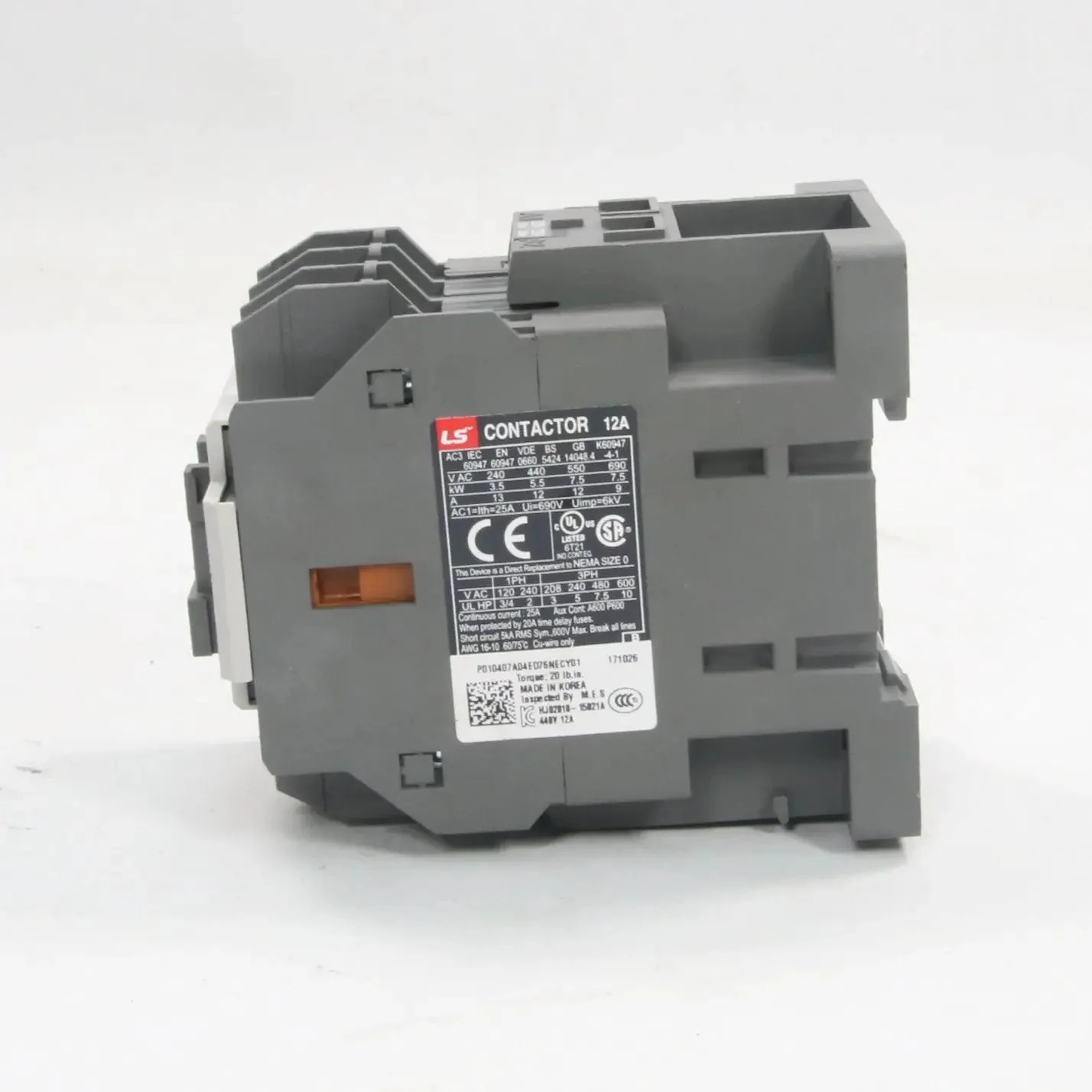

LS Electric MC-12b Magnetic Contactor
- Brand: LS Electric
- Model: MC-12B
- Type: Magnetic Contactor
- Tech Specs:
- Material: Thermoplastic enclosure with silver alloy contacts for arc resistance and durability
- Poles: 3-pole (main contacts NO x3)
- Rated Current: 12 A (continuous AC-3 rating)
- Rated Voltage: Up to 690 V AC

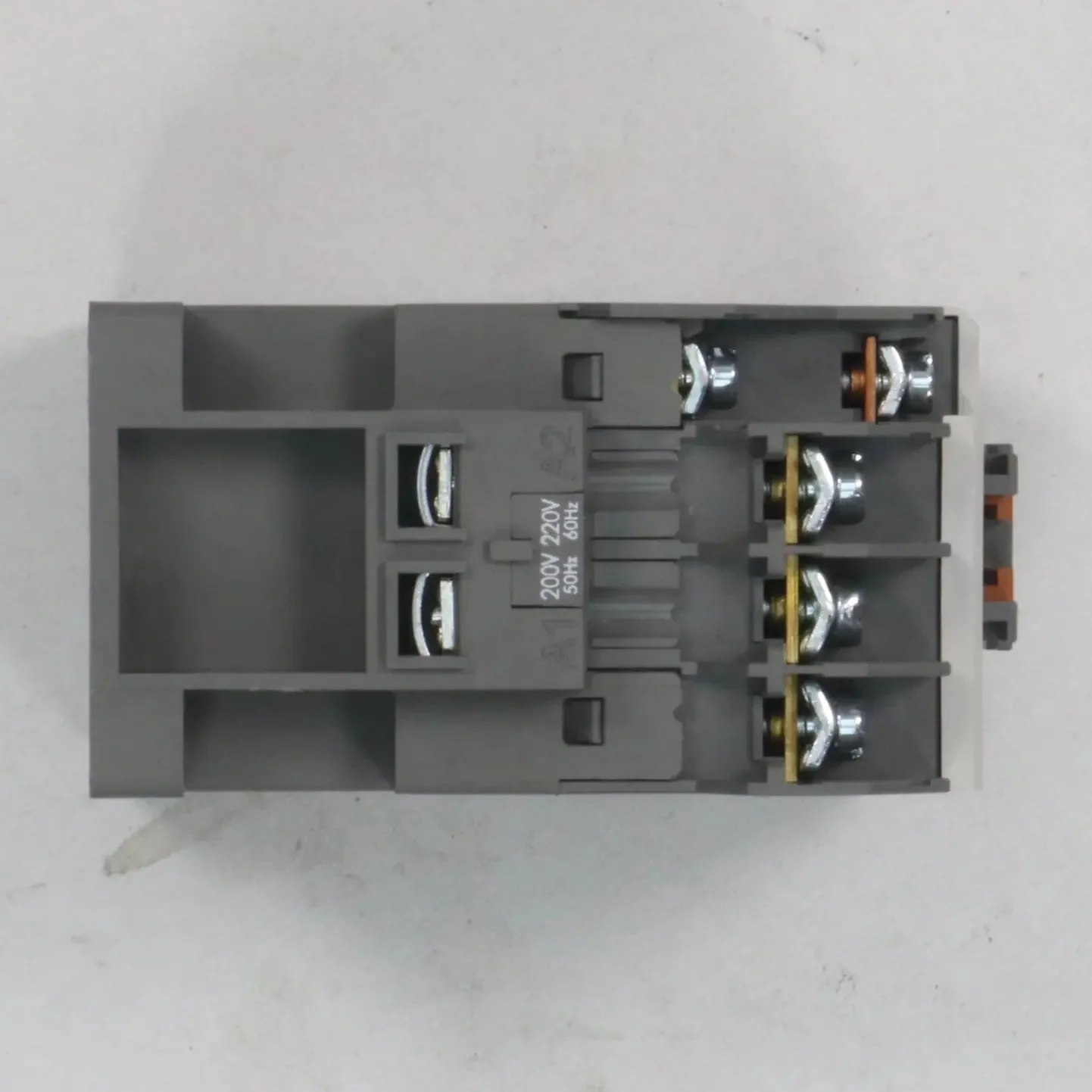

- Coil Voltage: 200V @ 50Hz/220V @ 60Hz
- Auxiliary Contacts: 1 NO + 1 NC (built-in)
- Utilization Category: AC-3 (motor loads), AC-21A (non-inductive)

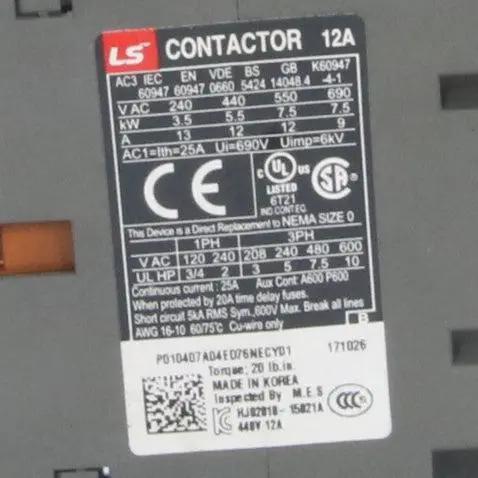

- Motor Rating: 5 HP at 230 V 3-phase; 7.5 HP at 460 V 3-phase
- Frequency: 50/60 Hz
- Mechanical Life: >1 million operations
- Electrical Life: >10,000 operations at rated load
- Standards: IEC/EN 60947-4-1; EMC compliant
- Certification: CE marked; RoHS compliant
- Features: DIN rail mountable; sealed structure for arc safety; suitable for overload relay integration
- Dimension: 88 x 74 x 45 mm
- Weight: 300 g
- Country of Origin: South Korea
- HS Code: 8536.50
