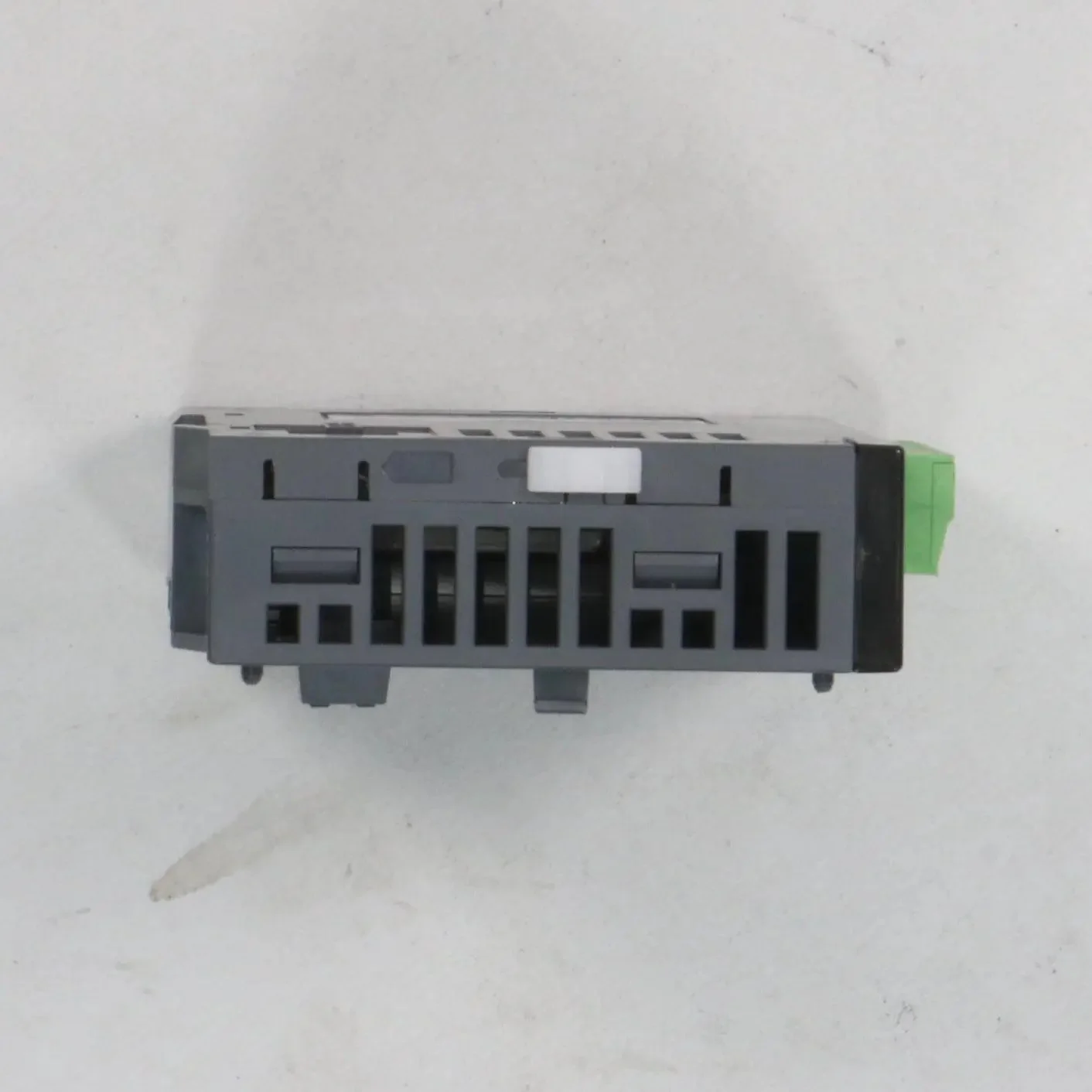

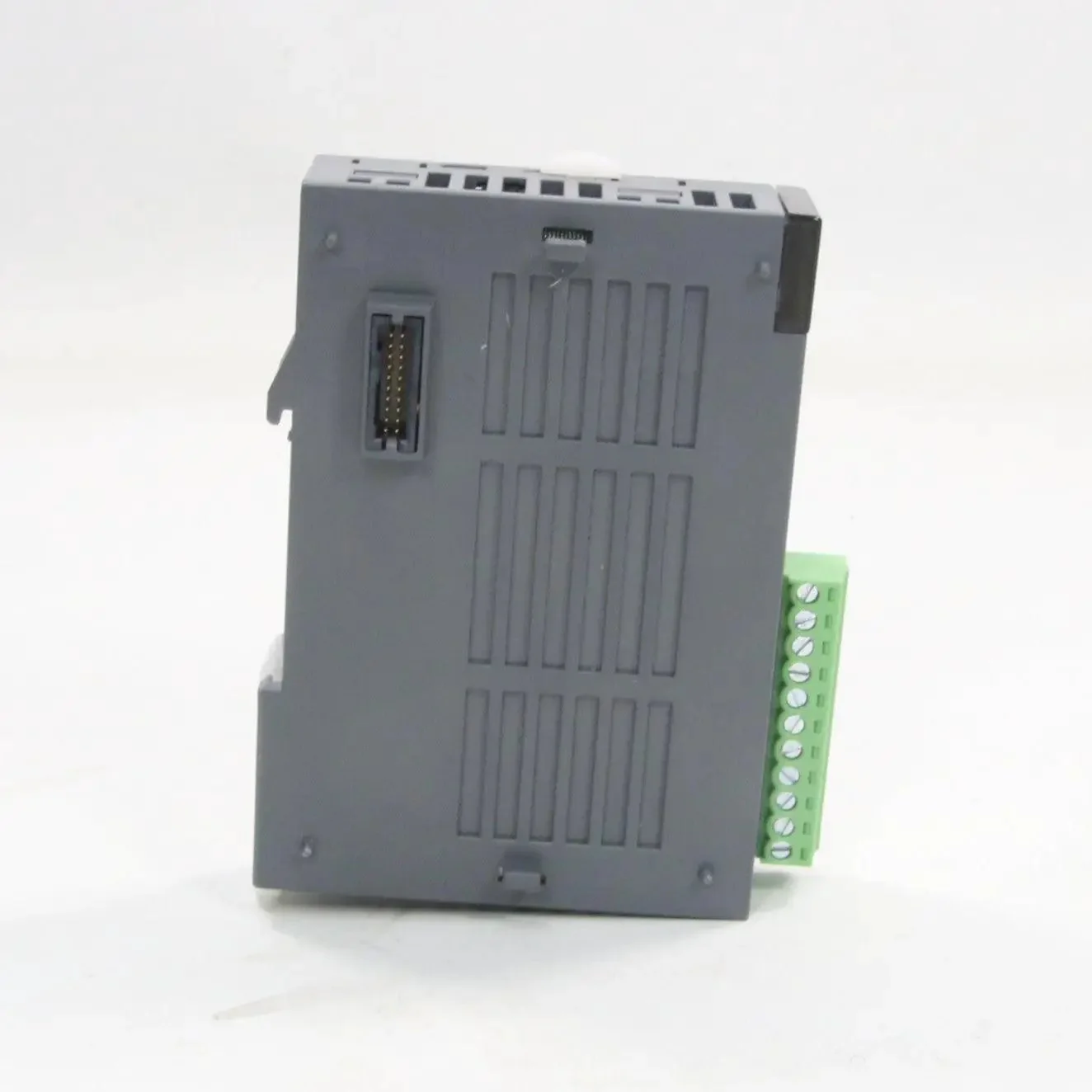

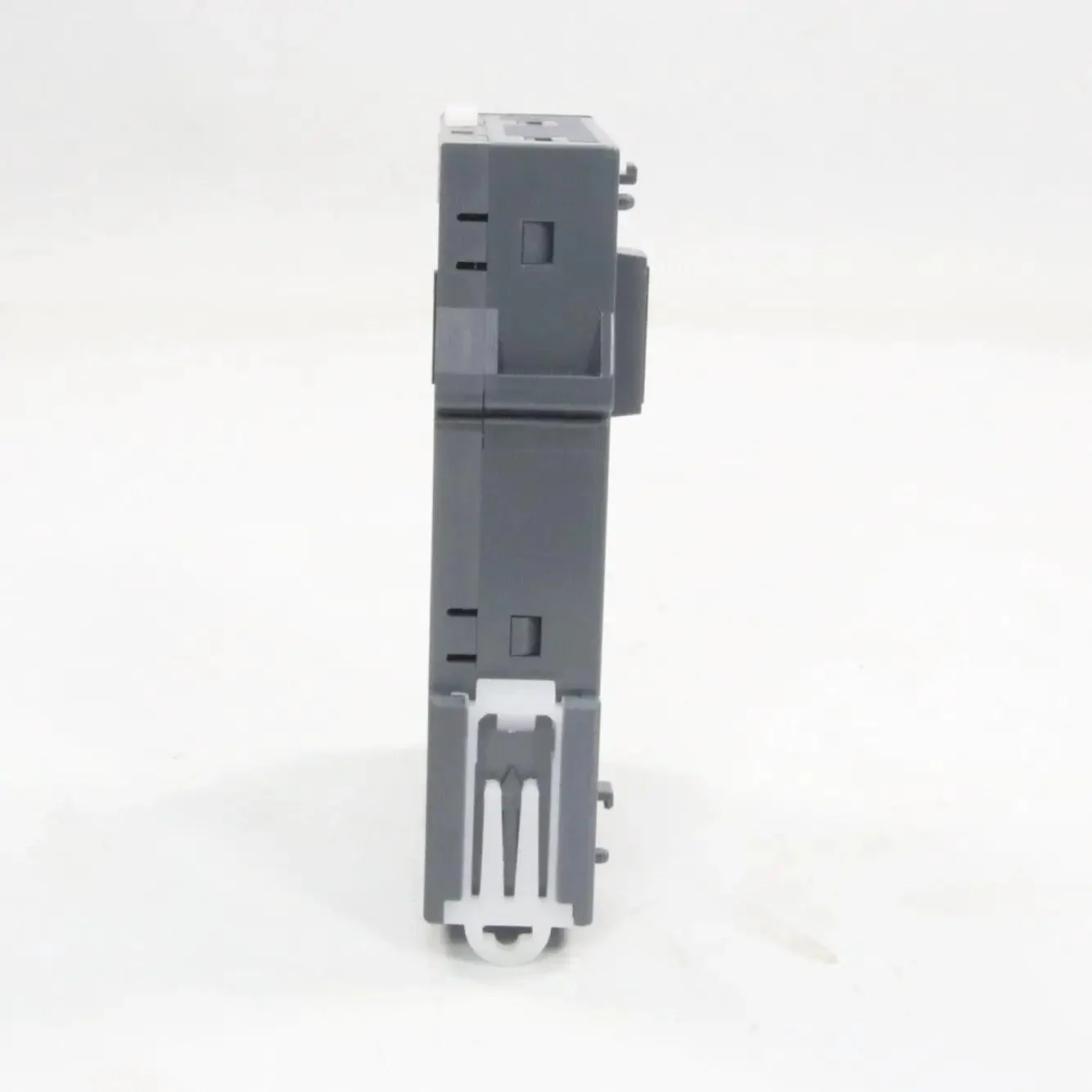

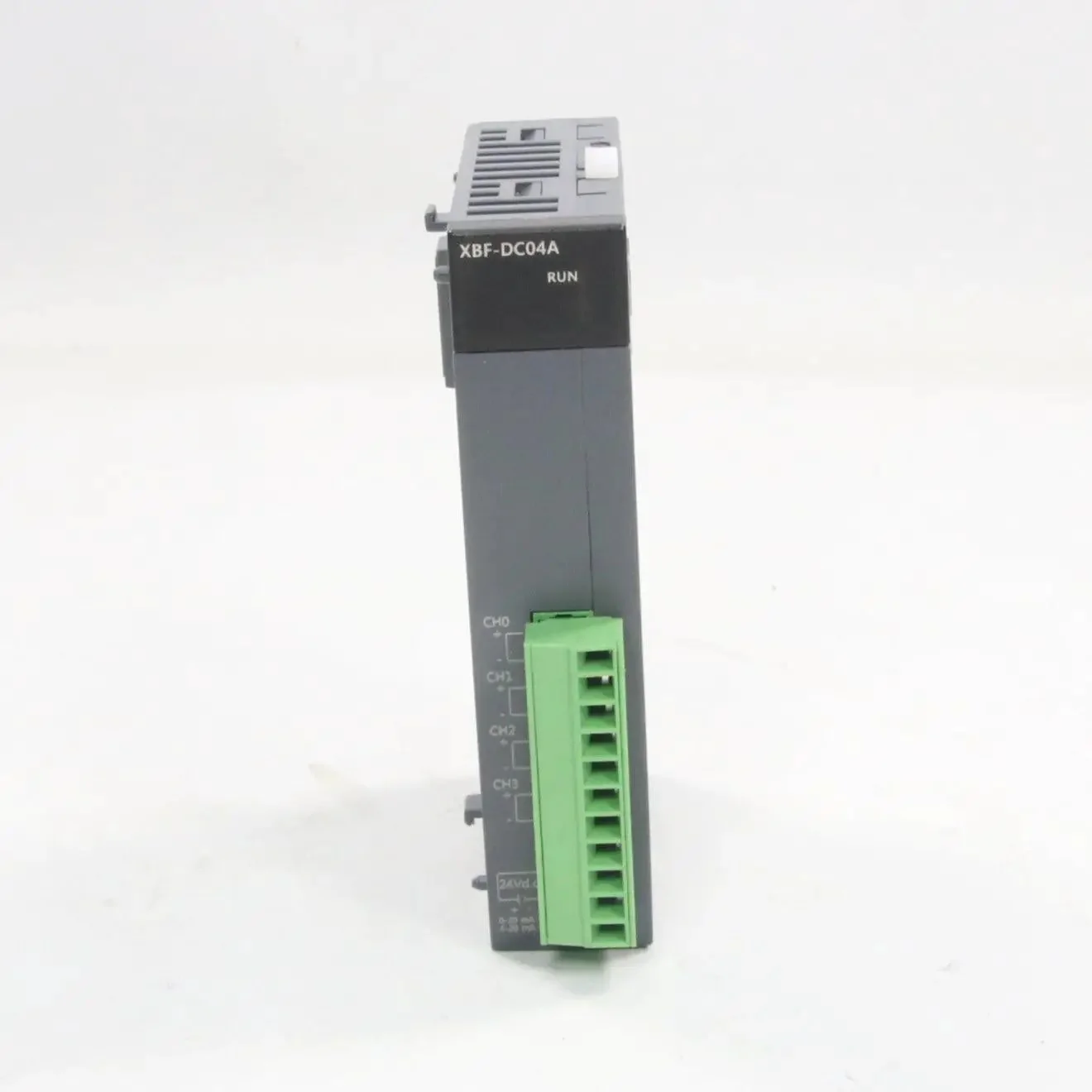

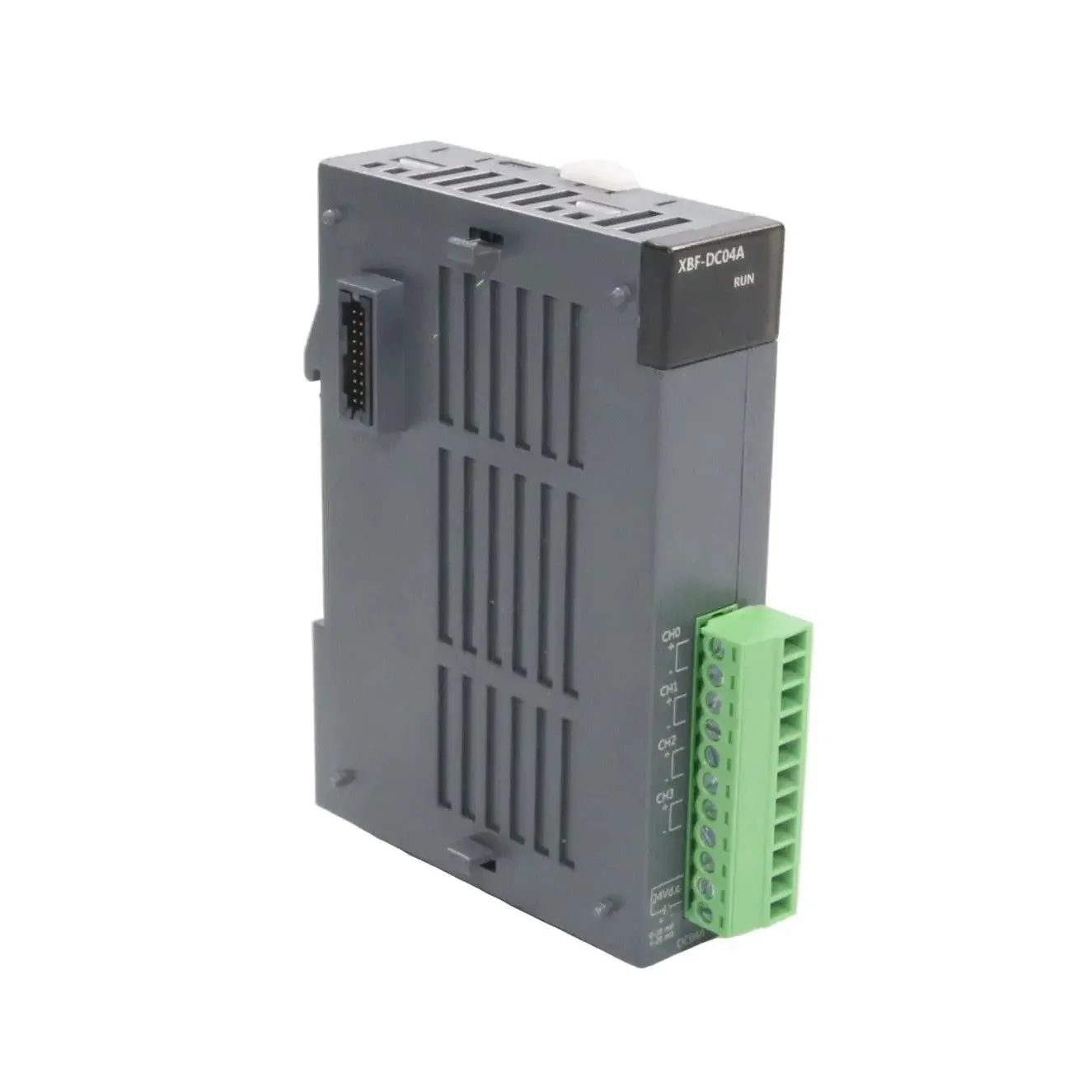

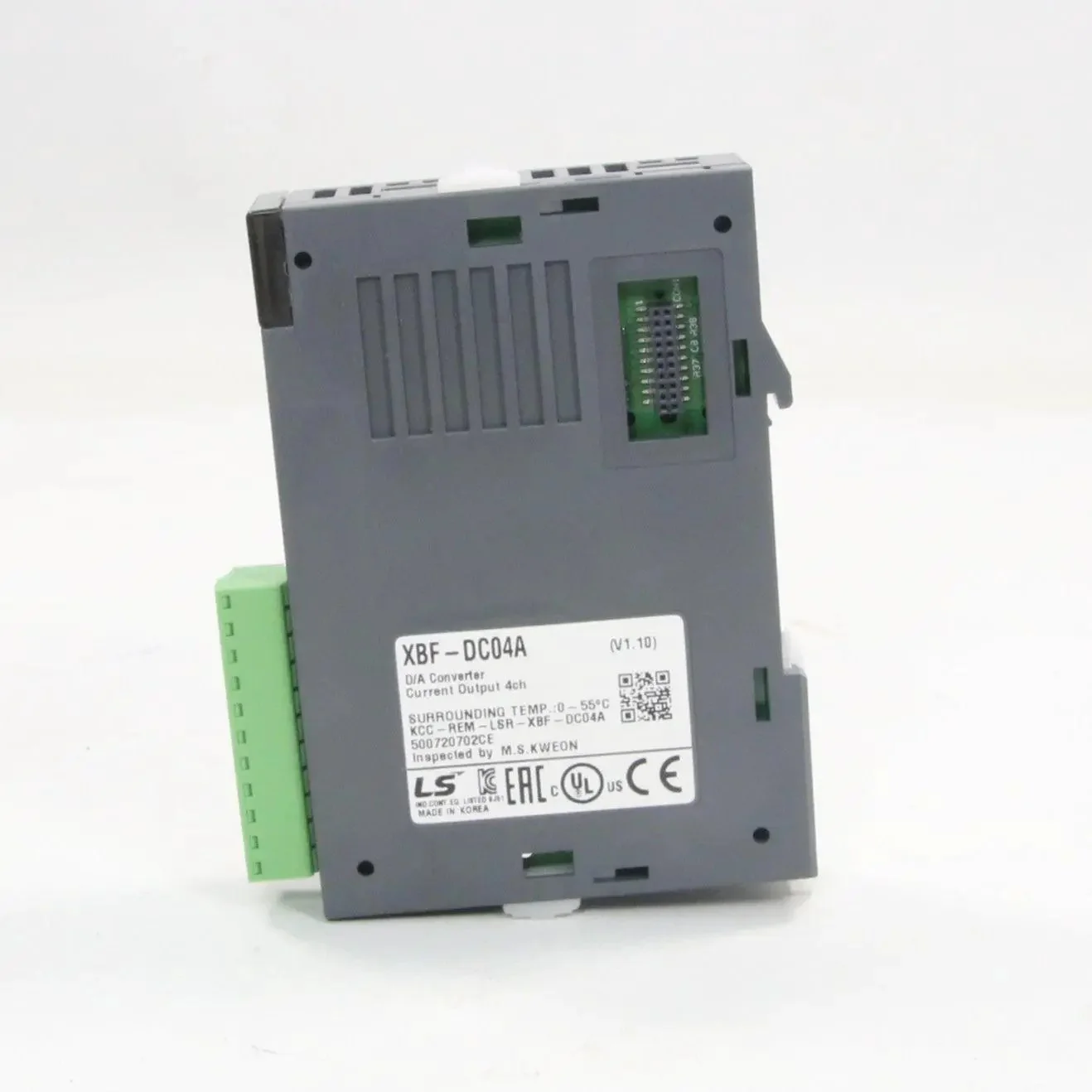

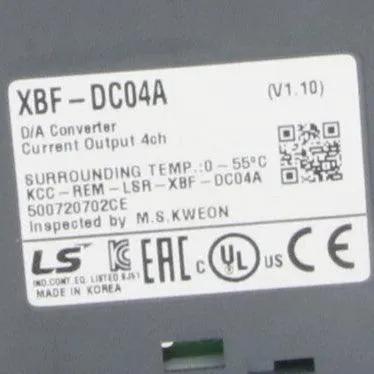

LS Electric XBF-DC04A Analog Output Module

- Brand: LS Electric
- Model: XBF-DC04A
- Type: Analog Output Module
- All Tech Specs:
  - Material: Plastic housing for DIN rail mounting and industrial durability
  - Number of Channels: 4
  - Output Types: Current (0-20 mA, 4-20 mA)
  - Resolution: 12-bit
  - Accuracy: ±0.5% or less
  - Conversion Speed: 1 ms per channel
  - Wiring: Screw terminals
  - Compatibility: SU, M, and U type XGB PLCs
  - Operating Temperature Range: 0°C to +55°C
  - Storage Temperature Range: -20°C to +70°C
  - Humidity: 5-95% RH
  - Protection Rating: IP20
  - Standards: IEC/EN 61131-2; CE marked; EMC compliant (Class A)
  - Certification: CE; RoHS compliant
  - Features: Supports linearization and scaling; no external power needed; suitable for process control, sensors, and instrumentation
- Dimension: 90 x 60 x 32 mm
- Weight: 80 g
- Country of Origin: South Korea
- HS Code: 8537.10
