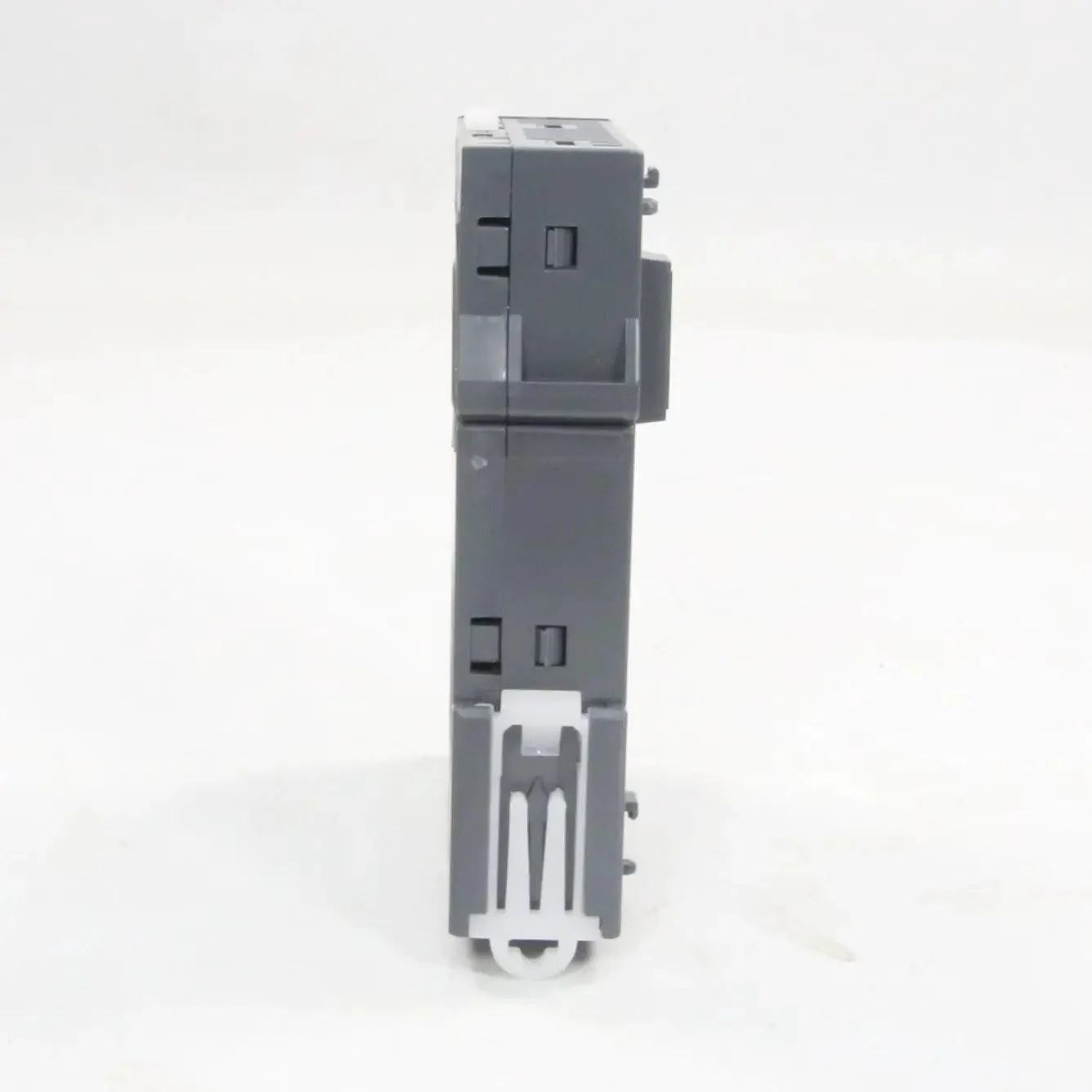

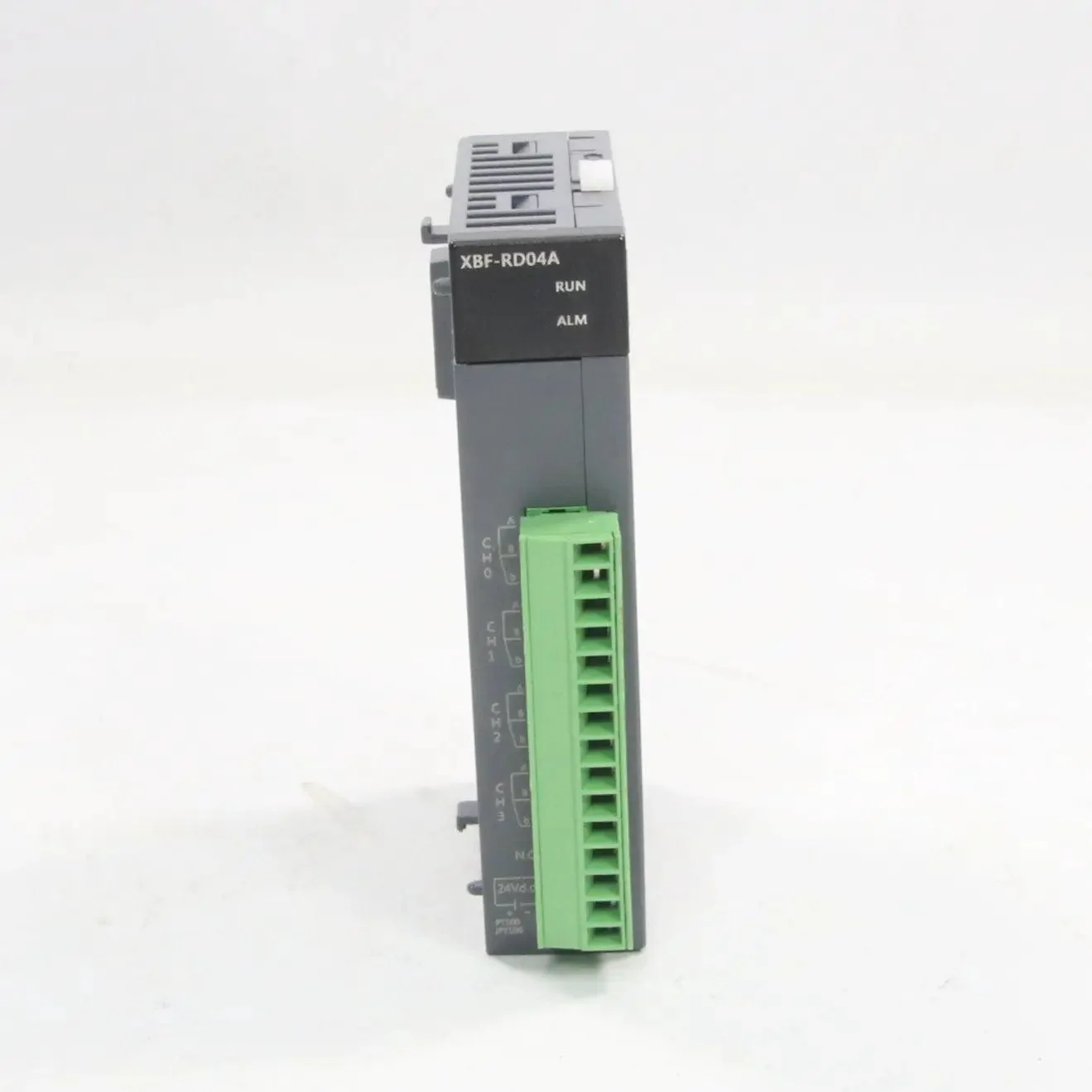

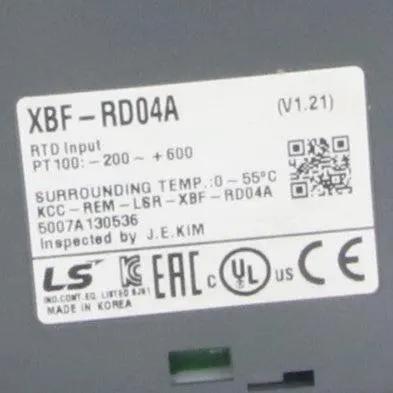

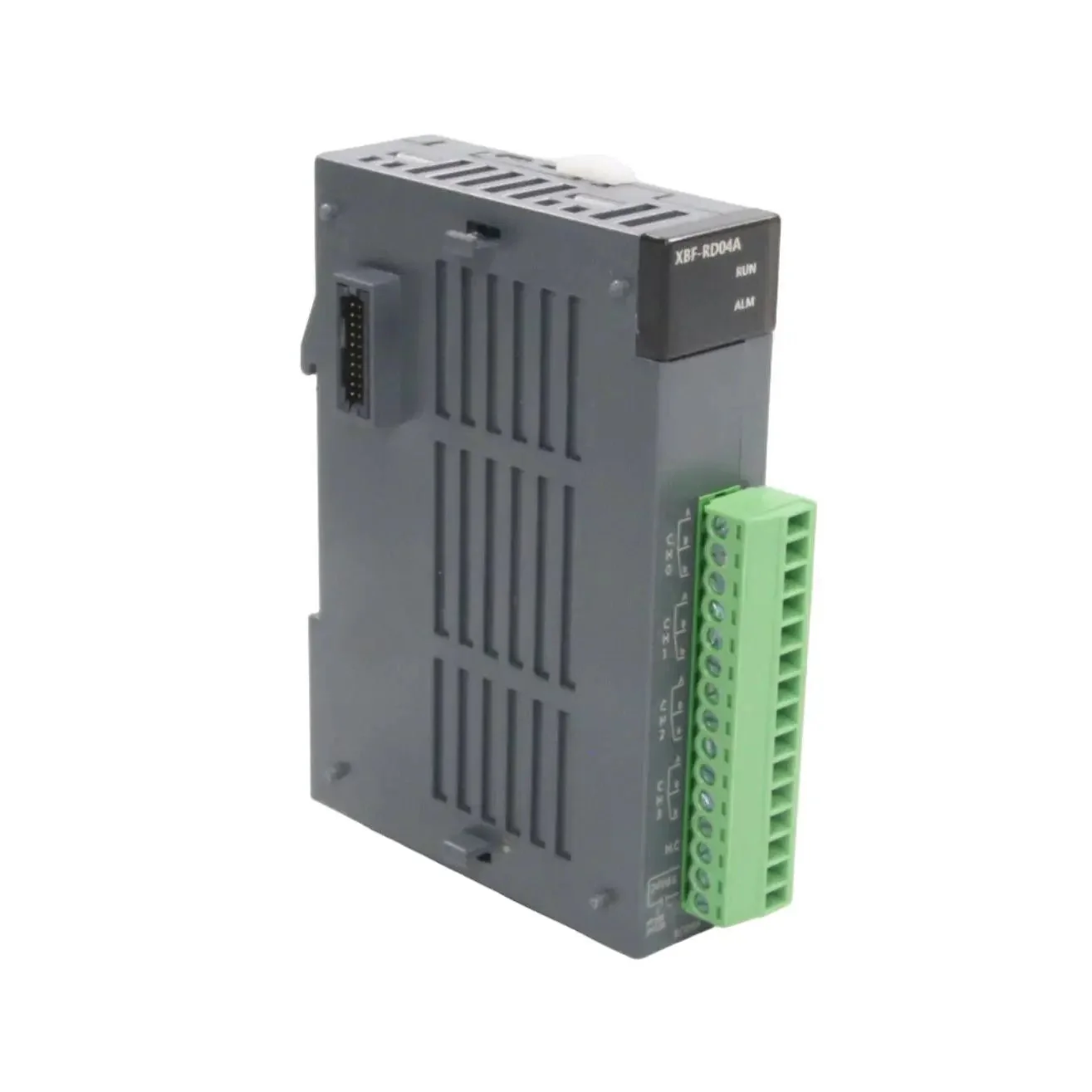

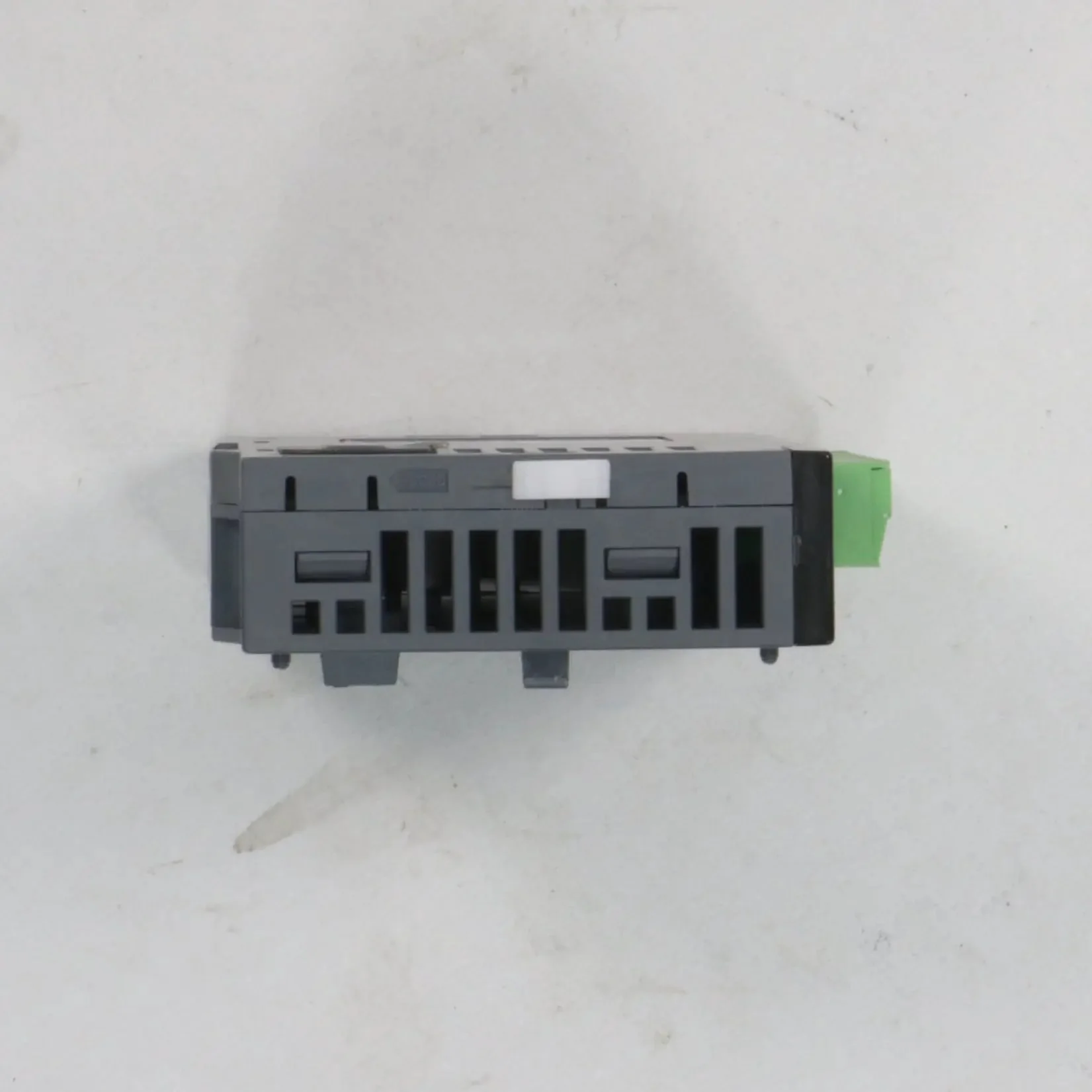

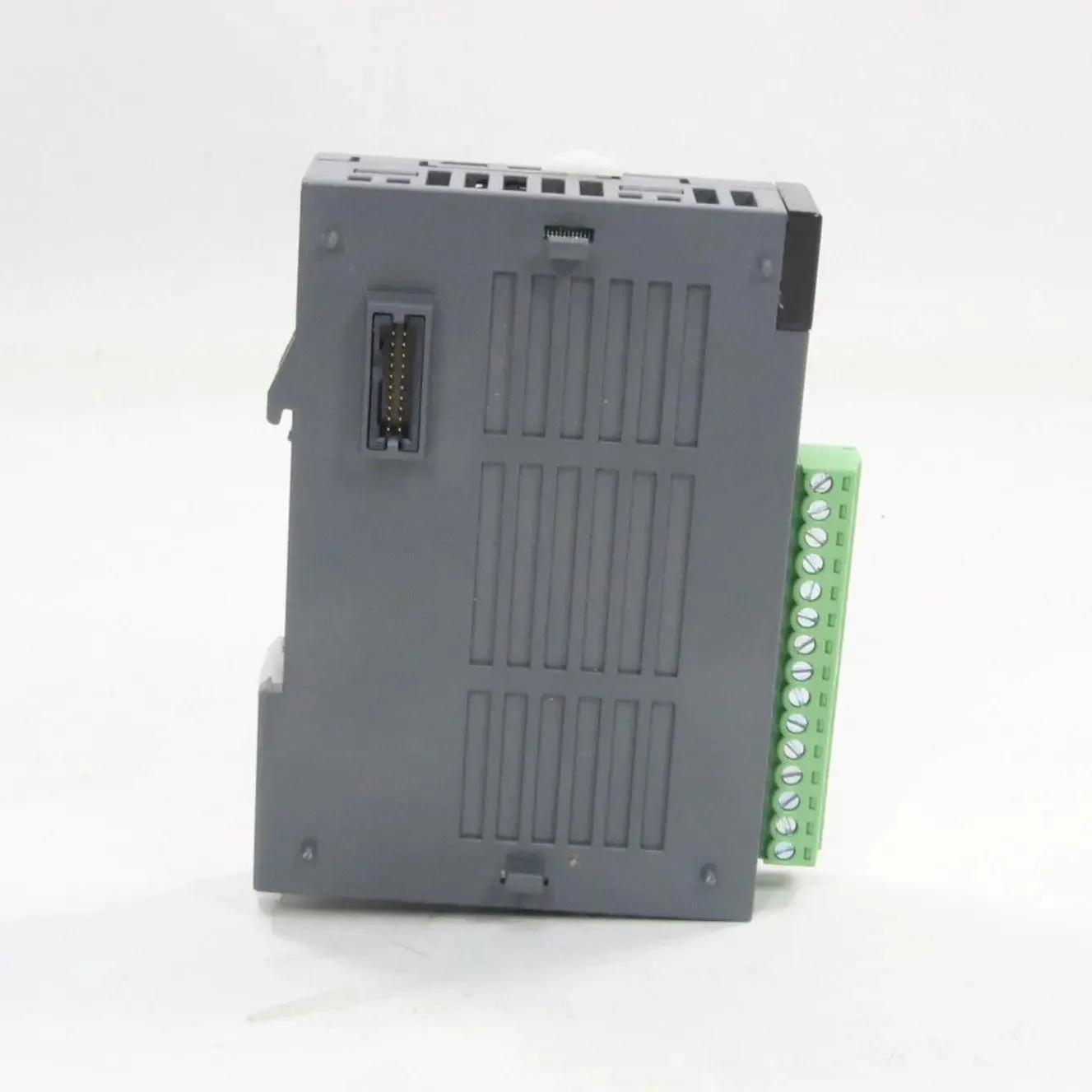

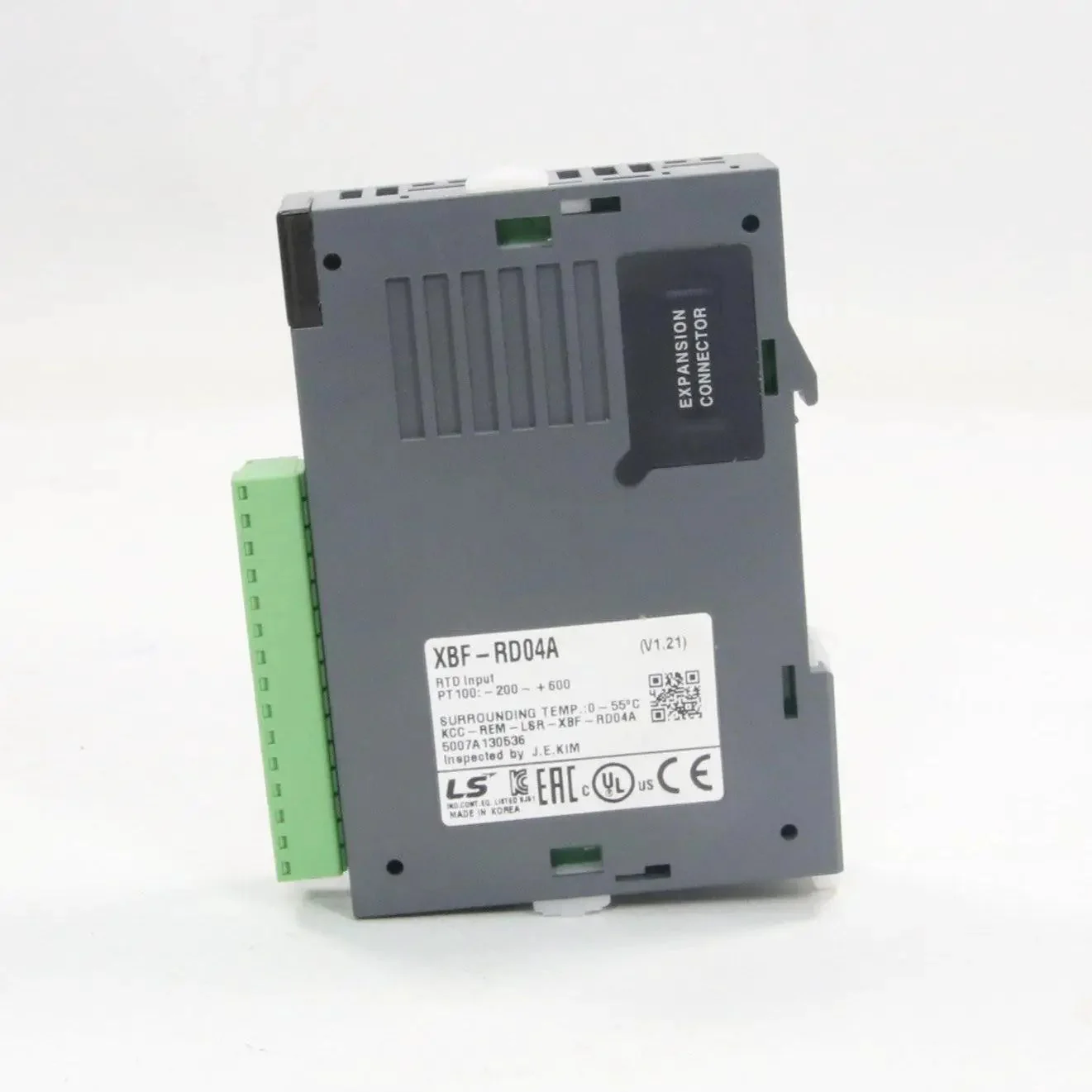

LS Electric XBF-RD04A RTD Input Module

- Brand: LS Electric
- Model: XBF-RD04A
- Type: RTD Input Module
- All Tech Specs:
  - Material: Plastic housing for DIN rail mounting and industrial durability
  - Number of Channels: 4 (RTD inputs)
  - Input Type: PT100 (JIS C1604-1997), JPT100 (JIS C1604-1981, KS C1603-1991); 2/3-wire configuration
  - Temperature Range: -200°C to +600°C
  - Resolution: 12-bit (0.1°C for PT100)
  - Accuracy: ±0.3% of full scale
  - Sampling Rate: Up to 10 ms per channel
  - Connection: Screw terminals
  - Operating Temperature Range: 0°C to +55°C
  - Storage Temperature Range: -20°C to +70°C
  - Humidity: 5-95% RH
  - Protection Rating: IP20
  - Standards: IEC/EN 61131-2; CE marked; EMC compliant (Class A)
  - Certification: CE; RoHS compliant
  - Features: Compatible with XGB SU/M/U type PLCs; supports linearization and scaling; no external power needed; suitable for process control and monitoring
- Dimension: 85 x 50 x 20 mm
- Weight: 80 g
- Country of Origin: South Korea
- HS Code: 8537.10
