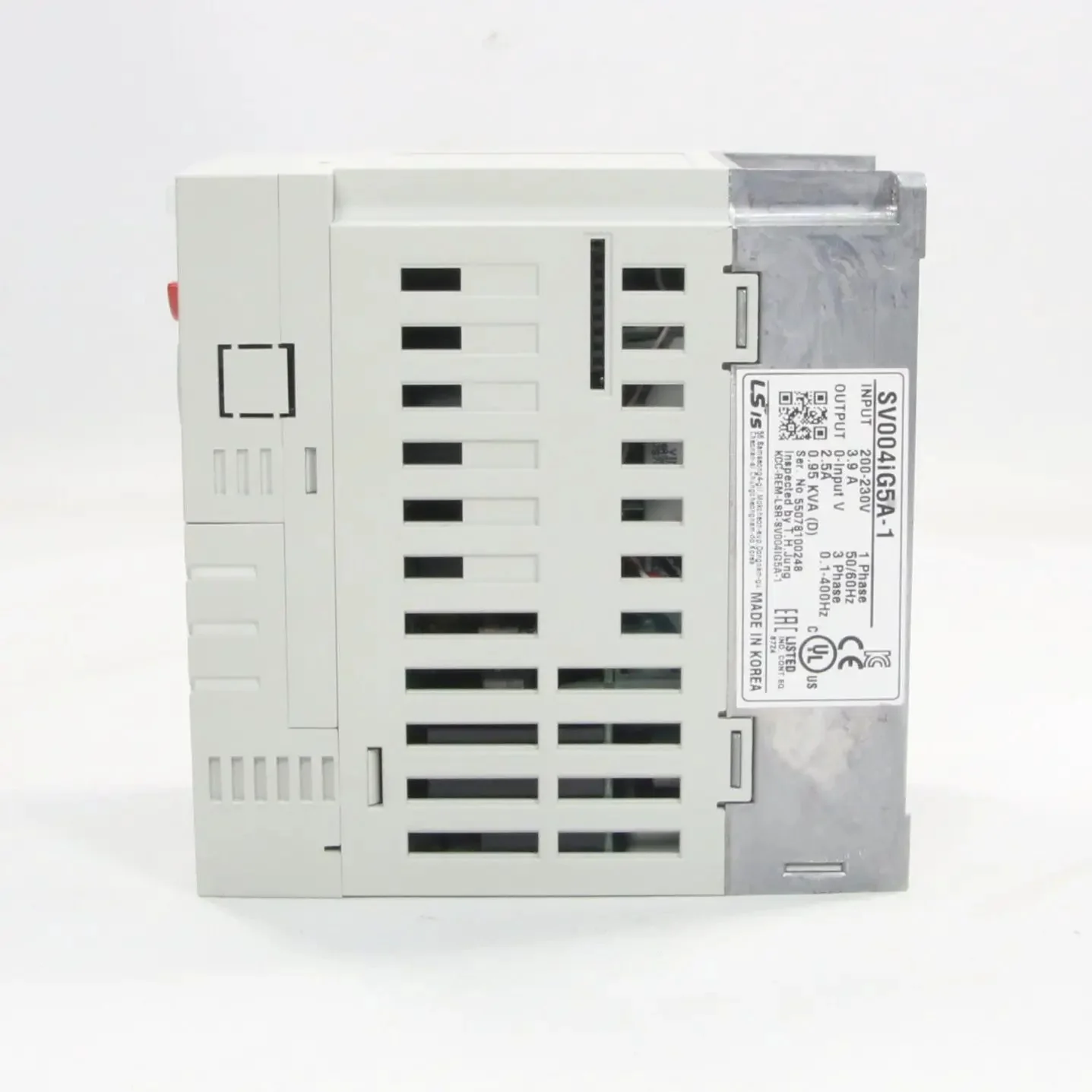

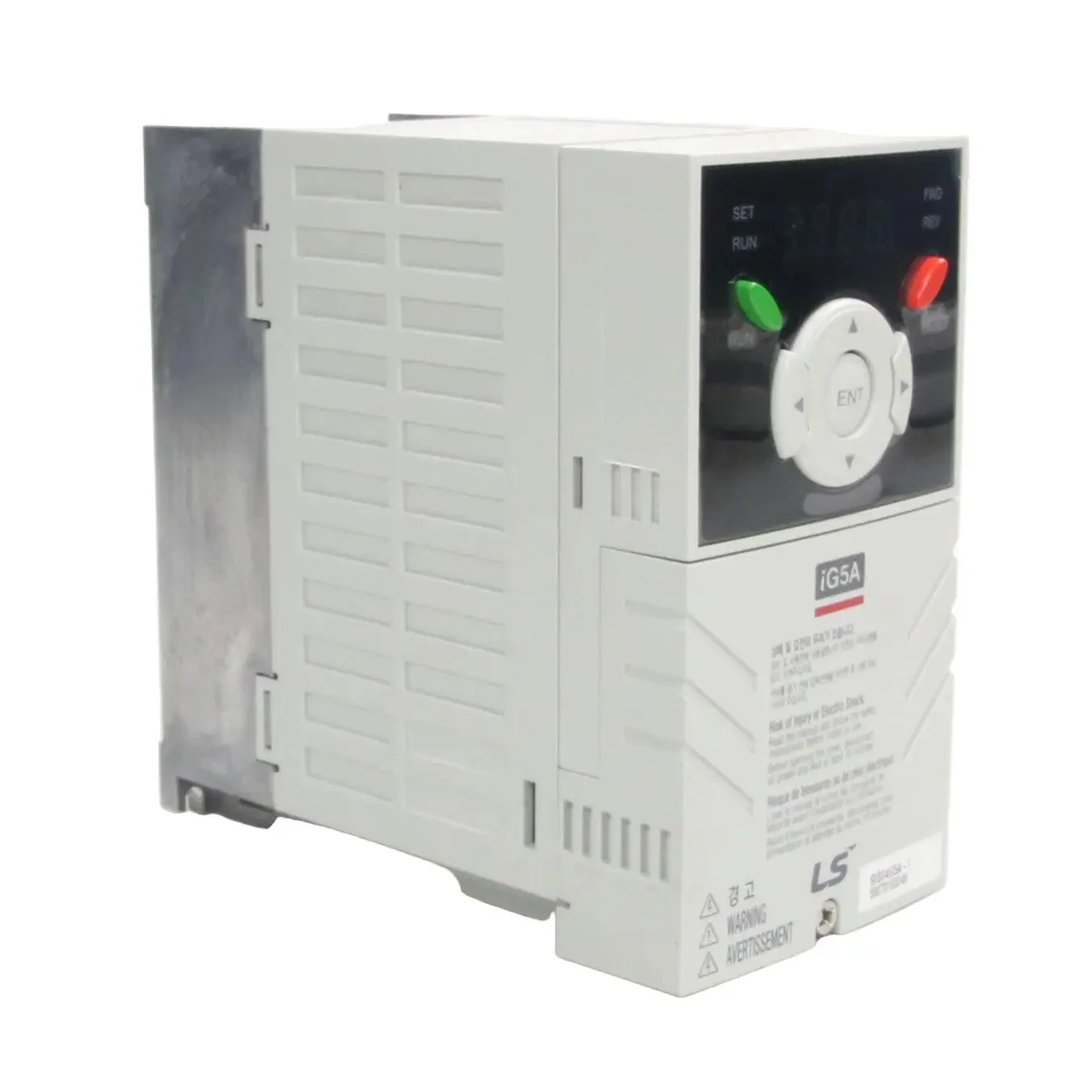

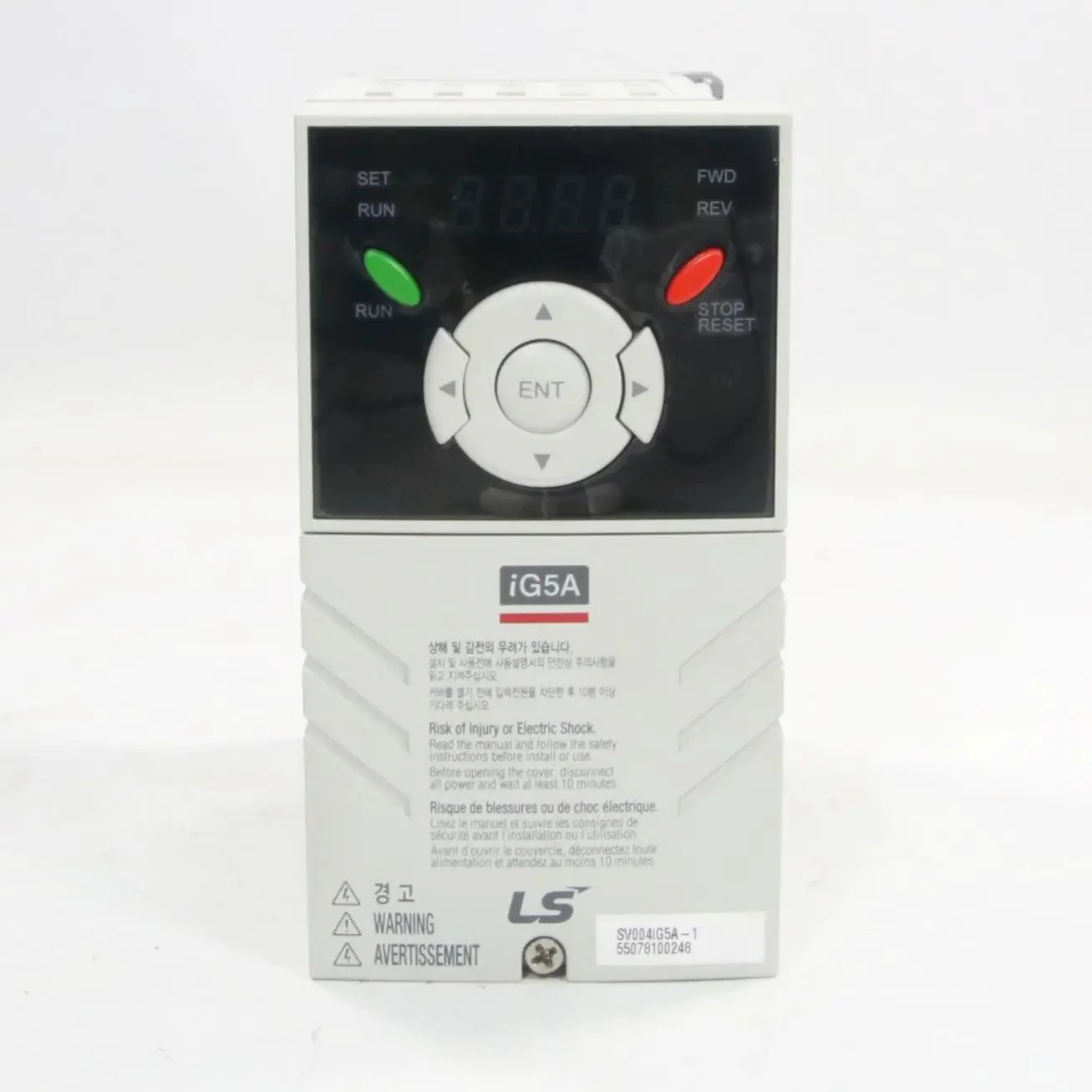

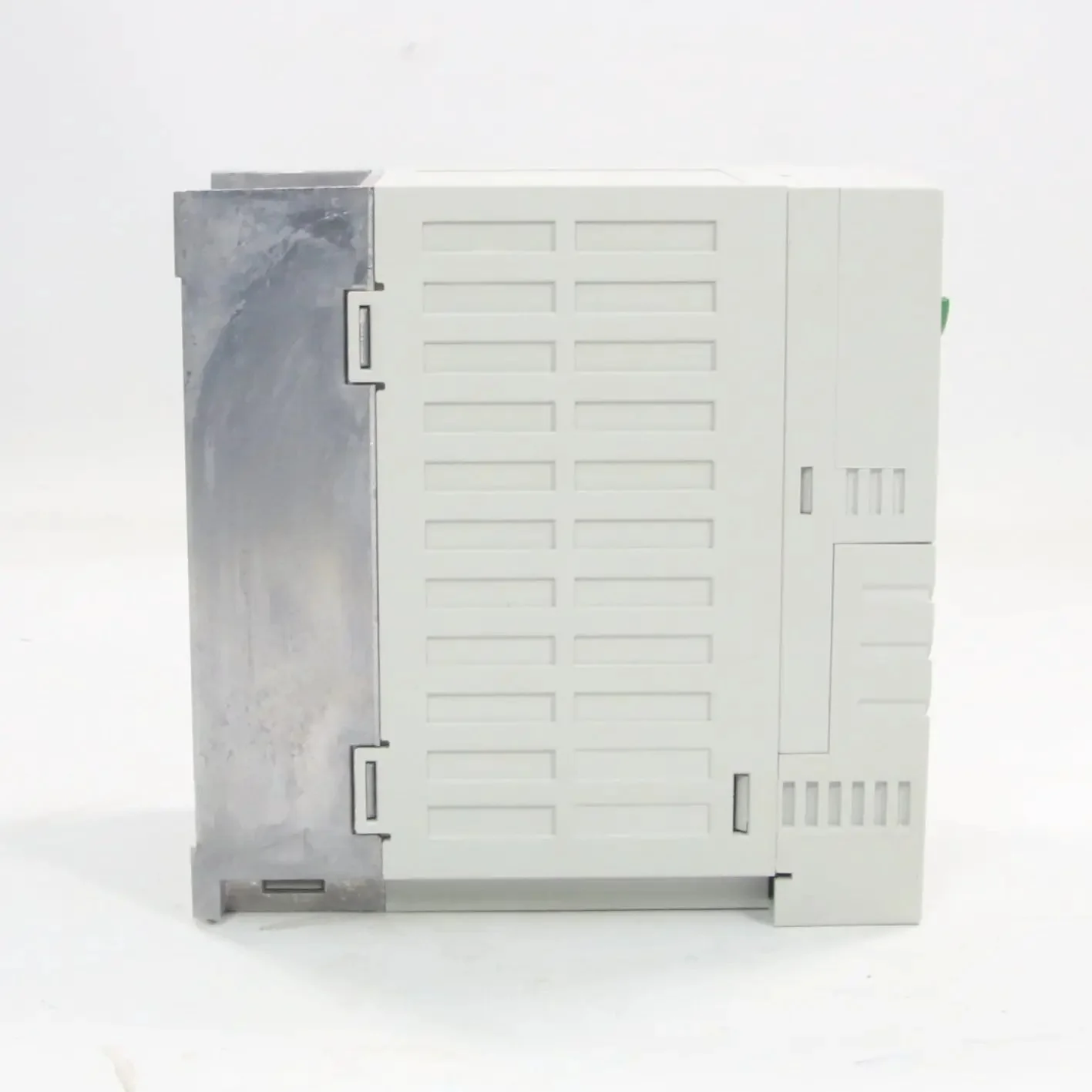

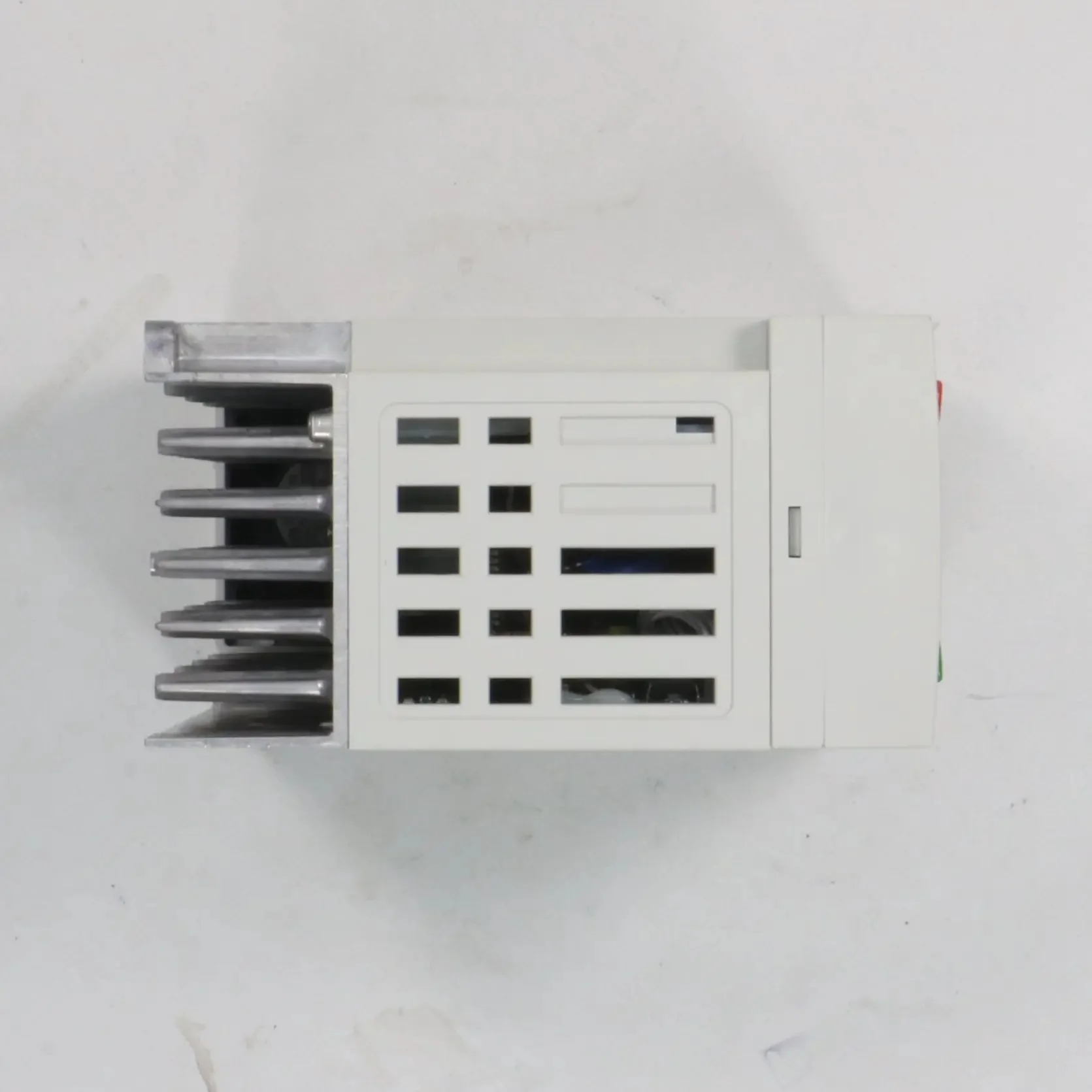

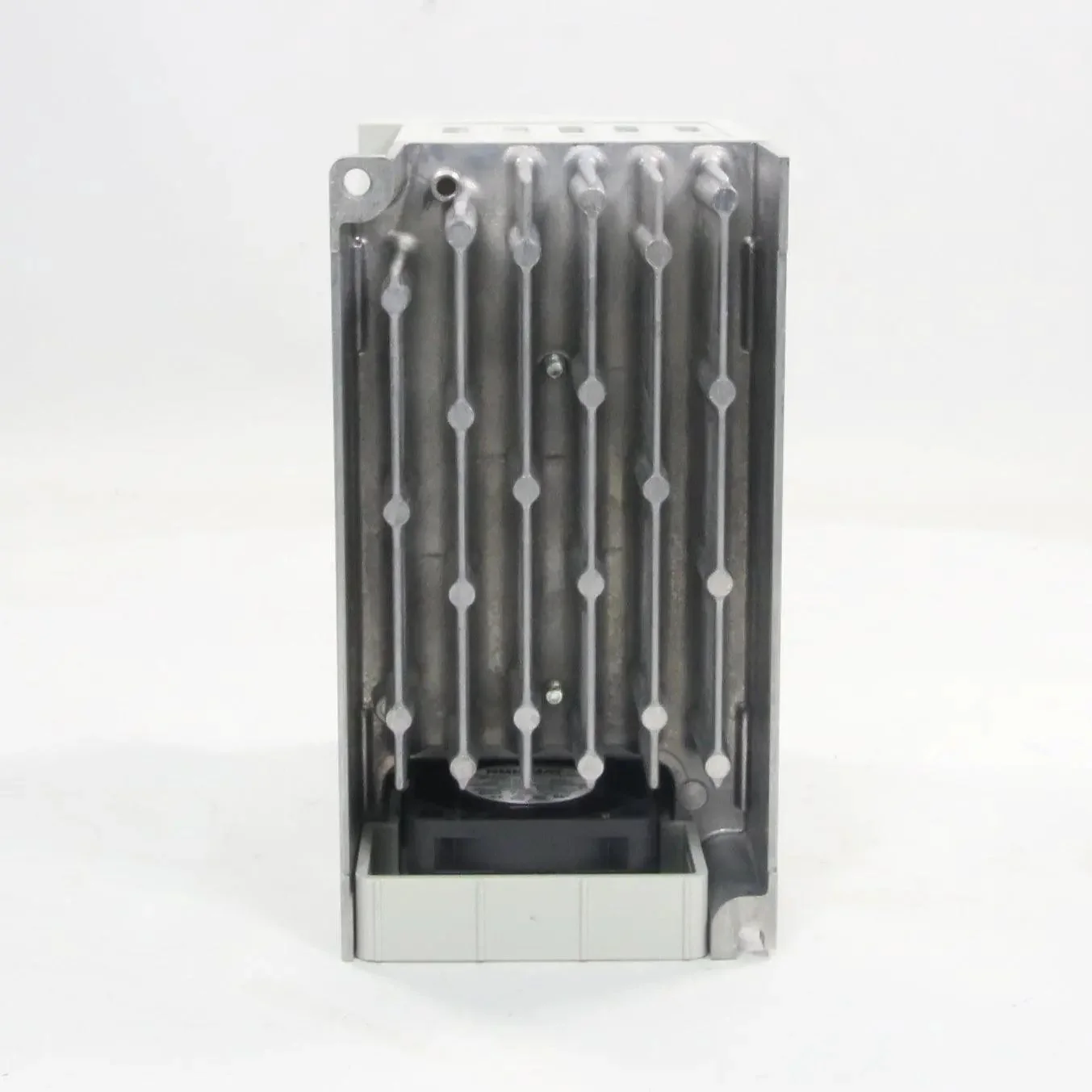

LS Electric SV004iG5A-1 AC Variable Frequency Drive
- Brand: LS Electric
- Model: SV004iG5A-1
- Type: AC Variable Frequency Drive (VFD) Inverter (iG5A series, compact sensorless vector control for general industrial applications like fans, pumps, and conveyors)
- All Tech Specs:
- Material: Plastic/Metal housing

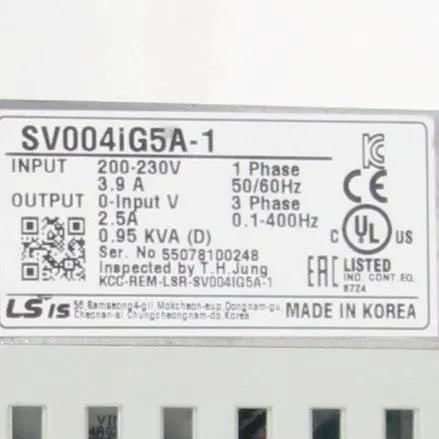

- Input Voltage: Single-phase 200-230 VAC +10%/-15%, 50/60 Hz
- Output Voltage: 3-phase 200-230 VAC - 0.1-400 Hz
- Rated Power: 0.4 kW
- Rated Current: 2.5 A - output
- Control Method: Sensorless vector control (SVC) for precise torque/speed; V/F control mode
- Overload Capacity: 150% for 60 seconds
- Frequency Resolution: 0.01 Hz
- Acceleration/Deceleration Time: 0.1-6000 seconds
- Torque Boost: Auto/manual (up to 30%)
- Carrier Frequency: 1-15 kHz
- Protection Features: Overvoltage, undervoltage, overcurrent, overload, overtemperature, short-circuit, ground fault; auto-reset
- I/O: 5 multi-function inputs (digital), 1 multi-function output (transistor), 1 relay output, analog input (0-10 V/4-20 mA)
- Communication: RS-485 (Modbus RTU standard); optional Profibus, DeviceNet
- EMC Filter: Built-in for category C2 (residential/commercial)
- Braking: Built-in dynamic braking transistor
- Operating Temperature: -10°C to +50°C
- Storage Temperature: -20°C to +65°C
- Humidity: 5-95% RH
- Altitude: Up to 1000 m
- Standards: IEC/EN 61800-5-1; CE marked; UL listed
- Certification: CE; RoHS compliant; cULus
- Features: Auto-tuning for motor parameters; PID control; DC injection braking; energy-saving mode; keypad copy function; suitable for light-duty applications
- Dimension: 130 x 128 x 70 mm
- Weight: 0.9 kg
- Country of Origin: South Korea
- HS Code: 8504.40
